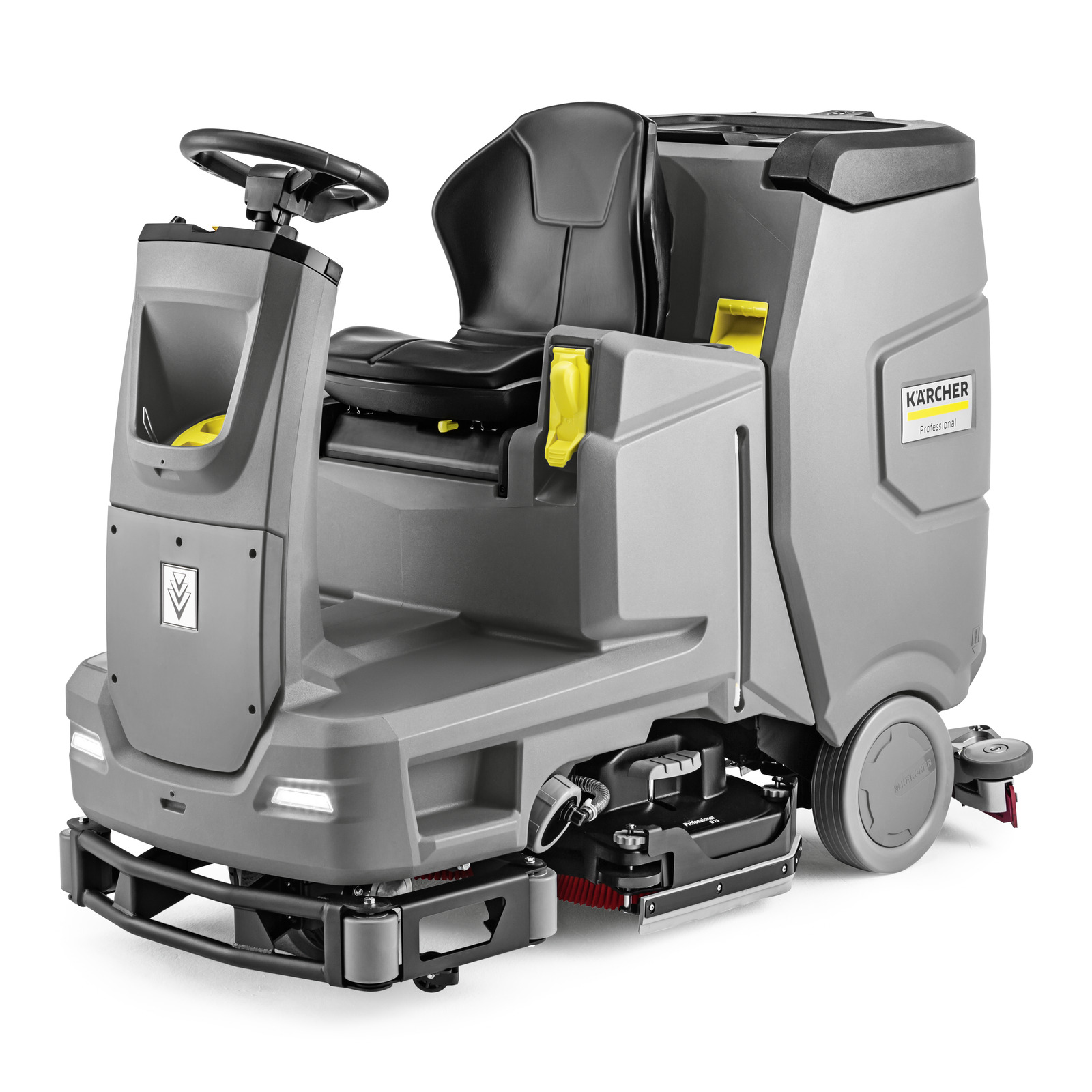

Scrubber drier

B 110 R Bp Pack 170Ah AGM+D75+DOSE+SSD

This device requires instruction

Part number: 1.161-424.0

The 110 litre fresh water and dirty water tanks, as well as the Auto Fill function, of the ride-on scrubber dryer B 110 R permit area performances of 5100 m² per hour.

Make an enquiry

Technical data

Drive type	Battery
Traction drive	Traction motor
Working width of brushes (mm)	750
Working width, vacuuming (mm)	950
Tank of fresh/dirty water (l)	110 110
Theoretical area performance (m²/h)	5100
Practical area performance (m²/h)	3600
Battery (V / Ah)	24 / 170
Battery runtime (h)	2.5
Battery charging time (h)	7
Power supply for battery charger (V / Hz)	100 - 230 / 50 - 60
Climbing ability (%)	10
Brush rotational speed (rpm)	180
Brush contact pressure (kg)	75
Aisle turning width (mm)	1750
Water consumption (l/min)	5.7
Sound pressure level (dB(A))	59
Rated input power (W)	2350
Total permissible weight (kg)	650
Weight without accessories (kg)	380
Dimensions (L × W × H) (mm)	1695 x 975 x 1315

Scope of supply

Battery and built-in charger included
Squeegee, curved
Side scrubbing deck
robust aluminium die-cast suction bar
dosing canister for cleaning agent with closed loop system

Equipment

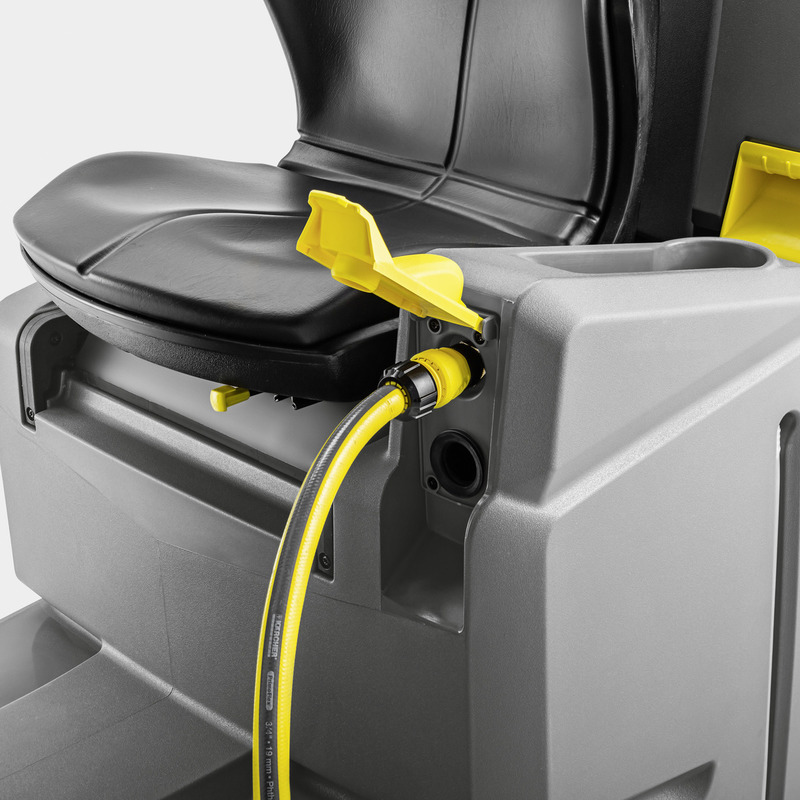

Auto Fill
Patented tank rinsing system
Powerful traction drive
Automatic water stop
DOSE
Parking brake
Solenoid valve
2-tank system
Height-adjustable seat
standard daytime driving light
small cleaning agent dosing up to 0.25%
robust front bumper
with speed-dependent water dosing
software updates and loss assessment can be done remotely via Kärcher fleet management
Kärcher colour and operating concept
Kärcher Intelligent Key System (KIK) with over 30 user languages and individual user rights
Home Base fastening possibilities for mop or similar
electrical and mechanical float switch

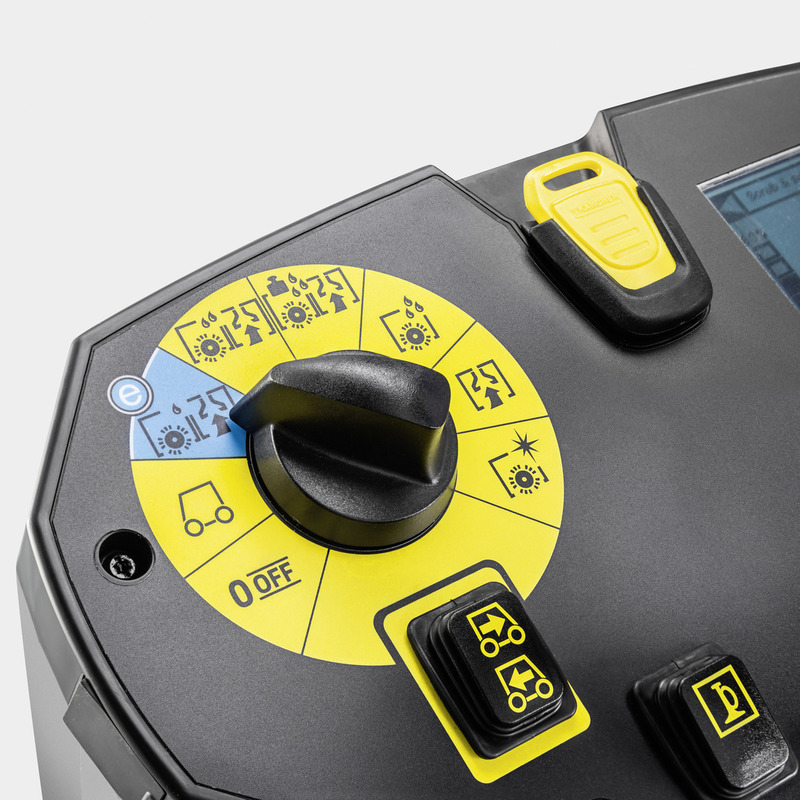

Easy Operation selector switch

Machine features are individually configurable.

Product information and benefits

Thanks to a tank volume of 110 litres each for fresh water and dirty water, as well as a disc brush head with 75 centimetre working width, our ride-on scrubber dryer B 110 R effortlessly achieves an area performance of around 5100 m² per hour. A side scrubbing deck is also attached, which extends the working width by 10 centimetres and allows cleaning close to the edges. With the resource-conserving DOSE cleaning agent dosing system, the time-saving Auto Fill function for filling the fresh water tank and the KIK key system for avoiding operating errors, the machine has further equipment details for efficient and user-friendly operation. A powerful 170 Ah battery and an on-board battery charger are also included in the scope of supply as standard. The user benefits from a convenient seat height adjustment, simple setting options via the colour display in over 30 languages, as well as daytime driving lights for increasing passive safety.

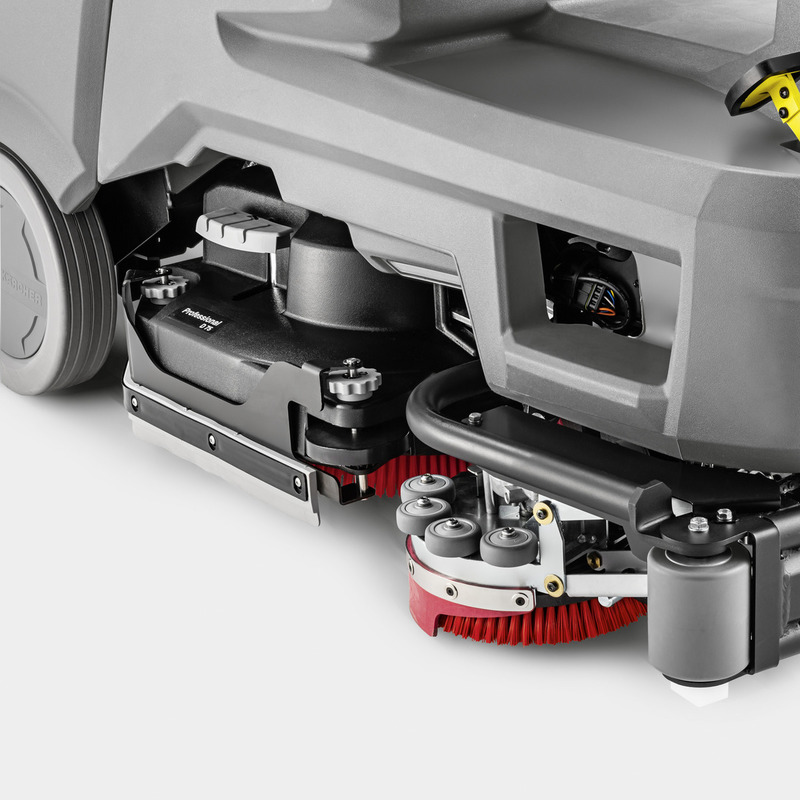

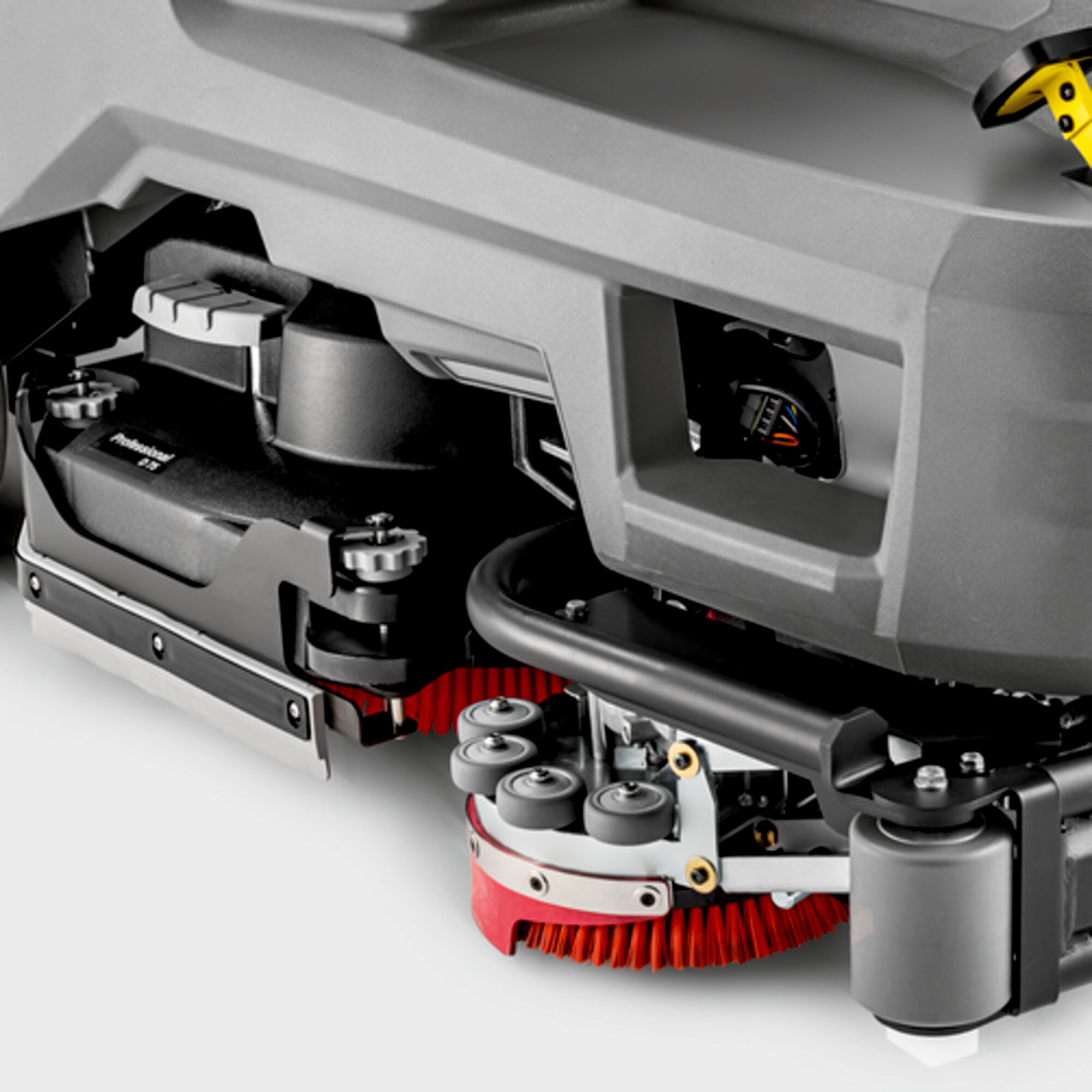

Time- and cost-saving side scrubbing deck

Permits cleaning at walls or shelves close to the edges. Swerves under the machine in the event of obstacles, thus avoiding damage. Cost savings by avoiding manual reworking in border areas.

Height-adjustable seat

Perfect sitting position irrespective of the operator's physical height. Superb seating comfort during the journey. Allows longer, fatigue-free work intervals.

Speed-dependent water dosing

Reduces the water supply in bends or during slow journeys. The water-saving function increases the area performance. Faster drying of the ground and lower risk of residual water in bends.

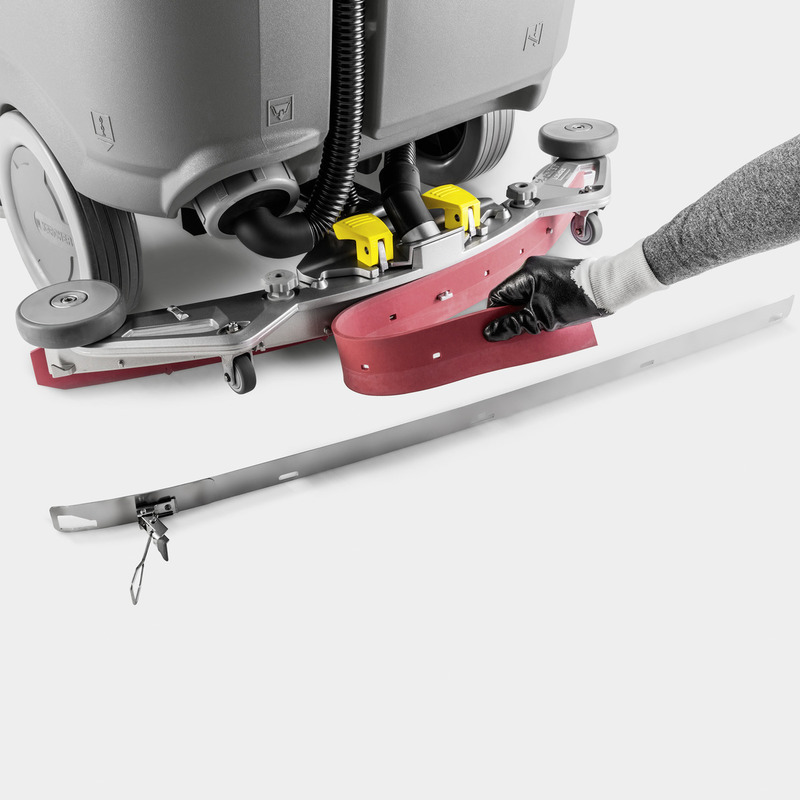

Robust squeegee made from die-cast aluminium

With tear-resistant, long-lasting Linatex® suction lips for excellent vacuuming results. Fast and simple replacement of the suction lips. Swerves upon wall contact, thus avoiding damage.
