Kärcher ride-on floor scrubber with a black seat, steering wheel, and grey body featuring yellow accents.

Scrubber drier

B 110 R Bp Pack 170Ah AGM+R75+DOSE

This device requires instruction

Part number: 1.161-419.0

110 l tanks for fresh/dirty water, 75 cm roller brush head, 6 km/h speed
Maintenance-free 170 Ah AGM batteries, run time of up to 2.5 h, max. 4500 m²/h
Speed-responsive dosing, daytime running light, very quiet, 59 dB(A)

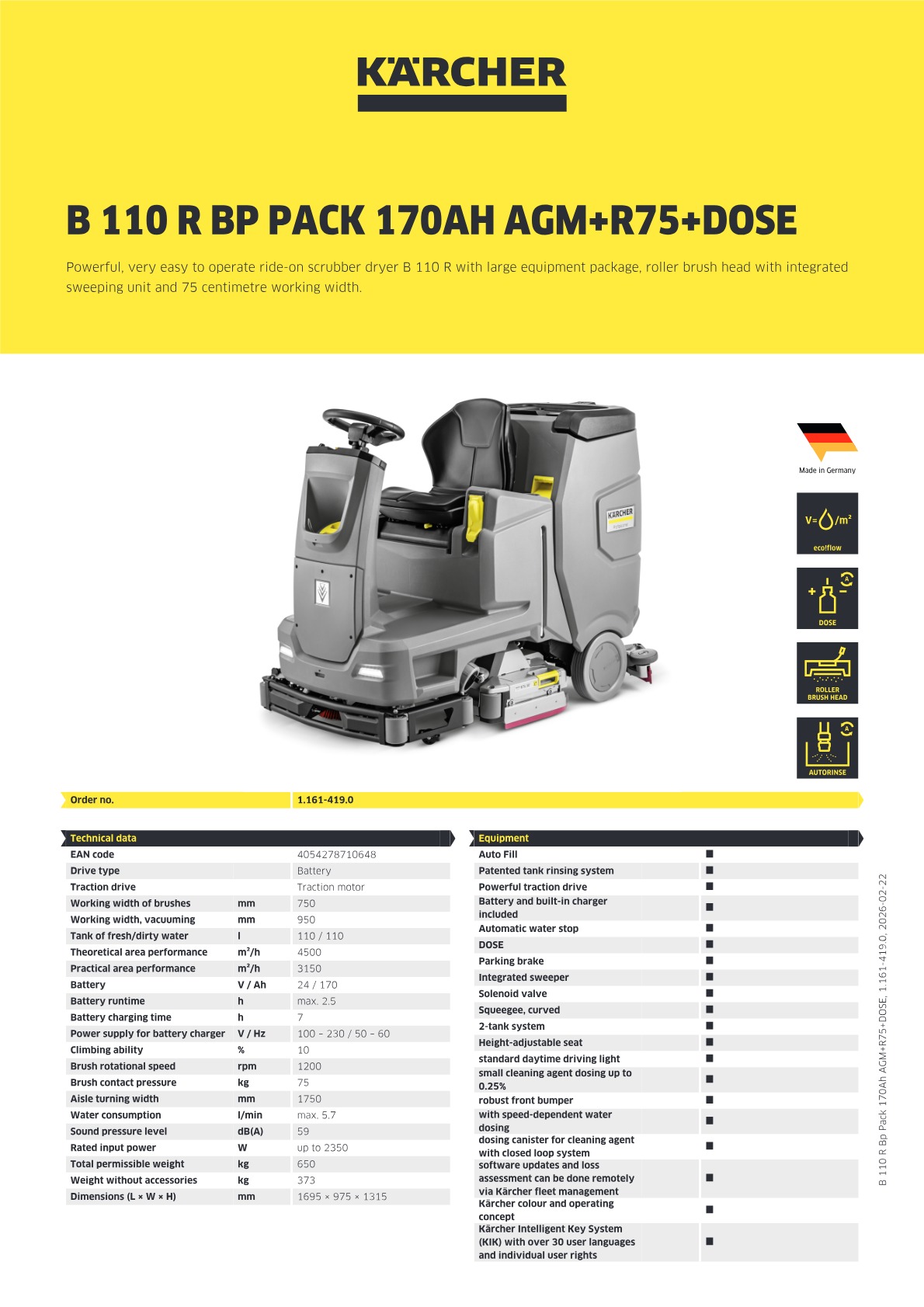

Technical data

Drive type	Battery
Traction drive	traction motor
Working width, brushes (mm)	750
Working width, vacuuming (mm)	950
Fresh/dirty water tank (l)	110 110
Theoretical area performance (m²/h)	4500
Practical area performance (m²/h)	3150
Battery (V / Ah)	24 / 170
Battery run time (h)	2.5
Battery charging time (h)	7
Voltage (power supply for battery charger) (V)	100 - 230
Frequency (power supply for battery charger) (Hz)	50 - 60
Climbing ability (%)	10
Brush rotational speed (rpm)	1200
Brush contact pressure (kg)	75
aisle turning width (mm)	1750
Water consumption (l/min)	5.7
Sound pressure level (dB(A))	59
Rated input power (W)	2350
Permissible total weight (kg)	650
Software updates available until	2032-01-01
Weight without accessories (kg)	373
Dimensions (L × W × H) (mm)	1695 x 975 x 1315

Scope of supply

Battery and built-in charger included
Squeegee, curved
dosing canister for detergent with closed loop system

Equipment

Auto Fill
Patented tank rinsing system
Powerful traction drive
Automatic water stop
DOSE
Parking brake
Integrated sweeping mechanism
Solenoid valve
2-tank system
Height-adjustable seat
Fresh water level indicator: Via water pressure
standard daytime driving light
small detergent dosing unit up to 0.25%
Robust front bumper
with speed-dependent water dosing
software updates and loss assessment can be done remotely via Kärcher fleet management
Kärcher colour and operating concept
Kärcher Intelligent Key System (KIK) with over 30 user languages and individual user rights
extremely quiet roller brush head for noise-sensitive areas
Home Base fastening possibilities for mop or similar
electrical and mechanical float switch
Easy Operation selector switch

picto automatic dosing CMYK oth 01 EN CI20

picto roller brush head CMYK oth 01 EN CI20

picto easy operation oth 1 EN CI15 110454 CMYK

Machine features are individually configurable.

Product information and benefits

Clever equipment details for protecting valuable resources, such as the DOSE cleaning agent dosing system and the speed-dependent water dosing, are core elements of the concept of our ride-on scrubber dryer B 110 R. A powerful 170 Ah battery and built-in charger are included as standard in the scope of delivery. The roller brush head with 75 centimetre working width and integrated pre-sweep function also impresses with an optimal cleaning performance. Our clever Auto Fill function and an automatic tank rinsing system are included as standard for the fast filling of the fresh water tank or deep cleaning of the dirty water tank. Both tanks hold 110 litres. In addition, users benefit from a convenient seat height adjustment, simple setting options via the colour display in over 30 languages, as well as daytime driving lights for even greater safety. With the B 110 R area performances of around 4500 m² per hour can be realised.

Roller brush head with integrated sweeping unit

Made from die-cast aluminium with large bumper wheels. Saves time with integrated pre-sweeping of coarse dirt. Very smooth running and quiet operation for application in noise-sensitive areas.

Height-adjustable seat

Perfect sitting position irrespective of the operator's physical height. Superb seating comfort during the journey. Allows longer, fatigue-free work intervals.

Speed-responsive water dosing

Reduces the water supply in bends or during slow journeys. The water-saving function increases the area performance. Faster drying of the ground and lower risk of residual water in bends.

Robust squeegee made from die-cast aluminium

With tear-resistant, long-lasting Linatex® suction lips for excellent vacuuming results. Fast and simple replacement of the suction lips. Swerves upon wall contact, thus avoiding damage.
