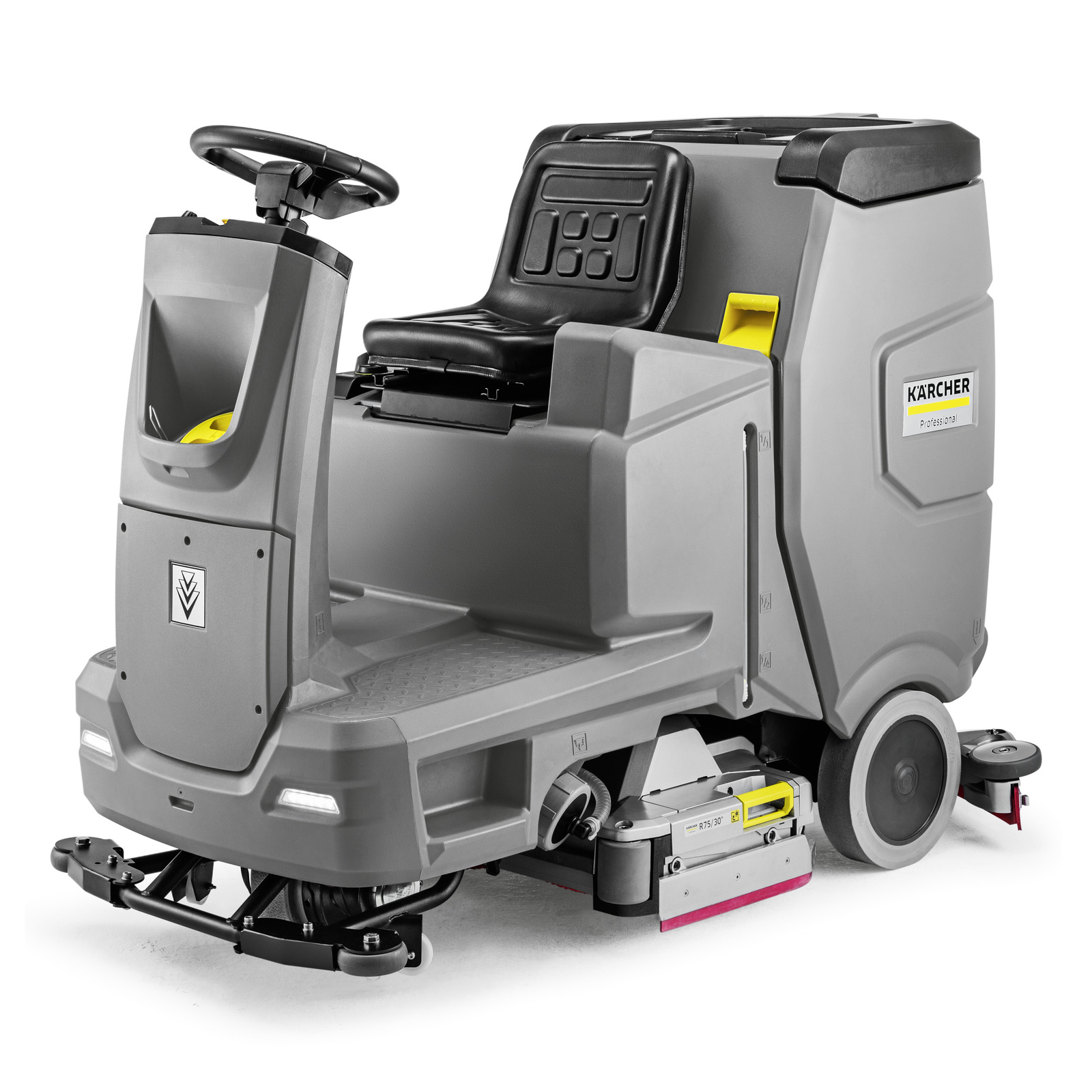

Scrubber drier

B 110 R Bp Pack Classic +R75

This device requires instruction

Part number: 1.161-435.0

110 l tanks for fresh/dirty water, 75 cm roller brush head, 6 km/h speed
Classic version, 170 Ah AGM batteries, run time of up to 2.5 h, max. 4500 m²/h
Daytime running light, extremely simple to operate, excellent turning circle, only 59 dB(A)

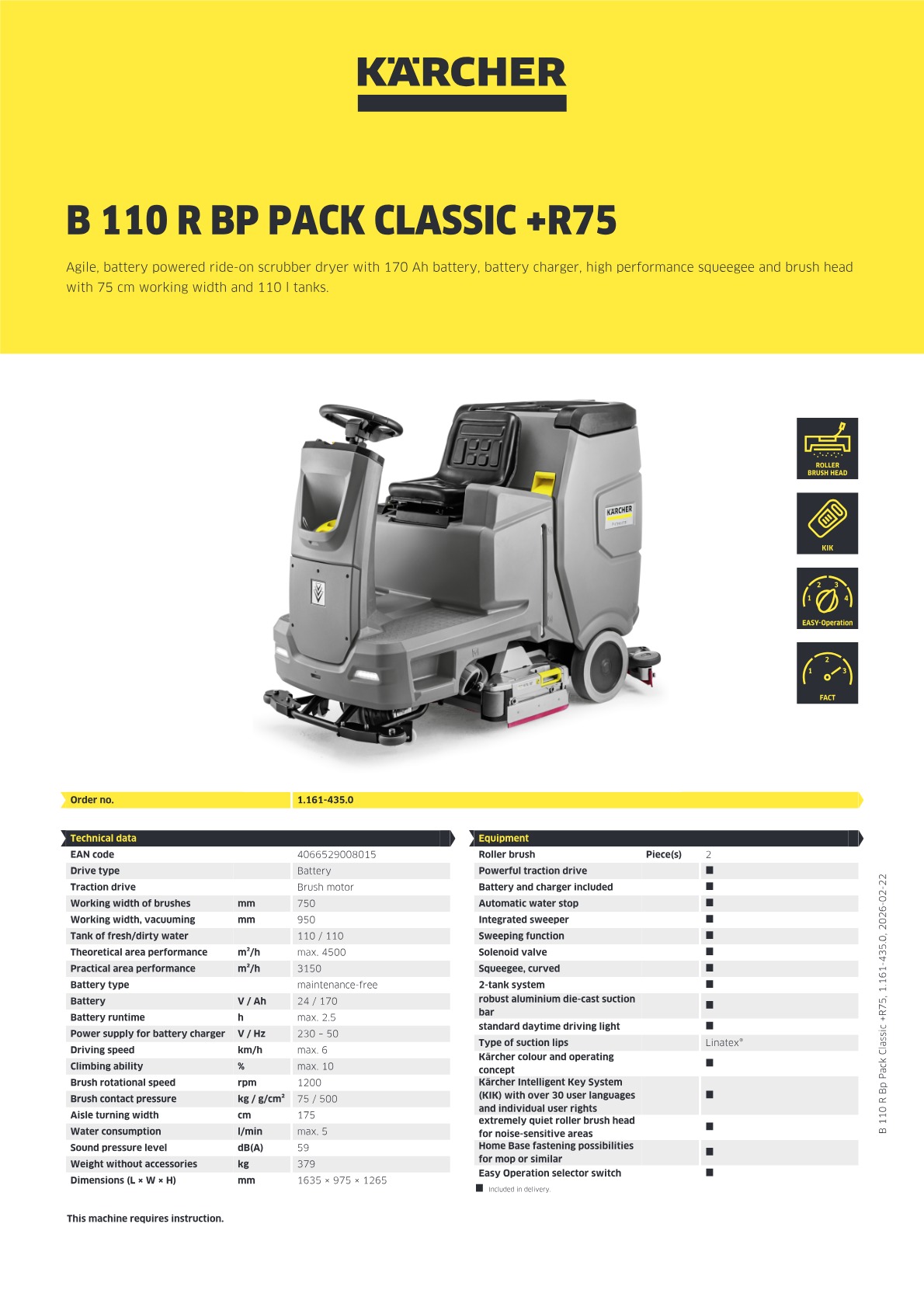

Technical data

Drive type	Battery
Traction drive	Brush motor
Working width, brushes (mm)	750
Working width, vacuuming (mm)	950
Fresh/dirty water tank ( )	110 / 110
Theoretical area performance (m²/h)	4500
Practical area performance (m²/h)	3150
Battery type	Maintenance-free
Battery (V / Ah)	24 / 170
Battery run time (h)	2.5
Voltage (power supply for battery charger) (V)	230
Frequency (power supply for battery charger) (Hz)	50
Driving speed (km/h)	max. 6
Climbing ability (%)	10
Brush speed (rpm)	1200
Brush contact pressure (kg / g/cm²)	75 / 500
aisle turning width (cm)	175
Water consumption (l/min)	5
Sound pressure level (dB(A))	59
Weight without accessories (kg)	379
Dimensions (L × W × H) (mm)	1635 x 975 x 1265

Scope of supply

Roller brush: 2Piece(s)
Battery and charger included
Squeegee, curved
robust aluminium die-cast suction bar

Equipment

Powerful traction drive
Automatic water stop
Integrated sweeping mechanism
Sweeping function
Solenoid valve
Two-tank system
standard daytime driving light
Type of suction lips: Linatex®
Kärcher colour and operating concept
Kärcher Intelligent Key System (KIK) with over 30 user languages and individual user rights
extremely quiet roller brush head for noise-sensitive areas
Home Base fastening possibilities for mop or similar
Easy Operation selector switch

picto roller brush head CMYK oth 01 EN CI20

picto easy operation oth 1 EN CI15 110454 CMYK

Product information and benefits

The very easy to use, battery powered ride-on scrubber dryer B 110 R Classic features a squeegee with market leading suction performance as well as a 75 centimetre wide roller brush head with time saving pre-sweeping function – both made of high quality die-cast aluminium. 110-litre tanks for fresh and dirty water not only enable longer working periods, but also area performance of up to 4,500 square metres per hour. Thanks to its compact construction design, the B 110 R Classic is very agile and is therefore also very suitable for cleaning angled areas. The integrated daytime running lights ensure the best overview and visibility. The high contact pressure of the rollers ensures excellent cleaning results and, if necessary, they can be changed quickly and easily. A large display for setting all important functions in over 30 languages and easy-to-understand, colour-coded control elements make the machine easy to use. The intelligent KIK key system for individual assignment of access rights to the machine's functions also prevents unwanted operating errors.

Robust squeegee made from die-cast aluminium

With tear-resistant, long-lasting Linatex® suction lips for excellent vacuuming results. Fast and simple replacement of the suction lips. Swerves upon wall contact, thus avoiding damage.

Roller brush head with integrated sweeping unit

Made from die-cast aluminium with large bumper wheels. Saves time with integrated pre-sweeping of coarse dirt. Very smooth running and quiet operation for application in noise-sensitive areas.

Innovative KIK system

Greater protection against incorrect operation. Lower service costs. Optimum matching to the individual cleaning tasks without overwhelming the user.

Energy-saving eco!efficiency mode

Reduced power consumption. 40% longer runtime per battery charge. Even quieter and thereby ideal for noise-sensitive areas (daytime cleaning, hospitals, hotels, etc.).

Large, colour display

No separate battery charger necessary. Convenient and easy handling. Can be used with various battery types.

Easy handling

Easy handling thanks to logically structured control elements with colour coding. Easier use and shorter learning curve.
