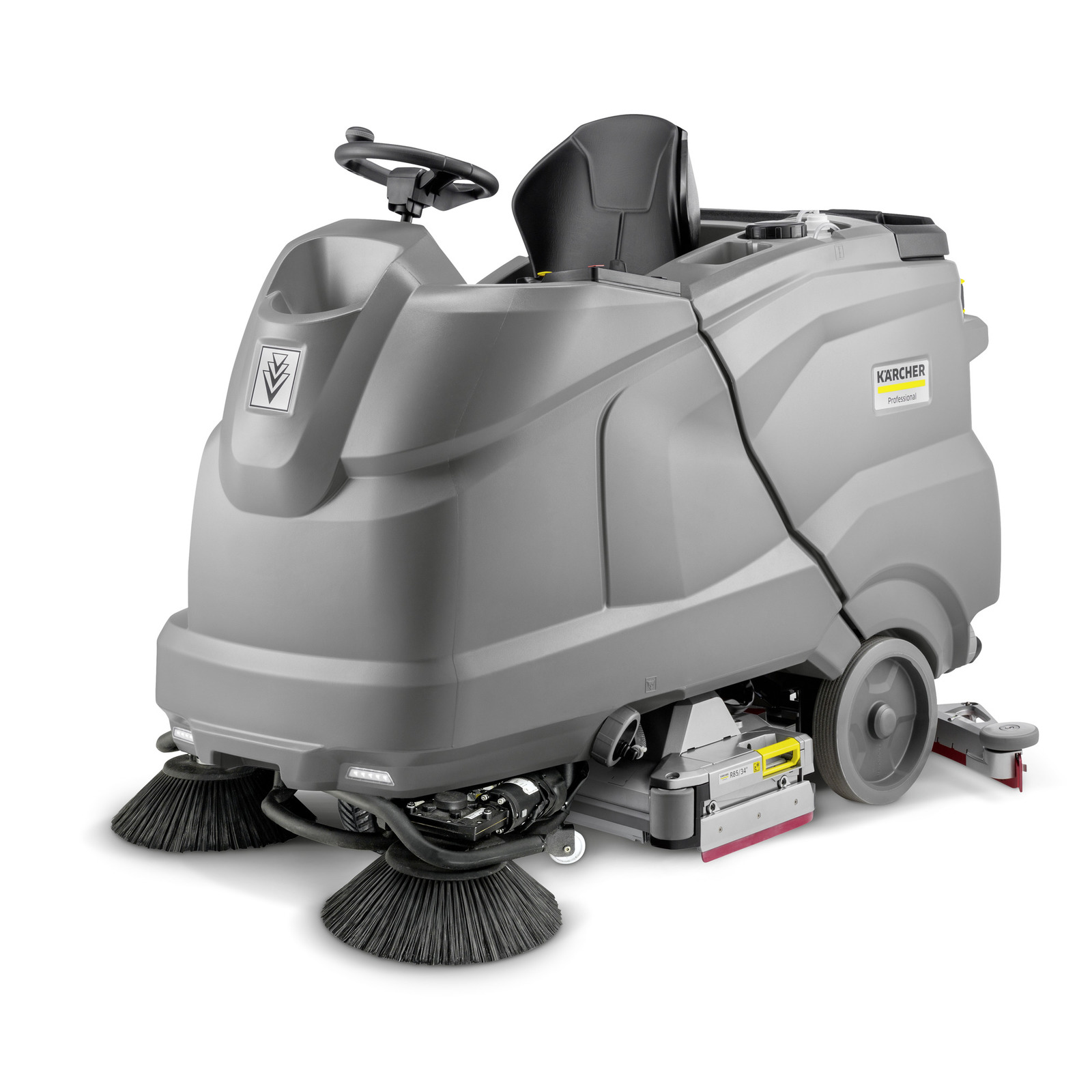

Kärcher ride-on floor scrubber with steering wheel, grey body, and visible brushes at the front.

Scrubber drier

B 220RBpPackDOSE+SB+240AhLi+RI+beac+R85

This device requires instruction

Part number: 1.246-283.0

220 l tanks for fresh/dirty water, 85 cm roller brush head, 10 km/h speed
240 Ah lithium-ion battery, run time of up to 5 h, max. 8500 m²/h, built-in charger
Speed-responsive dosing, two side brushes, tank rinsing

Technical data

Drive type	Battery
Traction drive	Electric
Working width, brushes (mm)	850 - 850
Working width, vacuuming (mm)	1180 - 1180
Fresh/dirty water tank (l)	220 / 220
Theoretical area performance (m²/h)	8500
Practical area performance (m²/h)	5950
Battery type	Li-ion
Battery (V / Ah)	36 / 240
Battery run time (h)	5
Battery charging time (h)	7
Voltage (power supply for battery charger) (V)	100 - 240
Frequency (power supply for battery charger) (Hz)	50 - 60
Driving speed (km/h)	10
Climbing ability (%)	10
Brush speed (rpm)	1300
aisle turning width (cm)	181
Water consumption (l/min)	7
Sound pressure level (dB(A))	67 - 67
Permissible total weight (kg)	994
Weight without accessories (kg)	230
Dimensions (L × W × H) (mm)	1925 x 909 x 1420

Scope of supply

Roller brush, 2 Piece(s)
Battery and built-in charger included
Battery and charger included
Squeegee, curved
Side brush
robust aluminium die-cast suction bar
dosing canister for detergent with closed loop system

Equipment

Auto Fill
Patented tank rinsing system
Powerful traction drive
Automatic water stop
DOSE
Parking brake
Integrated sweeping mechanism
Solenoid valve
Two-tank system
Fresh water level indicator: Via water pressure
standard daytime driving light
small detergent dosing unit up to 0.25%
Type of suction lips: Linatex®
Robust front bumper
with speed-dependent water dosing
software updates and loss assessment can be done remotely via Kärcher fleet management
Kärcher colour and operating concept
Kärcher Intelligent Key System (KIK) with over 30 user languages and individual user rights
extremely quiet roller brush head for noise-sensitive areas
Home Base fastening possibilities for mop or similar
speed reduction in curves for increased safety
electrical and mechanical float switch
Easy Operation selector switch

picto automatic dosing CMYK oth 01 EN CI20

picto roller brush head CMYK oth 01 EN CI20

picto 5 years warranty CMYK oth 01 EN CI15

picto interim charge CMYK oth 01 EN CI20

picto wheel angle sensor oth 01 EN 284x284px

picto easy operation oth 1 EN CI15 110454 CMYK

picto full efficiency CMYK oth 01 EN CI20

Product information and benefits

The high-spec B 220 R ride-on scrubber dryer with 240 Ah lithium-ion batteries, an integrated battery charger and daytime running light performs impressively with an area performance of just over 8,500 m² per hour. Optimal cleaning results are ensured by the 85 cm-wide die-cast aluminium roller brush head with a pre-sweeping function, dual side brushes which also collect waste from outside the working width, our DOSE detergent dosing system, the Eco!Mode¹⁾, the speed-responsive water dosing system and the powerful, robust aluminium squeegee. The lithium-ion batteries with manufacturer’s guarantee make cleaning hassle-free: there’s no need to change battery within the machine’s service lifetime, it features fast charge and intermediate charge functions and offers safe handling. The Auto-Fill function and automatic tank rinsing mean that the 220 l fresh and waste water tanks can be quickly filled and cleaned. The patented KIK key system prevents operator errors by means of individual access rights. With 10 km/h driving speed and steering angle sensor.

Robust squeegee made from die-cast aluminium

With tear-resistant, long-lasting Linatex® suction lips for excellent vacuuming results. Fast and simple replacement of the suction lips. Swerves upon wall contact, thus avoiding damage.

Innovative KIK system

Greater protection against incorrect operation. Lower service costs. Optimum matching to the individual cleaning tasks without overwhelming the user.

Energy-saving eco!efficiency mode

Reduced power consumption. Up to 40 percent longer runtime of the battery. Even quieter and thereby ideal for noise-sensitive areas (daytime cleaning, hospitals, hotels, etc.).

Patented tank rinsing system

Easy cleaning of the dirty water tank. Water savings of up to 70% in comparison to cleaning with a conventional water hose. Better hygiene.

With a system for the "DOSE" cleaning agent dosing unit

Saves cleaning agent. Precise and uniform dosing (adjustable from 0 to 3%). Cleaning agent can be replaced without the need to empty the fresh water tank.

Easy handling

Easy handling thanks to logically structured control elements with colour coding. Easier use and shorter learning curve.
