Kärcher high-pressure cleaner with hose and trigger gun, grey and yellow design, mounted on wheels.

Awards and exclusive range

High pressure cleaner

Cold Water Pressure Washer HD 5/11 P

Part number: 1.520-966.0

Automatic pressure relief
For horizontal and vertical operation
Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release fasteners

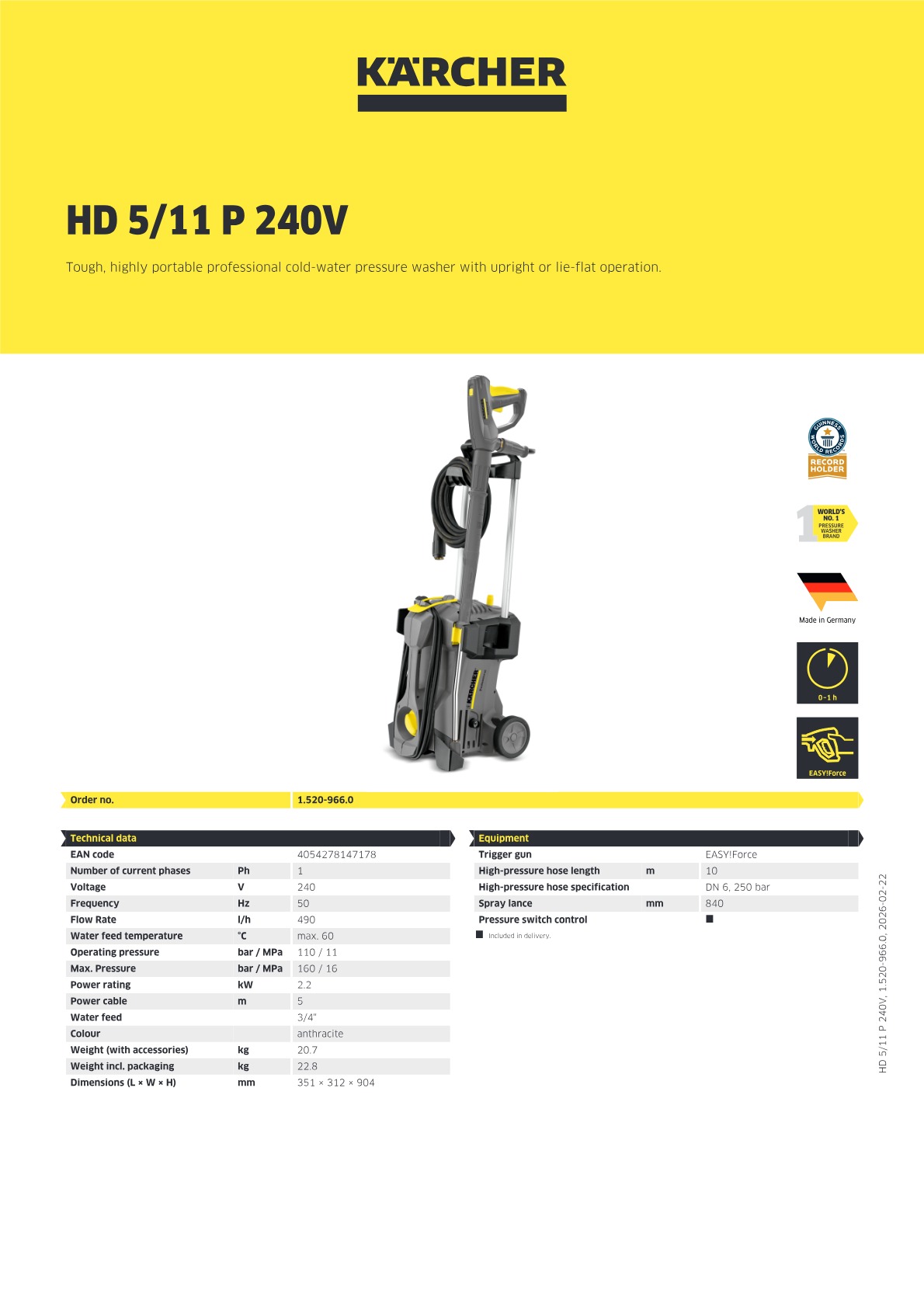

Technical data

Number of current phases (Ph)	1
Voltage (V)	240
Frequency (Hz)	50
Flow Rate (l/h)	490
Water feed temperature (°C)	max. 60
Operating pressure (bar / MPa)	110 / 11
Max. Pressure (bar / MPa)	160 / 16
Power rating (kW)	2.2
Power cable (m)	5
Water inlet	3/4″
Colour	anthracite
Weight (with accessories) (kg)	20.7
Weight incl. packaging (kg)	22.8
Dimensions (L × W × H) (mm)	351 x 312 x 904

Scope of supply

Spray gun: EASY!Force
High-pressure hose length: 10m
High-pressure hose specification: DN 6, 250 bar
Spray lance: 840mm

Equipment

Pressure cut-off

Recommended maximum duration of use in hours/day.

High-pressure trigger gun with zero holding force for fatigue-free operation.

Robust, long-lasting quick-release lock: five times faster than screwing.

Product information and benefits

Kärcher’s HD 5/11 P offers professional quality and performance in a truly portable package. Thanks to its compact dimensions, light weight, and built-in carry handle, the HD 5/11 P is incredibly easy to transport even up steps or ladders. The machine has several features usually found on much more expensive machines, like the automatic pressure relief feature to protect internal components on start-up, the Easy!Force trigger gun with rotating lance, and high-grade hose and power cable. All of its professional-grade accessories are stored on-board, providing easy access and helping to prevent trip hazards. This tough, simple machine can be operated in a vertical or horizontal position, making it safer for use at height or on uneven ground.

Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release fasteners

Fatigue-free work at last: the EASY!Force high pressure gun. EASY!Lock quick-release locks: durable and robust. And five times faster than a standard screw connection.

First-class mobility

The integrated carrying handle on the front of the machine enableseasy loading and convenient transport. Compact design and low weight.

Flexibility

Vertical and horizontal operation possible. Separate parking and transport position for the spray unit. The machine offers maximum stability in horizontal operation.

Quality

The automatic pressure relief protects the components and extends the service life. High-quality brass cylinder head.

Accessory storage

Screw connection (M 18 × 1.5) for storing a Surface Cleaner directly on the machine. Practical nozzle compartments for triple nozzle and rotary nozzle. Rubber band for attaching the HP hose.
