Kärcher upright vacuum cleaner with grey and yellow accents, featuring a handle and hose attachment.

Upright brush-type vacuum cleaner

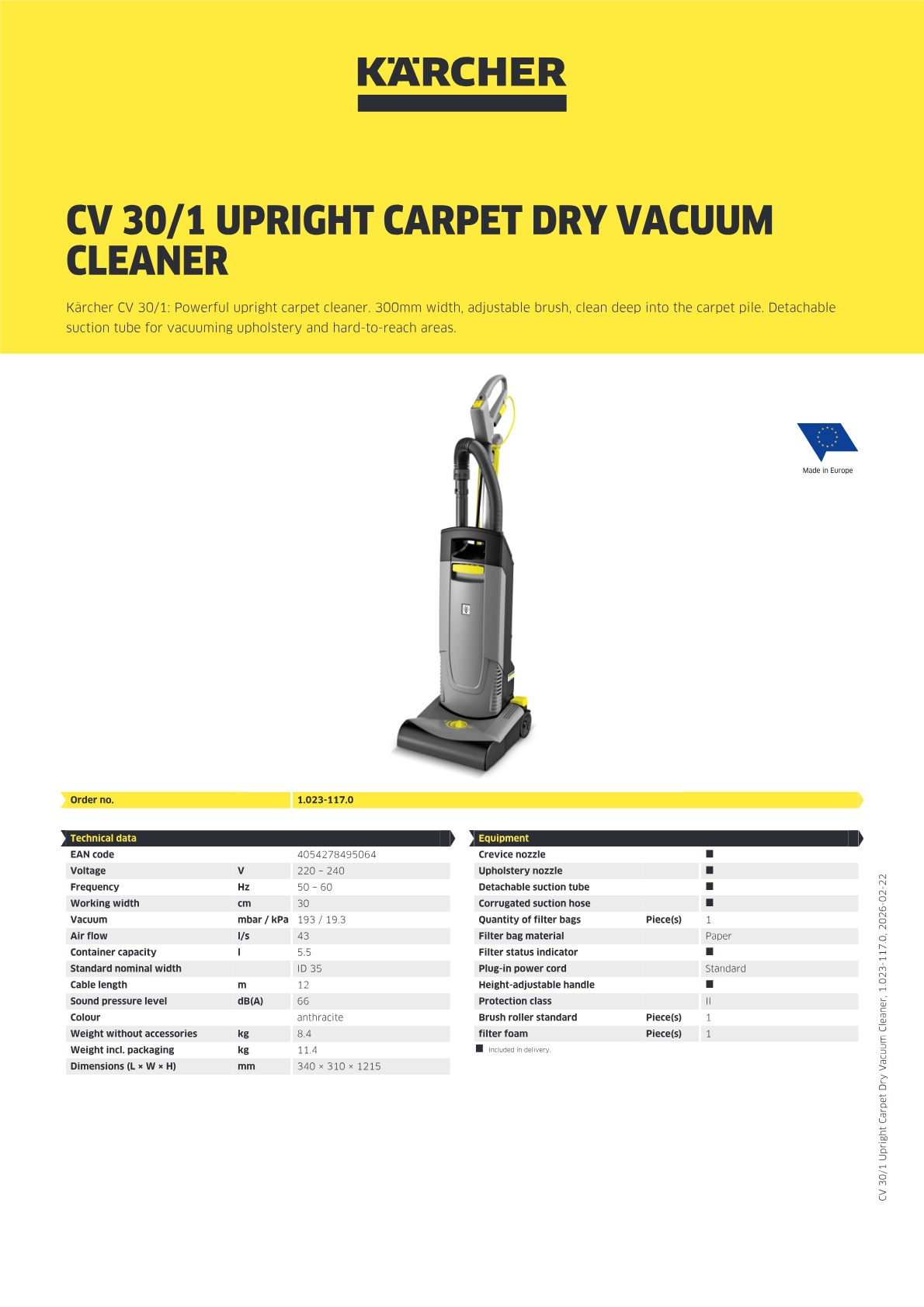

CV 30/1 Upright Carpet Dry Vacuum Cleaner

Part number: 1.023-117.0

300 mm cleaning width, handle (on/off switch), roller brush adjustment
12 m plug-in power cable, tool-free brush replacement, accessory storage
Crevice nozzle, upholstery nozzle, roller brush

Technical data

Voltage (V)	220 - 240
Frequency (Hz)	50 - 60
Working width (cm)	30
Vacuum (mbar / kPa)	193 / 19.3
Air flow (l/s)	43
Container capacity (l)	5.5
Standard nominal width ( )	35
Cable length (m)	12
Sound pressure level (dB(A))	66
Colour	anthracite
Weight without accessories (kg)	8.4
Weight incl. packaging (kg)	11.4
Dimensions (L × W × H) (mm)	340 x 310 x 1215

Scope of supply

Crevice nozzle
Upholstery nozzle
Detachable suction tube
Corrugated suction hose
Quantity of filter bags, 1 Piece(s)
Filter bag material, Paper
Brush roller standard, 1 Piece(s)
filter foam, 1 Piece(s)

Equipment

Filter status indicator
Plug-in power cord: Standard
Height-adjustable handle
Protection class: II

Product information and benefits

With a large working width of 300 mm, our upright brush-type vacuum cleaner CV 30/1 is also ideal for cleaning larger areas – whether in the retail trade, showrooms, hotel sector and restaurants or many other applications. Also edges, rails and small alcoves are cleaned effortlessly, quickly and intensively using a removable suction tube with stretchable suction hose. Innovative equipment details, such as the patented centrifugal coupling, which automatically releases the roller if the brush is blocked with dirt, or the automatic brush release, which prevents deformation of the brush strips as well as wear to the carpet in idle position, are proof of the clever and safe machine concept. Two sturdy hinges between the brush head and suction part, as well as the sliding plate made from high-quality plastic, are representative of our high quality claim. The handling is also comfortable: If required, the brush can be easily replaced without the need for any tools. And even the power cable can be replaced during servicing without any prior knowledge thanks to the quick-change system."

Manual brush roller adjustment

Thanks to the height adjustment, the roller brush can be adjusted to any carpet pile height.

Brush replacement without tools

Rapid change of roller brush without the need for any tools.

Quick-change system for power cable

Time- and cost-saving replacement of power cable without any prior knowledge.

Patented centrifugal coupling

For a longer lifetime: the innovative patented centrifugal coupling protects the whole brush head from being overloaded, thereby avoiding high service costs.

CV 30/1 Upright Carpet Dry Vacuum Cleaner

Technical data

Product information and benefits

Manual brush roller adjustment

Brush replacement without tools

Quick-change system for power cable

Patented centrifugal coupling
