Kärcher high-pressure cleaner with hose and spray gun, mounted on a wheeled frame.

Awards and exclusive range

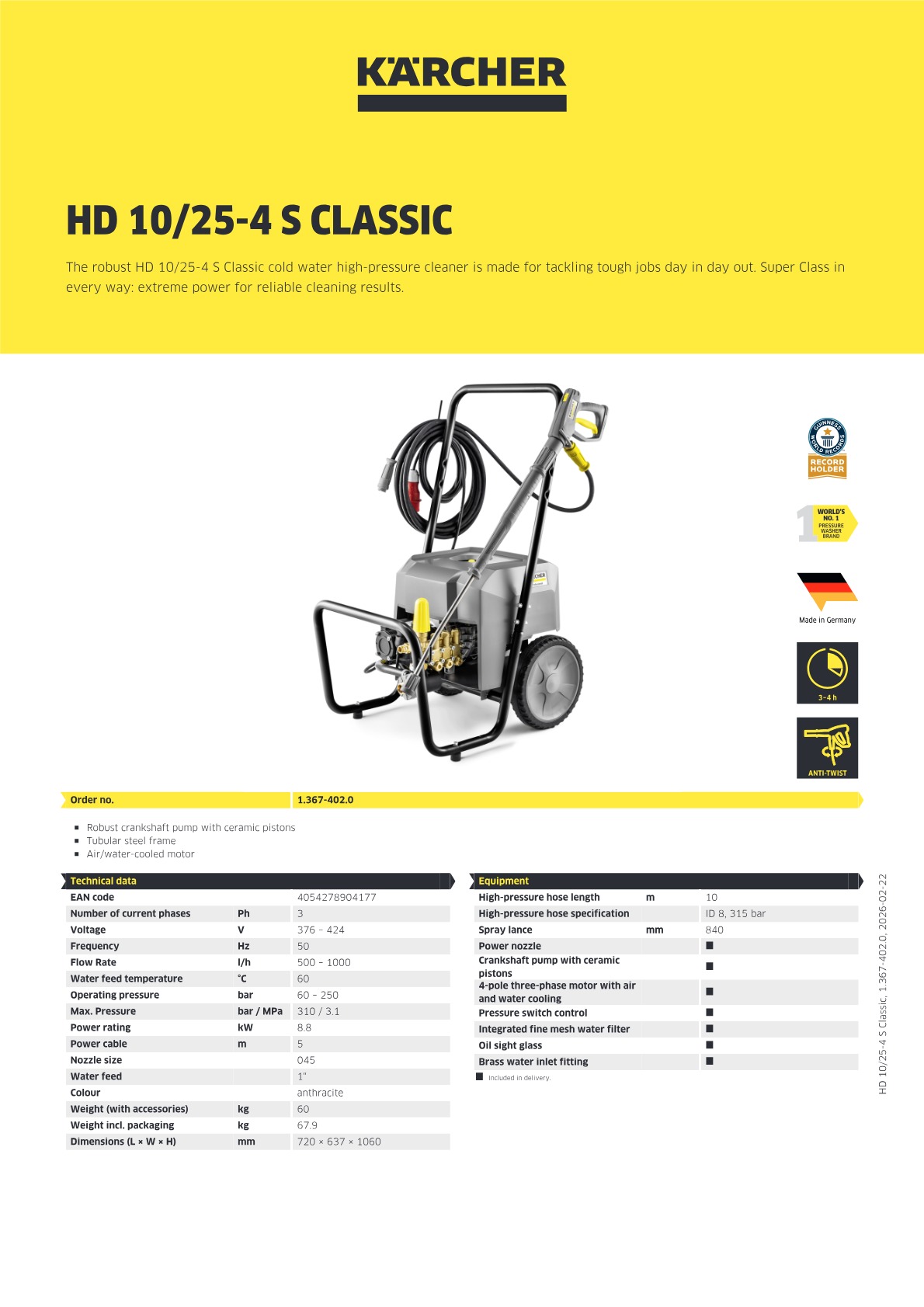

High pressure cleaner

HD 10/25-4 S Classic

Part number: 1.367-402.0

Crankshaft pump with ceramic pistons
Tubular steel frame
Air/water-cooled motor

Technical data

Number of current phases (Ph)	3
Voltage (V)	376 - 424
Frequency (Hz)	50
Flow Rate (l/h)	500 - 1000
Water feed temperature (°C)	60
Operating pressure (bar)	60 - 250
Max. Pressure (bar / MPa)	310 / 3.1
Power rating (kW)	8.8
Power cable (m)	5
Nozzle size	045
Water inlet	1″
Colour	anthracite
Weight (with accessories) (kg)	60
Weight incl. packaging (kg)	67.9
Dimensions (L × W × H) (mm)	720 x 637 x 1060

Scope of supply

High-pressure hose length, 10 m
High-pressure hose specification, DN 8, 315 bar
Spray lance, 840 mm
Power nozzle

Equipment

Crankshaft pump with ceramic pistons
4-pole three-phase motor with air and water cooling
Pressure cut-off
Integrated fine mesh water filter
Sight glass for oil level
Brass water inlet fitting

Recommended maximum duration of use in hours/day.

Robust, long-lasting quick-release lock: five times faster than screwing.

Product information and benefits

The cold water high-pressure cleaner HD 10/25-4 S Classic is designed for daily use. The device features a steel frame. The structure enables direct application. The components are easily accessible. The high-pressure cleaner is equipped with the Classic high-pressure gun for devices in the HD Classic range. In addition, the device has EASY!Lock quick-release fasteners for handling. An integrated water filter protects the high-pressure pump from dirt particles. The high-pressure cleaner is equipped with a crankshaft pump, a brass cylinder head and pistons with ceramic sleeves. The pressure can be adjusted at the pump as required. The device features a slow-running 4-pole motor with water and air cooling.

Crankshaft pump with brass cylinder head and pistons with ceramic sleeves

High performance Long service life and low maintenance costs. With suction feature and up to 60 °C water temperature.

Steel frame with large wheels for maximum portability

Protects the machine even in adverse conditions. Simple and convenient to transport. Integrated storage space for accessories.

Classic accessories with EASY!Lock connections

Quick set-up and pack-up plus easy accessory replacement. Robust accessories. Easy and intuitive to operate.

Clear machine design

Integrated water filter can be removed and cleaned without any tools. Pressure and water flow can be adjusted on the pump itself. Filling level and quality of the oil can be checked easily using the inspection glass and dipstick.

4-pole low-speed motor with air-water cooling system

Long service life and low maintenance costs. Combines water cooling with an air cooling system for maximum cooling output even in fluctuating ambient temperatures and water temperatures. Compact design for maximum portability.

Product safety and documents

Applications and videos

Application areas

Cleaning animal stables in agriculture
Cleaning tractors, machines and implements in agriculture
Cleaning cladding and concrete moulding in the construction sector
Cleaning machines and equipment on the building site, such as cement mixers, scaffolding, wheel loaders, diggers or concrete pumps
Cleaning production machinery in industry, such as in paint shops, in food production or in the manufacturing sector
Cleaning vehicles in transport sector, such as trucks, ships, aeroplanes or buses
Cleaning communal spaces such as public squares, driveways, fountains or car parks

Awards and exclusive range

HD 10/25-4 S Classic

Technical data

Product information and benefits

Crankshaft pump with brass cylinder head and pistons with ceramic sleeves

Steel frame with large wheels for maximum portability

Classic accessories with EASY!Lock connections

Clear machine design

4-pole low-speed motor with air-water cooling system

Product safety and documents

Applications and videos
