Grey Kärcher high-pressure cleaner with control panel and wheels, featuring a handle on top for easy manoeuvrability.

Awards and exclusive range

High pressure cleaner

HDS 7/10-4M

This device requires instruction

Part number: 1.071-949.0

eco!efficiency mode, water-cooled 4-pole electric motor with axial pump
10-metre-long high-pressure hose, additional storage compartment for accessories
EASY!Force Advanced with servo control controller, 2 detergent tanks, descaler

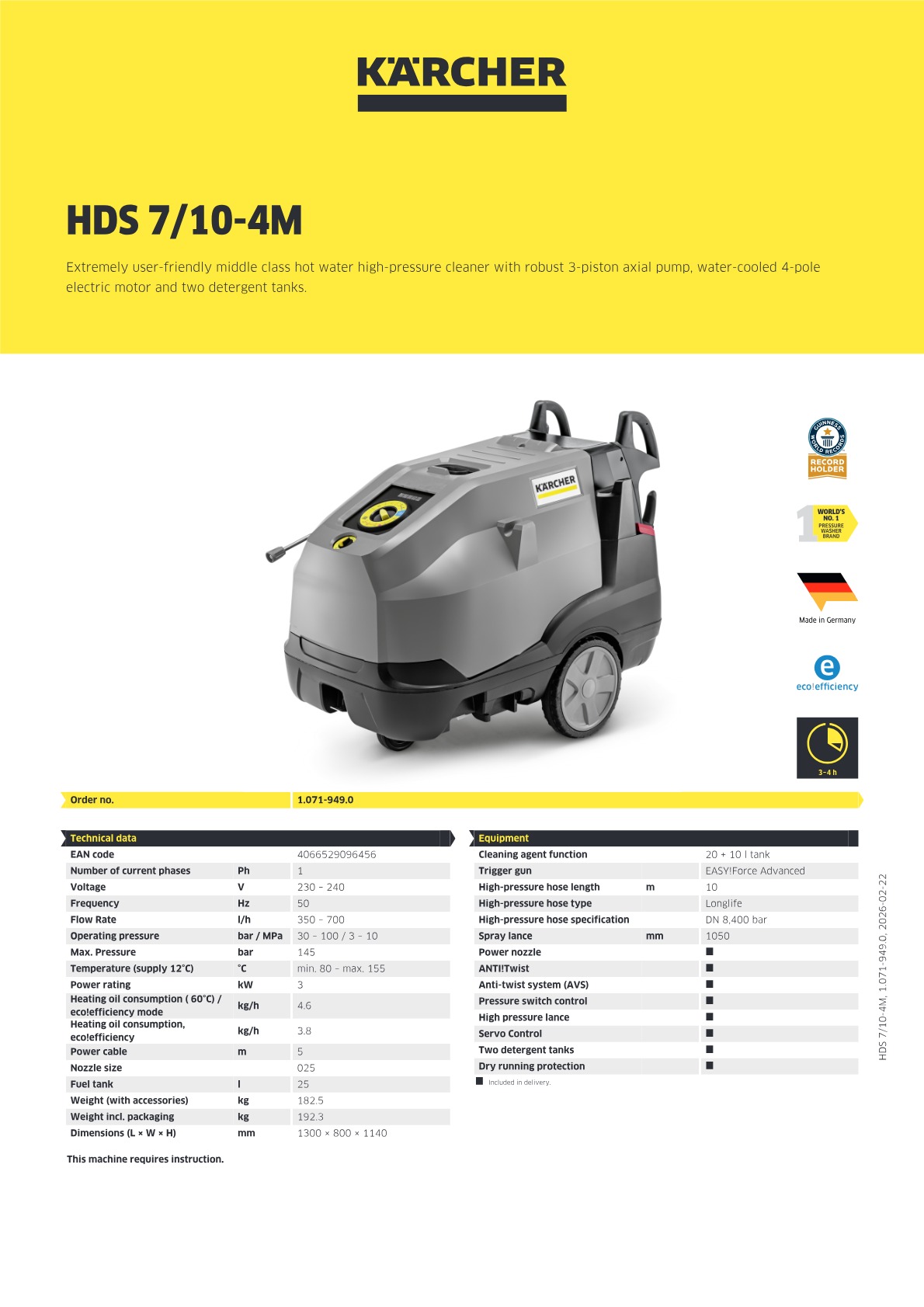

Technical data

Number of current phases (Ph)	1
Voltage (V)	230 - 240
Frequency (Hz)	50
Flow Rate (l/h)	350 - 700
Operating pressure (bar / MPa)	30 - 100 / 3 - 10
Max. Pressure (bar)	145
Temperature (supply 12°C) (°C)	min. 80 - max. 155
Power rating (kW)	3
Consumption of fuel oil at full load (kg/h)	4.6
Heating oil consumption, eco!efficiency (kg/h)	3.8
Power cable (m)	5
Nozzle size	025
Fuel tank (l)	25
Weight (with accessories) (kg)	182.5
Weight incl. packaging (kg)	192.3
Dimensions (L × W × H) (mm)	1300 x 800 x 1140

Scope of supply

Spray gun: EASY!Force Advanced
High-pressure hose length: 10m
High-pressure hose type: Longlife
High-pressure hose specification: DN 8,400 bar
Spray lance: 1050mm
Power nozzle
High-pressure spray lance
Servo Control

Equipment

Detergent function: 20 + 10 l tank
ANTI!Twist
Anti-twist system (AVS)
Pressure cut-off
2 Detergent tanks
Dry running protection

Recommended maximum duration of use in hours/day.

Trigger gun regulation of pressure and water flow.

Robust, long-lasting quick-release lock: five times faster than screwing.

Switchable cleaning agent dosing system.

Weeding with our weed remover and hot water high-pressure cleaners without chemicals.

picto certified virus disinfection CMYK oth 01 EN CI20

Product information and benefits

The HDS 7/10-4 M single-phase hot water high-pressure cleaner is the perfect entry-level machine in the middle class. It combines the highest cleaning quality with the best ergonomics and user-friendliness thanks to high-quality components and systems. The robust 3-piston axial pump with ceramic piston, the low-speed, water-cooled, 4-pole electric motor, optimised burner engineering and the economical eco!efficiency mode ensure safe and economical operation. The innovative EASY!Force Advanced HP trigger gun with servo control and 1050-millimetre-long stainless steel spray lance with patented nozzle technology is also included as standard for effortless, fatigue-free and ergonomic work. The middle class machine also impresses with its two detergent tanks, intuitive 1-switch operation, ergonomic accessory storage, time-saving EASY!Lock quick-release fasteners and a sophisticated mobility concept. Consistently applied safety technology with water filter, safety valves and SDS hose also reliably protects the particularly maintenance-friendly HDS 7/10-4 M from damage.
