Kärcher professional high-pressure cleaner with grey body and large wheels, featuring a mounted spray lance.

Awards and exclusive range

High pressure cleaner

HDS-E 8/16-4 M 12 kW

This device requires instruction

Part number: 1.030-900.0

High-speed heating chamber

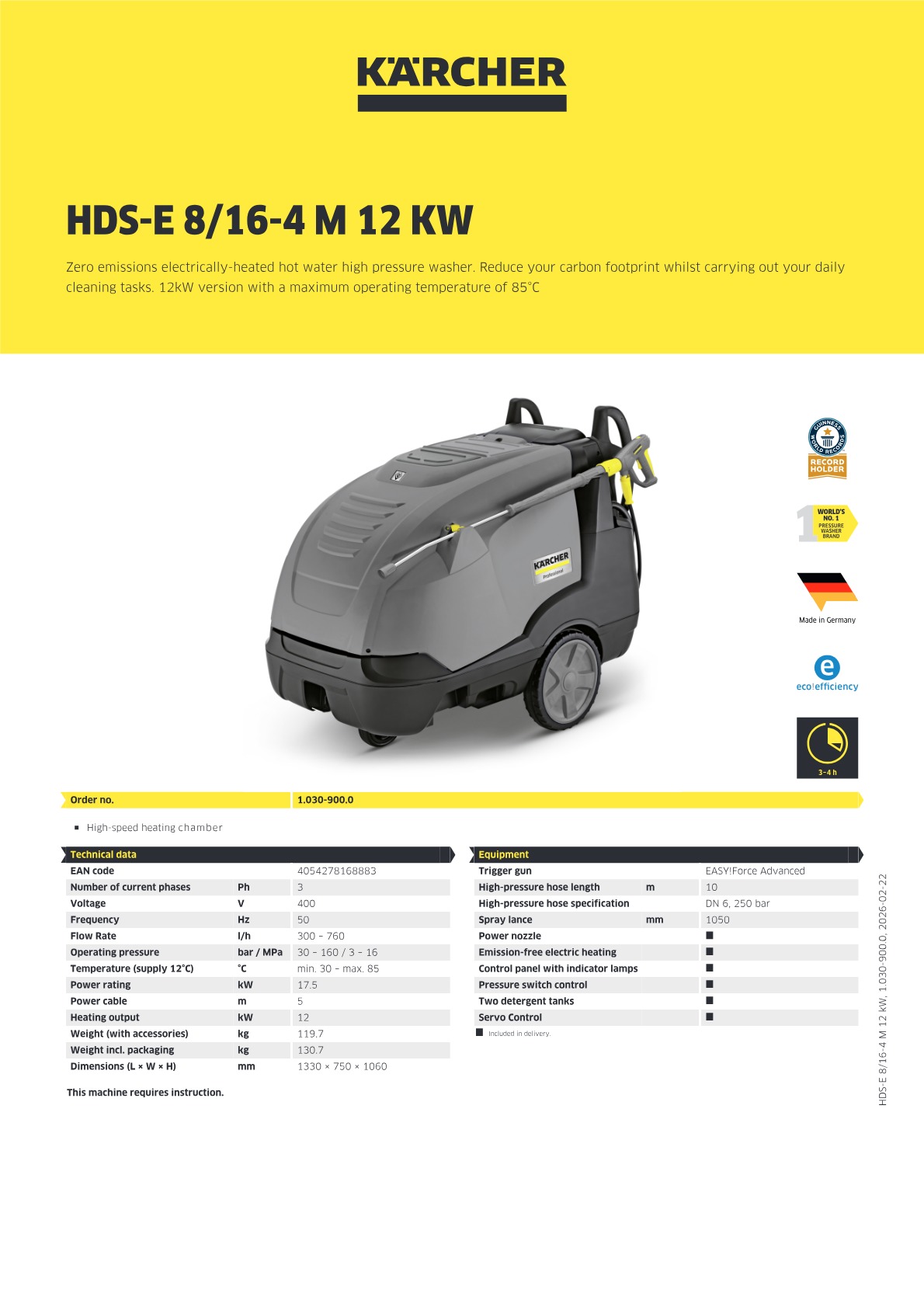

Technical data

Number of current phases (Ph)	3
Voltage (V)	400
Frequency (Hz)	50
Flow Rate (l/h)	300 - 760
Operating pressure (bar / MPa)	30 - 160 / 3 - 16
Temperature (supply 12°C) (°C)	min. 30 - max. 85
Power rating (kW)	17.5
Power cable (m)	5
Heating output (kW)	12
Weight (with accessories) (kg)	119.7
Weight incl. packaging (kg)	130.7
Dimensions (L × W × H) (mm)	1330 x 750 x 1060

Scope of supply

Spray gun, EASY!Force Advanced
High-pressure hose length, 10 m
High-pressure hose specification, DN 6, 250 bar
Spray lance, 1050 mm
Power nozzle

Equipment

Emission-free electric heating
Control bar with display light
Pressure cut-off
2 Detergent tanks
Servo Control

Recommended maximum duration of use in hours/day.

Trigger gun regulation of pressure and water flow.

High-pressure trigger gun with zero holding force for fatigue-free operation.

Robust, long-lasting quick-release lock: five times faster than screwing.

Switchable cleaning agent dosing system.

Product information and benefits

The electrically heated hot water high-pressure cleaner HDS E 8/16-4 M reaches a maximum working temperature of 85 °C for the removal of greasy and oily dirt. Servo Control and an integrated rapid heating chamber enable a constant temperature of 45 °C in continuous operation. The EASY!Force high-pressure gun uses the recoil force of the high-pressure jet to reduce the holding force for the user to zero. The EASY!Lock quick-release fasteners are designed for faster handling compared to screw connections. Boiler insulation reduces power consumption in stand-by mode. The device features an Eco!Mode that regulates the water temperature to 60 °C to reduce energy consumption.new high-quality boiler insulation, which reduces power consumption in stand-by mode by 40%, and the patented eco!efficiency mode which allows the machine to work automatically in economical 60°C operation.

Reduced operating costs

Highly effective insulating material saves up to 40% energy in standby mode. Economical Eco!Mode.

HDS E easyforce engine shed app ant 4 CI15502x502 1

High working temperature

Large water reservoir (max. 85 °C). Up to 30 °C in continuous operation

Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release fasteners

Fatigue-free work at last: the EASY!Force high pressure gun. Robust EASY!Lock quick-release couplings: five times faster than screws.
