Kärcher utility vehicle with enclosed cab and rear cargo bed, featuring large tyres and front attachments.

Implement carriers

Holder S 100/130

Name: Holder S 100/130
Brand: Kärcher
SKU: 8.322-537.0

This device requires instruction

Part number: 8.322-537.0

Robust, powerful, off-road: The multifunctional implement carriers in the S range are true power packs - designed for year-round use in the toughest conditions.

Make an enquiry

Technical data

Drive	Diesel
Traction drive	All-wheel drive
Motor manufacturer	Deutz
Motor rating (kW)	95
Displacement (cm³)	3621
Cylinder	4
Exhaust emissions standard	STAGE V
Fuel tank (l)	84
Driving speed (km/h)	- 40
Working speed (km/h)	- 20
Wheelbase (mm)	1827
Permissible total weight (kg)	5500
Permissible total weight (option) (kg)	6000
Weight without accessories (kg)	3100
Dimensions (L × W × H) (mm)	3921 x 1360 x 2233

Equipment

Particle filter
Air conditioning
Heater
Rotating warning beacon
Year-round use

AGR certificate municipal sweeper CMYK oth 02 EN CI20

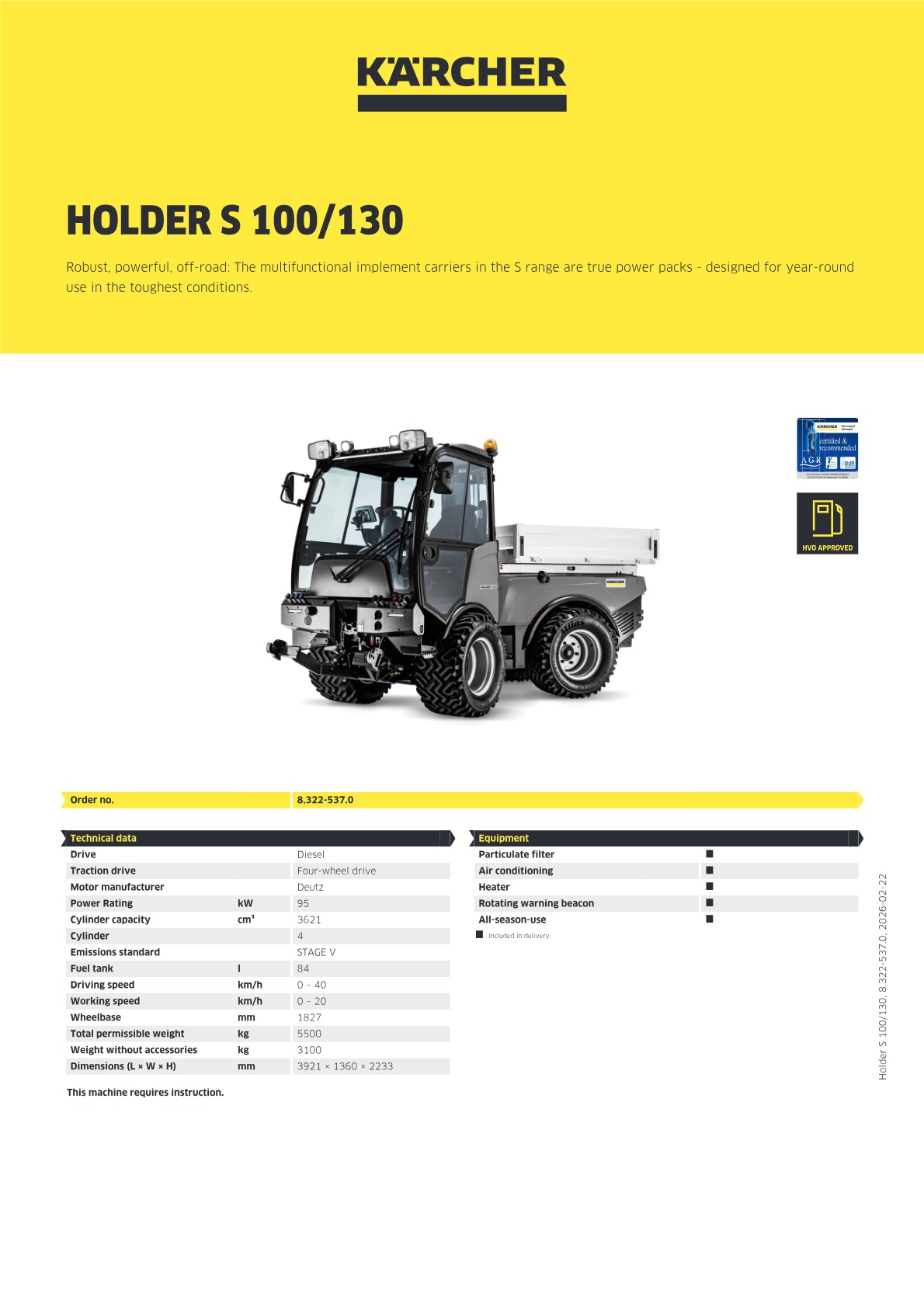

Product information and benefits

Up to 130 hp the S range models are some of the most powerful articulated machines on the market. They can be quickly converted for winter service, sweeping or garden maintenance. The standard front lift (CAT II) with lifting force of 2700 kilograms, the mechanical PTO shaft and a hydraulic flow of up to 120 litres make challenging work possible. Thanks to the 3-dimensional movement of the front lift, the implement can be adapted to the respective work situations. Vibrations between vehicle and attached devices can be balanced and absorbed via the hydraulics. This allows faster transport journeys, improves the driving safety and protects the vehicle and implement carrier. A permanent all-wheel drive ensures constant traction and ground contact, a mechanical differential lock sees to even power transmission to both axles in extreme use. The dual drive traction drive guarantees optimal use between hydrostatic and mechanical traction drive. The hydrostatic wheel load compensation is on board for safety when turning on slopes, driving over kerbs and for the use of large attachments with a high centre of gravity. The vehicle is also available as a 2-person cab.

High variability for vehicle types, construction and expansion options

Flexible use and large selection of powerful implements. Two standard attachment areas (front/rear) and a 3rd attachment area for articulated implements. Quick-change system enables 1 person to change implements without the need for any tools.

Ergonomic and comfortable cab

Comfortable and ergonomic cab with optimal all-round visibility. Three seating variants: Single seat, 2 seats or adjustable seat.

Easy service access

Daily service work is possible without removal of implements. Hydraulically tiltable engine compartment cover allows tilting with articulated machine. Swivel-mounted or foldable side parts on right and left sides.
