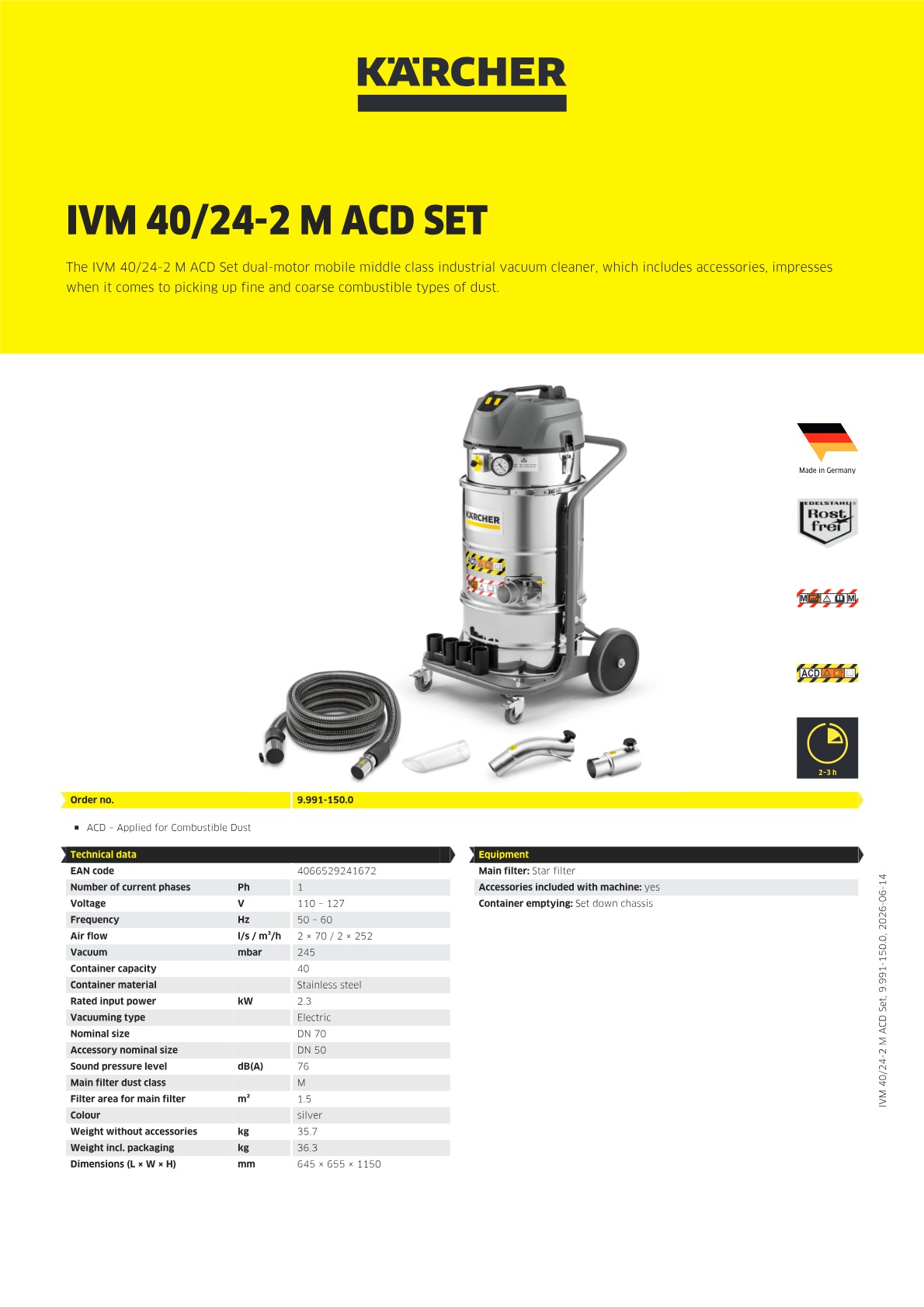

Industrial vacuum

IVM 40/24-2 M ACD Set (110v)

Part number: 9.991-150.0

ACD – Applied for Combustible Dust
Stainless steel container, Pull-and-Clean filter cleaning, 4 accessories holders

Technical data

Number of current phases (Ph)	1
Voltage (V)	110 - 127
Frequency (Hz)	50 - 60
Air flow (l/s / m³/h)	2 x 70 / 2 x 252
Vacuum (mbar)	245
Container capacity ( )	40
Container material	Stainless steel
Rated input power (kW)	2.3
Vacuuming type	Electric
Sound pressure level (dB(A))	76
Cable length (m)	7.5
Main filter dust class	M
Filter area for main filter (m²)	1.5
Colour	silver
Weight without accessories (kg)	35.7
Weight incl. packaging (kg)	38
Dimensions (L × W × H) (mm)	645 x 655 x 1150

Equipment

Main filter: Star filter
Accessories included with machine: yes

Recommended maximum duration of use in hours/day.

Product information and benefits

Two-motor mid-class industrial vacuum cleaner IVM 40/24-2 M ACD Set for vacuuming fine and coarse combustible solids outside an ATEX zone. The machine operates in single-phase operation; both motors can be controlled individually. The dust class M PTFE star filter can be cleaned during operation using the Pull and Clean filter cleaning system without switching off the vacuum cleaner. The filter container and collection container are made of acid-resistant stainless steel, and the chassis is made of steel with large wheels for mobile transport at the site of use.

ACD – Applied for Combustible Dust

For the safe and economical vacuuming of combustible dusts. Conforms to the IEC 60335-2-69 standard.

Dust class M

Complete device certified according to DIN EN 60335-2-69 for dust class M.

Manual pull-and-clean filter cleaning

Filter is cleaned in a single step during operation. Low-wear dedusting by means of air reversal.

Fitted with two blower motors

For powerful suction power and optimum cleaning performance. Fans can be switched on separately for individual suction power as required.

Equipped with a large star filter

For safely vacuuming solids and dusts up to dust class M. Also suitable for large quantities of dust.
