Kärcher ride-on scrubber dryer with steering wheel, grey body, black seat, and orange light on top.

Scrubber drier

KIRA BR 200

This device requires instruction

Part number: 1.533-013.0

Fully autonomous scrubber dryer with a maximum area performance of 4590 m²/h
850 mm working width with roller brushes, pre-sweeping function, side brush
Recovery lip, dockable, compatible with roller door control and VDA 5050

Technical data

Drive type	Battery
Rated input power (W)	2250
Traction motor power (W)	1300
Turbine capacity (W)	552
Motor rating of brush motor (W)	1500
Working width, brushes (mm)	850
Brush contact pressure (g/cm²)	215
Brush speed (rpm)	380 - 950
Working width, vacuuming (mm)	1100
Fresh/dirty water tank (l)	200 / 220
Detergent tank (l)	10
Sweeper drawer volume (l)	9
Theoretical area performance, autonomous (m²/h)	max. 4590
Cleaning performance per tank filling (approx.) (m²)	7143
Number of current phases (Ph)	1
Voltage (V)	100 - 240
Frequency (Hz)	50 - 60
Number of batteries	4
Battery type	Li-ion
Battery voltage/capacity (V / Ah)	24 / 360
Battery run time (h)	4.5
Battery charging time (h)	5.3
Autonomous speed (km/h)	max. 5.4
Sound pressure level (dB(A))	64.5
Autonomous aisle turning width (m)	2.8
Climbing ability (%)	12
Autonomous clearance width (mm)	1350
Software updates available until	2033-01-01
Weight without accessories (kg)	630
Weight (with accessories) (kg)	630
Weight incl. packaging (kg)	632.3
Dimensions (L × W × H) (mm)	1944 x 1138 x 1471

Scope of supply

Battery and battery charger
Squeegee included
Roller brush: 2Piece(s)
Side brush
Flashing beacon

Equipment

Battery
Type of suction lips: Linatex®
DOSE
with speed-dependent water dosing
Large, high-definition touch display
Docking-enabled
Roller shutter control prepared
autonomous cleaning
Automatic pre-sweeping
with manual drive mode
Easy and intuitive set-up without the need for expert knowledge
High-performance sensors
obstacle and crash detection
autonomous swerving upon meeting obstacles
Safety certified for public areas
creation of cleaning reports
Notifications on mobile devices
Schedule function
Auto Fill
Coloured lights to display the robot's behaviour and operating status
Kärcher colour and operating concept
electrical and mechanical float switch
with teach-in mode (Teach and Repeat)
Brush type: Round brush
Variable contact pressure
robust aluminium die-cast suction bar
Underpressure sensor for detecting blockages
Detection of empty detergent tank
operation using app
Communication interface: VDA 5050
Detergent dosing unit

picto docking station oth 01 CI15 284x284 CMYK

picto automatic dosing CMYK oth 01 EN CI20

picto multisensor collision avoidance oth 01 CI20284x284

picto roller brush head CMYK oth 01 EN CI20

picto mulitsensor system oth01 CI15284x284

picto 5 years warranty CMYK oth 01 EN CI15

picto interim charge CMYK oth 01 EN CI20

picto full efficiency CMYK oth 01 EN CI20

picto high productivity CMYK oth 01 EN CI20

Product information and benefits

The KIRA BR 200 combines intelligent technology with high area performance. Thanks to its large working width and high driving speed, it cleans efficiently and thoroughly – even on textured and uneven floors. Pre-sweeping and scrubbing are carried out in one step thanks to the time-saving roller brush technique. A side brush ensures clean results right up to the edges. The powerful multi-sensor system with 360° all-round visibility reliably recognises obstacles, overhangs and glass surfaces for safe navigation. The separately available docking station delivers maximum autonomy by automating fresh water filling, dirty water emptying and battery charging. The calendar function provides a flexible and adaptive way to plan cleaning tasks in advance. The KIRA BR 200 can operate fully autonomously, but can also be controlled manually as a ride-on machine if required. It is networked at all times via the KIRA Equipment Manager and the KIRA Robots App and can be easily integrated into existing processes.

Product safety and documents

Manufacturer: Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Strasse 28-40, 71364 Winnenden, Germany
Tel. +49 7195 / 14-0 I Fax +49 7195 / 14-2212
E-mail: info@karcher.com

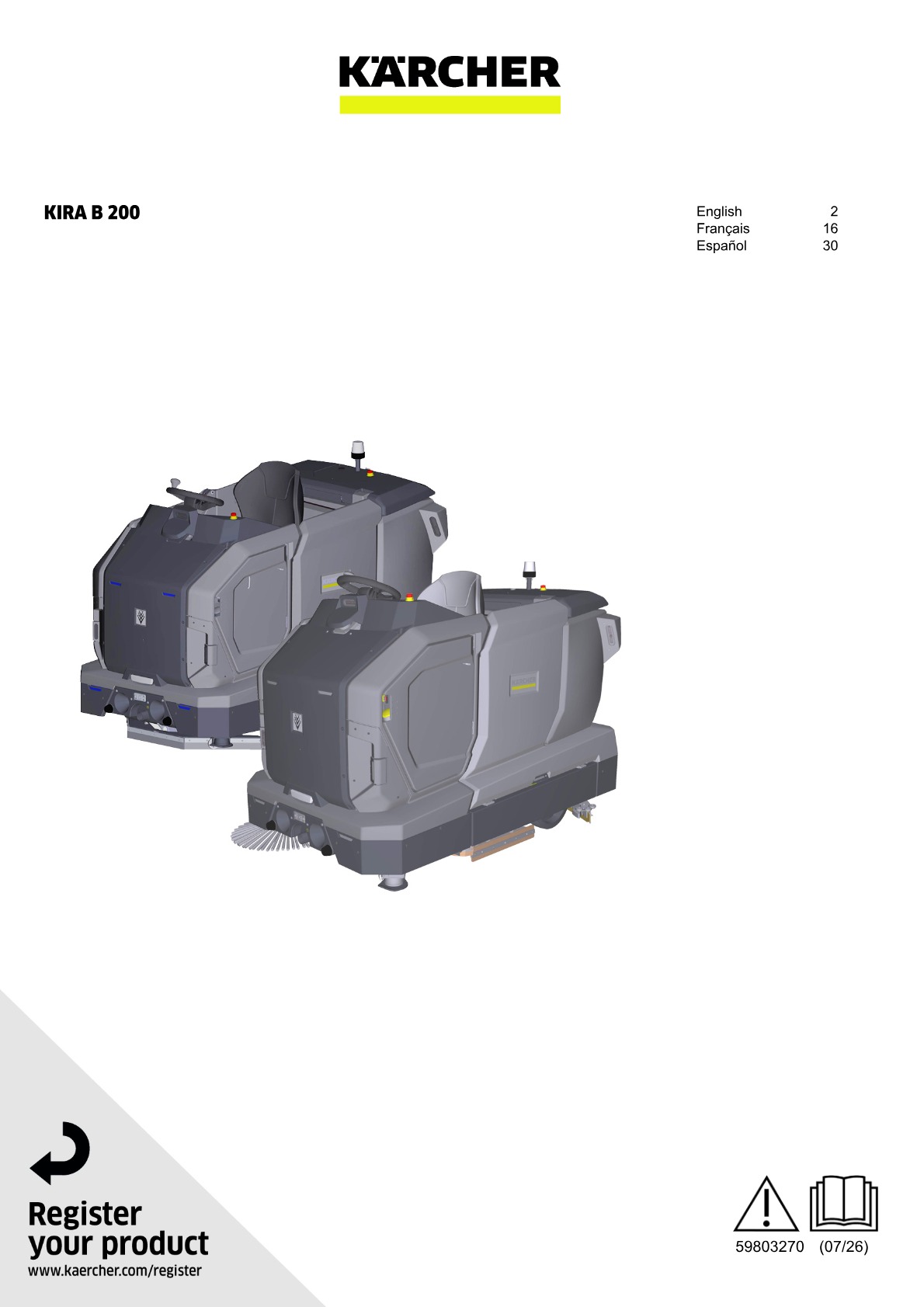

Manual

Read the manual online easily

Read online

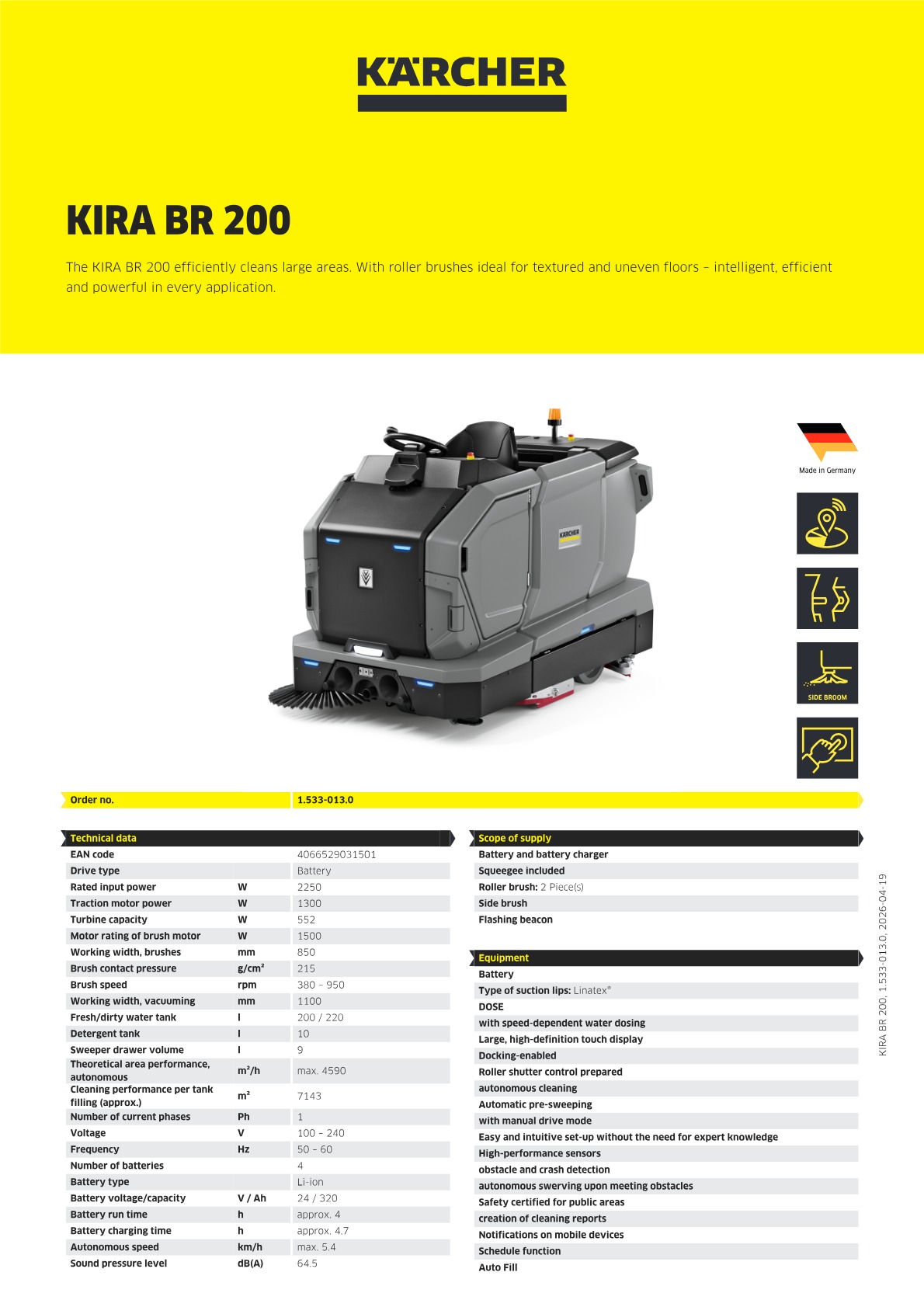

Product information
Download PDF

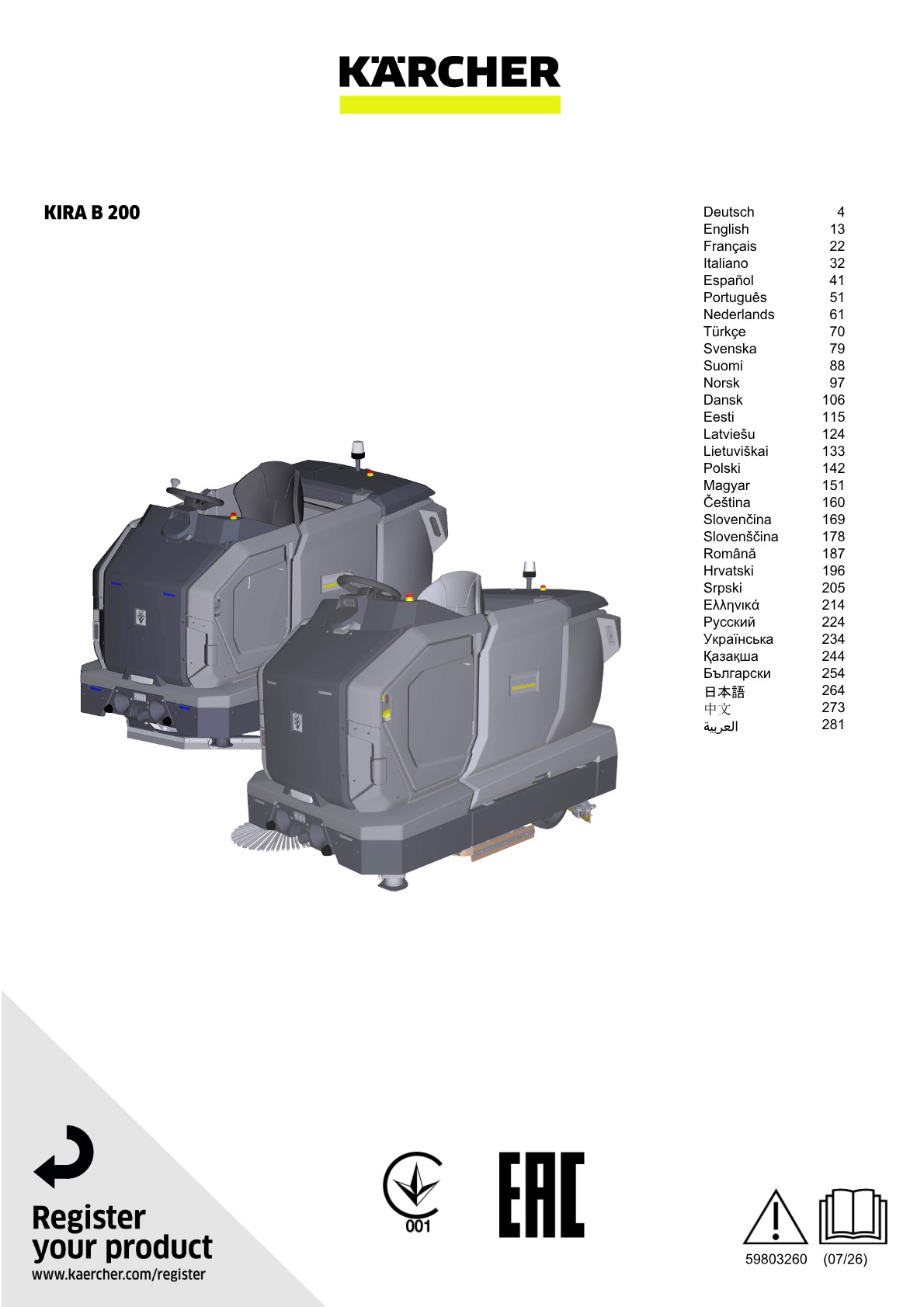

Manual
