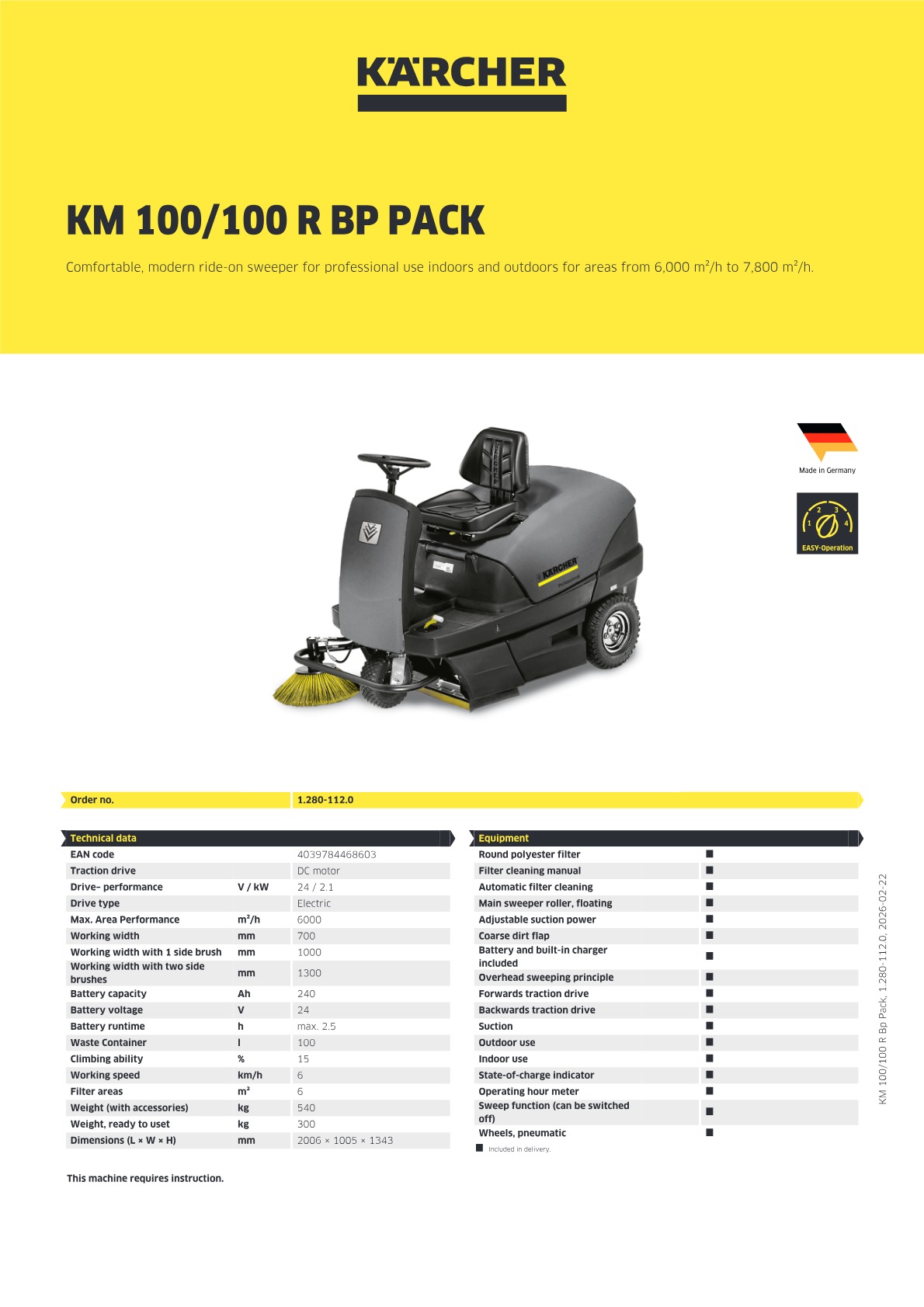

Kärcher ride-on sweeper with a black seat, steering wheel, and yellow brush, designed for cleaning large areas.

Vacuum sweeper

KM 100/100 R Bp Pack

This device requires instruction

Part number: 1.280-112.0

Electric sweeper, 240 Ah wet battery, battery charger, low container emptying
1000 mm working width, 6000 m²/h area performance, 2 x 50 l container volume
2.5 h battery run time, round filter, side brush on the right

Technical data

Traction drive	DC motor
Drive – Power (V / kW)	24 / 2.1
Drive type	Electric
Max. area performance (m²/h)	6000
Max. area performance with 2 side brushes (m²/h)	7800
Working width (mm)	700
Working width with 1 side brush (mm)	1000
Working width with 2 side brushes (mm)	1300
Battery capacity (Ah)	240
Battery voltage (V)	24
Battery run time (h)	2.5
Waste container (l)	100
Climbing ability (%)	15
Working speed (km/h)	6
Filter area (m²)	6
Weight (with accessories) (kg)	540
Weight, ready for operation (kg)	300
Dimensions (L × W × H) (mm)	2006 x 1005 x 1343

Scope of supply

Polyester round filter
Battery and built-in charger included
Wheels, pneumatic

Equipment

Manual filter cleaning
Automatic filter cleaning
Main sweeper roller, floating
Suction volume regulation
Coarse dirt flap
Overhead sweeping principle
Traction drive, forwards
Traction drive, reverse
Suction
Outdoor use
Indoor use
State-of-charge indicator
Elapsed time counter
Sweep function (can be switched off)

picto easy operation oth 1 EN CI15 110454 CMYK

Product information and benefits

TECHNICAL DESCRIPTION: Drive: - 24 V/ 600 W DC motor - 1 x pedal for forward and reverse travel - Small turning circle (3350 mm) - Automatic parking brake with vacuum technology - Automatic motor switch-off when leaving the seat - Effective round filter system with automatic filter cleaning Sweeping/suction system: the machine works according to the overthrow sweeping principle, meaning that the waste is conveyed over the sweeper roller and into the waste container at the back. The sweeper roller is floating and automatically adapted to ground unevenness. Both the filter and the main sweeper roller can be exchanged without any tools. The coarse dirt flap allows the pick-up of coarse dirt, such as cans, grit, gravel or wet leaves. The side brush and the sweeper roller are driven hydraulically. A second side brush is available as an option. Waste container: the two 50-litre waste containers can be removed from the side. Operation: you can raise and lower the main sweeper roller and the side brush automatically using a switch. You control forward and reverse travel using the accelerator pedal. Batteries and battery charger are included in the scope of supply.

Impact protection

Protects the sweeper and obstacles within the area being cleaned.

Large filter area with automatic filter cleaning system

The filter is automatically cleaned when the machine is switched off - for continuous low-dust sweeping for long periods of uninterrupted use. Filter cleaning can also take place manually. Filter replacement without tools.

Easy to maintain

Filter and roller brush are easy to remove without tools for flexible maintenance.

EASY-Operation concept

Clear arrangement of all controls on the handle for convenient sweeping. Standard symbols for all Kärcher sweepers.
