Kärcher street sweeper with three rotating brushes, enclosed cab, and grey body, designed for outdoor cleaning tasks.

City sweeper

MC 80

This device requires instruction

Part number: 1.442-252.2

Large spacious cab with volume of 1.45 m³
Environmentally friendly diesel engine with optional particulate filter
Individual brush control and lifting

Technical data

Drive type	Diesel
Traction drive	All-wheel drive
Motor manufacturer	Yanmar
Motor rating (kW)	26
Displacement (cm³)	1650
Cylinder	3
Fuel tank volume (l)	41
Exhaust emissions standard	STAGE V
Driving speed (km/h)	- 25
Working width with 2 side brushes (mm)	1630
Working width with 3 side brushes (mm)	2175
Waste container (l)	1000
Water tank ( / l)	/ 150
Fresh water tank (l)	185
Wheelbase (mm)	1500
Permissible total weight (kg)	2500
Dimensions (L × W × H) (mm)	3237 x 1070 x 1980

Equipment

Particle filter
Foliage suction hose
Temperature gauge
Operating hour meter for sweeping mechanism
Extra comfort seat
Air conditioning
Heater
Suction
Side brush speed, adjustable
Traction drive, forwards
Traction drive, reverse
Coarse dirt flap
Hydr. high dump
Panorama cab with safety glass, 2 rear-view mirrors
Radio
Rotating warning beacon
Water spraying system suppresses dust around side brushes and in intake duct
Doors left / right
Outdoor use

AGR certificate municipal implement carrier CMYK oth 01 EN CI20

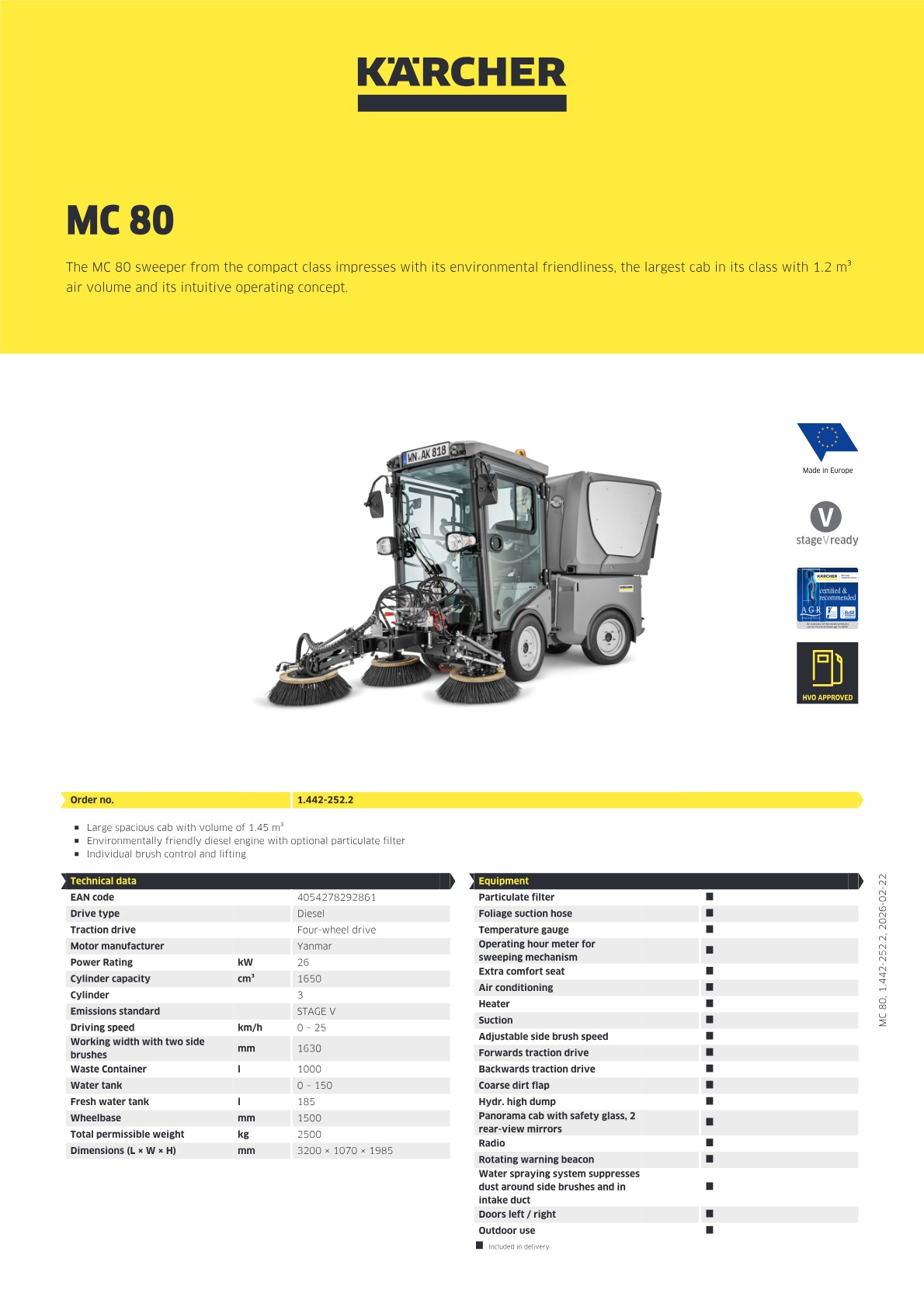

Product information and benefits

With the MC 80, the technology used in large machines is now being deployed in compact class sweepers. For instance, the 800-litre waste container with water circulation system is based on computer-aided CFD simulations, the double-brush system has individual brush control, the straight suction channel effectively prevents blockages and the suction mouth is impact-protected in the wheel contour. Lastly, our patented quick-change system guarantees the fast and simple change of the diverse implements via a hydraulic interchangeable frame. In terms of working comfort, the MC 80 scores well with the largest cab in its class, a perfect all-round view and transparent and ergonomic layout of the operating elements. Practical details such as a lockable storage compartment, bottle holder and USB charging port are also included.
