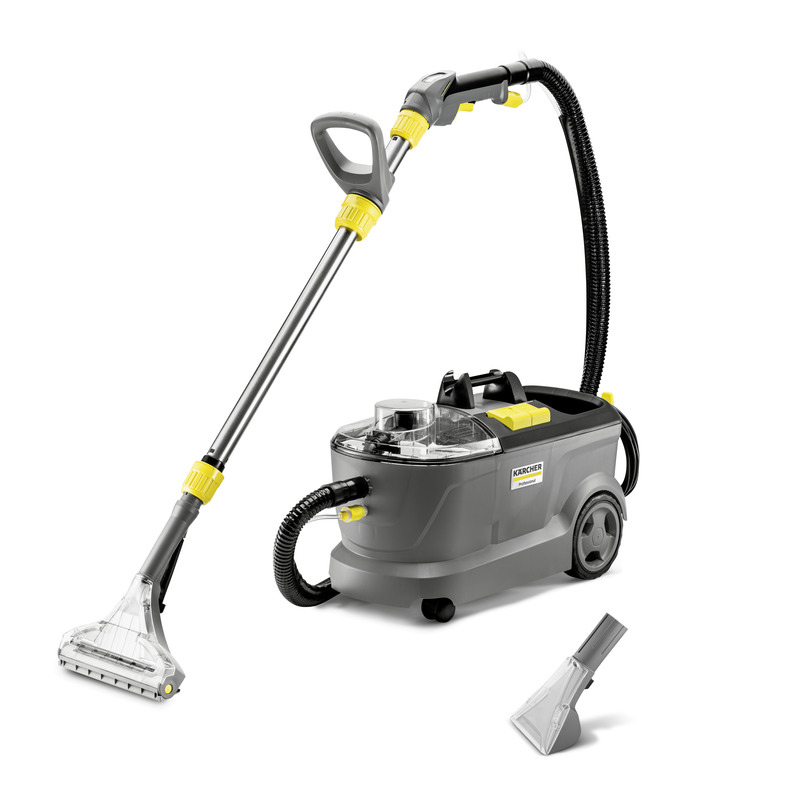

Kärcher carpet cleaner with a long handle and transparent nozzle, featuring a grey body and yellow accents.

Spray-extraction cleaner

Puzzi 10/1 Adv

Part number: 1.100-144.0

10-litre fresh water tank, excellent cleaning results for textiles, robust
Powerful pump and motor technology, removable 2-in-1 container

Technical data

Max. area performance (m²/h)	20 - 25
Air flow (l/s)	74
Vacuum (mbar / kPa)	254 / 25.4
Spray rate (l/min)	1
Spray pressure (bar)	1
Fresh/dirty water tank (l)	10 / 9
Turbine capacity (W)	1250
Pump capacity (W)	40
Voltage (V)	220 - 240
Frequency (Hz)	50 - 60
Cable length (m)	7.5
Colour	anthracite
Weight without accessories (kg)	10.5
Weight incl. packaging (kg)	16.7
Dimensions (L × W × H) (mm)	690 x 325 x 440

Scope of supply

Upholstery nozzle
spray/suction hose: 4 m
Cable hook
Floor nozzle: 240 mm
spray/suction gun
D-handle for spray/suction tube
removable 2-in-1 container for fresh/dirty water
spray/suction tube: 1 Piece(s)

Equipment

integrated accessory storage for upholstery/crevice nozzle
integrated accessory storage for floor nozzle
nozzle mouthpiece

Product information and benefits

Excellent cleaning performance

Perfect fibre-deep cleaning of textile surfaces. Fast drying means that surfaces can quickly be used again thanks to the excellent back suction performance. Excellent cleaning result with visible before-and-after effect.

Professional quality: extremely robust and durable

Efficient pump with a long lifetime. Powerful turbine with excellent back suction performance.

Comprehensive set of carpet cleaning accessories

Flexible suction lip for optimum suction angle and ultimate drying results. 240 mm wide floor nozzle with integrated spray/suction tube. Ergonomic two-handed grip for extra user comfort.

Handy upholstery nozzle

Easy yet thorough cleaning of upholstery and upholstered furniture. Perfect for vehicle interior cleaning.

Removable, smart 2-in-1 container

Quick and simple to fill the fresh water tank. Convenient and simple to remove dirty water.

Easy to operate thanks to two large push-buttons

No need to bend down: on/off foot switch for speed and ease of use. Quick 1-step method: combined spraying and vacuuming in one operation. 2-step method: Spray on fibres and leave to soak in – then vacuum off.
