Sale

Spray-extraction cleaner

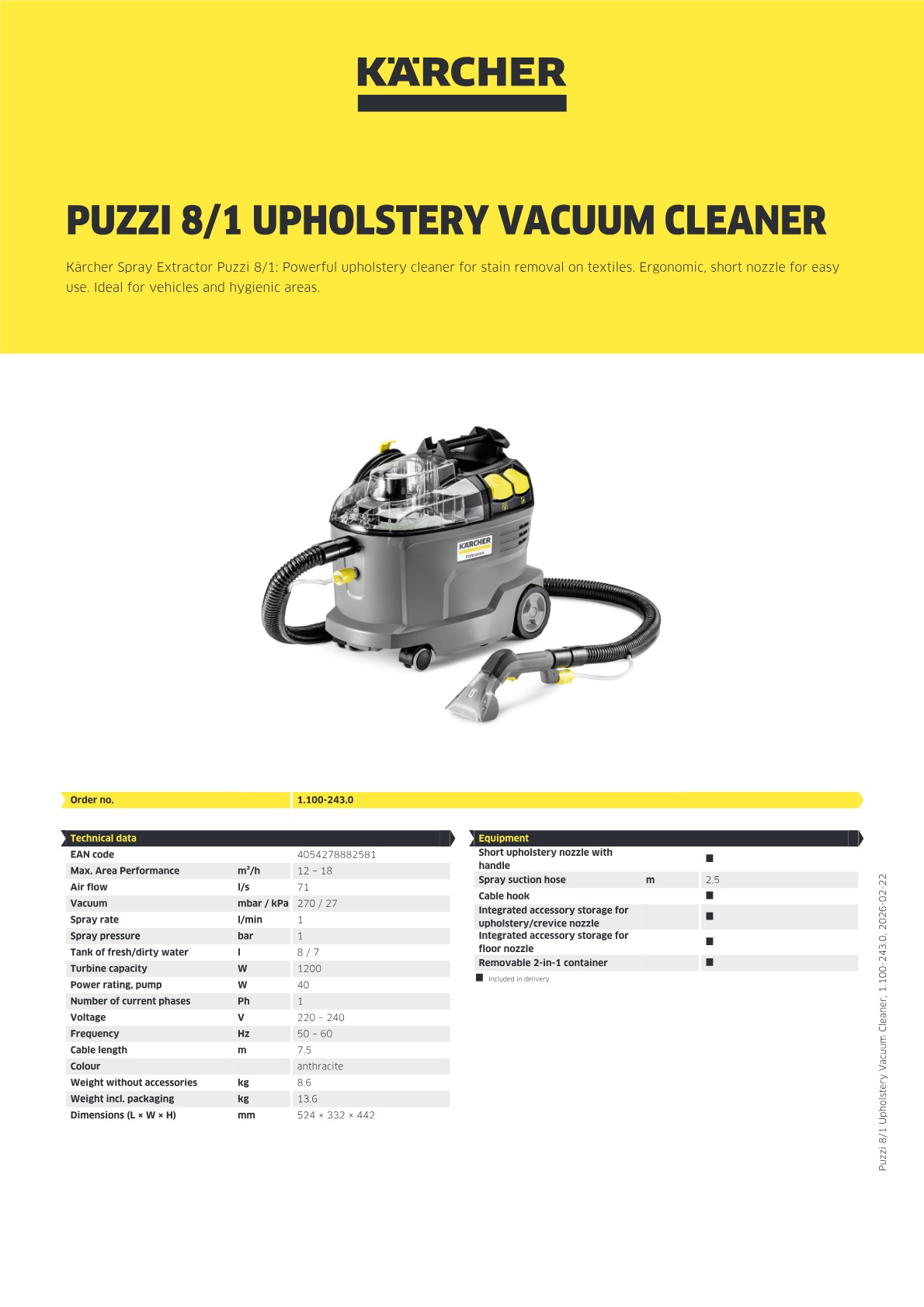

Puzzi 8/1 Upholstery Vacuum Cleaner

Part number: 1.100-243.0

Professional spray extraction machine with 8-litre fresh water tank
Powerful pump and motor technology, removable 2-in-1 container
Short and ergonomic upholstery nozzle, 2.5 m spray/suction hose

Technical data

Max. area performance (m²/h)	12 - 18
Air flow (l/s)	71
Vacuum (mbar / kPa)	270 / 27
Spray rate (l/min)	1
Spray pressure (bar)	1
Fresh/dirty water tank (l)	8 / 7
Turbine capacity (W)	1200
Pump capacity (W)	40
Number of current phases (Ph)	1
Voltage (V)	220 - 240
Frequency (Hz)	50 - 60
Cable length (m)	7.5
Colour	anthracite
Weight without accessories (kg)	8.6
Weight incl. packaging (kg)	13.6
Dimensions (L × W × H) (mm)	524 x 332 x 442

Scope of supply

Short upholstery nozzle with handle
spray/suction hose, 2.5 m
Cable hook
removable 2-in-1 container for fresh/dirty water

Equipment

integrated accessory storage for upholstery/crevice nozzle
integrated accessory storage for floor nozzle

Product information and benefits

The commercial spray extraction cleaner Puzzi 8/1 from Kärcher impresses with outstanding cleaning results when cleaning upholstery and removing stains from textile surfaces. With the compact spray extraction machine, the cleaning solution is sprayed deep into the textile fibres and then vacuumed back up together with the loosened dirt. The very good extraction performance also ensures fast drying and reusability of the textile surfaces – ideal for the high demands of cleaning professionals in the hotel and hospitality sector or in vehicle interior cleaning. The standard, extra-short upholstery nozzle for comfortable, ergonomic cleaning of narrow areas also matches this perfectly. The machine body is built of 38 % recycled plastic¹⁾. Thanks to its relatively low weight and the ergonomic carrying handle, the spray extraction cleaner can easily be transported with one hand. Large push-buttons that can be operated by hand or foot also increase user convenience. The machine lid and the hand nozzle are transparent for a better view of the dirty water.

Puzzi 8 1 Adv sofa hotel app 04 CI20502x502

Excellent cleaning performance

Perfect fibre-deep cleaning of textile surfaces. Fast drying means that surfaces can quickly be used again thanks to the excellent back suction performance. Excellent cleaning result with visible before-and-after effect.

Puzzi 8 1 Adv bed hotel room app 04 CI20502x502 1

Ergonomically designed and extra-short upholstery nozzle

Handle and pressure switches can be operated with just one finger. Practical knob shape allows different holding positions. Red nozzle mouthpiece for reduced water consumption of 550 ml/min compared to the previous blue nozzle mouthpiece with 1 l/min

Puzzi 8 1 adv stairwell app 05 CI20502x502

Compact design for commercial applications

Effortless, also one-handed transport over ledges and steps. Designed for long periods of fatigue-free use. Long service life ensures high efficiency.

Removable, smart 2-in-1 container

Quick and simple to fill the fresh water tank. Convenient and simple to remove dirty water. Quick-start illustration for simple operation.

Easy to operate thanks to two large push-buttons

No need to bend down: on/off foot switch for speed and ease of use. Quick 1-step method: combined spraying and vacuuming in one operation. 2-step method: Spray on fibres and leave to soak in – then vacuum off.

Large rear wheels and flexible 360° steering rollers

Easy manoeuvring even on uneven surfaces. Particularly manoeuvrable and flexible to handle when cleaning.

Folding cable hook

For safe storage of the power cable. Practical and protects the cables. The machine is easy and convenient to transport and store.

Large, open, fresh water filling opening

Convenient, safe and quickly filled with fresh water. Clearly visible maximum level indicator. No spillage when dragging or pushing back the machine.

Integrated storage for the upholstery nozzle

Thanks to the clip design, the upholstery nozzle is always within reach. Secure storage even during transport.

Puzzi 8/1 Upholstery Vacuum Cleaner

Technical data

Product information and benefits

Excellent cleaning performance

Ergonomically designed and extra-short upholstery nozzle

Compact design for commercial applications

Removable, smart 2-in-1 container

Easy to operate thanks to two large push-buttons

Large rear wheels and flexible 360° steering rollers

Folding cable hook

Large, open, fresh water filling opening

Integrated storage for the upholstery nozzle
