Kärcher carpet cleaner with transparent nozzle, grey body, yellow accents, and detachable accessory on white background.

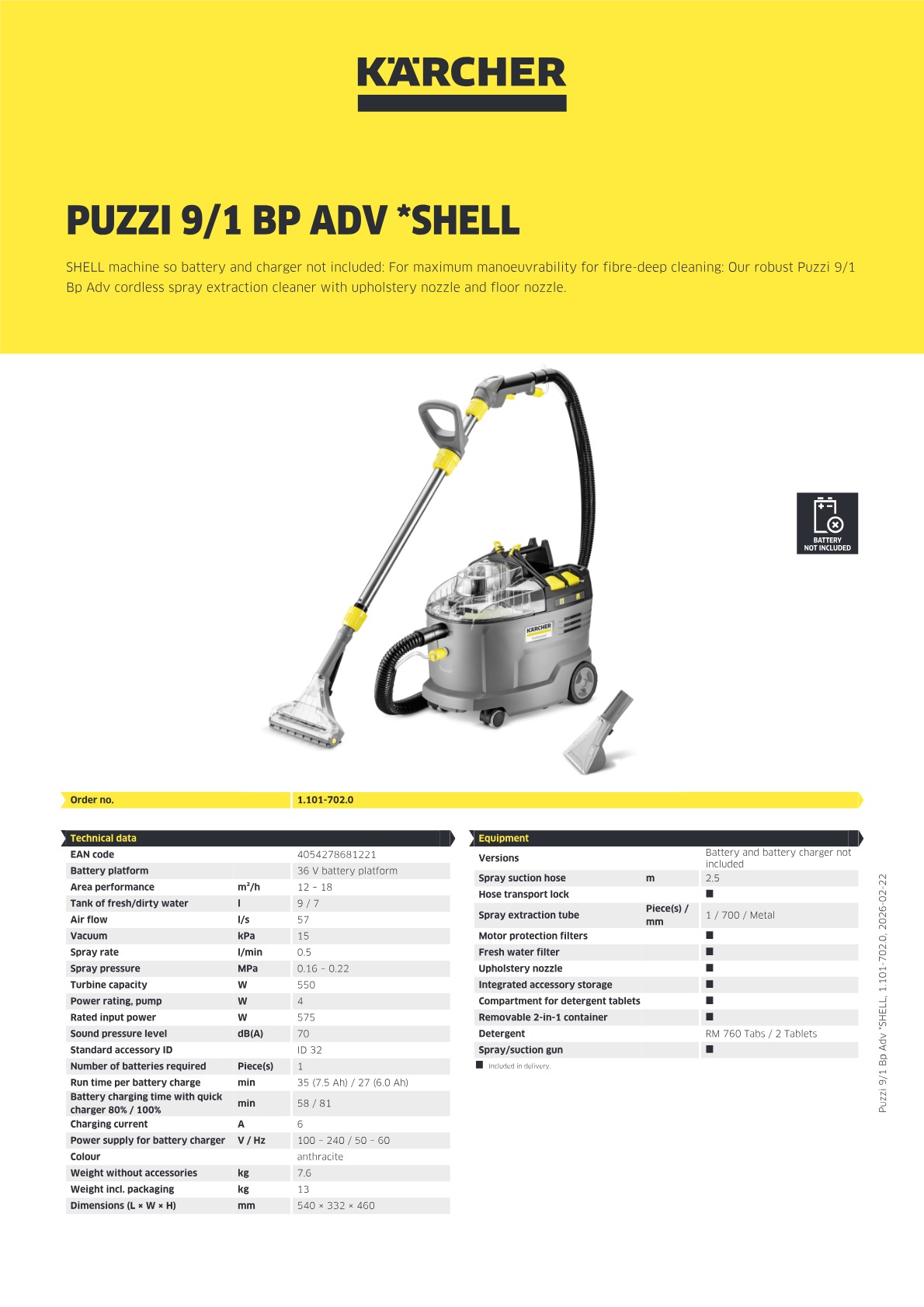

Puzzi 9/1 Bp Adv *SHELL

Part number: 1.101-702.0

9-litre fresh water tank, excellent cleaning results for textiles, robust
36 V battery-powered device, robust diaphragm pump, removable 2-in-1 container
Carpet nozzle 240 mm, upholstery nozzle for insertion, spray/suction hose 2.5 m

Technical data

Battery platform	36 V battery platform
Area performance (m²/h)	12 - 18
Fresh/dirty water tank (l)	9 / 7
Air flow (l/s)	57
Vacuum (kPa)	15
Spray rate (l/min)	0.5
Spray pressure (MPa)	0.16 - 0.22
Turbine capacity (W)	550
Pump capacity (W)	4
Rated input power (W)	575
Sound pressure level (dB(A))	70
Standard accessory ID ( )	32
Number of batteries required (Piece(s))	1
Run time per battery charge (min)	(7.5 Ah) / 35 35 (6.0 Ah) / 35 27
Battery charging time with quick charger 80% / 100% (min)	58 / 81
Charging current (A)	6
Voltage (power supply for battery charger) (V)	100 - 240
Frequency (power supply for battery charger) (Hz)	50 - 60
Colour	anthracite
Weight without accessories (kg)	7.6
Weight incl. packaging (kg)	13
Dimensions (L × W × H) (mm)	540 x 332 x 460

Scope of supply

Versions, Battery and battery charger not included
spray/suction hose, 2.5 m
spray/suction tube, 1 / 700 Piece(s) / mm
Motor protection filters
Fresh water filter
Upholstery nozzle
Storage compartment for cleaning agent tablets
removable 2-in-1 container for fresh/dirty water
Detergents, 2 Tablets
spray/suction gun

Equipment

Hose transport lock
Integrated accessory storage

picto battery not included oth 01 EN CI15

Product information and benefits

The only one of its kind in the world, offering an extremely robust design and cordless flexibility: Our Puzzi 9/1 Bp Adv Pack cordless spray extraction cleaner. As the only professional-standard battery powered spray extraction machine on the market, this Puzzi never fails to impress with its exceptional performance and maximum freedom of movement when deep-cleaning upholstery, carpets and other textile areas in any industry, be it hotels or hospitality, vehicle valeting or building cleaning operations. Despite its power, this Puzzi is extremely quiet, making it ideal for use in public areas: plus its ergonomically designed handle means it can easily be carried around one-handed. For best cleaning results, the cleaning solution is pressurised and sprayed deep into the textile fibres, then sucked back up together with the loosened dirt. When ordering this machine version, please bear in mind that the powerful 36 V Kärcher Battery Power+ battery and the corresponding fast charger must be ordered separately.

Powerful Kärcher Battery Power+ 36V battery

Cordless freedom of movement. LCD Real Time Tech: Integrated screen shows exactly how many minutes remain. Compatible with all machines from the 36 V Kärcher Battery Power+ battery platform.

Durable, robust machine design

Long service life ensures high efficiency. Robust and hard-wearing diaphragm pump. Two large buttons operated by hand or foot for convenience.

Puzzi 9 1 Bp hospitality app 16 CI20502x502

Comprehensive set of carpet cleaning accessories

Flexible suction lip for optimum suction angle and ultimate drying results. 240 mm wide floor nozzle with integrated spray/suction tube. Ergonomic two-handed grip for extra user comfort.

Removable, smart 2-in-1 container

Quick and simple to fill the fresh water tank. Convenient and simple to remove dirty water. Quick-start illustration Puzzi 9/1 Bp for enhanced user safety.

Ergonomic carrying handle

Convenient, one-handed transport. Conveniently well-balanced machine. Suction tube holder integrated in carrying handle for secure and convenient transport.

Integrated accessory storage

All of the accessories can be stowed conveniently on the machine and are therefore always close at hand. Practical, built-in storage compartment for cleaning agent tabs. Secure storage, even during transport.

Handy upholstery nozzle

Easy yet thorough cleaning of upholstery and upholstered furniture. Perfect for vehicle interior cleaning. Thanks to the small size, it is suitable for use in confined spaces.

Low weight

Effortless, also one-handed transport over ledges and steps. Designed for long periods of fatigue-free use. Lightweight entry-level machine.

Low operating noise

Even suitable for cleaning in noise-sensitive areas and at night. Increases the user comfort. Very quiet machine for the entry-level segment.

2-in-1 comfort system with integrated spray and suction hose

The cleaning solution is sprayed deep into the fibres under pressure. Thorough extraction of cleaning solution and ingrained dirt. Quick drying.
