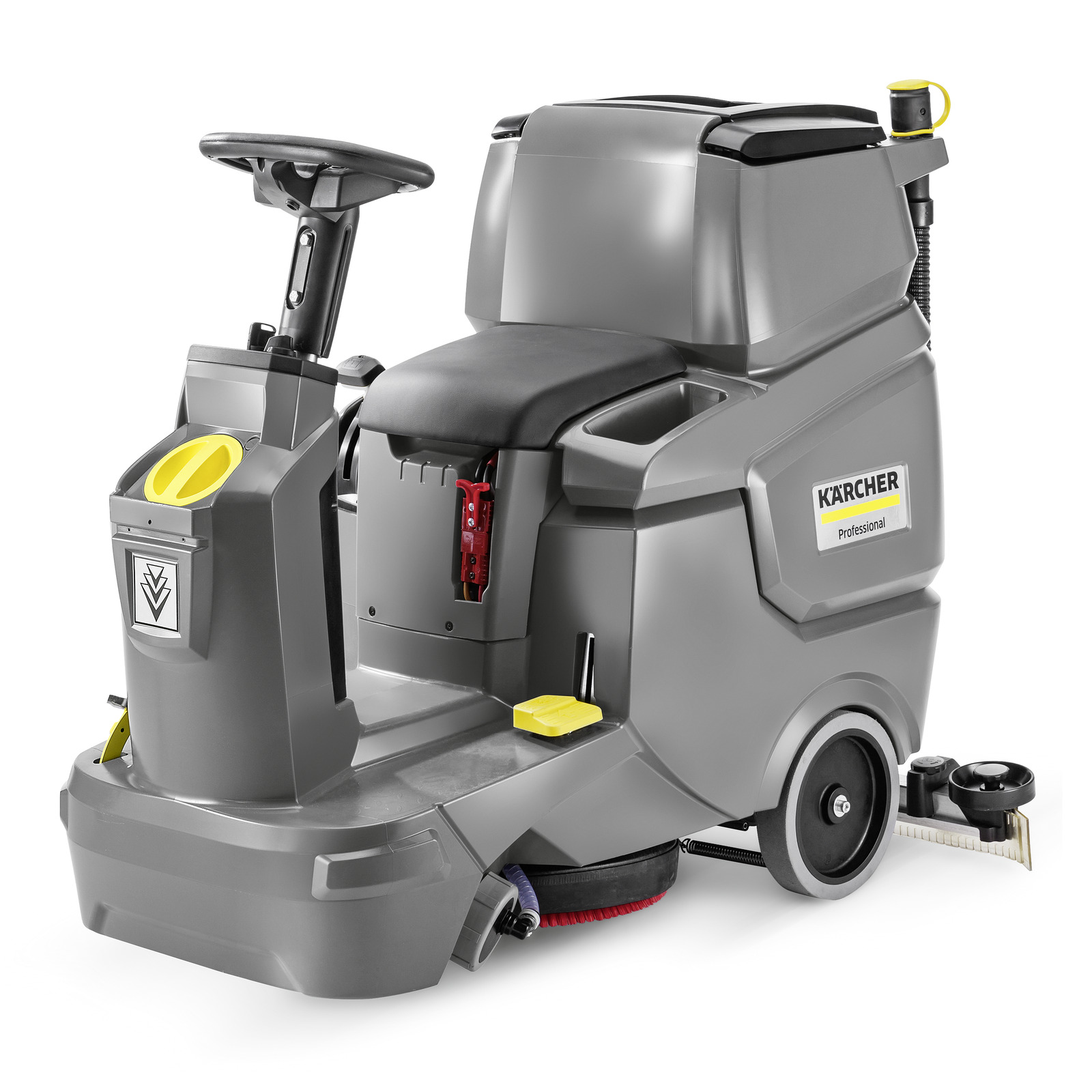

Kärcher ride-on floor scrubber with grey body, black seat, steering wheel, and visible brush underneath.

Scrubber dryer

BD 50/70 R Classic *KAP

This device requires instruction

Order number: 1.161-076.0

Compact, narrow design and very manoeuvrable
Extremely easy and intuitive operation
Disc brush engineering (one disc)

Technical data

Drive type	Battery
Traction drive	traction motor
Working width, brushes (mm)	510
Working width, vacuuming (mm)	900
Fresh/dirty water tank (l)	70 / 70
Theoretical area performance (m²/h)	2805
Practical area performance (m²/h)	1964
Battery run time (h)	3
Driving speed (km/h)	min. / - max. 5.5
Climbing ability (%)	8
Brush speed (rpm)	155
Brush contact pressure (kg)	19.5
aisle turning width (mm)	1650
Water consumption (l/min)	2.3
Sound pressure level (dB(A))	min. 66
Permissible total weight (kg)	345
Weight without accessories (kg)	112
Dimensions (L × W × H) (mm)	1310 x 590 x 1060

Scope of supply

Disc brush, 1 Piece(s)

Equipment

Powerful traction drive
Automatic water stop
Solenoid valve
Squeegee, straight
Two-tank system

Product information and benefits

The extreme ease of use through specially colour-coded control elements is one of the outstanding features of our battery powered BD 50/70 R Classic ride-on scrubber drier. Its compact, narrow construction style facilitates handling and transport and ensures a high degree of manoeuvrability and agility. This makes the machine from the 70-litre class a real alternative to walk-behind machines. Practical details such as the Home Base, which facilitates the transport of manual cleaning equipment using hooks, or the likewise optionally available bin bag holder and a pre-sweep mop complete the concept. Please note that batteries and charger must be ordered separately.

Easy operation

Self-explanatory symbols and clear control panel. Brief familiarisation phases. Simple, yellow colour-coded control elements make the machine easy to use.

Disc brush engineering

Compact construction style with integrated disc brush head. High area performance thanks to large working width. Brush replacement via pedal ejection.

Compact, slim design

Extremely manoeuvrable machine. Clear view of surfaces to be cleaned. Easy to transport.

Optional accessories: pre-sweep mop

Picks up dry dirt, thus supporting the cleaning process. Helps prevent blockage of the suction channel.
