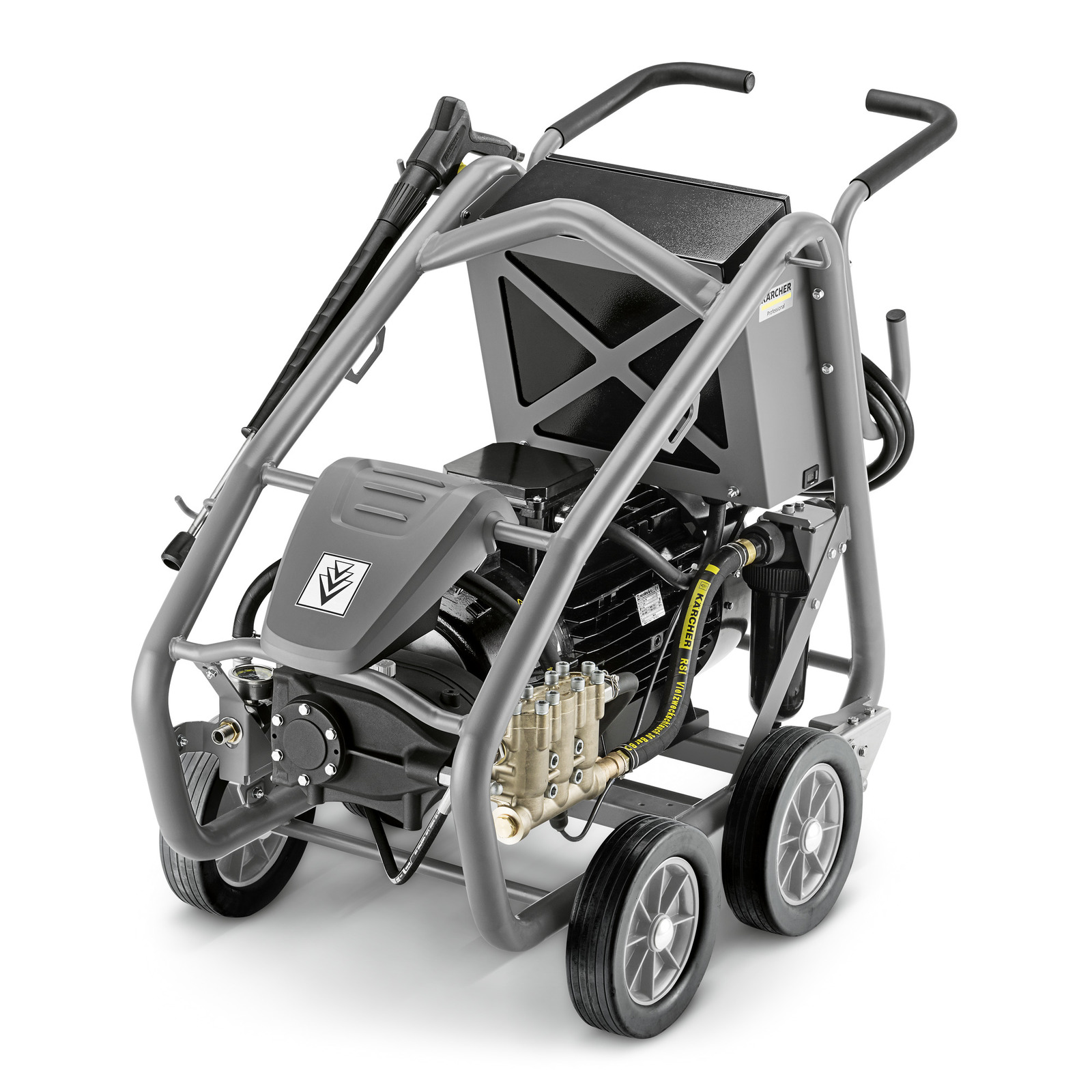

Kärcher high-pressure cleaner with four wheels, metal frame, and hose attachment, featuring a compact design.

Ultra-high-pressure cleaner

HD 18/50-4 Cage Classic

This device requires instruction

Order number: 1.367-160.0

4-pole air-cooled electric motor

Technical data

Working pressure (bar / MPa)	max. 500 / max. 50
Flow rate (l/h)	1800
Inlet temperature (°C)	max. 60
Fuel	Electric
Motor rating (kW)	30
Number of current phases (Ph)	3
Voltage (V)	380 - 415
Frequency (Hz)	50
Pump type	Crankshaft
Weight without accessories (kg)	307
Weight (with accessories) (kg)	321
Weight incl. packaging (kg)	331.5
Dimensions (L × W × H) (mm)	747 x 1317 x 1093

Scope of supply

Spray gun, Industrial trigger gun
Stainless steel spray lance, 700 mm
Flat jet nozzle

Equipment

High-pressure hose length
High-pressure hose type: Heavy duty
Safety valve
Elapsed time counter

Recommended maximum duration of use in hours/day.

Permanently ensures high mobility also on uneven surfaces.

Product information and benefits

Suitable for a wide variety of applications, extremely mobile and compact, guarantees optimum cleaning results: The HD 18/50-4 Cage Classic expands our UHP compact class to include cleaning performance of up to 30 kW, making it the most powerful ultra high-pressure cleaner with the mobile "cage" design. A working pressure of 500 bar and water flow rate of 30 l/min guarantee fast results even on the most stubborn dirt, as encountered in the construction trade, industry applications or the transport sector. A rotary switch with intuitive control and the conscious decision to largely eliminate electronic components mean that the device is very easy to use. Ergonomic details, the machine's low weight, its four large wheels and crane hook simplify handling and transporting the unit, even over rough terrain. Where necessary, the HD 18/50-4 Cage Classic can also be transported using aforklift truck, thereby demonstrating maximum flexibility for both transporting and working with the machine.

Large integrated water filter

Lowers maintenance and service costs. Ensures long service life for all high-pressure components.

Outstanding mobility

Large wheels, as well as an optimum centre of gravity secure a high degree of mobility for the machine – despite its size. A practical crane hook allows simple transport, also over rough terrain.

Product safety and documents

Applications and videos

Application areas

For stripping paint and rust from metal surfaces
For removing algae, mussels, encrustations and lime deposits on ships
For cleaning decks, loading bays and freight containers
For removing tyre debris on runways at airports
For cleaning pipes, tanks and other containers on oil rigs
For general tank cleaning, as well as cleaning heat exchanger pipes
For cleaning freight/tank trucks, vehicles and equipment
For cleaning paint booths, gratings, machine parts
For cleaning construction machines and their parts, such as chains, mixing shafts or stirrer tanks
For cleaning construction equipment, such as formwork and scaffolding, as well as vehicles
