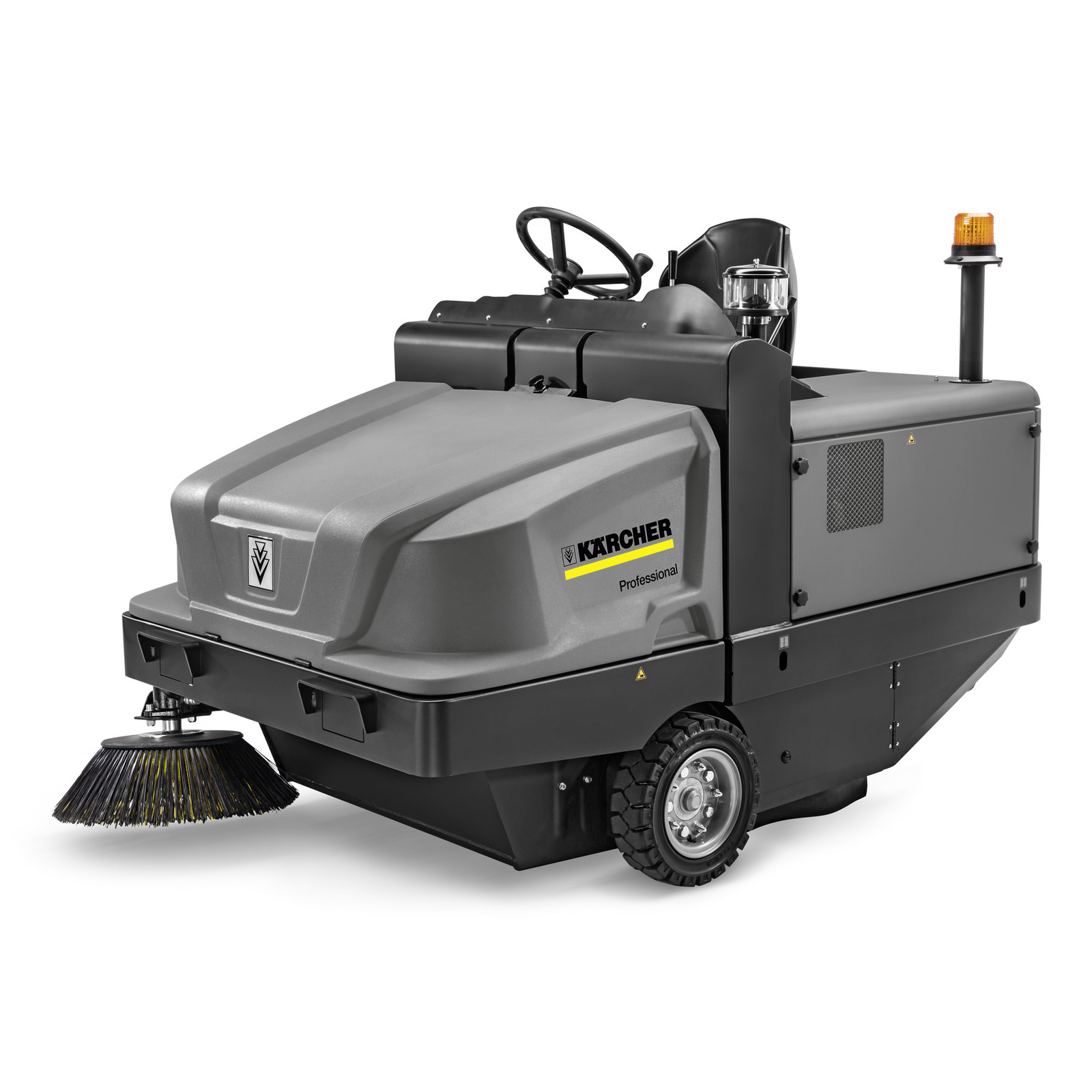

Kärcher ride-on sweeper with grey body, steering wheel, large brush, and amber light on top.

Vacuum sweeper

KM 120/250 R Bp Classic

This device requires instruction

Order number: 1.186-002.0

Electric sweeper, high container emptying
1200 mm working width, 7200 m²/h area performance, 250 l container volume
Pocket filter, side brush on the right, flashing beacon

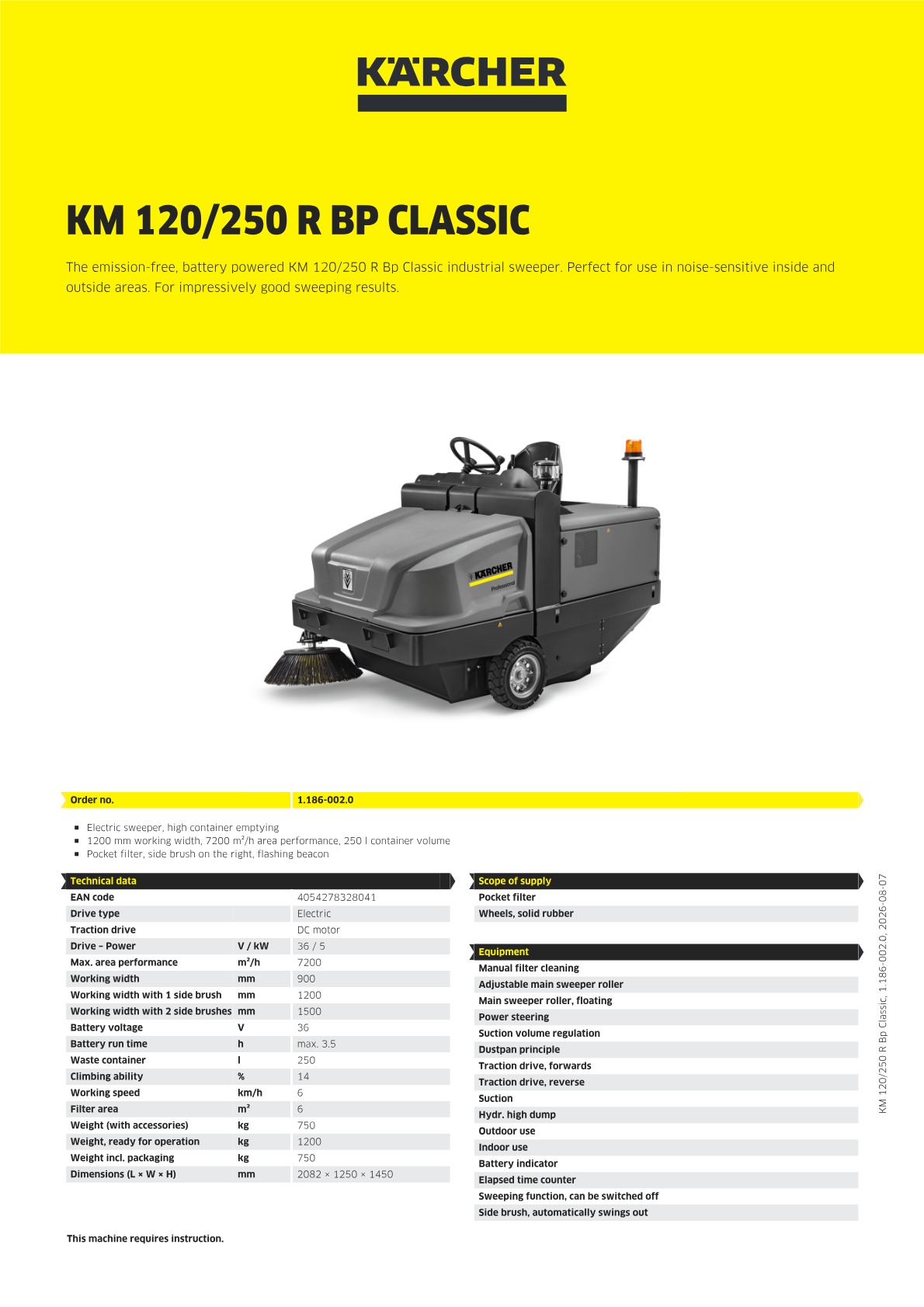

Technical data

Drive type	Electric
Traction drive	DC motor
Drive – Power (V / kW)	36 / 5
Max. area performance (m²/h)	7200
Working width (mm)	900
Working width with 1 side brush (mm)	1200
Working width with 2 side brushes (mm)	1500
Battery voltage (V)	36
Battery run time (h)	3.5
Waste container (l)	250
Climbing ability (%)	14
Working speed (km/h)	6
Filter area (m²)	6
Weight (with accessories) (kg)	750
Weight, ready for operation (kg)	1200
Weight incl. packaging (kg)	750
Dimensions (L × W × H) (mm)	2082 x 1250 x 1450

Scope of supply

Pocket filter
Wheels, solid rubber

Equipment

Manual filter cleaning
Adjustable main sweeper roller
Main sweeper roller, floating
Power steering
Suction volume regulation
Dustpan principle
Traction drive, forwards
Traction drive, reverse
Suction
Hydr. high dump
Outdoor use
Indoor use
Battery indicator
Elapsed time counter
Sweeping function, can be switched off
Side brush, automatically swings out

Product information and benefits

The electric drive in our KM 120/250 R Bp Classic industrial sweeper not only allows emission-free use inside and outside, it is also responsible for the machine's very low operating noise. It is thereby particularly suited to applications in noise-sensitive areas. However, its robust design, the pocket filter with vibration motor for cleaning, the large waste container with convenient hydraulic high container emptying and the resistant solid rubber tyres also make the machine ideal for harsh applications in very dusty environments. Construction companies, the metalworking industry and foundries can benefit significantly from the machine's outstanding performance. The brushes, which adapt perfectly to the ground surface, effortlessly pick up coarse and fine waste. Lastly, the high level of user-, maintenance- and service-friendliness makes this successful concept a practical one.

Robust design of the machine for safe work

Permits applications in extreme external conditions. Leads to longer service life of components and machine. Standard flashing beacon increases safety for user and environment.

Large-area pocket filter with vibration motor

The large filter area guarantees dust-free work. Effective filter cleaning by means of vibrating motor. Suitable for particularly large quantities of dust.

Simple operation, maintenance and servicing

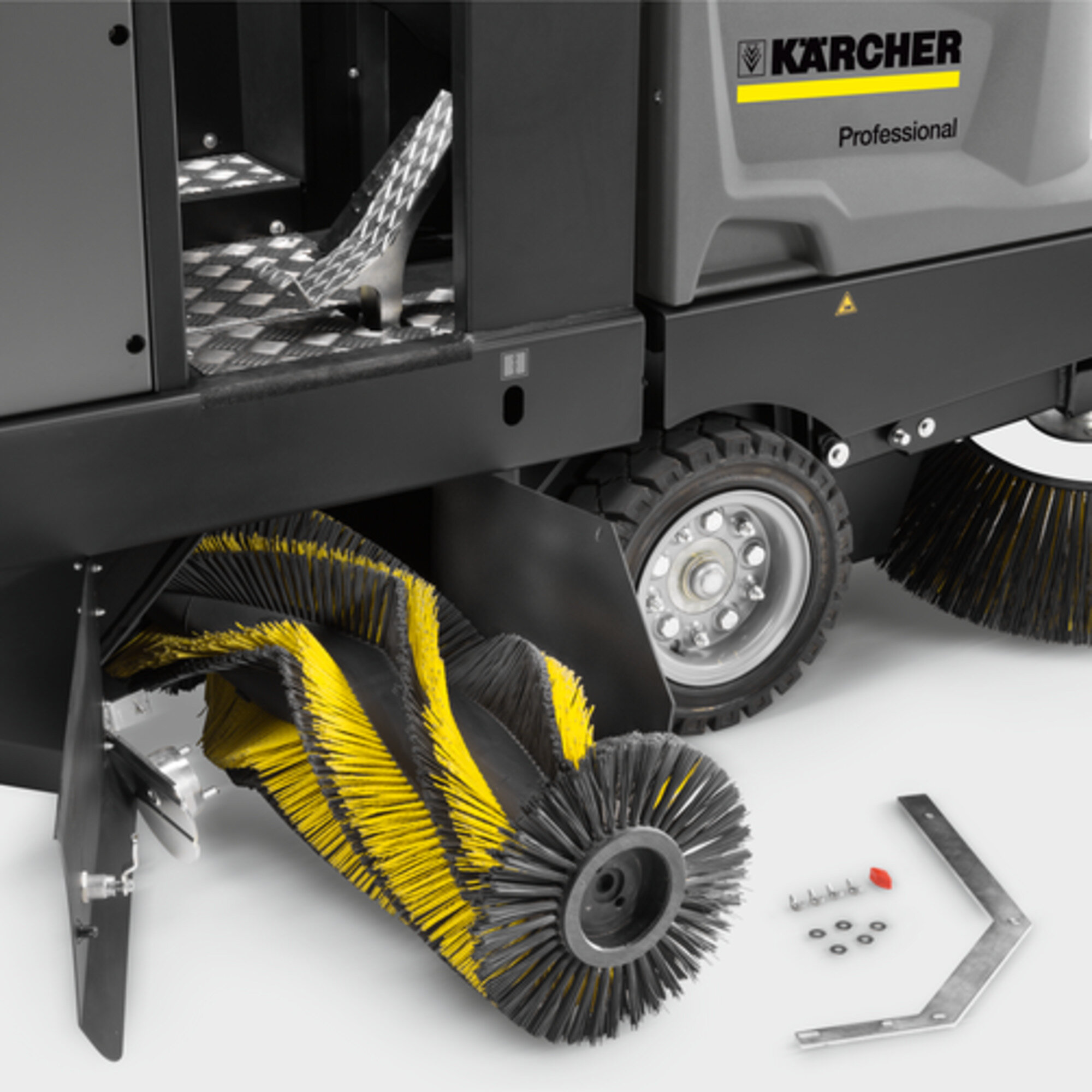

Simple technology with tried-and-tested components. Easy access to engine compartment permits fast, simple servicing and maintenance. Main sweeper roller and pocket filter can be replaced without tools.

Dustpan principle

Guarantees good cleaning results also with fine waste. Effortless pick-up of coarse waste. Low dust production.

Flexible Footprint System

Excellent sweeping results. Low brush wear. Optimal adaptation of brushes to different ground/surfaces.

KM 120/250 R Bp Classic

Technical data

Product information and benefits

Robust design of the machine for safe work

Large-area pocket filter with vibration motor

Simple operation, maintenance and servicing

Dustpan principle

Flexible Footprint System

Hydraulic high container emptying
