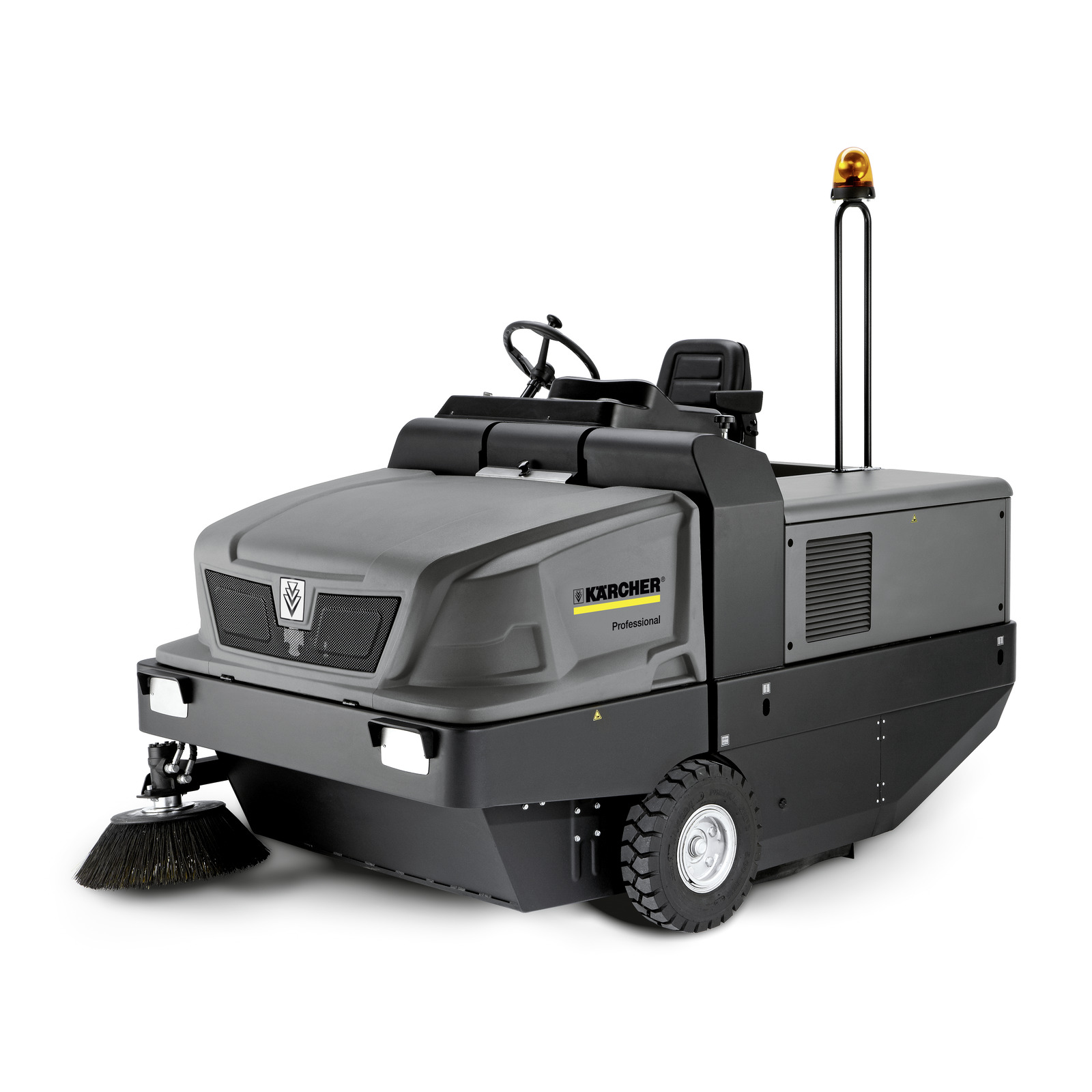

Grey and black Kärcher ride-on sweeping machine with a front-mounted brush, driver's seat, and amber warning light, presented on a white background.

Vacuum sweeper

KM 130/300 R Bp

This device requires instruction

Order number: 1.186-122.0

High working and transport speed
Simple and toolless brush roller replacement
Traction drive and sweeping system fully hydraulic

Technical data

Drive type	Electric
Traction drive	DC motor
Drive – Power (V / kW)	36 / 5
Max. area performance (m²/h)	9100
Working width (mm)	1000
Working width with 1 side brush (mm)	1300
Working width with 2 side brushes (mm)	1550
Battery run time (h)	2
Waste container (l)	300
Climbing ability (%)	12
Working speed (km/h)	7
Filter area (m²)	5.5
Weight (with accessories) (kg)	840
Weight, ready for operation (kg)	1300
Weight incl. packaging (kg)	840
Dimensions (L × W × H) (mm)	2150 x 1330 x 1430

Scope of supply

Wheels, pneumatic

Equipment

Manual filter cleaning
Adjustable main sweeper roller
Power steering
Dustpan principle
Traction drive, forwards
Traction drive, reverse
Hydr. high dump
Outdoor use
Indoor use
Battery indicator
Elapsed time counter
Sweeping function, can be switched off
Side brush, automatically swings out
Sturdy bumper

picto easy operation oth 1 EN CI15 110454 CMYK

Product information and benefits

The robust, fully hydraulic, emission-free, battery powered KM 130/300 R Bp industrial sweeper is suitable for extreme jobs, e.g. in the building material and metal-working industries or foundries and in all other dirt-intensive sectors. Thanks to the dustpan principle, fine sweepings and coarse dirt are reliably vacuumed. The roller brush automatically adjusts to uneven surfaces and the innovative sweeping system reduces wear and tear to a minimum. The main roller brush can be easily changed without tools. The waste container automatically closes during transport. Two horizontally installed flat pleated filters ensure clean air under heavy dust conditions. Filter cleaning can be done with the push of a button using a highly effective dual scraper. The filter is optimally accessible and can be easily changed without the need for tools. The motor is also easy to access. The basic functions can be conveniently selected with a control thanks to the EASY Operation Concept.

Dual scraper

Highly effective filter cleaning. Can be operated at the push of a button.

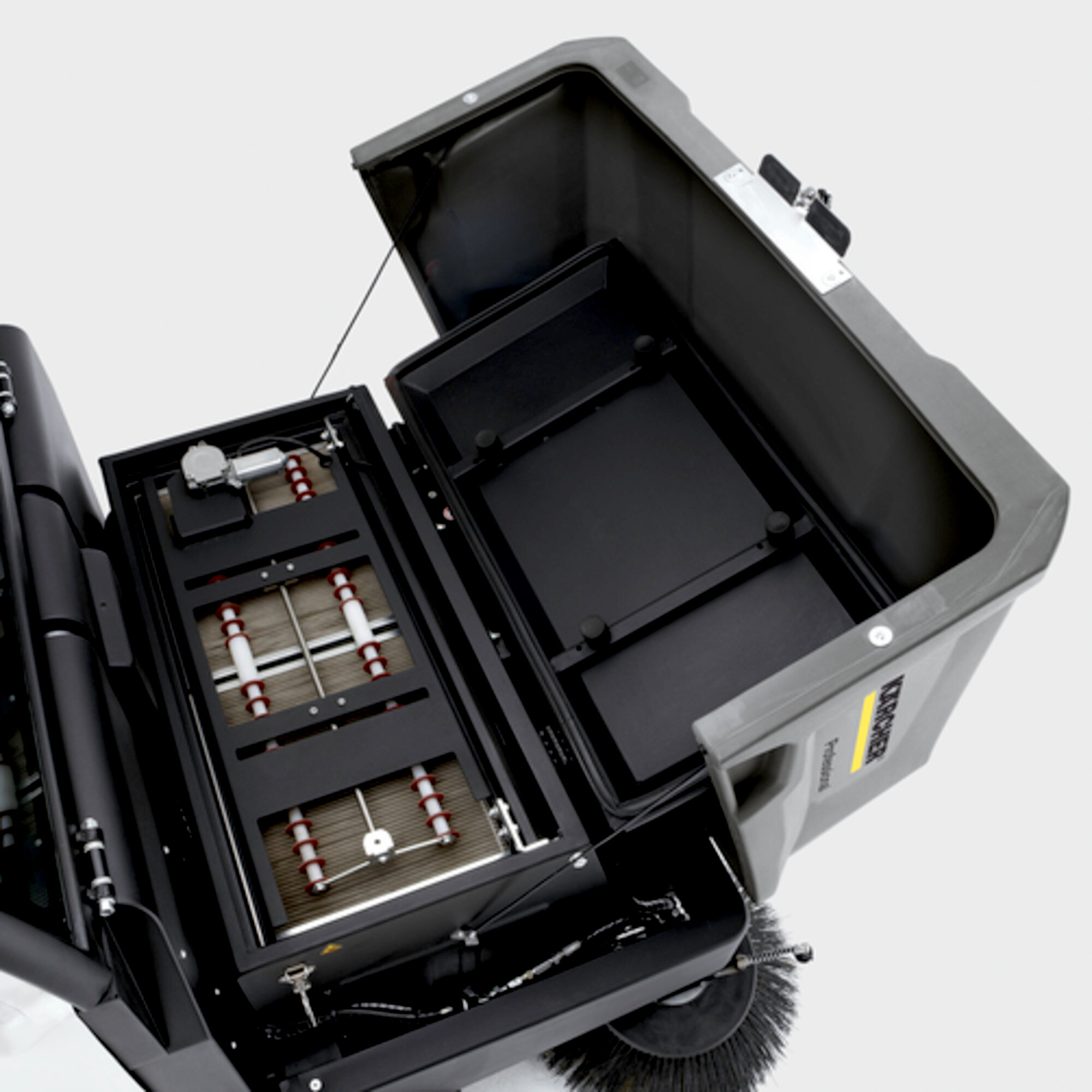

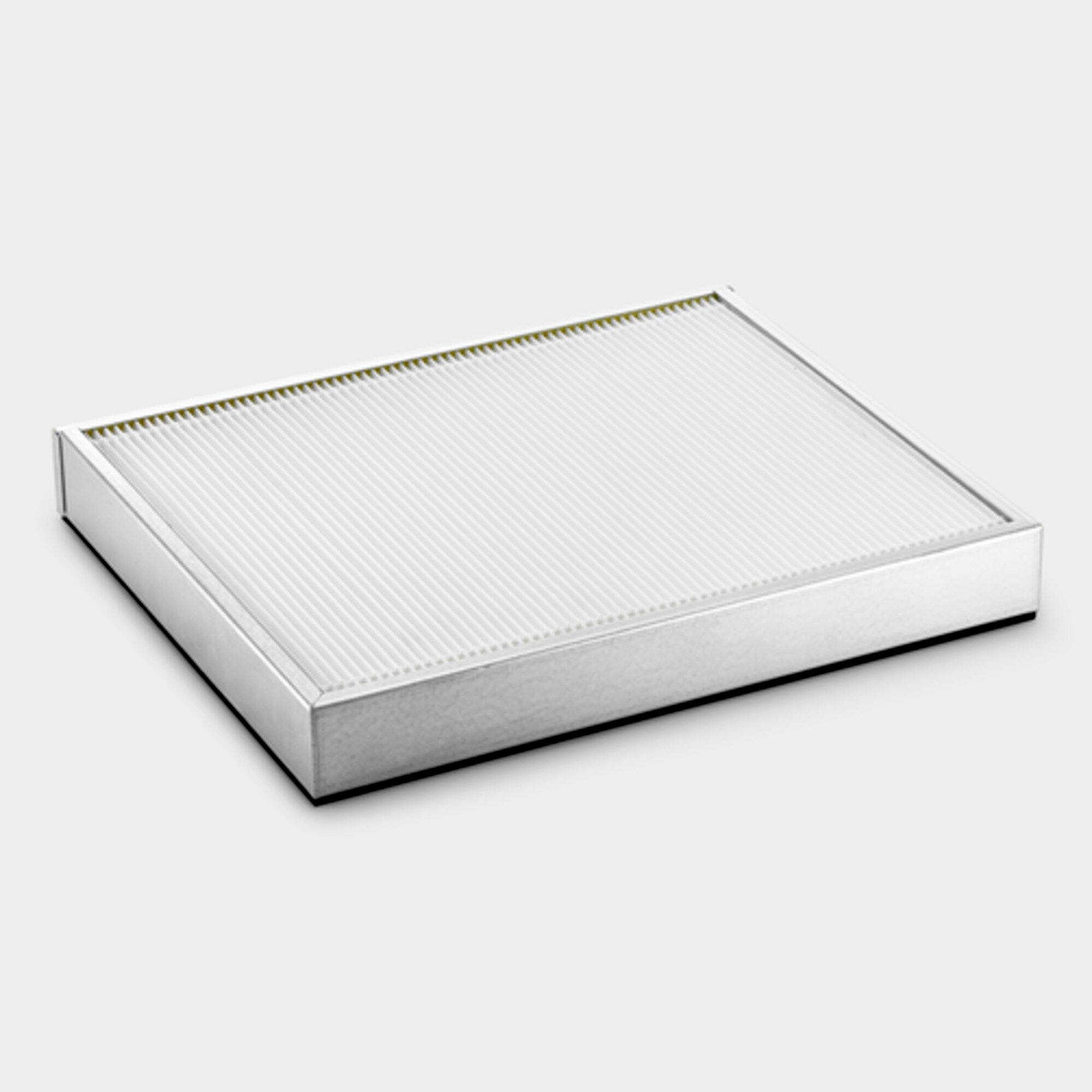

Flat pleated filter

Convenient handling and good accessibility. Made of washable polyester. Long lifetime.

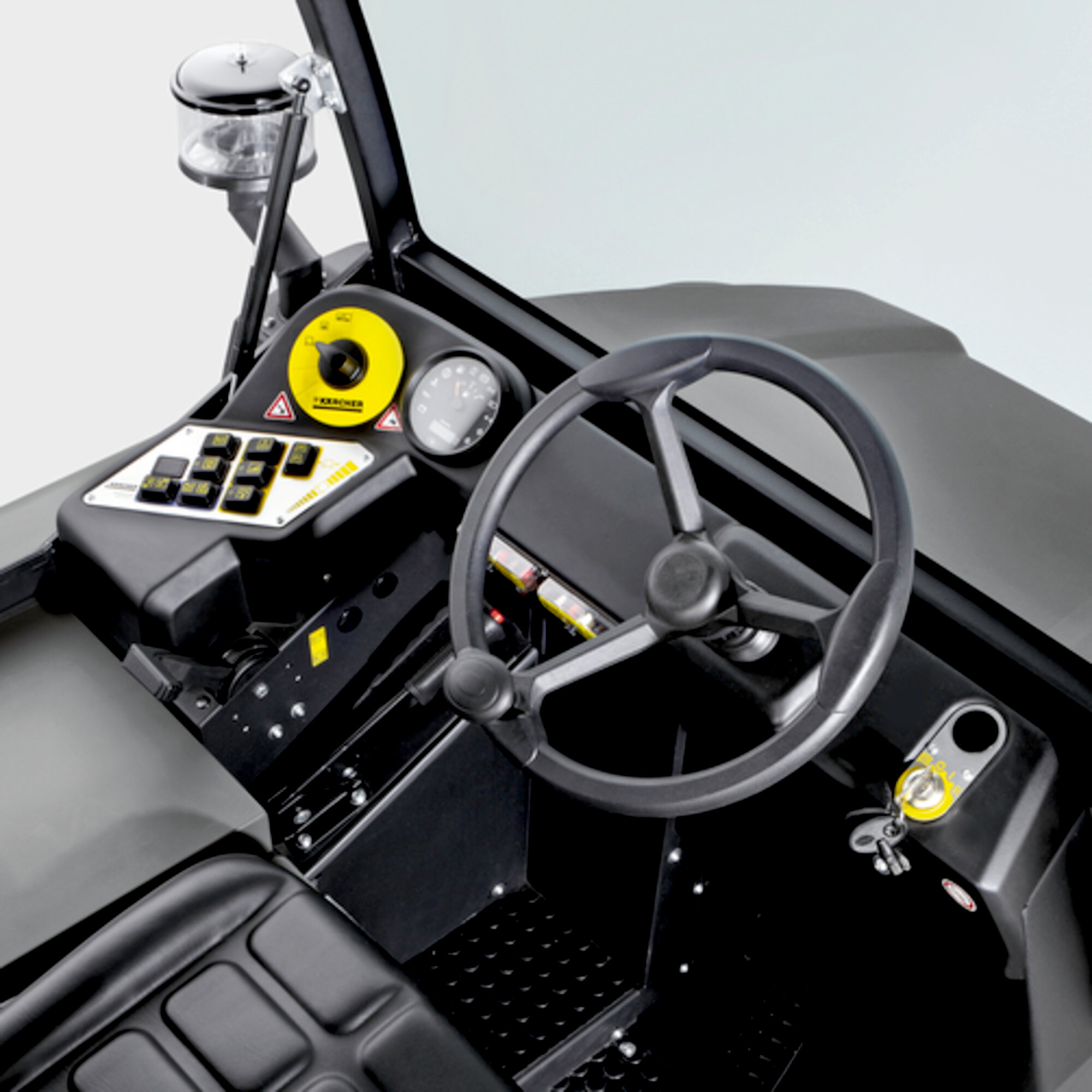

EASY Operation operating concept

Very easy operation. Short teach-in times. Reliable protection against erroneous operation.

Flexible Footprint System

Optimum sweeping results. Low brush wear. Optimum adjustment to different floor surfaces.

Hydraulic high container emptying

Emptying the waste is safe and easy. High container lift up to 1.42 m.

Dustpan principle

Good intake of fine and coarse waste. Low dust dispersion.

Extensive range of accessories and attachment kits

Easily adapts to individual cleaning requirements. Second side brush available on request.

KM 130/300 R Bp

Technical data

Product information and benefits

Dual scraper

Flat pleated filter

EASY Operation operating concept

Flexible Footprint System

Hydraulic high container emptying

Dustpan principle

Extensive range of accessories and attachment kits

Fully hydraulic traction drive and main sweeper roller/side brush drive
