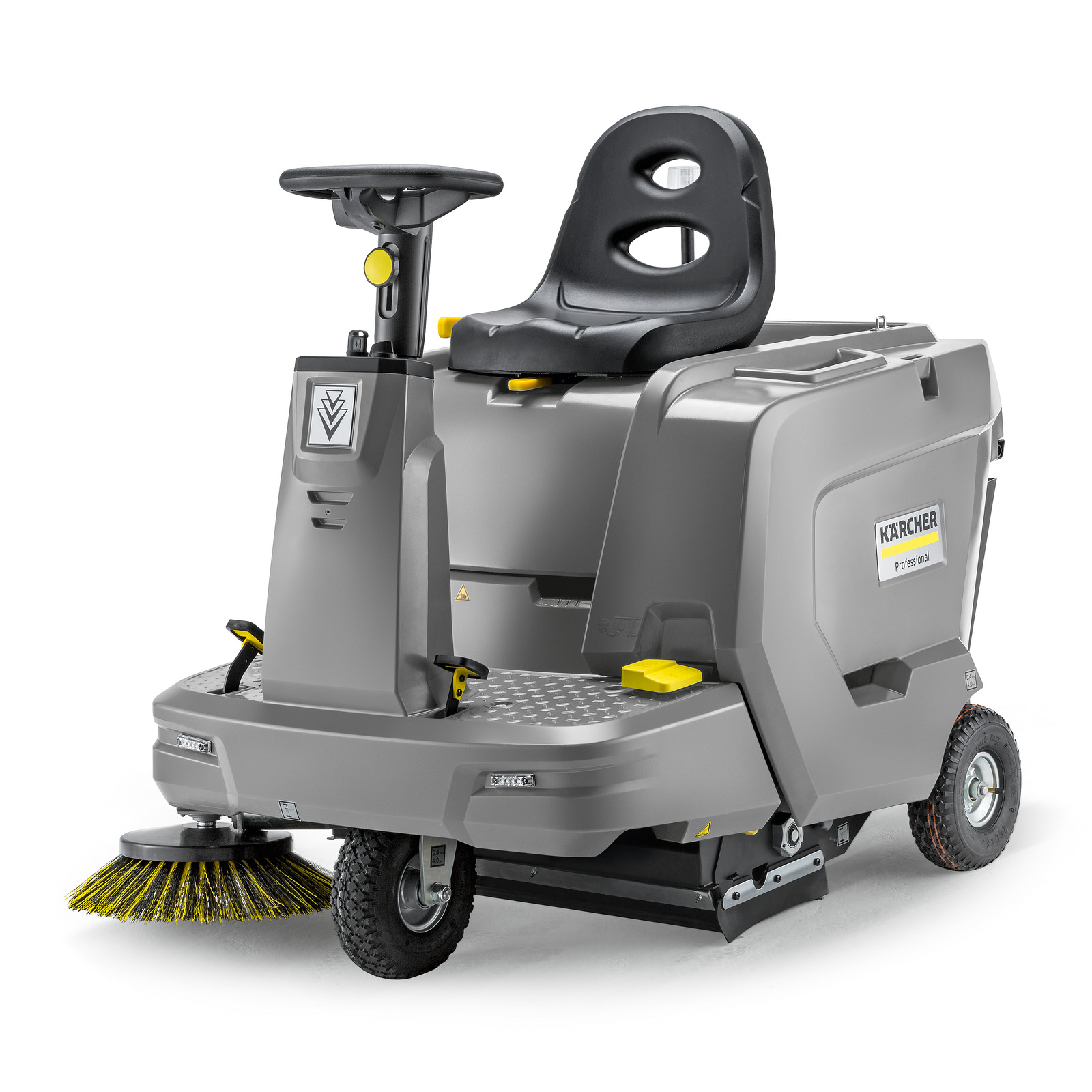

Kärcher ride-on floor sweeper with a steering wheel, seat, and visible rotating brush, designed for professional cleaning.

Vacuum sweeper

KM 85/50 R Bp

This device requires instruction

Order number: 1.351-126.0

Compact design for maximum manoeuvrability
Easy and intuitive operation
Retractable side brush

Technical data

Traction drive	DC motor
Drive – Power (V / W)	24 / 1000
Drive type	Electric
Max. area performance (m²/h)	5100
Max. area performance with 2 side brushes (m²/h)	6510
Working width (mm)	615
Working width with 1 side brush (mm)	850
Working width with 2 side brushes (mm)	1085
Battery voltage (V)	24
Battery run time (h)	2.5
Waste container (l)	50
Climbing ability (%)	12
Working speed (km/h)	6
Filter area (m²)	2.3
Payload (kg)	90
Weight (with accessories) (kg)	177.5
Weight, ready for operation (kg)	230
Weight incl. packaging (kg)	179.5
Dimensions (L × W × H) (mm)	1171 x 870 x 1136

Scope of supply

Wheels, pneumatic

Equipment

Manual filter cleaning
Mechanical filter cleaning
Main sweeper roller, floating
Suction volume regulation
Coarse dirt flap
Overhead sweeping principle
Traction drive, forwards
Traction drive, reverse
Suction
Outdoor use
Indoor use
Side brush speed, adjustable
Battery indicator
Elapsed time counter
Waste container, mobile
Sweeping function, can be switched off
Side brush, automatically swings out
Automatic wear adjustment of the main sweeper roller
Multifunction display
Home Base fastening possibility

Product information and benefits

The KM 85/50 R, our battery powered ride-on sweeper, is perfect for confined and congested areas. Its compact design and high level of manoeuvrability mean that cleaning work can be performed in any location where space is limited, corridors are narrow or there is a high number of corners. The fact that this entry-level model also boasts impressive area performance in outside areas is proof of its versatility. The machine is also extremely user friedly to operate and maintain. Thus, for example, the large dust filter, which enables dust-free working, can be easily cleaned from the operating position. In addition, it is possible to access the components through a wide-opening cover and to change the floating main sweeper roller without tools. You can tell when it is time to change the roller on the wear indicator, which is easy to read from the outside. There is no need to make subsequent adjustments to the sweeping system – even sections of the floor that are uneven are always swept clean without any residue. The rotating side brush effectively prevents damage, while you can adjust its rotation speed where necessary. The integrated Home Base system also enables other cleaning utensils to be carried.

Clever container concept

2 tanks for simple removal and safe emptying of waste. Waste container free of rough edges permits emptying without leaving behind any residues. Castors on waste container simplify handling when emptying.

High performance filtration system with 7 m² filter area

Polyester flat pleated filter. Effective cleaning with dual scraper. Comfortable operation from operating position. Access to the filter through wide-opening cover without the need for any tools.

Clever ergonomics for high level of comfort at workplace

Clear and ergonomic attachment of operating elements. Adjustment of driver's seat without the need for any tools. Height-adjustable steering wheel.

Integrated Home Base system and storage areas

Versatile and practical connection for simple carrying of other cleaning utensils. For simple carrying of litter picker, brush, cloths or an additional container, for example. Large storage area in rear of machine.

Wear indicator for main sweeper roller

Can be easily and conveniently viewed from the outside. Precise determination of replacement time.

Retractable side brush

Protects the side brush against damage. Reliable and robust design. Lowers maintenance and service costs.

Compact design for maximum manoeuvrability

Excellent manoeuvrability of the machine. Also ideal for congested and confined areas. Possible to drive through normal door openings (90 cm).

Speed regulation of side brush

For adapting the side brush speed to the respective type and volume of dirt. Reduces any dust dispersions.

Floating main sweeper roller

No wear adjustment necessary. Excellent dirt pick-up also in the case of bumps/unevenness.

Simple operating concept

Roller brush and side brushes can be conveniently switched on and off via a foot pedal. Forward and reverse movements can be conveniently set and adjusted using a selector switch. Suction volume regulation for sweeping wet surfaces.
