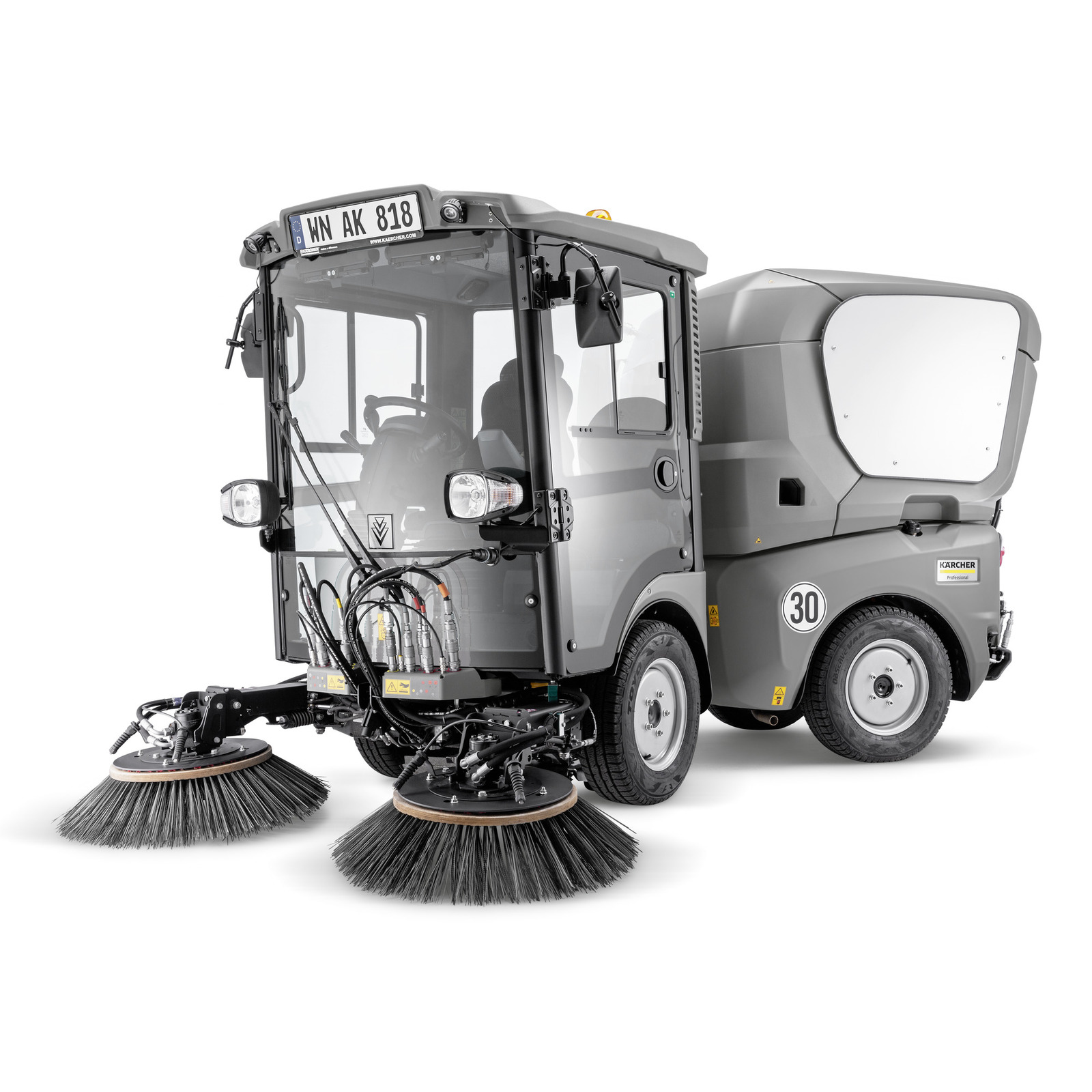

Grey Kärcher street sweeper with dual rotating brushes, enclosed cabin, and visible control panel, parked on a white background.

Vacuum sweeper

MC 130

This device requires instruction

Order number: 1.442-234.201

Hydrostatic rear-wheel drive
Professional municipal sweeper

Technical data

Drive type	Diesel
Traction drive	Three-cylinder engine with DPF
Motor manufacturer	Yanmar
Motor rating (kW)	32.4
Displacement (cm³)	1568
Cylinder	3
Fuel tank volume (l)	50
Diesel particulate filter	yes
Exhaust emissions standard	STAGE V
Driving speed (km/h)	- 30
Working speed (km/h)	40
Climbing ability (%)	25
Working width with 2 side brushes (mm)	2450
Working width with 3 side brushes (mm)	2660
Waste container (l)	1300
Water tank (l)	- 150
Fresh water tank (l)	195
Emptying height (mm)	1565
Turning radius (mm)	1210
Wheelbase (mm)	1700
Unladen weight (kg)	2320
Permissible total weight (kg)	3500
Weight incl. packaging (kg)	2320
Dimensions (L × W × H) (mm)	3955 x 1200 x 1999

Equipment

Particle filter
Heating and air-conditioning unit
Heating
Suction
Traction drive, forwards
Traction drive, reverse
Coarse dirt flap
Hydr. high dump
Flashing lights
Doors, left/right
Outdoor use

AGR certificate municipal implement carrier CMYK oth 01 EN CI20

Product information and benefits

In the development of our compact MC 130 Adv vacuum sweeper, there was a special focus on optimum ergonomics, excellent cleaning performance and, simultaneously, maximum efficiency. As such, the only two-seater vacuum sweeper in the 3.5 t class on the market impresses with its particularly comfortable and ergonomic two-seater cabin. Users can easily control all functions via the unique multifunction display and the cleverly arranged control elements, while also enjoying an excellent view of their surroundings. Thanks to the powerful and efficient 32 kW diesel engine with STAGE V emissions certification from Yanmar and the integrated rear-wheel drive, the MC 130 Adv effortlessly masters cleaning tasks even in challenging terrains. In addition to the efficient engine, our patented eco!efficiency mode ensures maximum efficiency by perfectly matching the engine speed, hydraulic power and sweeping performance in automatic sweeping mode.

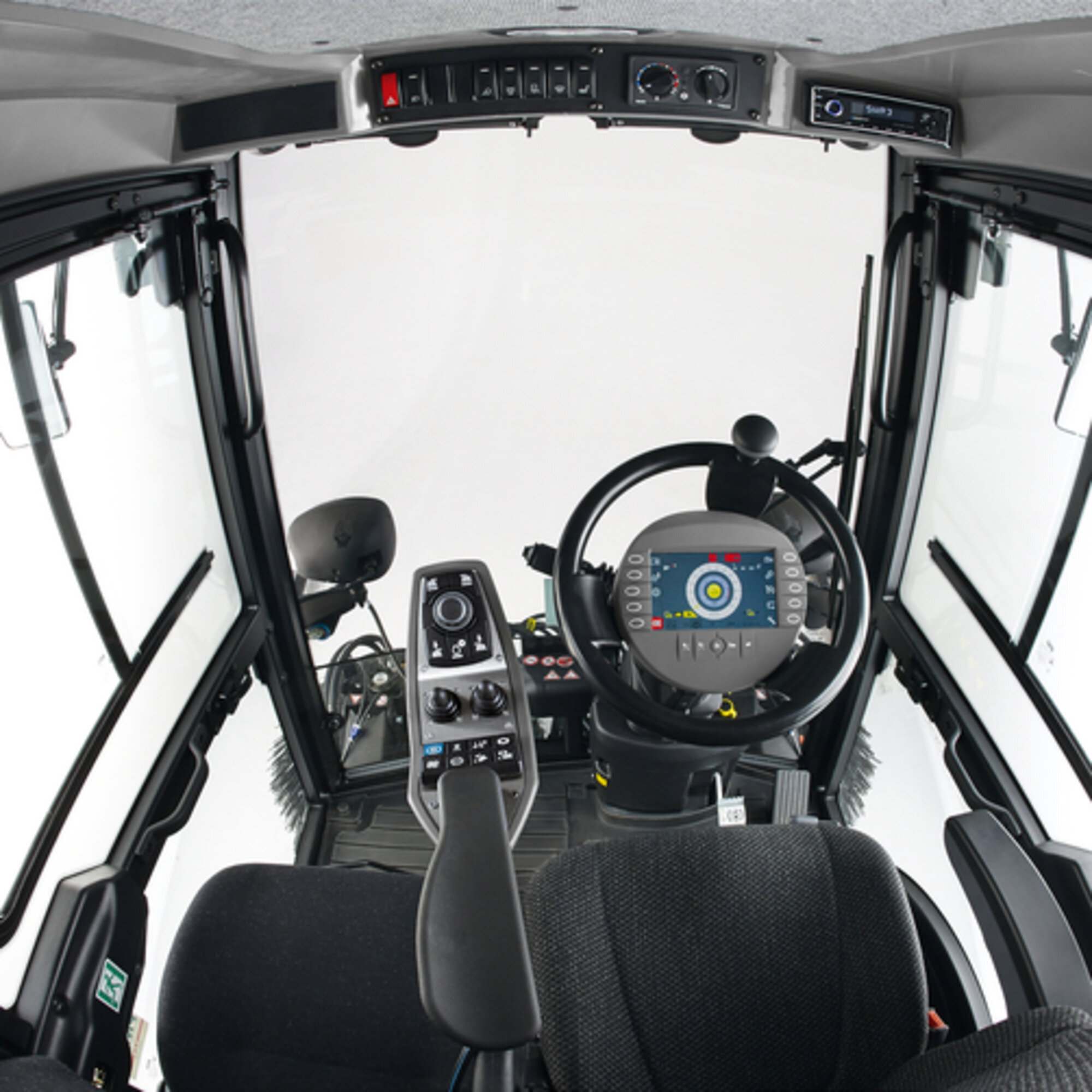

MC 130 municipal sweeping cockpit det 1 CI15502x502

Comfortable two-seater cabin with excellent all-round visibility

Entry and exit possible on both sides with large sliding windows in the doors. 360° cabin glazing with a view towards the rear for maximum safety. Heated windscreen to prevent fogged windows.

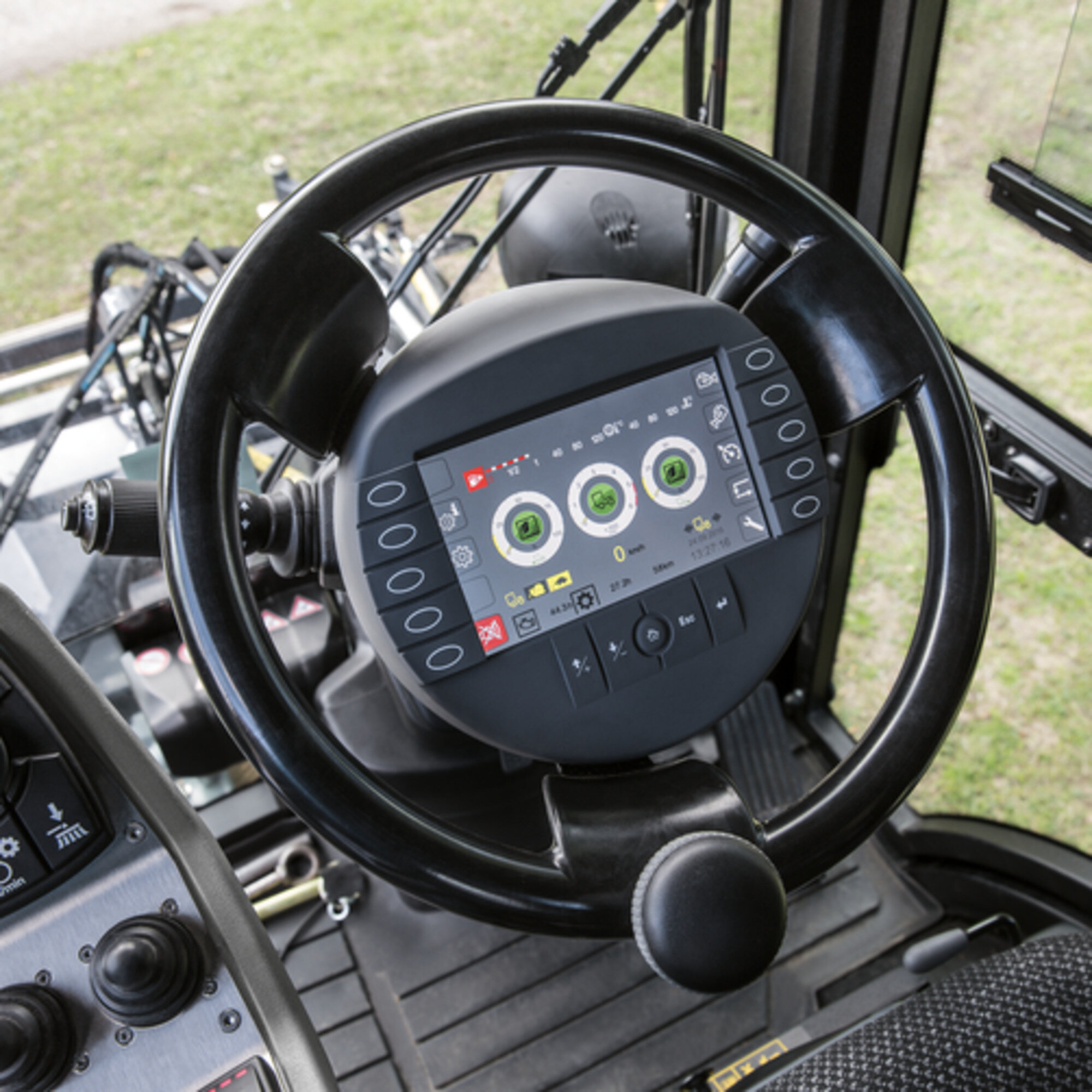

MC 130 municipal green care steering wheel det 2 CI15502x502

Intuitive operating concept

Control unit at the level of the 2 m³ class and identical to Kärcher MC 250. Armrest with ergonomically integrated operating panel for intuitive operation. Multifunction display integrated in the steering wheel rim, therefore visible to the driver at all times.

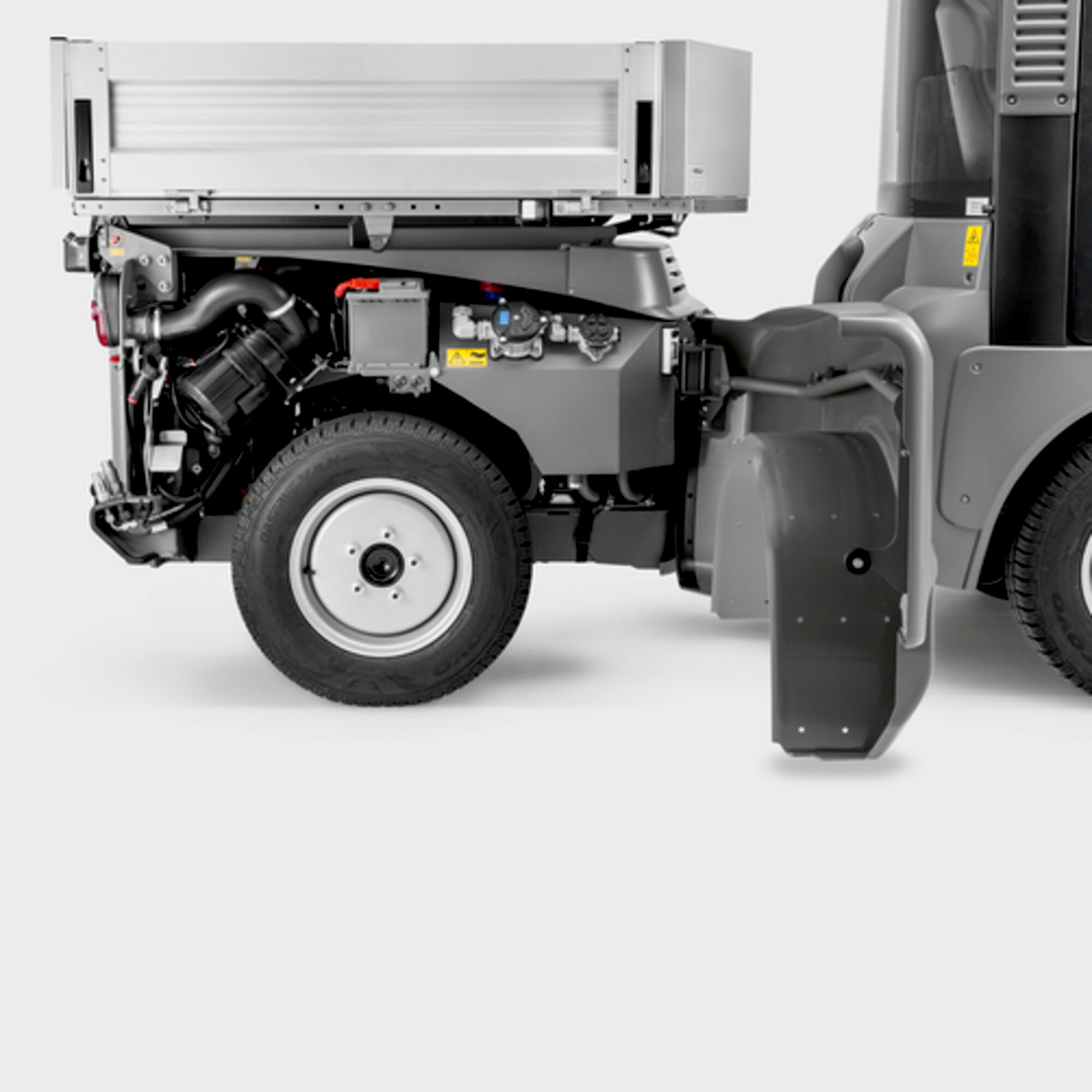

Time-saving daily maintenance

Folding engine housing for direct maintenance and service access. Optional emergency lifting block for lifting the waste container and releasing the parking brake. Central lubrication points on the brush system and suction mouth.

Sophisticated brush system

Two-brush system guided in a parallelogram arrangement with large sweeping width of up to 2450 mm. Individual brush control for sweeping under park benches and in irregularly-shaped areas. With automatic coarse dirt flap.

MC 130 municipal sweeping drivers licence oth 1 CI15502x502

Compact 3.5 t class

Suitable for use on footpaths thanks to a permissible total weight of 3.5 t. Payload of up to 1200 kg. A class B driving licence is sufficient for operation.
