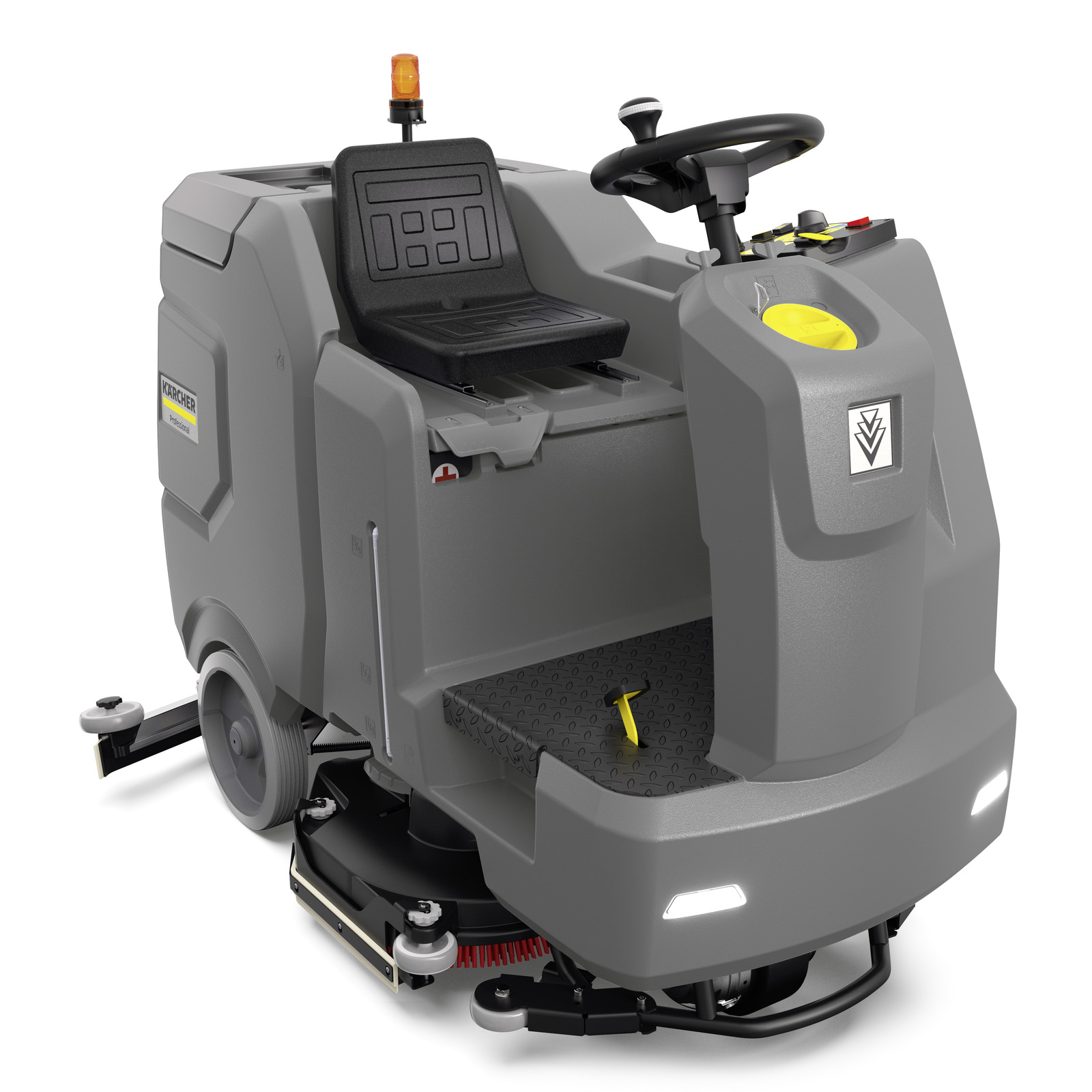

Kärcher ride-on floor scrubber with steering wheel, seat, and control panel, featuring brushes and wheels for cleaning.

Scrubber dryer

BD 90/160 R Classic Bp

This device requires instruction

Order number: 1.246-041.0

160 l tanks for fresh/dirty water, 90 cm disc brush head, 6 km/h speed
Various batteries, run time of up to 5 h, max. 5400 m²/h
Extremely simple to operate, good manoeuvrability

Technical data

Drive type	Battery
Traction drive	traction motor
Working width, brushes (mm)	900
Working width, vacuuming (mm)	1200
Fresh/dirty water tank (l)	max. 160 / max. 160
Theoretical area performance (m²/h)	5400
Practical area performance (m²/h)	4300
Battery (V)	36
Driving speed (km/h)	max. 6
Brush speed (rpm)	180
Sound pressure level (dB(A))	max. 67
Weight without accessories (kg)	370
Dimensions (L × W × H) (mm)	1740 x 970 x 1445

Scope of supply

Disc brush
Disc brush, 2 Piece(s)

Equipment

Automatic water stop
Adjustable steering wheel
Powerful traction drive
Parking brake
Solenoid valve
Two-tank system

picto easy operation oth 1 EN CI15 110454 CMYK

Product information and benefits

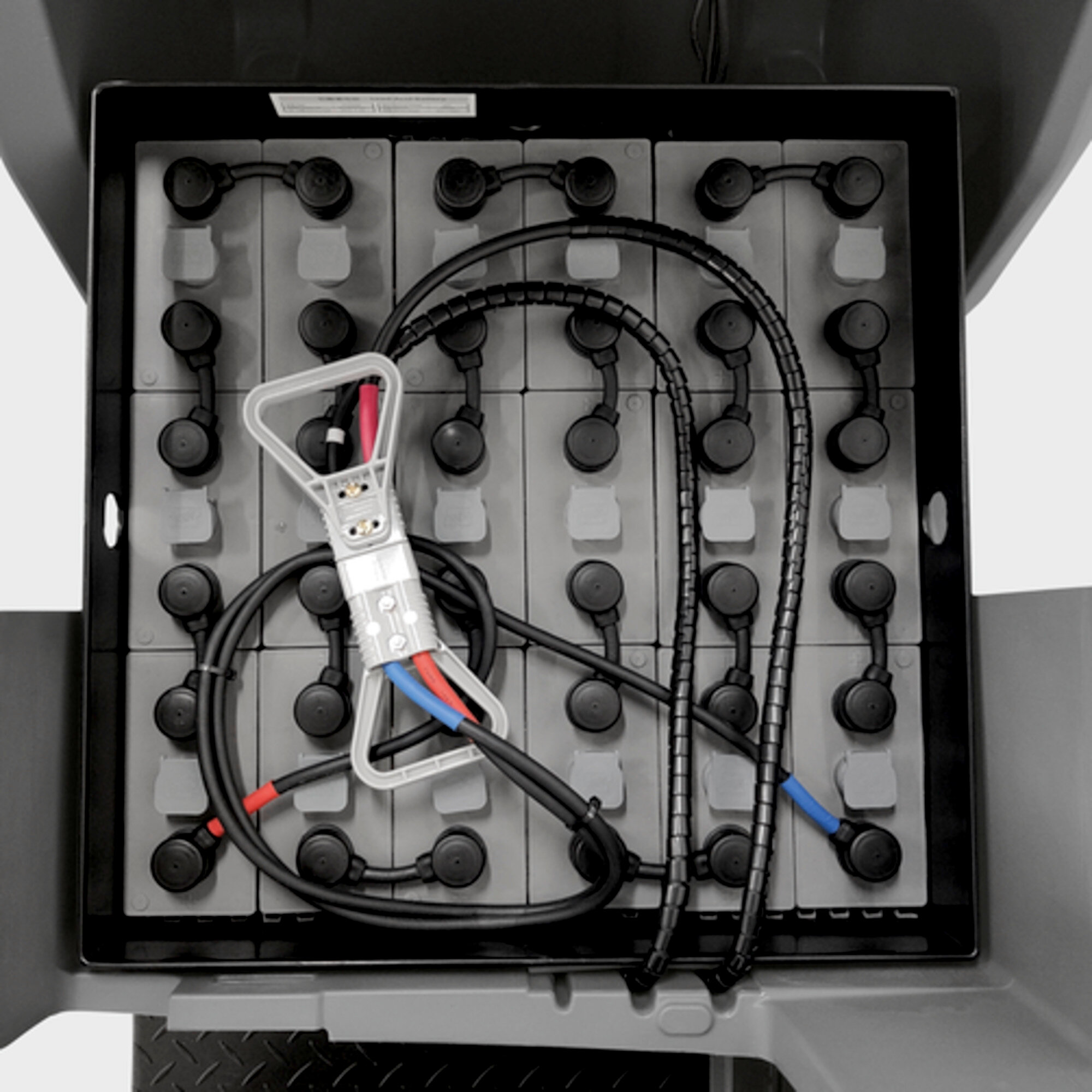

Large battery compartment to hold a 300 Ah battery

Enables uninterrupted work for up to 6 hours. High cleaning performance per battery charge. Maximum productivity.

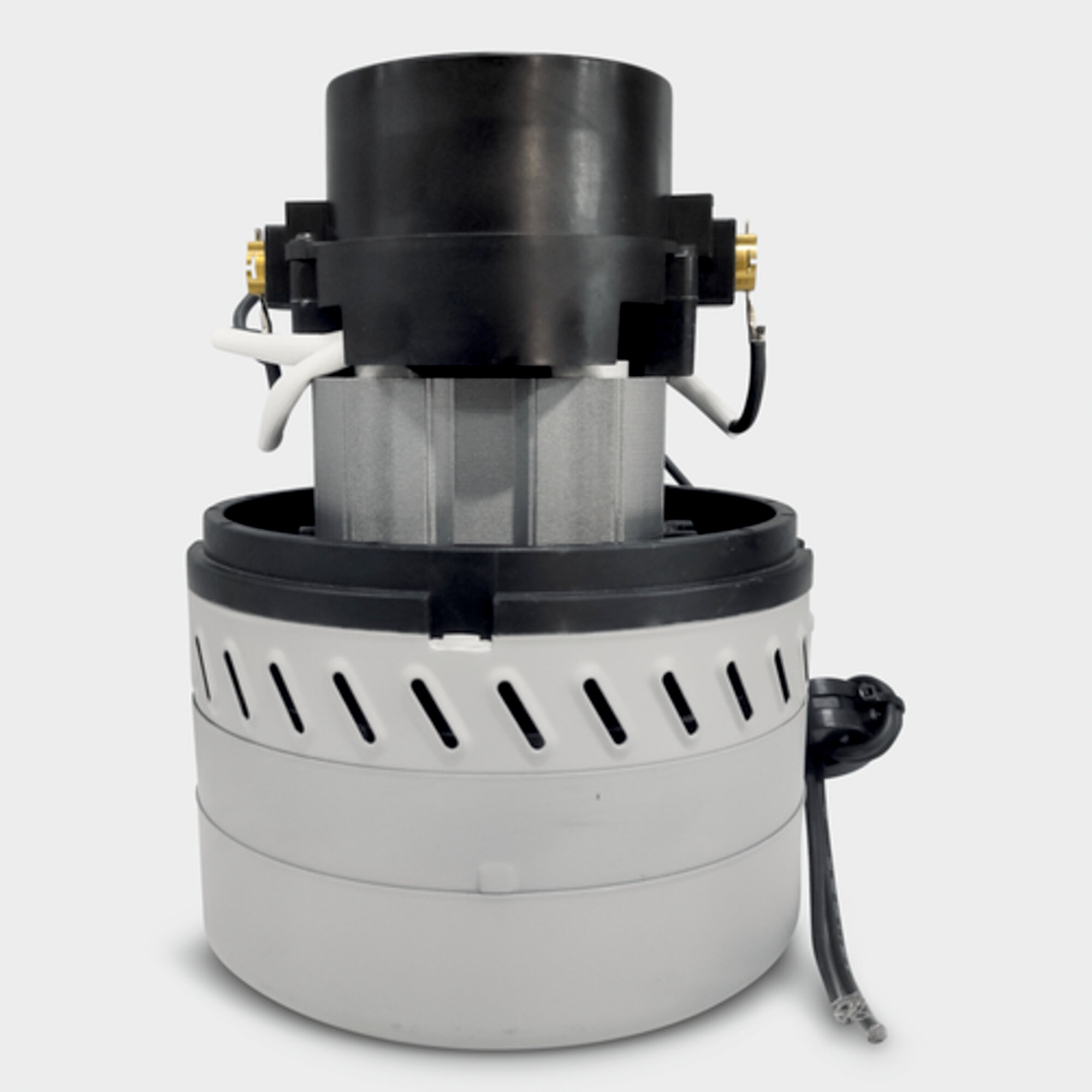

High suction power (700 watts)

Reduces residual water on cleaned areas. High suction power for dry floors. Minimises the risk of slipping on recently cleaned areas.

Anti-skid wheels

Prevents slipping on wet floors. Increases safety for the user. High reliability.

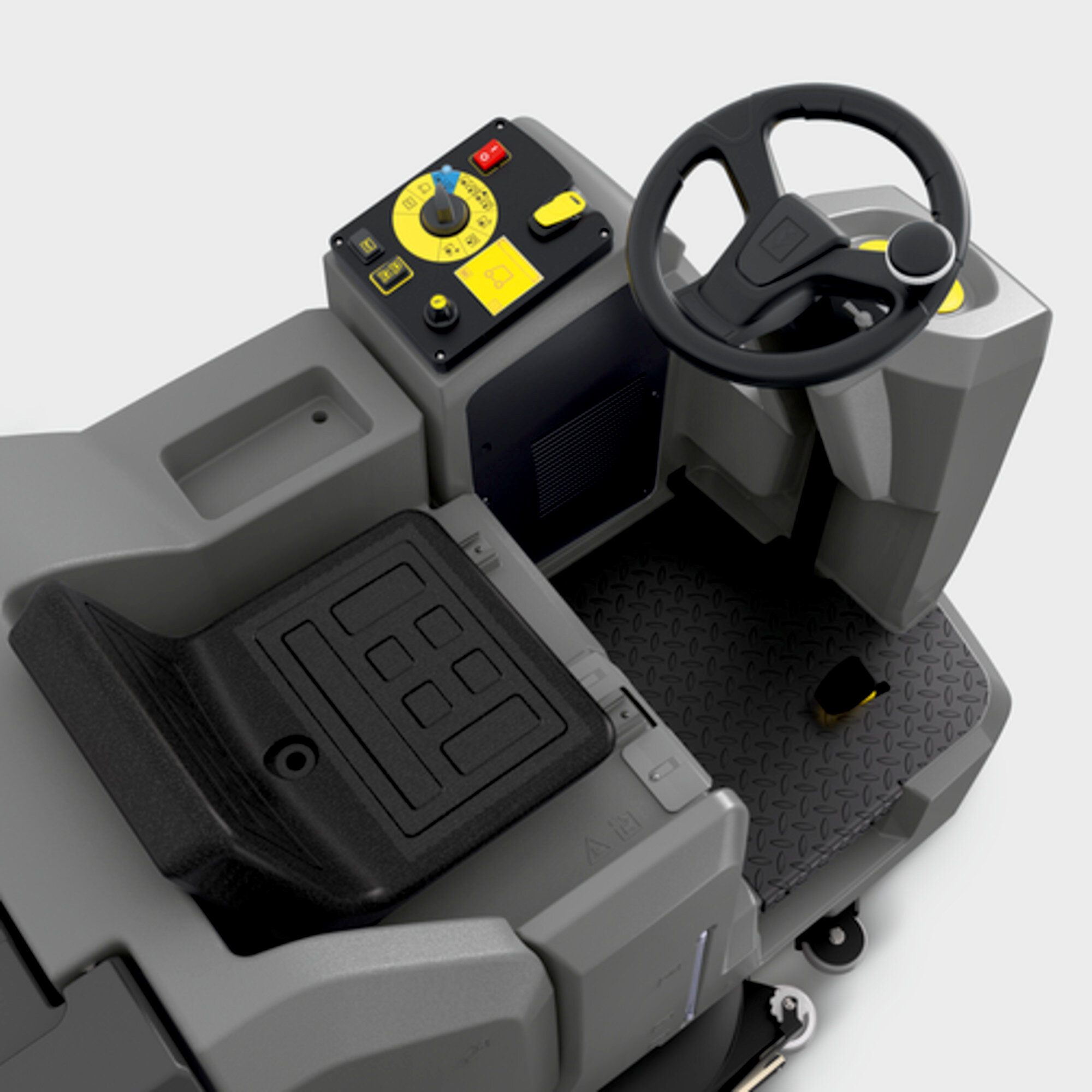

Ergonomic design, designed for the Asian market

Steering wheel and seat can be adapted to the user. Maximum flexibility. High working comfort.

Innovative KIK system

Great protection against operating errors. Prevents unauthorised use. Adjustable cleaning tasks without increasing the complexity for the operator.

D90 brush head comes as standard

Brush head with 90 cm working width for large area performances. 80 kg brush pressure for excellent cleaning results. High cleaning efficiency.

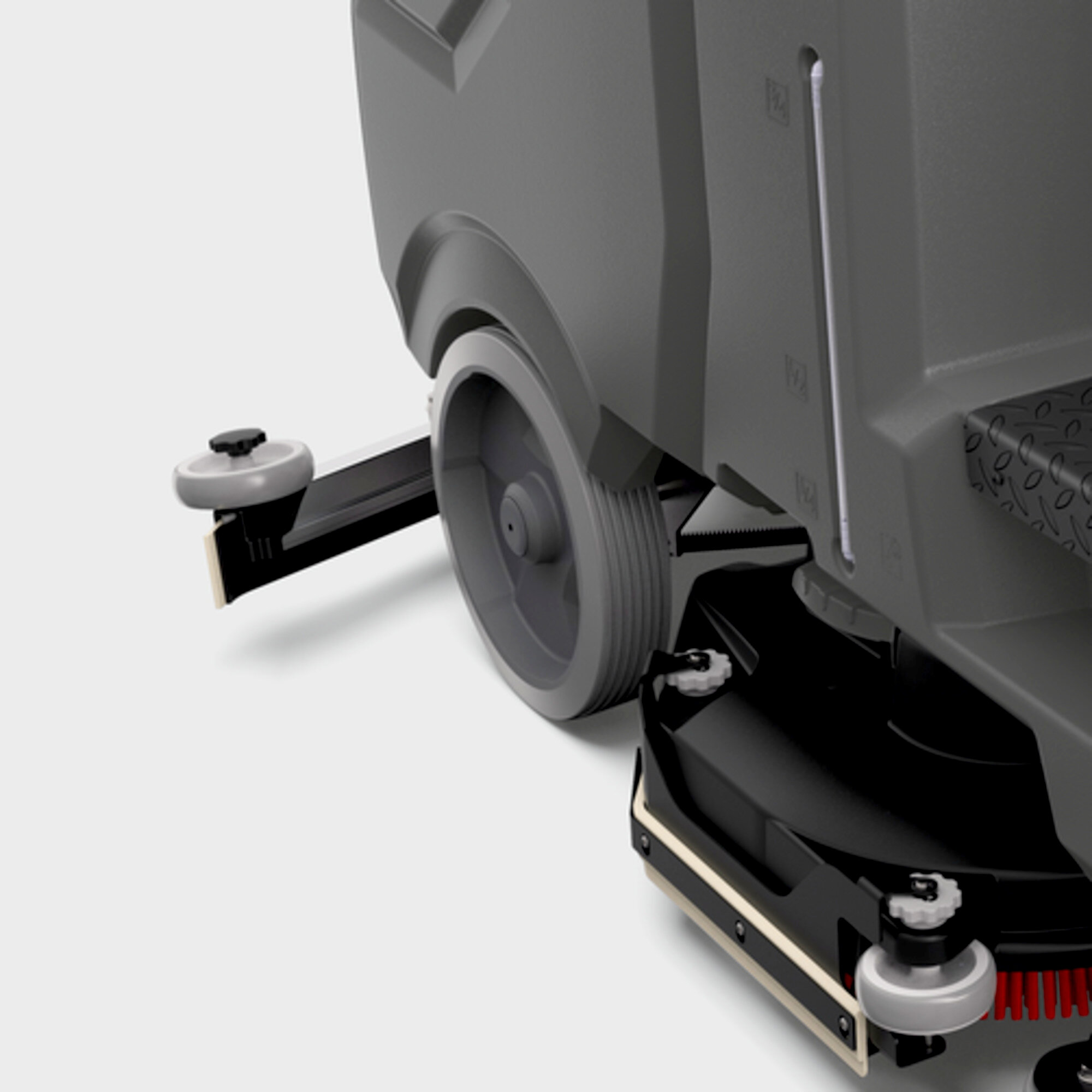

Equipped with standard squeegee adapter.

Suitable for straight, curve and V squeegees depending on requirements. Easy maintenance thanks to tried-and-tested components. Low service costs.

With LED daytime running light

Also improve vision in the dark. Increases visibility during the day. Maximum safety for user and in surrounding area.

Stable anti-collision beam.

Increases safety during turning manoeuvres. Effectively prevents damage to the tank. Effectively prevents damage to the drive.

Energy-saving eco!efficiency mode

Lowers water requirement during cleaning. Lowers battery consumption and increases the runtime. Reduces the operating noise for applications in noise-sensitive areas.

BD 90/160 R Classic Bp

Technical data

Product information and benefits

Large battery compartment to hold a 300 Ah battery

High suction power (700 watts)

Anti-skid wheels

Ergonomic design, designed for the Asian market

Innovative KIK system

D90 brush head comes as standard

Equipped with standard squeegee adapter.

With LED daytime running light

Stable anti-collision beam.

Energy-saving eco!efficiency mode
