Kärcher pipe cleaning nozzle with yellow wheels and metal body, featuring multiple jets and a long rod.

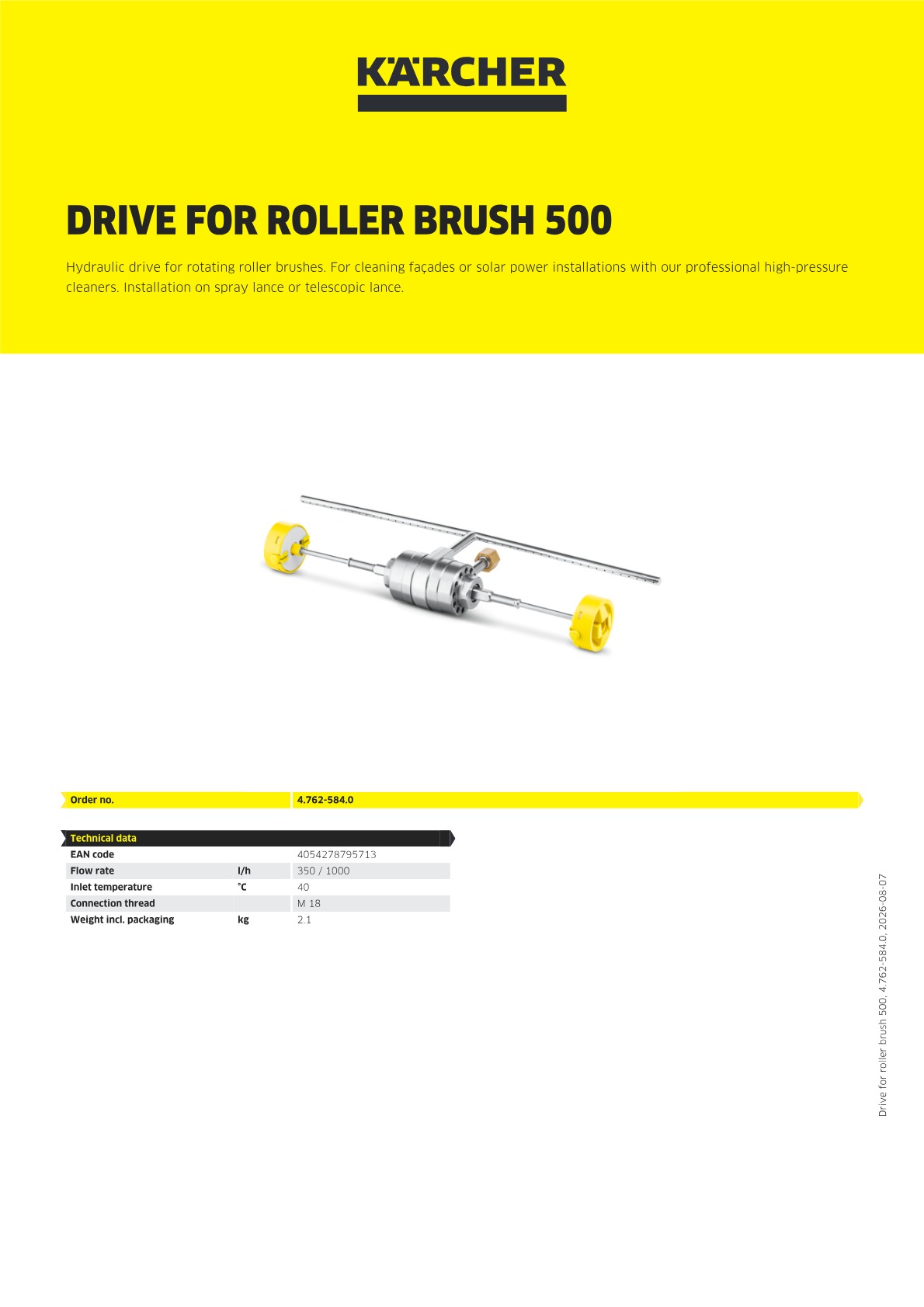

Drive for roller brush 500

Name: Drive for roller brush 500
Brand: Kärcher
SKU: 4.762-584.0

Order number: 4.762-584.0

Hydraulic drive for rotating roller brushes. For cleaning façades or solar power installations with our professional high-pressure cleaners. Installation on spray lance or telescopic lance.

Request a offer

Technical data

Product information and benefits

In high-quality and long-life design made of stainless steel and PEEK, the hydraulic drive for rotating roller brushes increases the possibilities of our professional high-pressure cleaners – even the smallest with lower water delivery quantities. The drive with integrated spray bar for perfect water discharge allows the use of brush attachments of different hardnesses, which are very easy to change thanks to the quick-change system, and can be safely connected to the drive. The drive can be optionally mounted directly on the spray lance or on a telescopic lance. The attachments are suitable, depending on the version, for demanding cleaning work on solar power installations, glass surfaces, sensitive and rough façades, as well as for patios with stone or wood surfaces. For façade cleaning, the brushes automatically face upwards, thus reducing the physical effort for the user. In addition, a splash guard (4.762-621.0) and a Vario joint (4.481-042.0) are optionally available.

Rotating hydraulic roller brush drive

No additional motor for brush drive required. Compact construction style and low weight. High-quality design made of stainless steel and PEEK.

Changeable brush attachments

Guarantees the optimum brush for all surfaces. Audible engagement of the brush attachments ensures safe use. Colour coding facilitates the selection of the appropriate brush attachment.

Flow rate (l/h)	350 1000
Inlet temperature (°C)	40
Connection thread	M 18
Weight incl. packaging (kg)	2.1
