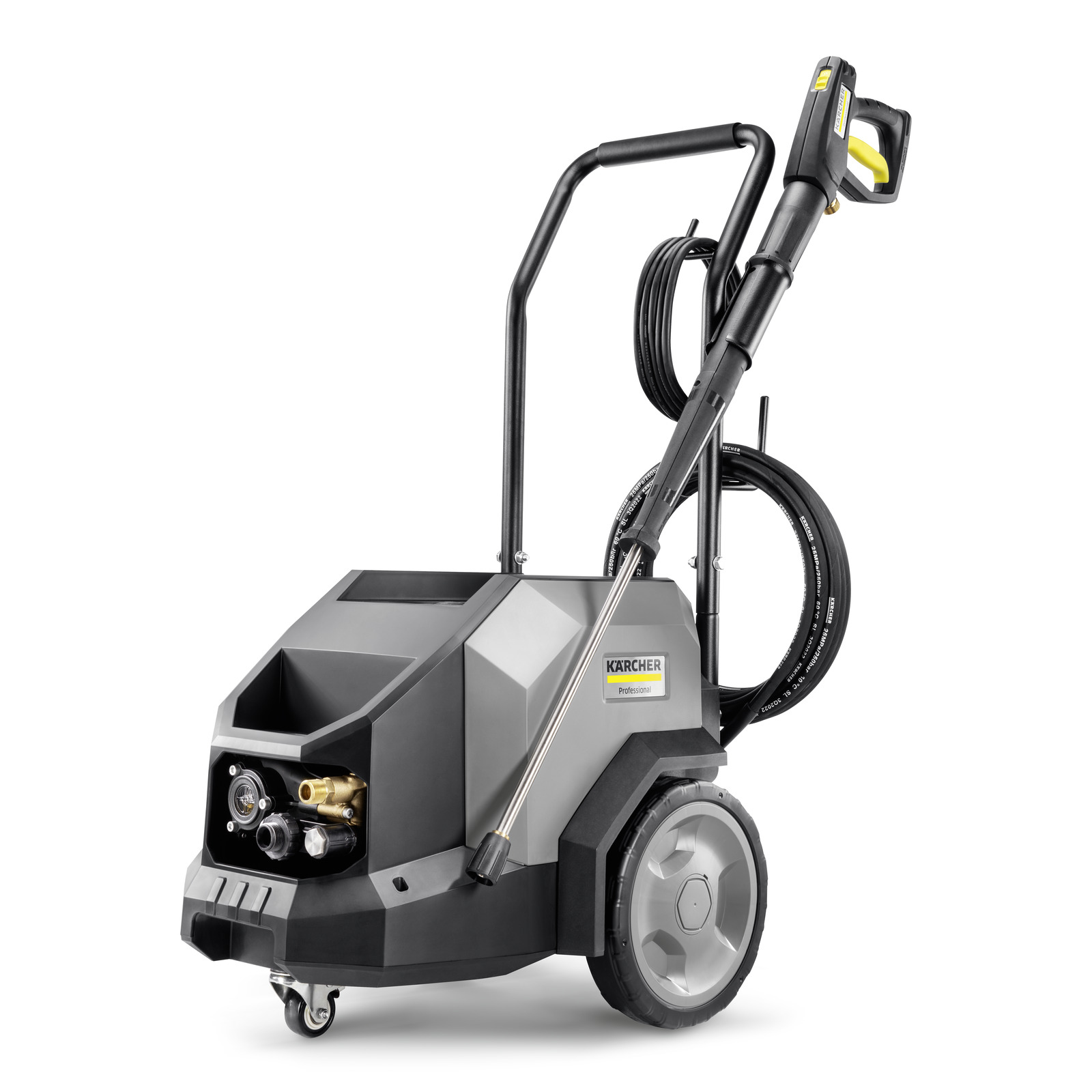

Kärcher high-pressure cleaner with wheels, hose reel, and ergonomic handle, set against a white background.

Awards and exclusive range

High-pressure cleaner

HD 5/13 Classic

Name: HD 5/13 Classic
Brand: Kärcher
SKU: 1.520-022.0

Order number: 1.520-022.0

The Classic range offers excellent performance at a low price and features a reliable crankshaft pump with brass cylinder head. Very ergonomic and portable thanks to the large wheels and castor.

Request a offer

Technical data

Product information and benefits

The HD 5/13 Classic high-pressure cleaner is equipped with a crankshaft pump with a brass cylinder head, sealing technology, and an induction motor. The device features a handle, wheels, a steering roller, and a parking brake for cleaning operations requiring position changes. The HD 5/13 Classic is intended for applications in workshops, vehicle wash facilities, car rentals, trades and construction companies, or in building cleaning. Working pressure and water flow rate are coordinated. The device is compatible with the Kärcher power nozzle.

Designed for continuous operation in commercial and industrial use.

Large crankshafts and connecting rods with robust ball bearings. High-quality brass cylinder head and high-performance sealing packages for longer working times. Powerful, air-cooled electric motor.

Very easy servicing

Cylinder head is accessed quickly, simply by removing the machine cover. Easy-to-access water filter protects the pump against dirt particles in the water.

Excellent portability

The robust D250 wheels are ideal for tough applications. The high-quality castor with parking brake is ultra-convenient for operations that require frequent changes of position. Features an ergonomic handle for easy carrying, even over long distances.

Increased energy efficiency

Newly developed crankshaft pump with reduced flow and pressure loss. Patented Kärcher power nozzle can offer up to 40 per cent more impact force than conventional nozzles.

Voltage (V)	220
Frequency (Hz)	50
Flow rate (l/h)	500
Inlet temperature (°C)	60
Working pressure (bar)	130 - max. 170
Max. pressure (bar)	170
Power cable (m)	5
Colour	Anthracite
Weight (with accessories) (kg)	37.4
Weight incl. packaging (kg)	39.9
Dimensions (L × W × H) (mm)	636 x 438 x 957
