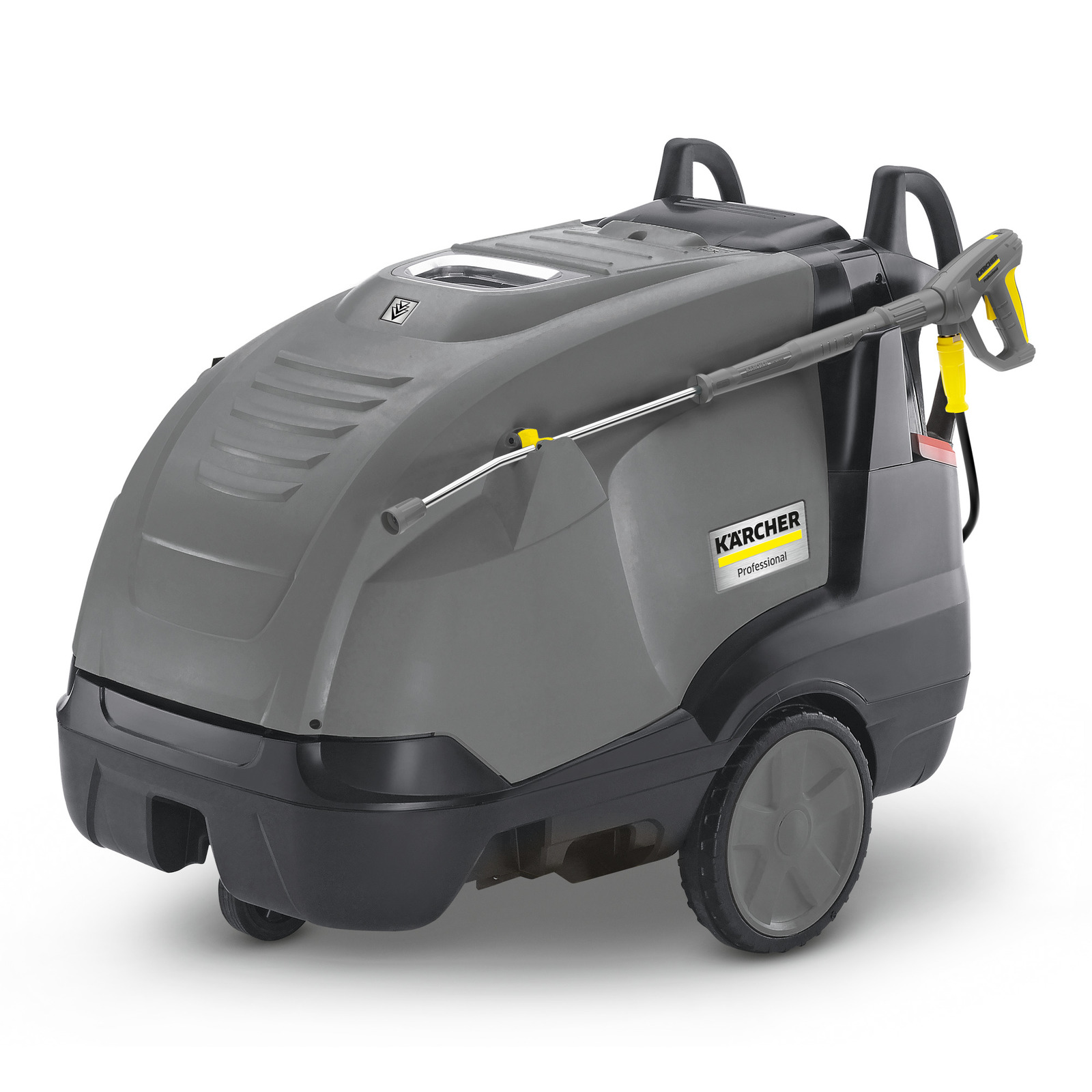

Kärcher professional high-pressure cleaner, grey and black, with wheels and handle, side view.

Awards and exclusive range

High-pressure cleaner

HDS 7/12-4 M

This device requires instruction

Order number: 1.077-900.0

Economical eco!efficiency mode
Axial pump with turbo blower
Three-phase motor: air-cooled

Technical data

Number of current phases (Ph)	1
Voltage (V)	230
Frequency (Hz)	50
Flow rate (l/h)	350 - 700
Working pressure (bar / MPa)	30 - 120 / 3 - 12
Temperature (for supply 12 °C) (°C)	min. 80 - max. 155
Connected load (kW)	3.4
Consumption of fuel oil at full load (kg/h)	4.6
Consumption of heating oil in eco!efficiency mode (kg/h)	3.7
Power cable (m)	5
Fuel tank (l)	25
Weight (with accessories) (kg)	155.5
Weight incl. packaging (kg)	167.5
Dimensions (L × W × H) (mm)	1330 x 750 x 1060

Scope of supply

Spray gun
High-pressure hose length: 10 m
High-pressure hose type
Spray lance: 1050 mm
Power nozzle

Equipment

Detergent function: 20 + 10 l tank
ANTI!Twist
Tanks for detergent, calcification protection and fuel that can be filled from the outside

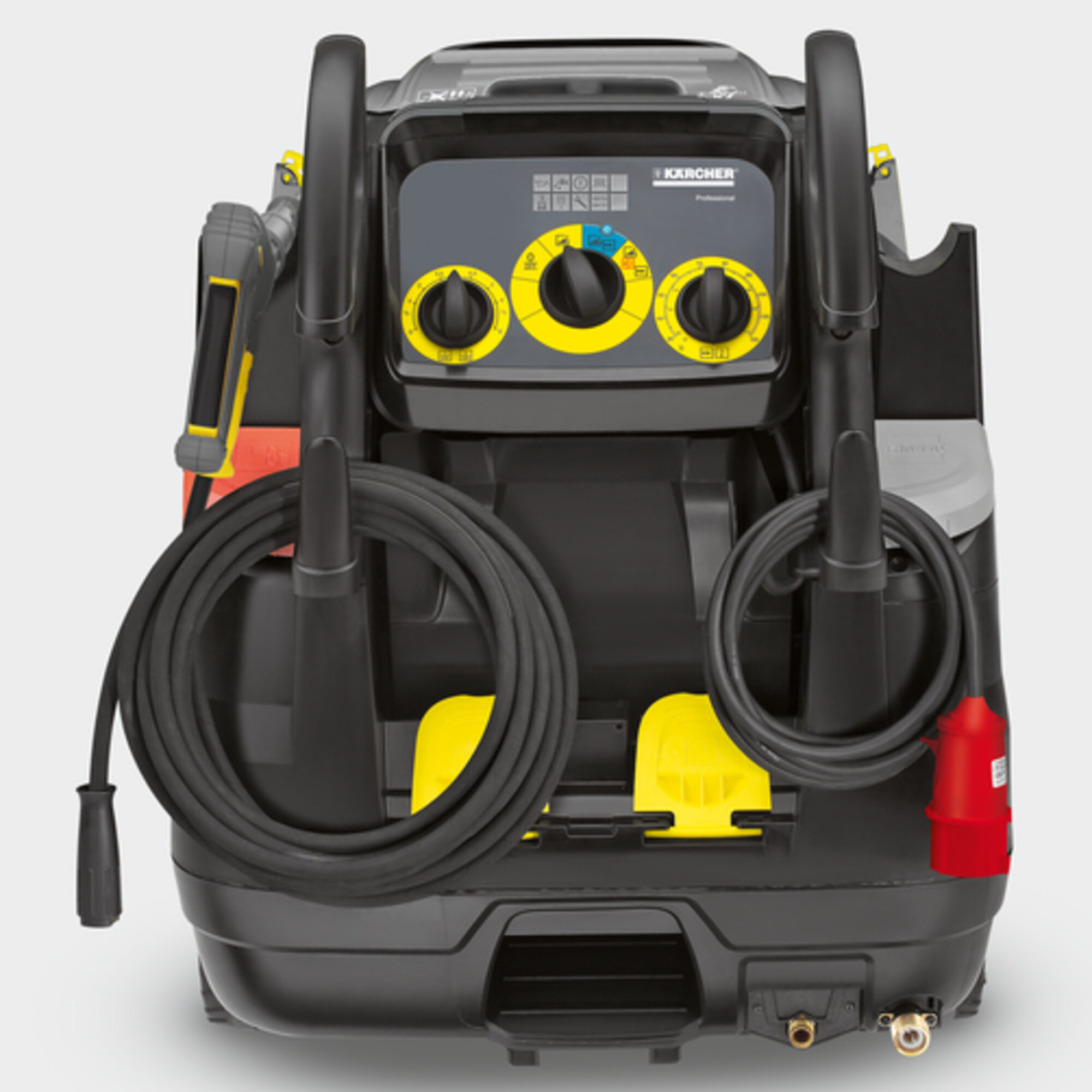

Control bar with display light
Pressure cut-off
Service electronics with LED display
2 Detergent tanks
Dry-running protection

Recommended maximum duration of use in hours/day.

High-pressure trigger gun with zero holding force for fatigue-free operation.

Schlauch mit frei drehbar gelagerten Anschlüssen.

Robust, long-lasting quick-release lock: five times faster than screwing.

Machine that is suitable for operation with biodiesel.

The machine can also be operated with synthetic diesel fuels, so-called e-fuels.

Weeding with our weed remover and hot water high-pressure cleaners without chemicals.

picto certified virus disinfection CMYK oth 01 EN CI20

HDS EUnited Cleaning Efficiency Certificate Label oth 1 75810 CMYK 1

Product information and benefits

Efficient, economical, user-friendly: the HDS 7/12-4 M from Kärcher is a single-phase, heated, entry-level high-pressure cleaner in the Middle class. The hot water high-pressure cleaner is fitted with a 4-pole electric motor and offers not only extensive equipment but an ideal balance between outstanding cleaning results and maximum environmental protection. This is ensured on the one hand by the patented nozzle technology, ceramic pistons, turbo blower and increased pump efficiency, and on the other by the unique eco!efficiency mode, precise cleaning agent dosing unit and optimised burner engineering. The machine also offers maximum user-friendliness for you as the operator: the intuitive control panel, LED displays and sophisticated mobility concept simplify operation, handling and transport of the machine. And you will not have to make any compromises when it comes to servicing and maintenance, as all of the components required for maintenance are easily accessible, and operating data can be retrieved at any time using the service switch.

Economic efficiency

In eco!efficiency mode, the machine operates in the most economical temperature range (60 °C) – with full water flow. The burner cycles are optimised to reduce fuel consumption by 20% compared to full load operation.

Maximum efficiency

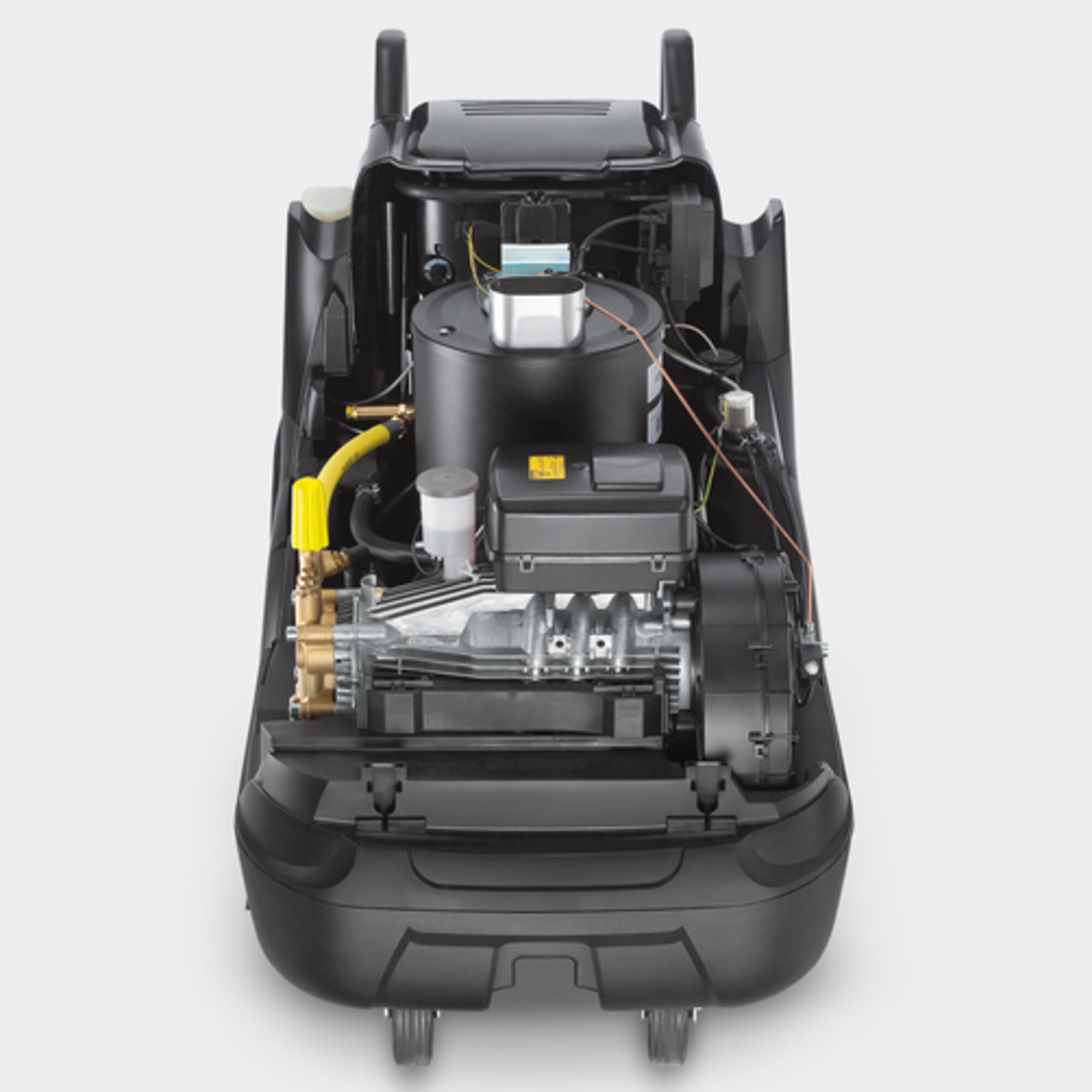

Proven and highly efficient burner technology. 4-pole, slow-running electric motor guarantees a long working time.

Operational safety

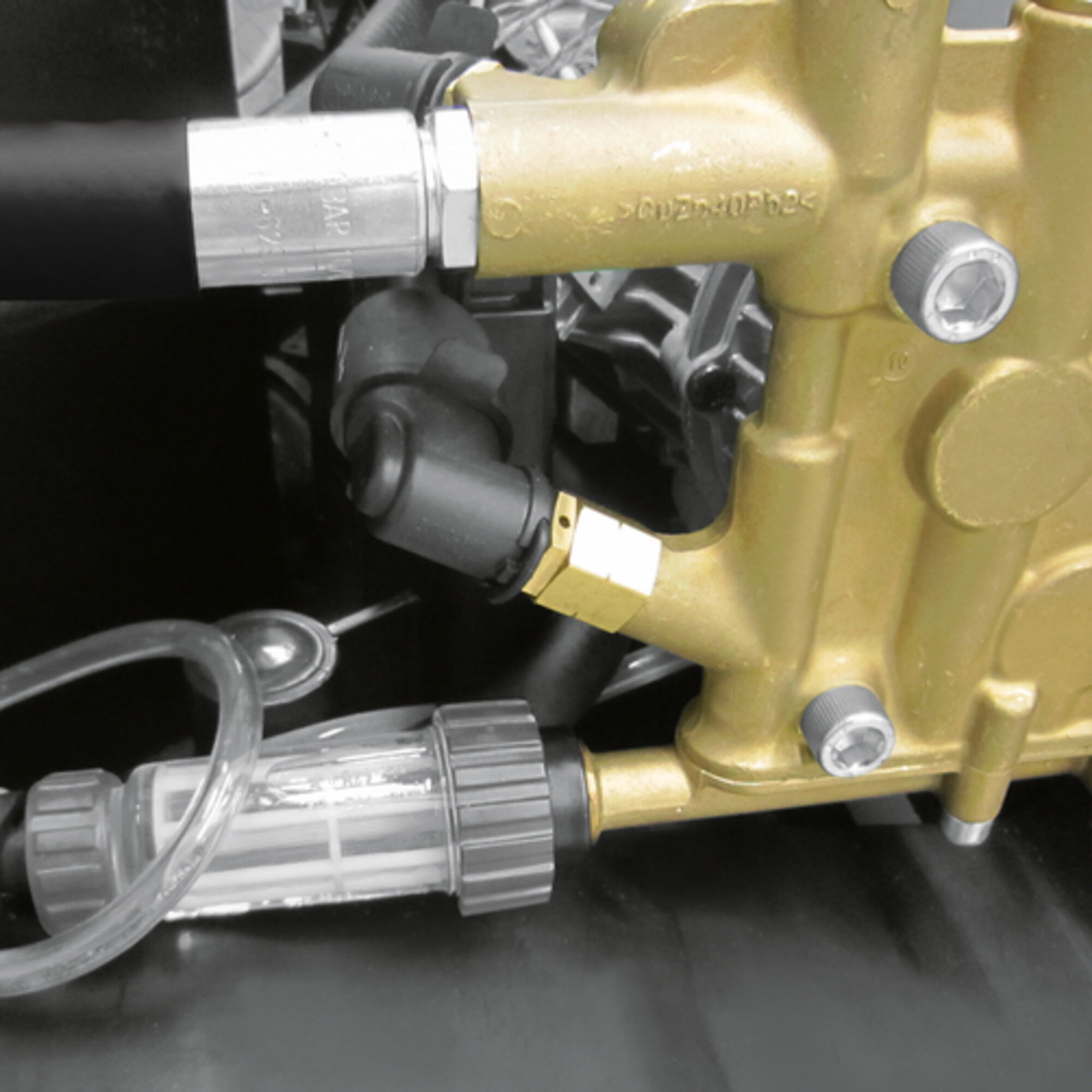

The large, integrated water fine filter reliably protects the high-pressure pump against small dirt particles. The integrated exhaust gas thermostat switches off the drive motor if the emission temperature exceeds 300 °C. The Soft Damping System (SDS) compensates for vibrations and pressure peaks in the high-pressure system.

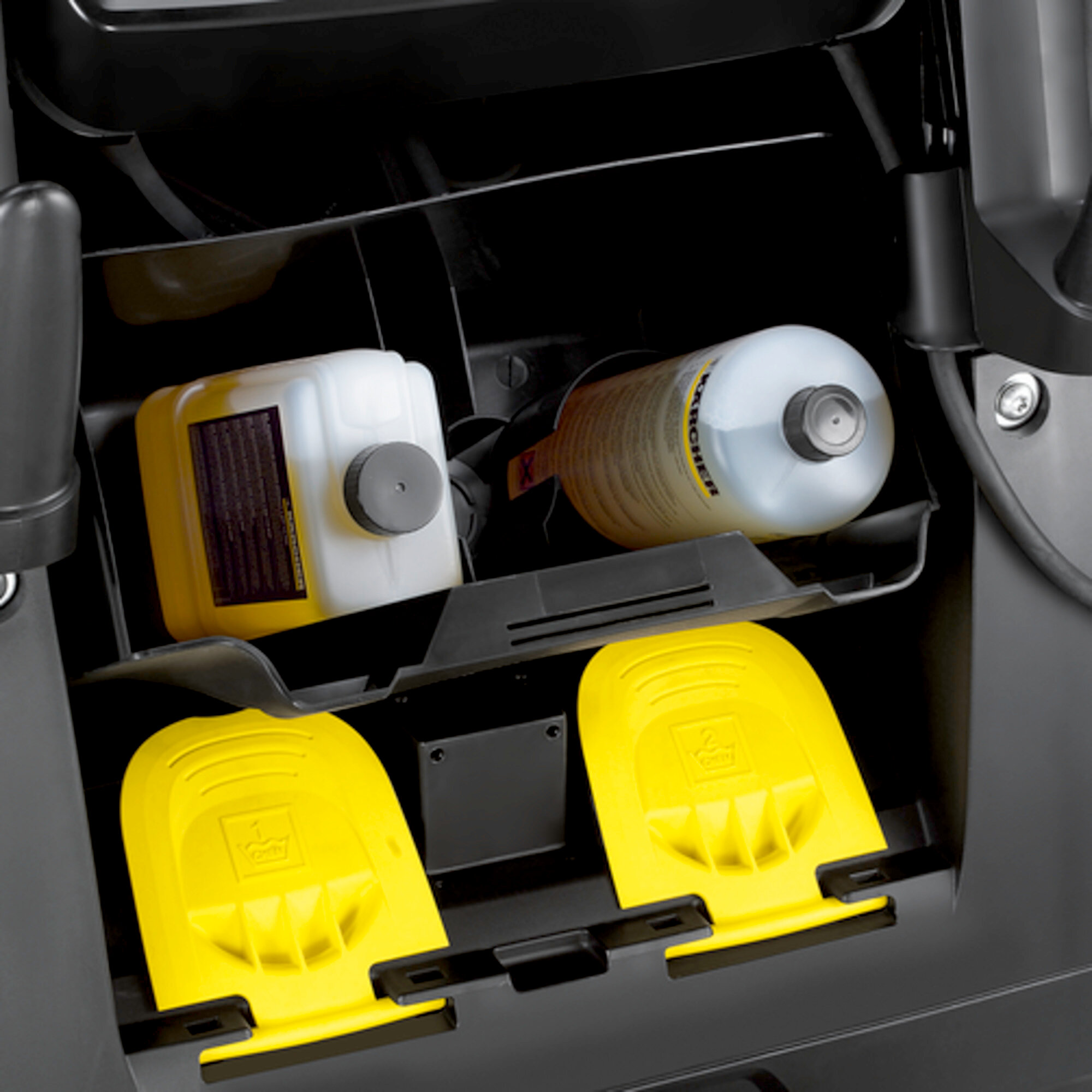

Storage

Safe and ample storage options for protective equipment, accessories and detergents. Storage hooks for power cable and high-pressure hose.

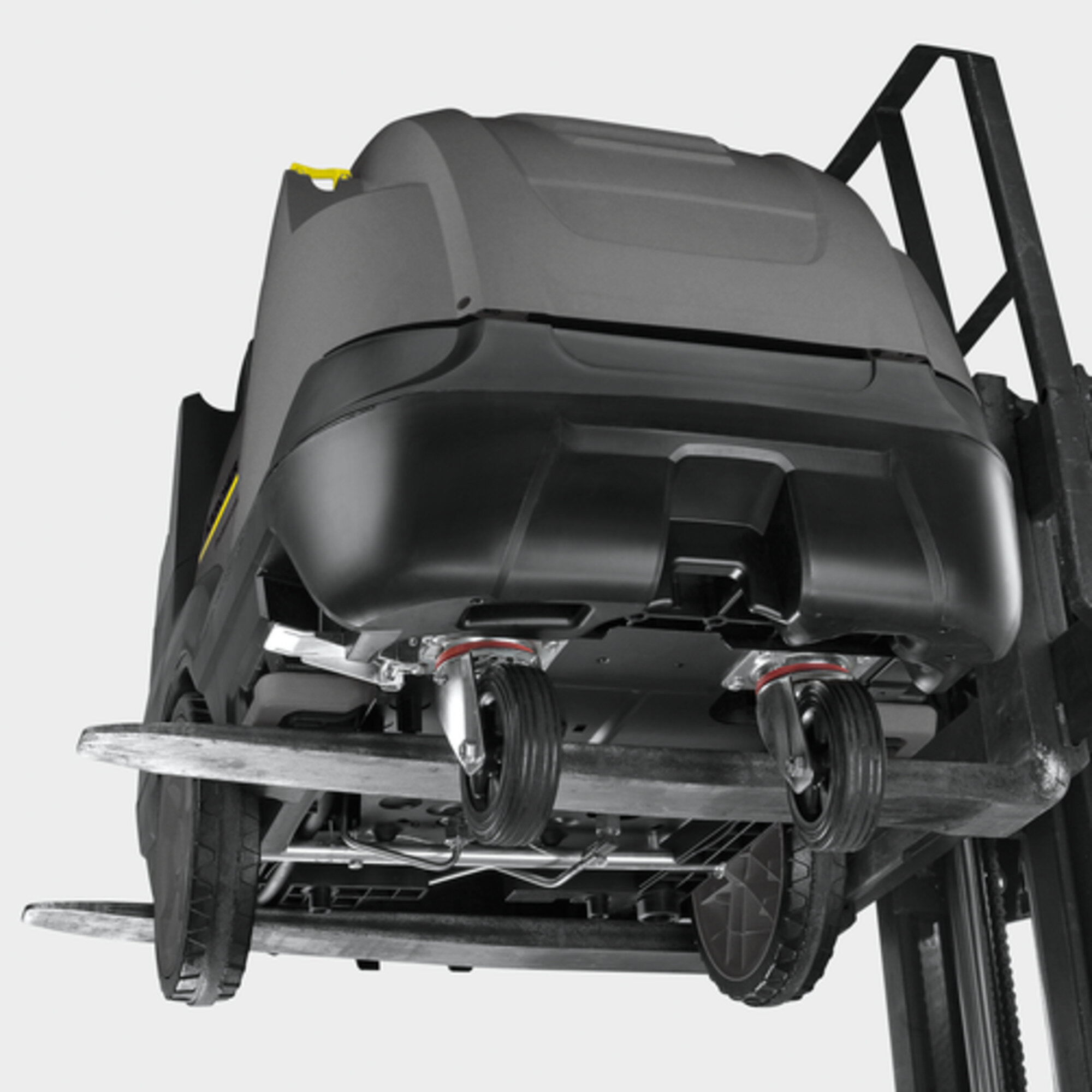

Mobility concept

"Jogger" design with large rubber wheels and steering roller. Integrated tipping trough for effortless transport over ledges.

Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release fasteners

Fatigue-free work at last: the EASY!Force high pressure gun. EASY!Lock quick-release couplings: durable and robust. And five times faster than screws.
