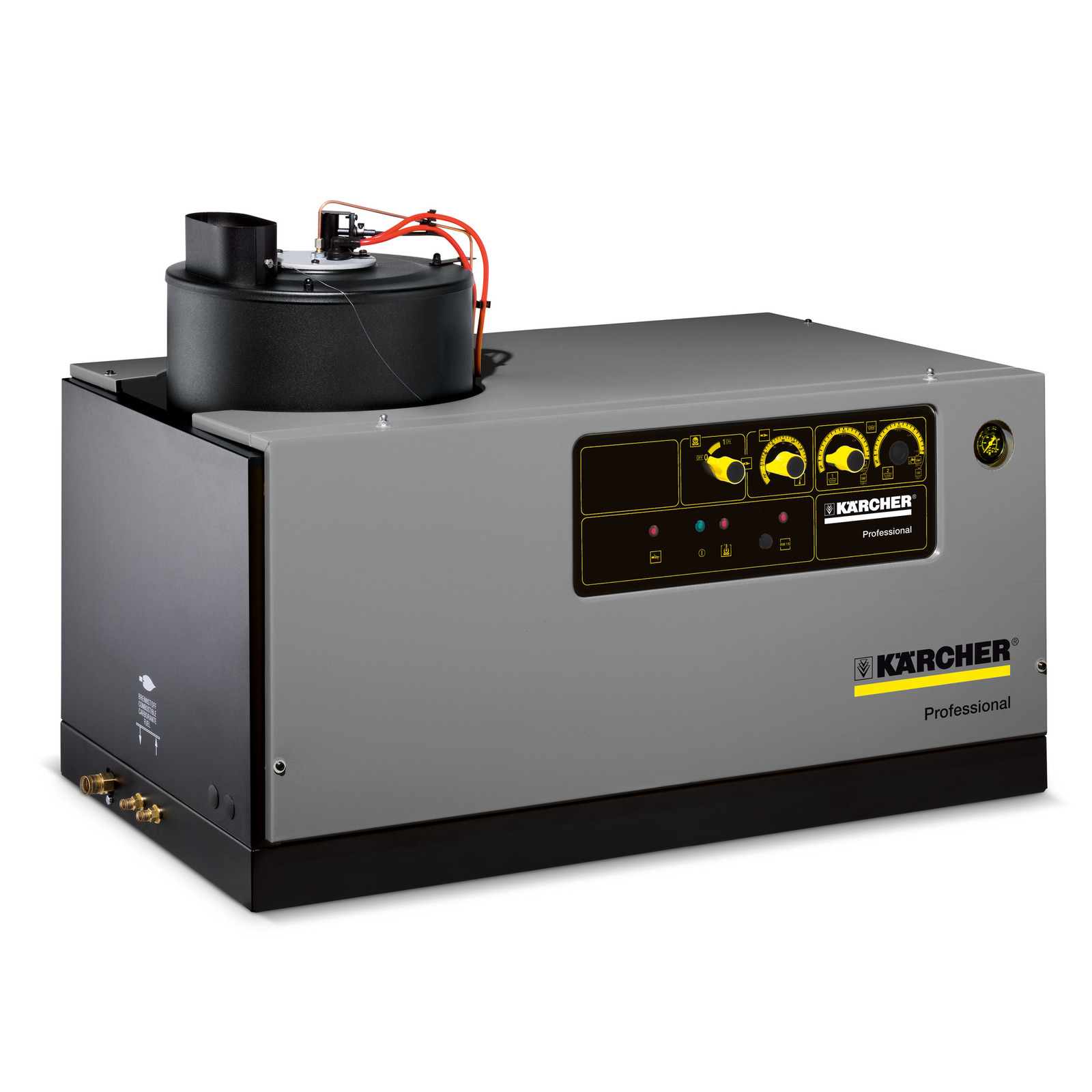

Kärcher professional cleaning machine with control panel and visible wiring on top.

Awards and exclusive range

High-pressure cleaner

HDS 9/14-4 ST

This device requires instruction

Order number: 1.698-900.0

Integrated system pressure relief
Soft Damping System (SDS)
Dry-running protection

Technical data

Number of current phases (Ph)	3
Voltage (V)	400
Frequency (Hz)	50
Flow rate (l/h)	500 - 930
Working pressure (bar / MPa)	30 - 140 / 3 - 14
Temperature (for supply 12 °C) (°C)	min. 80 - max. 155
Connected load (kW)	6.4
Consumption of fuel oil at full load (kg/h)	5.8
Portability	stationary
Protection (A)	16
Weight (with accessories) (kg)	140
Dimensions (L × W × H) (mm)	1110 x 565 x 690

Scope of supply

Soft Damping System (SDS)
System pressure relief
Flame monitoring
Prepared for Servo Control
Prepared for remote operation

Regulierung von Druck und Wassermenge an der Pistole.

High-pressure gun with patented holding force reduction.

Machine that is suitable for operation with biodiesel.

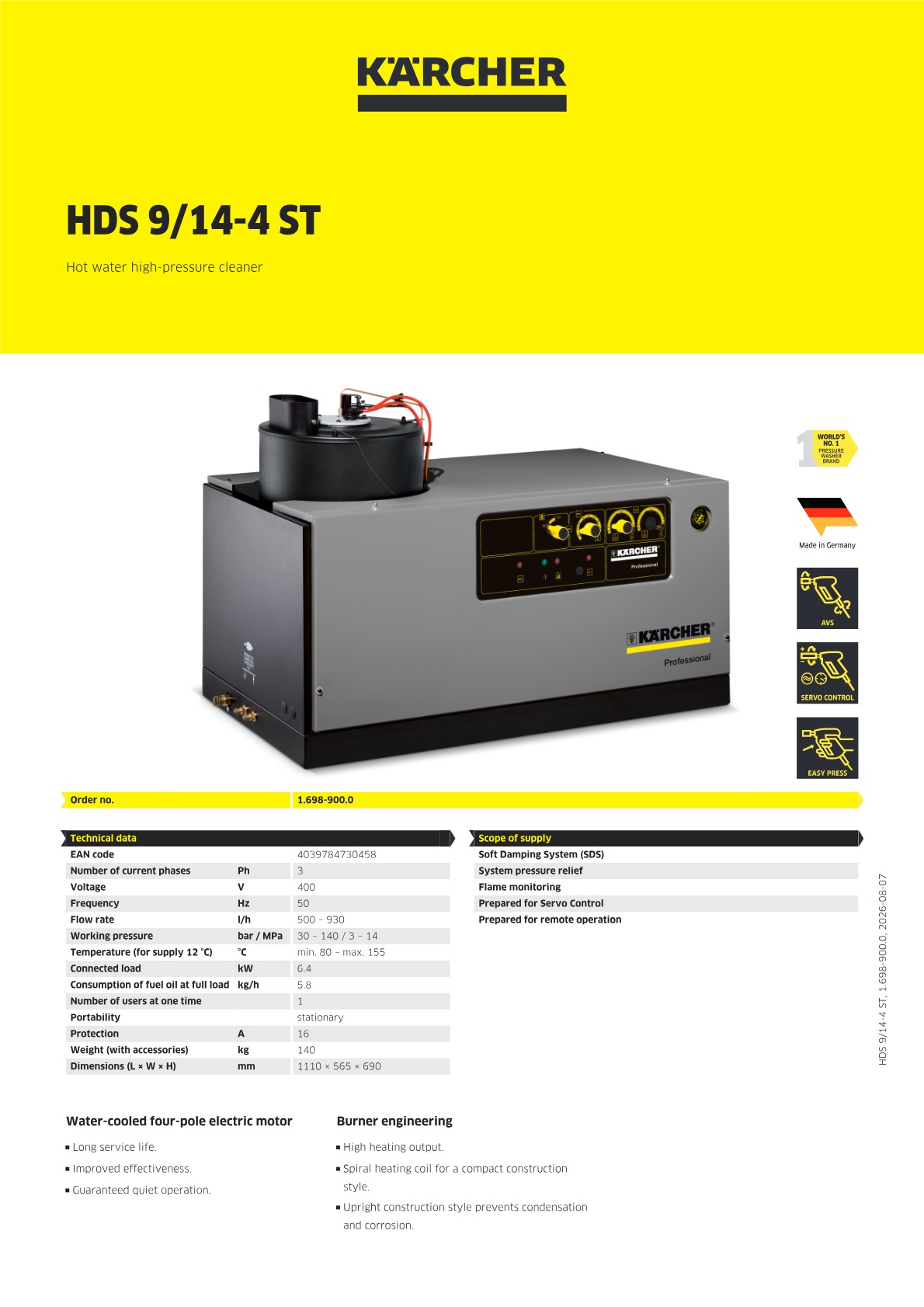

Product information and benefits

High-pressure cleaning system which offers an extraordinary high level of safety with automatic pressure relief, flue gas temperature monitor, an innovative dry run cut-out in the float tank as well as an SDS hose which absorbs pressure surges. Used with Eco-Line boilers, these units comply with the latest BimSch emission regulations.

Water-cooled four-pole electric motor

Long service life. Improved effectiveness. Guaranteed quiet operation.

Burner engineering

High heating output. Spiral heating coil for a compact construction style. Upright construction style prevents condensation and corrosion.

Awards and exclusive range

HDS 9/14-4 ST

Technical data

Product information and benefits

Water-cooled four-pole electric motor

Burner engineering
