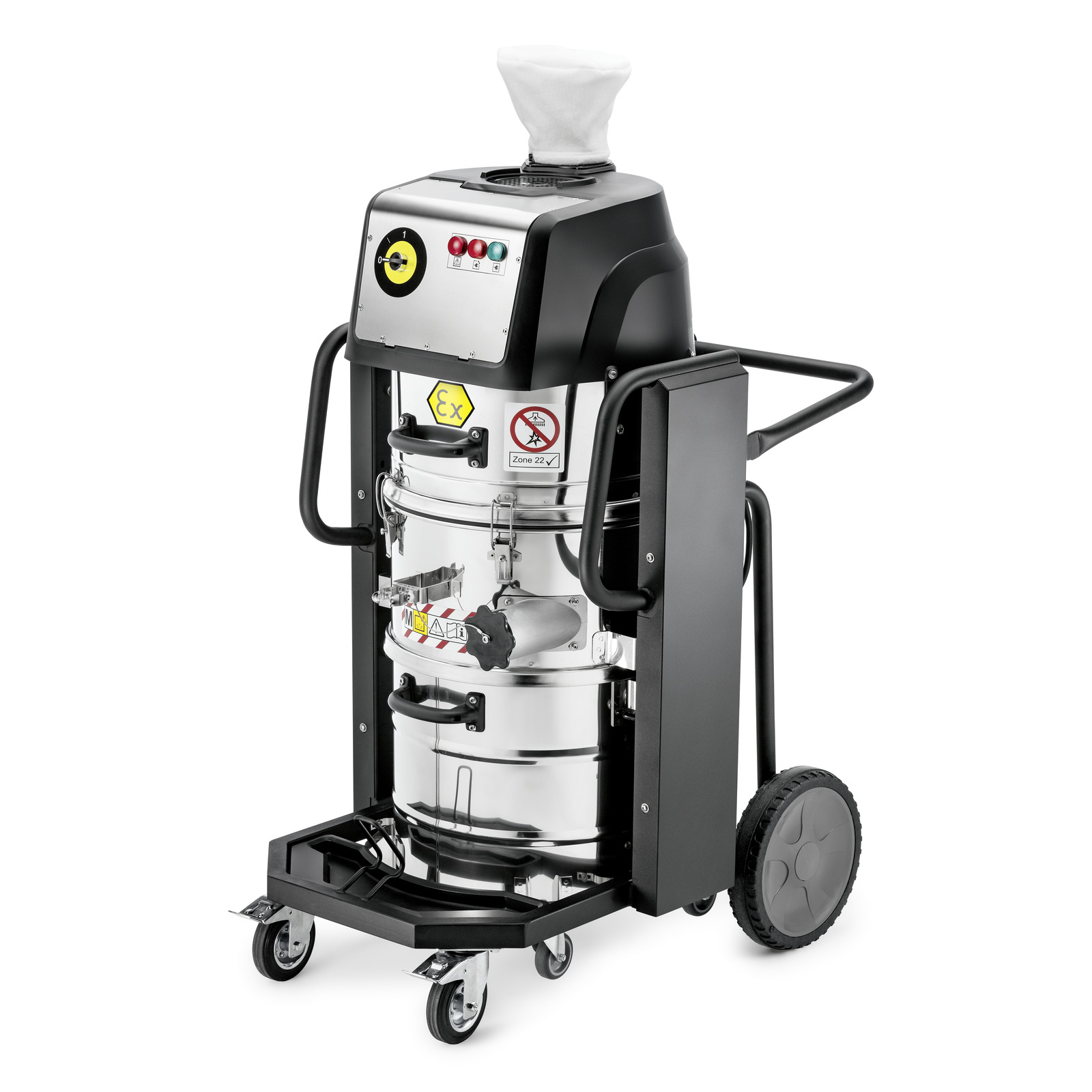

Kärcher industrial vacuum cleaner with black and silver body, large wheels, and control panel on top.

Industrial vacuums

IVC 60/30 Ap M Z22

This device requires instruction

Order number: 1.576-106.0

Suitable for use in ATEX zone 22

Technical data

Number of current phases (Ph)	3
Voltage (V)	400
Frequency (Hz)	50
Air flow (l/s / m³/h)	53.3 / 192
Vacuum (mbar / kPa)	250 / 25
Container capacity (l)	60
Container material	Stainless steel
Rated input power (kW)	3
Vacuuming type	Electric
Sound pressure level (dB(A))	77
Cable length (m)	8
Main filter dust class	M
Filter area for main filter (m²)	1.9
Weight without accessories (kg)	95
Weight incl. packaging (kg)	95.6
Dimensions (L × W × H) (mm)	970 x 690 x 1240

Equipment

Main filter: Flat pleated filter
Accessories included in the scope of delivery: no

Machine with certified explosion protection.

Recommended maximum duration of use in hours/day.

Machines with certification for Zone 22.

Product information and benefits

The IVC 60/30 Ap M Z22 is a compact industrial vacuum with wear-resistant side channel blower, ideal for continuous operation, and an interface for all standard machine control systems. The reliable industrial vacuum is designed for use in manufacturing areas and for cleaning production machinery in ATEX zone 22. The machine is also suitable for areas with hazardous dusts (OEL > 0.1 mg/m³) or for areas with very strict hygiene regulations.

Certified for ATEX Zone 22

Explosion-proof industrial vacuum for safe vacuuming in ATEX Zone 22.

Dust class M

Complete device certified according to DIN EN 60335-2-69 for dust class M.

Wear-resistant side channel blower

A side channel blower delivers high suction power with a very long lifetime of at least 20,000 hours. These machines are therefore ideal for multiple shift operation.

Manual IVC filter cleaning (Ap)

Effortless operation by means of an ergonomically placed lever if required. Extends the life of the filter and thus reduces the maintenance effort.

Equipped with compact flat pleated filter

Clear compact design of the filter. Suitable for picking up free-flowing, dry dusts up to dust class M.
