Industrial vacuums

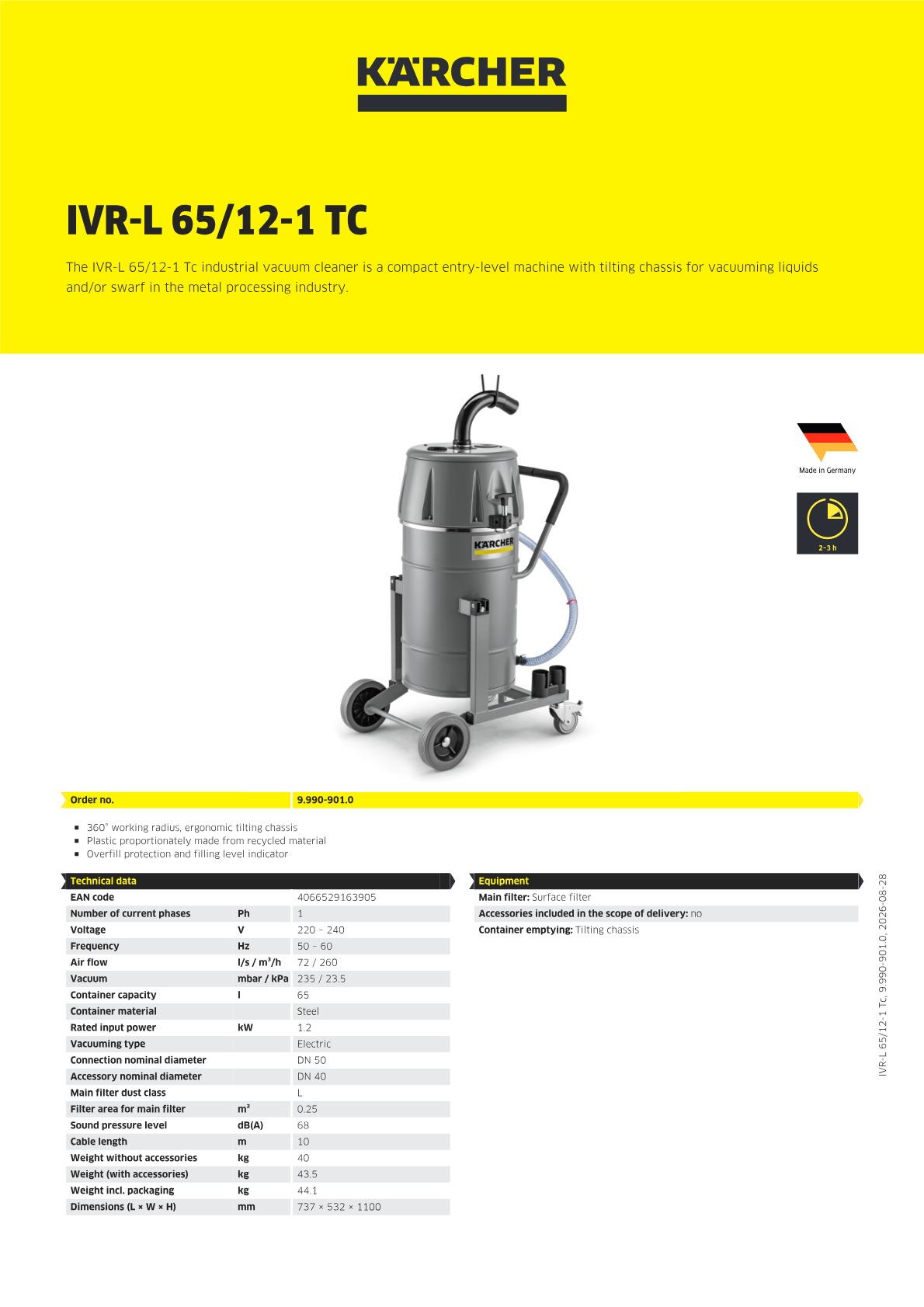

IVR-L 65/12-1 Tc

Order number: 9.990-901.0

360° working radius, ergonomic tilting chassis
Plastic proportionately made from recycled material
Overfill protection and filling level indicator

Technical data

Number of current phases (Ph)	1
Voltage (V)	220 - 240
Frequency (Hz)	50 - 60
Air flow (l/s / m³/h)	72 / 260
Vacuum (mbar / kPa)	235 / 23.5
Container capacity (l)	65
Container material	Steel
Rated input power (kW)	1.2
Vacuuming type	Electric
Main filter dust class	L
Filter area for main filter (m²)	0.25
Sound pressure level (dB(A))	68
Cable length (m)	10
Weight without accessories (kg)	41
Weight (with accessories) (kg)	41
Weight incl. packaging (kg)	41.6
Dimensions (L × W × H) (mm)	737 x 532 x 1085

Equipment

Main filter: Surface filter
Accessories included in the scope of delivery: no

Recommended maximum duration of use in hours/day.

Product information and benefits

The Kärcher IVR-L 65/12-1 Tc industrial vacuum cleaner is suitable for vacuuming and separating coolants, lubricating emulsions, water, or oil containing solids (e.g. metal swarf). The vacuumed swarf can be collected in a swarf basket, while the liquid is returned to the circuit using a drain hose. Alternatively, emptying can be carried out using a tilting chassis. The current fill level can be seen on the drain hose. Vacuuming is carried out via a hose connection on the suction head that can be rotated by 360°. The integrated mechanical float control protects the vacuum cleaner's turbines from moisture. With an input power of 1.2 kW, the IVR-L 65/12-1 Tc offers a compact solution for vacuuming liquids and/or swarf. The device consists of 34% recycled plastic.

Ergonomic tilting chassis

Sophisticated system for safe, manual, effortless emptying. Chassis system enables ergonomic tilted emptying using the roll-off mechanism. Quick and easy emptying of the container: just tip backwards and you are done!

High robustness, flexibility and modularity

The device and chassis are designed for industrial use due to their wall thickness. Rotatable hose connection with up to 360° rotatable pipe bend. Optionally available with overfill protection, strainer or accessories holder.

Equipped with a quiet fan motor

Very compact and manoeuvrable machine with fan motor. The drive head with a sound pressure level of 68 dB(A) ensures an even discharge of the cooling air.

IVR-L 65/12-1 Tc

Technical data

Product information and benefits

Ergonomic tilting chassis

High robustness, flexibility and modularity

Equipped with a quiet fan motor

Equipped with compact surface filter of dust class L
