    Kärcher industrial vacuum cleaner with stainless steel tank, grey casing, and orange hose on wheels.

    Industrial vacuums

    IVS 100/75 M Z22

    This device requires instruction

    Order number: 9.987-900.0

    • Suitable for use in ATEX zone 22
    • 100-litre container, filter class M, 7.5 kW drive
    • Wear-free side channel blower, user-friendly set-down mechanism

    Request a offer
    Number of current phases (Ph)
    3
    Voltage (V)
    400
    Frequency (Hz)
    50
    Air flow (l/s / m³/h)
    156 / 562
    Vacuum (mbar / kPa)
    325 / 32.5
    Container capacity (l)
    100
    Container material
    Stainless steel
    Rated input power (kW)
    7.5
    Vacuuming type
    Electric
    Sound pressure level (dB(A))
    73
    Cable length (m)
    8
    Main filter dust class
    M
    Filter area for main filter (m²)
    2.2
    Weight without accessories (kg)
    180
    Weight incl. packaging (kg)
    180.9
    Dimensions (L × W × H) (mm)
    1202 x 686 x 1495

    Equipment

    • Accessories included in the scope of delivery: no
    Made in Germany
    Rostfrei Logo 4547 CMYK1 1
    picto Dust class M warning CMYK oth 01
    Machine with certified explosion protection.
    Recommended maximum duration of use in hours/day.
    Machines with certification for Zone 22.
    Machines are equipped with high-efficiency motors.
    The top model in our super class Ex industrial vacuums: the IVS 100/75 M Z22 impresses with a wide range of applications, the highest level of safety and outstanding performance data. Suitable for both mobile and stationary use, the vacuum cleaner is equipped with a 7.5 kW side channel blower with IE3 effectiveness and soft start-up to avoid undesired powers peaks during start-up. It is suitable for vacuuming very large quantities of fine dusts that are hazardous to health and potentially explosive dusts (OEL > 0.1 mg/m³), is permitted for use in Zone 22 and certified for dust class M. This includes a large, space-saving M-certified star filter with a 16-fold design. The horizontal filter shaking mechanism with gearbox ensures optimum suction power at all times, while the 100-litre stainless steel container with set-down mechanism enables long work intervals and easy disposal. There are various options for stowing accessories so that they are safe for transportation and do not get lost.
    illu ATEX zones oth 1 CI15 det 1502x502
    Suitable for zone 22
    IVS Ex vacuums guarantee the highest level of safety thanks to the latest technology. Reliable vacuuming of substances which could put health at risk such as explosive dusts.
    f85838b0 d23d 4dbc bcf9 69104a2588b5
    Soft start to protect the mains supply
    Low starting current prevents power supply voltage dips. Low energy peaks ensure lower energy costs. Only low machine fuse protection necessary. (Up to 5.5 A,16 A fuse protection is sufficient.)
    1573820 det 15502x502
    User-friendly set-down mechanism
    Easy and time-saving container removal directly on the handle. The practical container handle serves as an aid for pulling and pushing the machine to the emptying point. Large industrial rollers ensure maximum mobility even on uneven floors and under heavy load.
    Horizontal operation of filter cleaning system
    The handle for manual filter cleaning is located at a convenient operating height and makes working comfortable. Regardless of the amount of force applied by the user, a gearbox ensures consistent cleaning results. Longer filter downtime due to more frequent filter cleaning and metered power transmission to the filter.
    User-friendly machine handling
    Hose hook and accessory storage ensure fast tool access and tidy storage. Integrated cable hook for secure cable storage.
    Optional remote control
    Optional radio remote control for machine operation from a distance of up to 100 m. Convenient, time-saving operation of the machine in a single forward movement. Optimal space utilisation: the vacuum cleaner can be stored in unused or safety areas.

    Manufacturer: Alfred Kärcher SE & Co. KG

    Alfred-Kärcher-Strasse 28-40, 71364 Winnenden, Germany

    Tel. +49 7195 / 14-0 I Fax +49 7195 / 14-2212

    E-mail: info@karcher.com

    Manual

    Read the manual online

    Read online

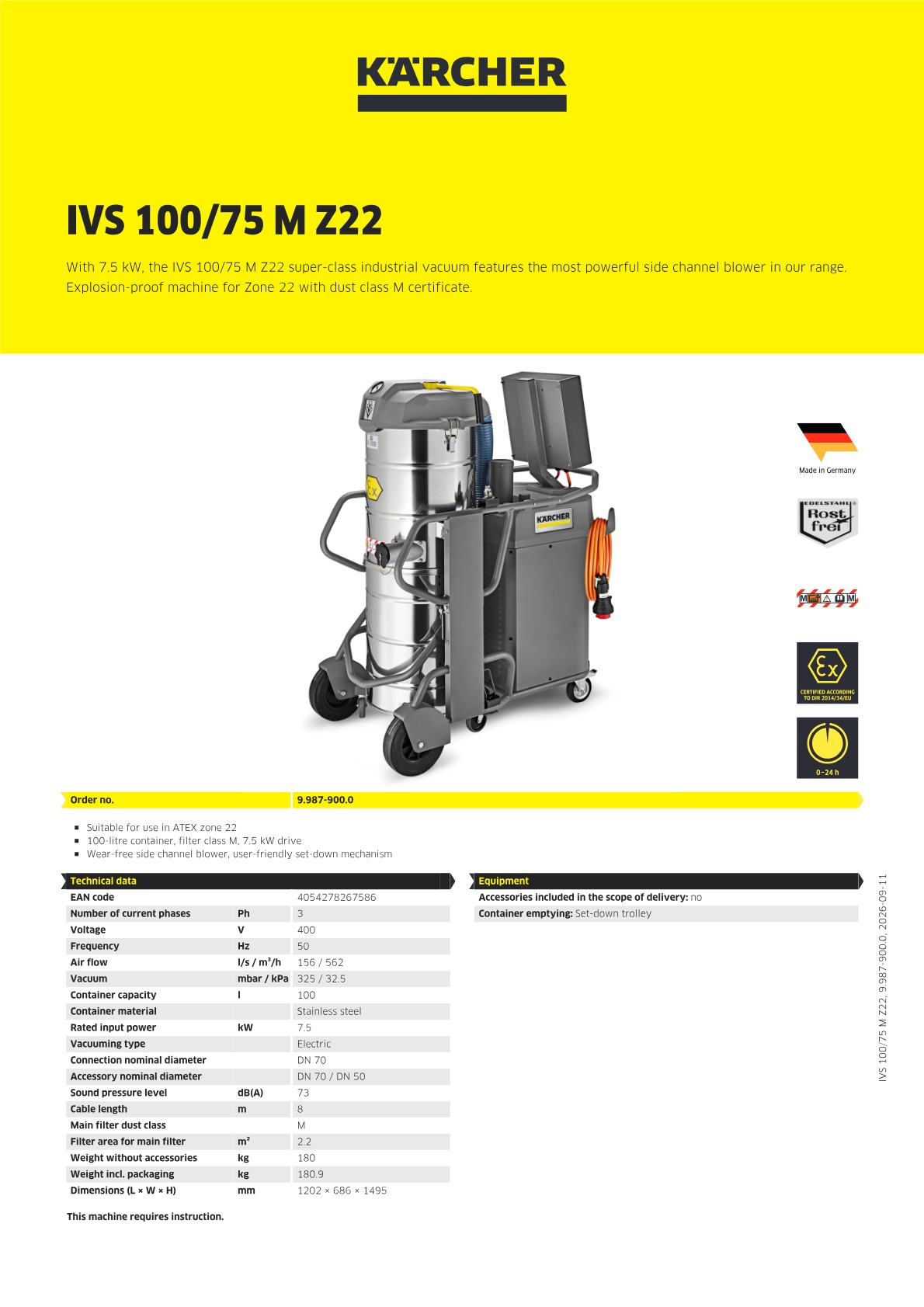

    • Product information

      Product information

      Download PDF
    • Manual

      Manual

      Download PDF
