Kärcher ride-on sweeper with a steering wheel, seat, and visible brushes, designed for professional cleaning tasks.

Vacuum sweeper

KM 100/120 R Bp

This device requires instruction

Order number: 1.280-170.0

Electric sweeper, high container emptying
1000 mm working width, 6000 m²/h area performance, 120 l container volume
Round filter, side brush on the right, flashing beacon, accessory storage

Technical data

Traction drive	DC motor
Drive – Power (V)	24
Drive type	Electric
Max. area performance (m²/h)	6000
Max. area performance with 2 side brushes (m²/h)	7620
Working width (mm)	730
Working width with 1 side brush (mm)	1000
Working width with 2 side brushes (mm)	1270
Battery voltage (V)	24
Waste container (l)	120
Climbing ability (%)	12
Working speed (km/h)	6
Filter area (m²)	6
Weight (with accessories) (kg)	498
Weight incl. packaging (kg)	500.1
Dimensions (L × W × H) (mm)	1700 x 1195 x 1370

Scope of supply

Polyester round filter
Wheels, pneumatic

Equipment

Manual filter cleaning
Automatic filter cleaning
Main sweeper roller, floating
Power steering
Suction volume regulation
Coarse dirt flap
Overhead sweeping principle
Traction drive, forwards
Traction drive, reverse
Suction
Hydr. high dump
Outdoor use
Indoor use
Elapsed time counter
Sweeping function, can be switched off
Side brush, automatically swings out
Home Base fastening possibility

picto easy operation oth 1 EN CI15 110454 CMYK

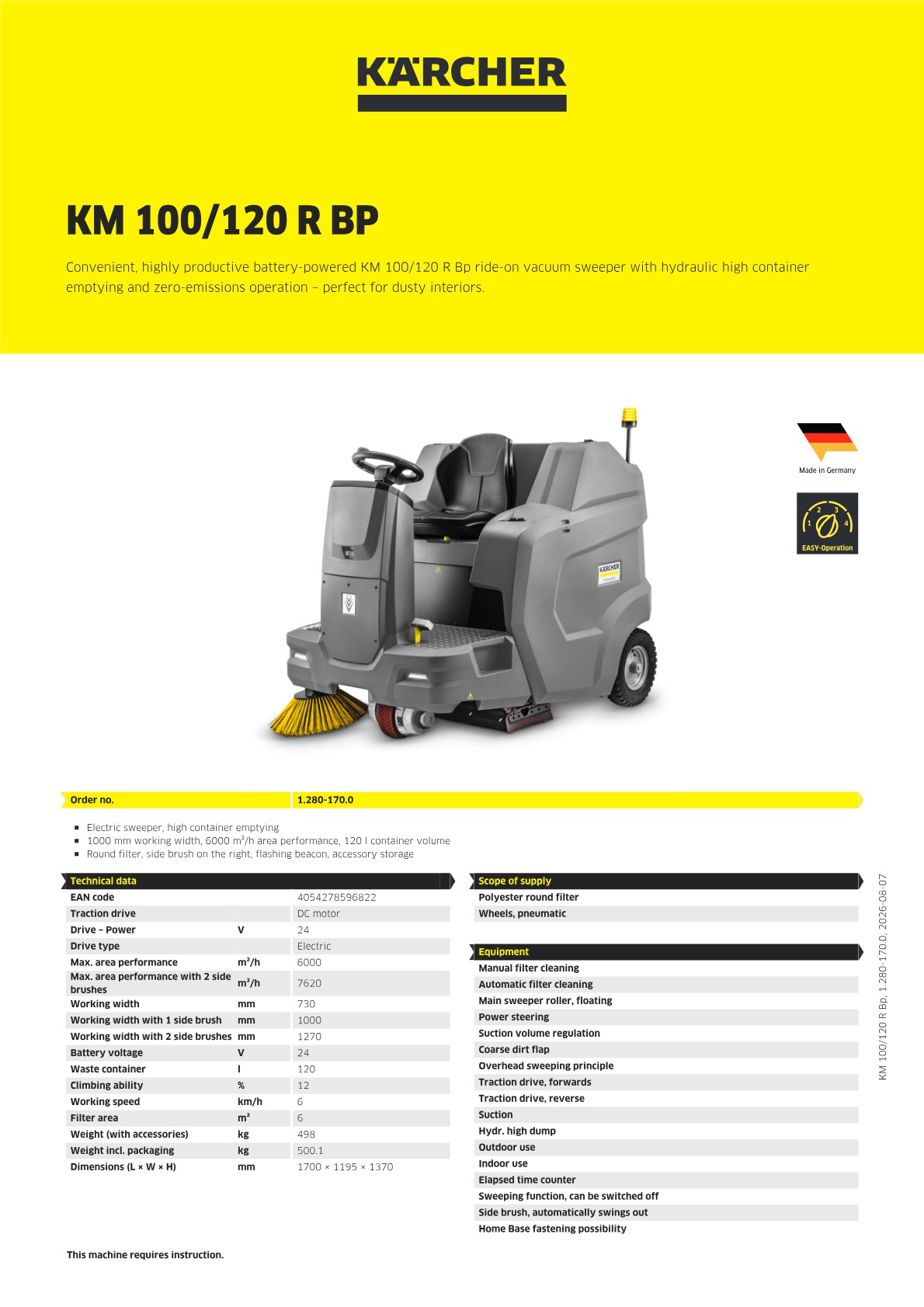

Product information and benefits

Equipped with a floating roller brush for excellent sweeping results, our battery-powered KM 100/120 R Bp ride-on vacuum sweeper is the perfect choice for extended cleaning applications, especially in very dusty interior areas. A swivelling side brush prevents damage to the machine and furnishings, and the speed of the side brush can be adapted to the quantity of dust. The tried-and-tested round filter system with six square metres of filter area and automatic cleaning enables dust-free sweeping at all times, even when there is a lot of dust, and the hydraulic high container emptying allows for convenient disposal of the waste collected in the large waste container. All control elements are easy to reach and also very clearly arranged, with the adjustable driver's seat allowing a very good overview. All parts requiring maintenance are easy to access, and the filter and roller brush can also be changed with no tools required. The KM 100/120 R can also be equipped with an optional protective roof or a vacuum holder to suit individual needs. The battery and battery charger are not included in the scope of supply and must be ordered separately.

KM 100 120 R G sweeping industry app 08 CI20502x502

High productivity

Excellent sweeping result thanks to floating roller brush system. Large waste container capacity (120 l) for long, uninterrupted use. Industrial design and proven components for few machine downtimes.

Convenient and safe operation

High level of driving comfort and hydraulic high container emptying up to a height of 152 cm. Simple operation and clear and ergonomic arrangement of control elements. Logical connection of functions to prevent operating errors.

Large filter area with automatic filter cleaning system

Automatic filter cleaning in five-minute intervals and after switching off. Efficient filter cleaning of the 6 m² filter area doubles the service life. Virtually dust-free, continuous sweeping regardless of the volume of dirt.

Service-friendly design with easily accessible maintenance points

All important components are easy to check and replace with no tools required. Smart hood concept for very easy access to all machine components.
