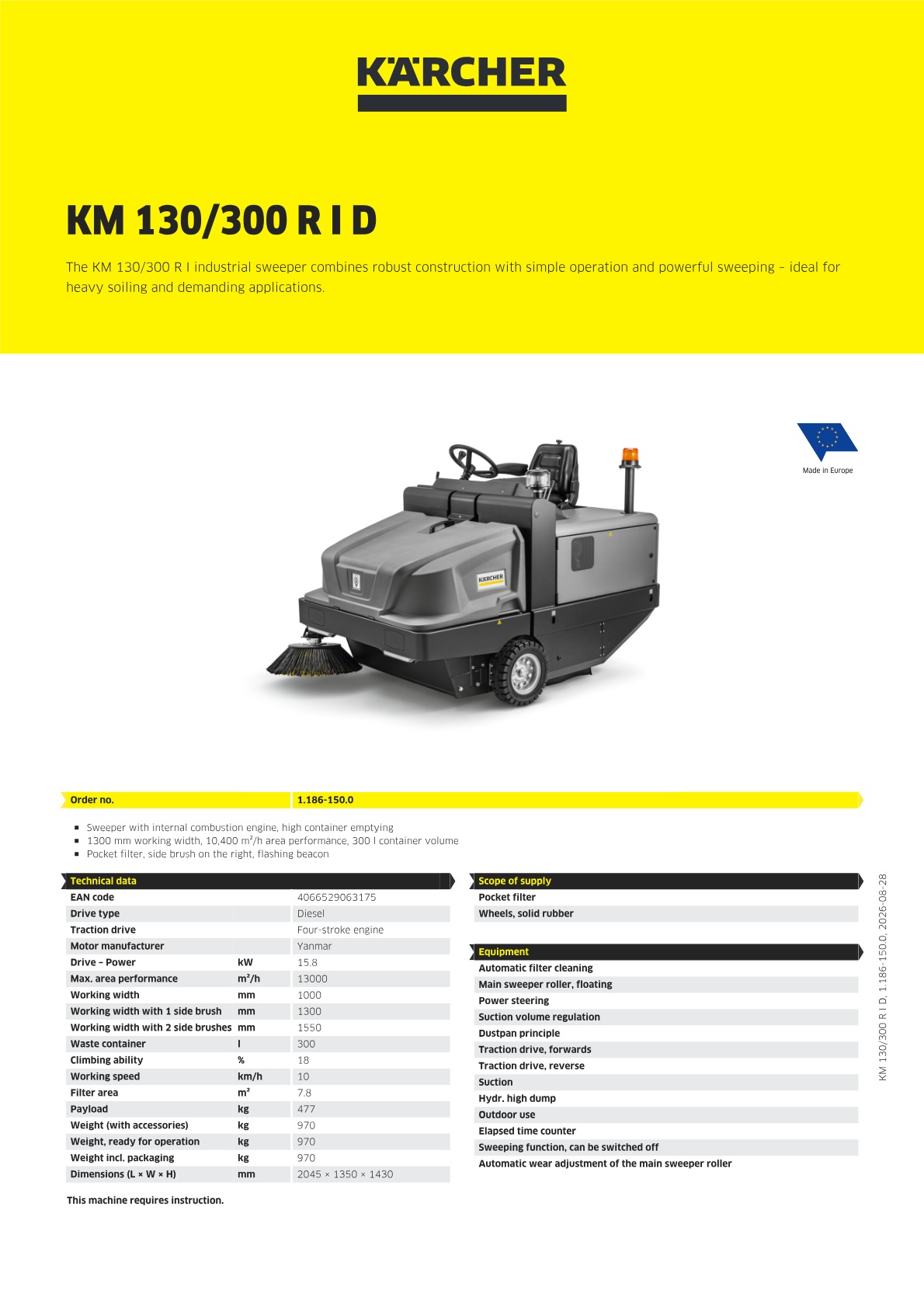

Kärcher ride-on sweeper with steering wheel, brush attachment, and orange warning light, designed for industrial cleaning.

Vacuum sweeper

KM 130/300 R I D

This device requires instruction

Order number: 1.186-150.0

Sweeper with internal combustion engine, high container emptying
1300 mm working width, 10,400 m²/h area performance, 300 l container volume
Pocket filter, side brush on the right, flashing beacon

Technical data

Drive type	Diesel
Traction drive	Four-stroke engine
Motor manufacturer	Yanmar
Drive – Power (kW)	15.8
Max. area performance (m²/h)	13000
Working width (mm)	1000
Working width with 1 side brush (mm)	1300
Working width with 2 side brushes (mm)	1550
Waste container (l)	300
Climbing ability (%)	18
Working speed (km/h)	10
Filter area (m²)	7.8
Payload (kg)	477
Weight (with accessories) (kg)	970
Weight, ready for operation (kg)	970
Weight incl. packaging (kg)	970
Dimensions (L × W × H) (mm)	2045 x 1350 x 1430

Scope of supply

Pocket filter
Wheels, solid rubber

Equipment

Automatic filter cleaning
Main sweeper roller, floating
Power steering
Suction volume regulation
Dustpan principle
Traction drive, forwards
Traction drive, reverse
Suction
Hydr. high dump
Outdoor use
Elapsed time counter
Sweeping function, can be switched off
Automatic wear adjustment of the main sweeper roller

Product information and benefits

Designed for use in environments with high levels of dirt and dust: the Kärcher KM 130/300 R industrial sweeper with a diesel engine. The 300-liter waste hopper and powerful diesel engine enable extensive cleaning operations. A metal frame and lever-operated controls are designed to withstand industrial conditions. In combination with the standard pocket filter system and the optional side brush speed control, debris is directed to the main brush with minimal dust disturbance. Standard features include a comfort seat, storage compartments, a USB port, LED indicator lights, puncture-proof solid rubber tires, LED headlights, and a warning light. Additional attachment kits are available as accessories.

Simple lever operation

All important functions can be operated via levers for convenience. LED indicator lights for the operating status. Convenient 1-pedal operation with changeover switch for forwards and reverse travel.

Hydraulic high container emptying

Waste can be emptied safely, easily and with no contact. Effortless system for emptying container at height of up to 1.40 m.

Optional side brush speed regulation

Optimum feed system directing the waste to the sweeper roller. Effectively reduces dust dispersion during sweeping. Significantly lower dust impact for the user.

User-friendly ergonomic design

Comfort seat can be adjusted to suit the user's height. Enables fatigue-free working, even for long periods when necessary. Easy accessibility of the control elements for a relaxed working environment.

Large-area pocket filter

The large filter area keeps dust levels down during sweeping. Practical filter cleaning with vibrating motor.

Fully hydraulic traction drive and main sweeper roller/side brush drive

Beltless drive for reduced maintenance and less mechanical wear during daily use Wear-free drive engineering. Ultra-durable even in harsh working environments.

Very easy servicing

Easily accessible pocket filter system. Low-maintenance technology with fully hydraulic drive and no electronics.

Hydraulic rear-wheel drive with solid rubber tyres

Easy to manoeuvre even in confined spaces. Puncture-proof tyres made of solid rubber, making sharp objects no problem.
