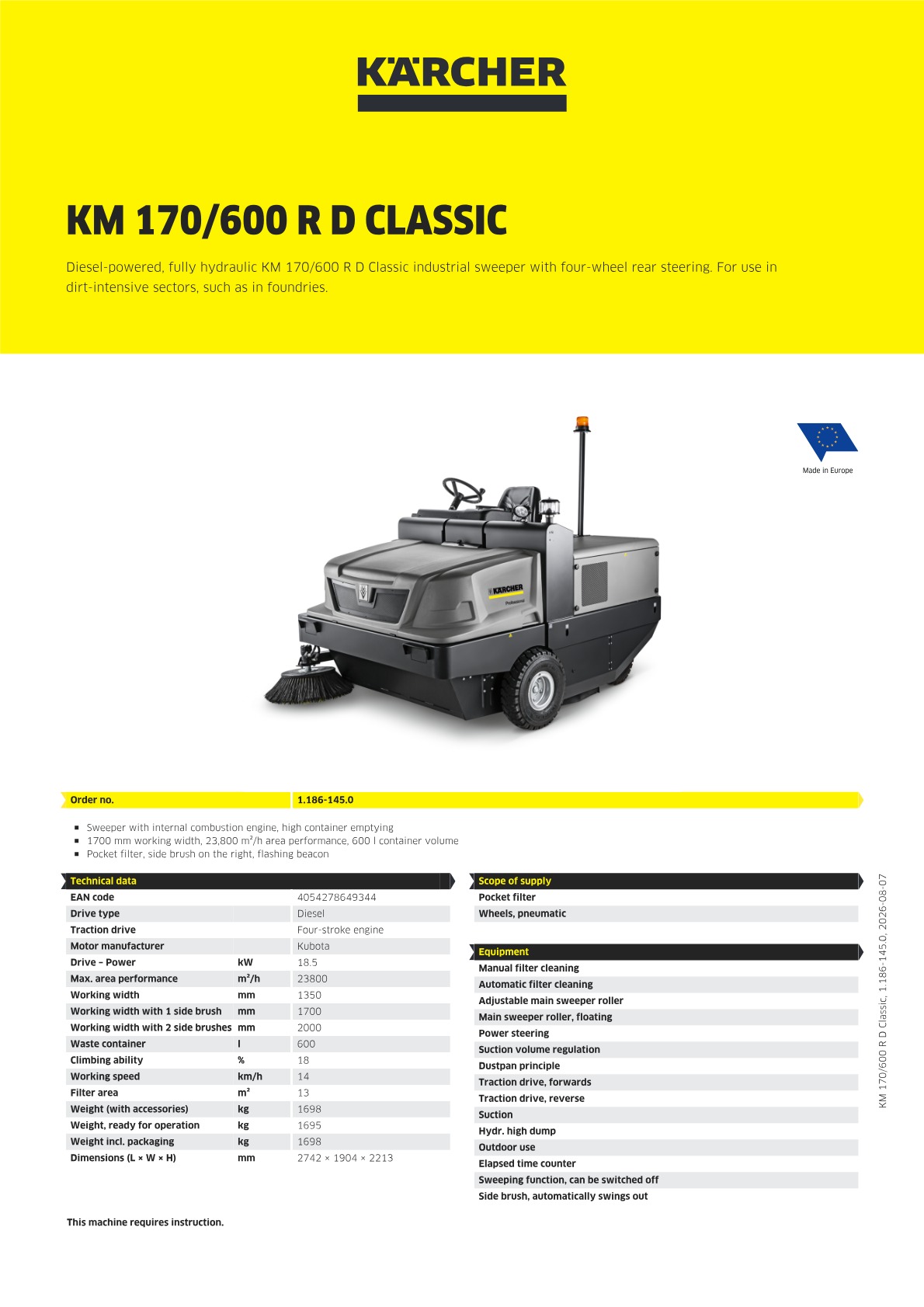

Kärcher ride-on sweeper with a brush on the front, steering wheel, and an orange warning light on top.

Vacuum sweeper

KM 170/600 R D Classic

This device requires instruction

Order number: 1.186-145.0

Sweeper with internal combustion engine, high container emptying
1700 mm working width, 23,800 m²/h area performance, 600 l container volume
Pocket filter, side brush on the right, flashing beacon

Technical data

Drive type	Diesel
Traction drive	Four-stroke engine
Motor manufacturer	Kubota
Drive – Power (kW)	18.5
Max. area performance (m²/h)	23800
Working width (mm)	1350
Working width with 1 side brush (mm)	1700
Working width with 2 side brushes (mm)	2000
Waste container (l)	600
Climbing ability (%)	18
Working speed (km/h)	14
Filter area (m²)	13
Weight (with accessories) (kg)	1698
Weight, ready for operation (kg)	1695
Weight incl. packaging (kg)	1698
Dimensions (L × W × H) (mm)	2742 x 1904 x 2213

Scope of supply

Pocket filter
Wheels, pneumatic

Equipment

Manual filter cleaning
Automatic filter cleaning
Adjustable main sweeper roller
Main sweeper roller, floating
Power steering
Suction volume regulation
Dustpan principle
Traction drive, forwards
Traction drive, reverse
Suction
Hydr. high dump
Outdoor use
Elapsed time counter
Sweeping function, can be switched off
Side brush, automatically swings out

Product information and benefits

Diesel drive, outstanding area performance, steel frame: our KM 170/600 R D Classic industrial sweeper was developed for heavy-duty cleaning applications in dirt-intensive fields such as construction, metalworking and foundries. Coarse dirt, as well as fine waste, lands reliably in the hopper thanks to the tried-and-tested dustpan principle. While cleaning, the roller brush automatically adapts to any unevenness in the ground and ensures an even sweep in all conditions. Together, the high-performance pocket filter system and the automatic filter cleaning guarantee consistent cleaning performance. There is also the option of a user-friendly flat pleated filter system or tried-and-tested round filter system, as desired. The machine is also designed to be user friendly: it is intuitively operated using levers, maintenance work, such as brush roller replacement, can be carried out in no time at all without any tools, and the convenient emptying of the waste container makes work easier.

High performance pocket filtration system with 13 m² filter area

Effectively minimises dust production when sweeping. Also available with optional flat pleated filter or round filter system. Extremely effective cleaning for a long service life.

Simple operation, maintenance and servicing

Intuitive operation using levers. Main sweeper roller and filter can be replaced easily without tools. Easy access to all key components.

Automatic filter cleaning

Regular cleaning extends the service life of the filter. Reduces dust production, even in extreme external conditions. Functions reliably with all available filter systems.

Extensive range of accessories and attachment kits

Easily adapts to individual cleaning requirements. Impressive equipment (e.g. comfort cab, air conditioning, heating). Optionally available: Working lights, water spraying system or second side brush.

Robust design of the machine for safe work

Permits applications in extreme external conditions. Leads to longer service life of components and machine. Standard flashing beacon increases safety for user and environment.

Dustpan principle

Guarantees good cleaning results also with fine waste. Effortless pick-up of coarse waste. Low dust production.

Four-wheel chassis

Improves traction on slippery surfaces and uneven surface. Increases ride comfort and safety.
