Sweeper

KM 70/30 C Bp Pack Adv

Order number: 1.517-213.0

With charger and batteries (Bp Pack version)
Electrically powered main sweeper roller and side brush
Infinitely adjustable sweeper roller and side brush

Technical data

Drive type	Manual
Drive – Power (V / W)	12 / 195
Max. area performance (m²/h)	2800
Working width (mm)	480
Working width with 1 side brush (mm)	700
Tank volume, gross/net (l)	42 / 30
Filter area (m²)	0.61
Operating time (h)	2.5
Battery run time (h)	2.5
Battery charging time (h)	12
Colour	anthracite
Weight (with accessories) (kg)	48
Weight, ready for operation (kg)	47
Package weight (kg)	54.9
Dimensions (L × W × H) (mm)	1200 / 770 / 1050

Scope of supply

Fine dust filter
Flat pleated filter: Paper
Battery and built-in charger included

Equipment

Sweeper drive, electric
Adjustable main sweeper roller
Manual filter cleaning
Foldable push handle
Dustpan principle
Suction
Outdoor use
Indoor use

picto easy operation oth 1 EN CI15 110454 CMYK

Product information and benefits

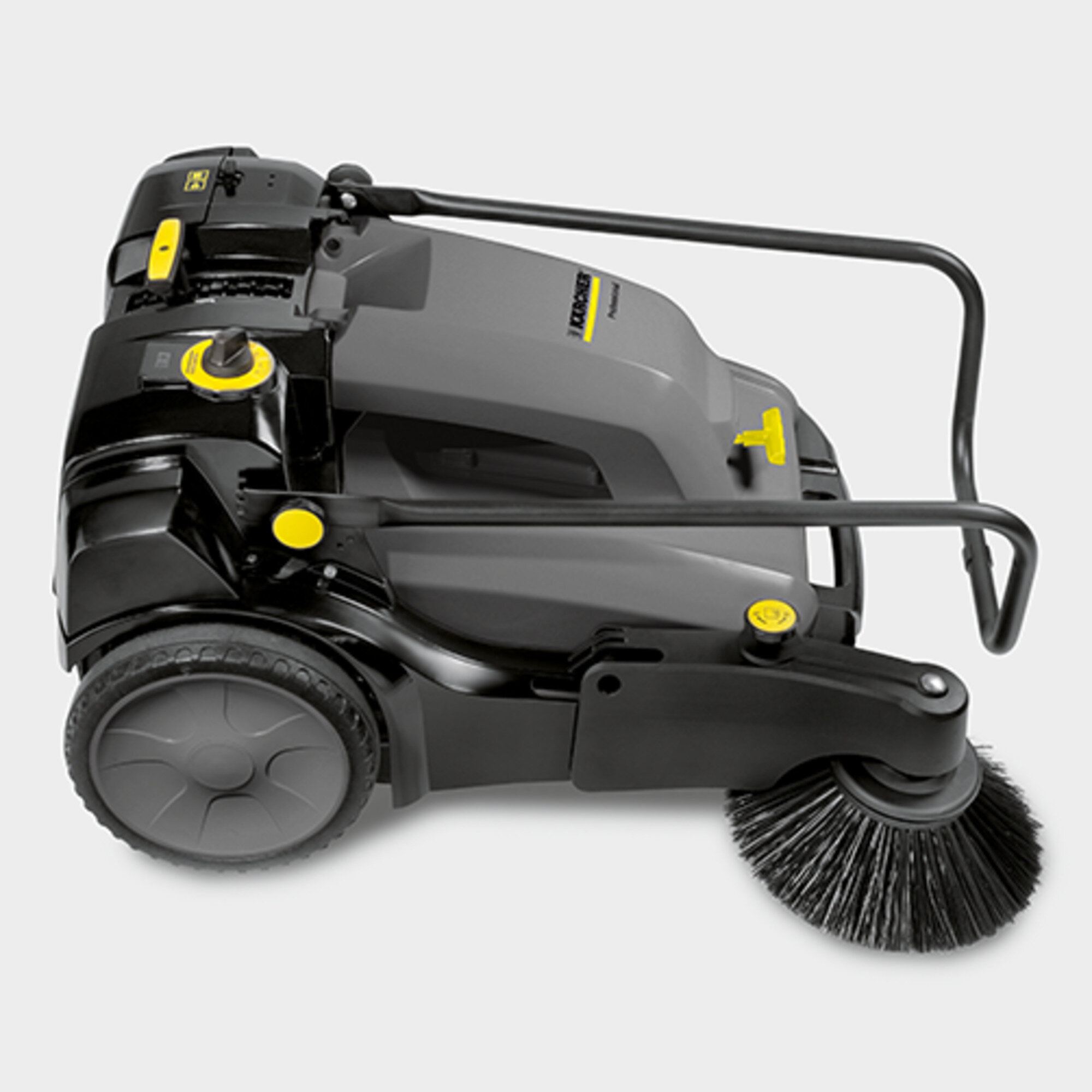

KM 70/30 C is the successor for our KSM 690. The development is based on the very successful KM 70/20 C with all their outstanding features. Mainroller brush and side brush of KM 70/30 C are electrically driven, so sweeping corners i.e. is very simple.The push handle is triple adjustable, also foldable and offers high ease of use. Main roller brush and side brush are easily height adjustable and therefore adaptive to different surfaces. The adjustment of the main roller brush is quickly done by a knob in 6 steps. The 12-V battery and the corresponding charger (230V, safety plug) are on-board.

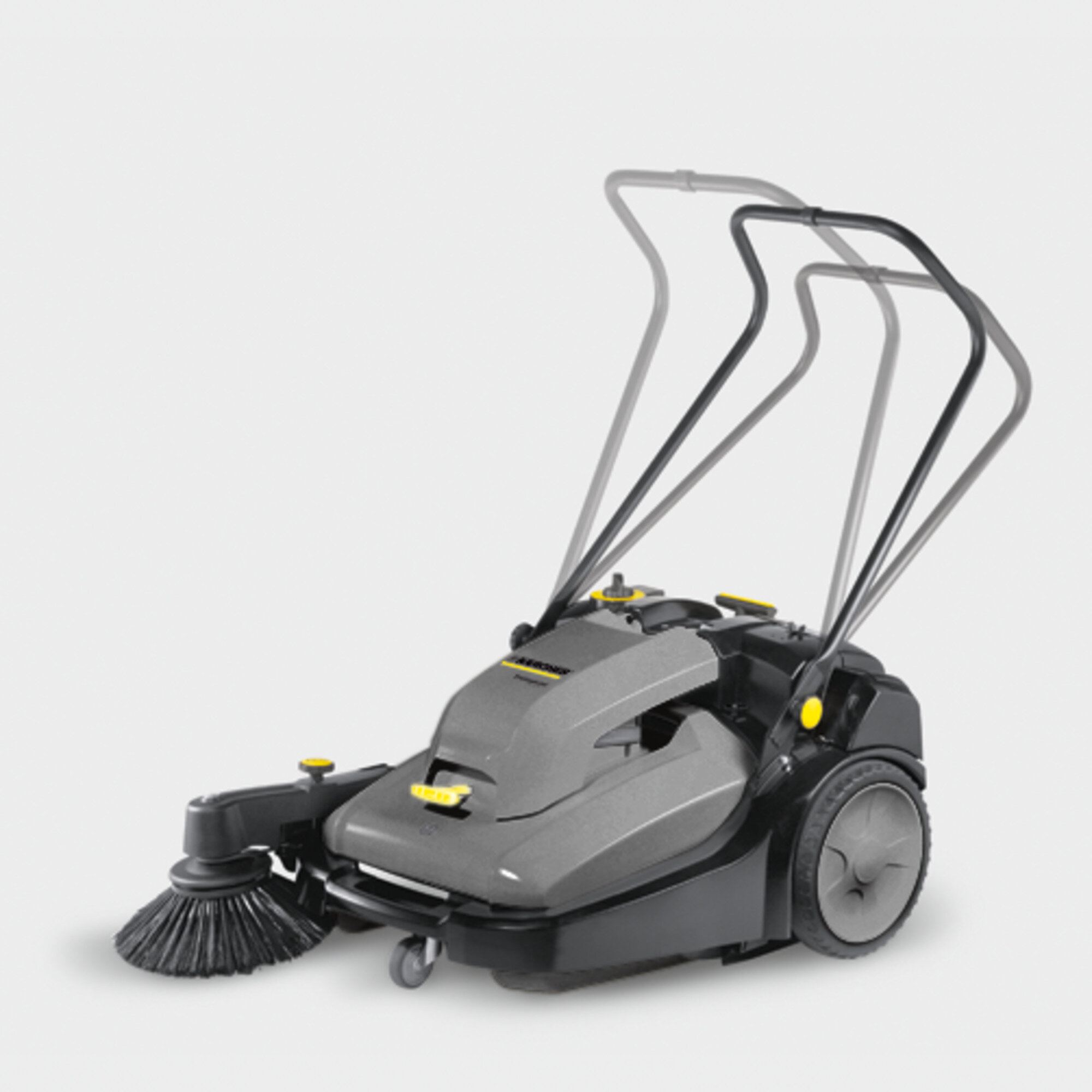

Adjustable push handle

Three adjustment options for maximum ergonomics. Space-saving parking position thanks to folding design.

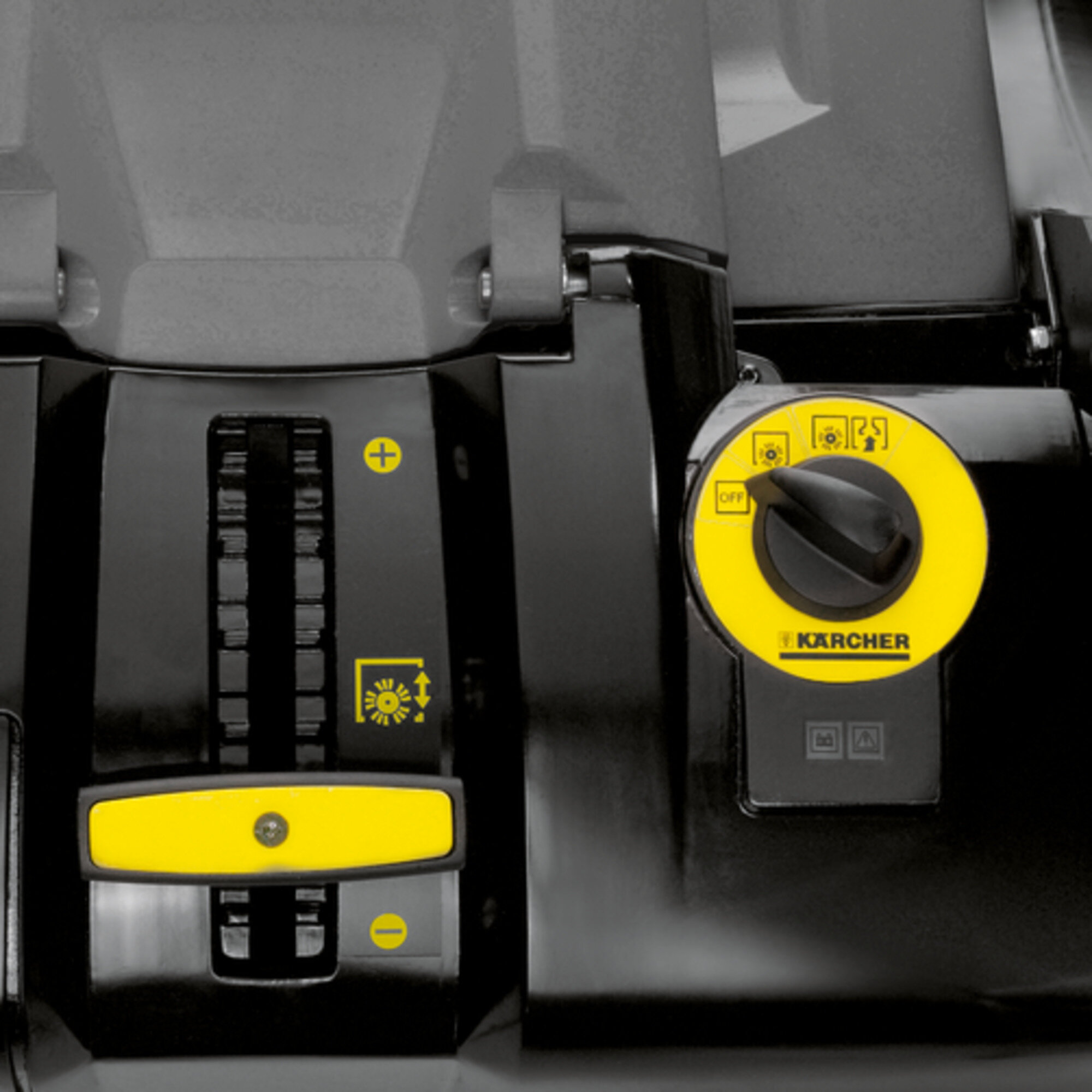

EASY Operation operating concept

Easy to use programme selector switch.

Easy to transport

Front and rear carrying handles for easy transport and loading into a car Wheels protruding to the rear make transporting the unit over steps easier

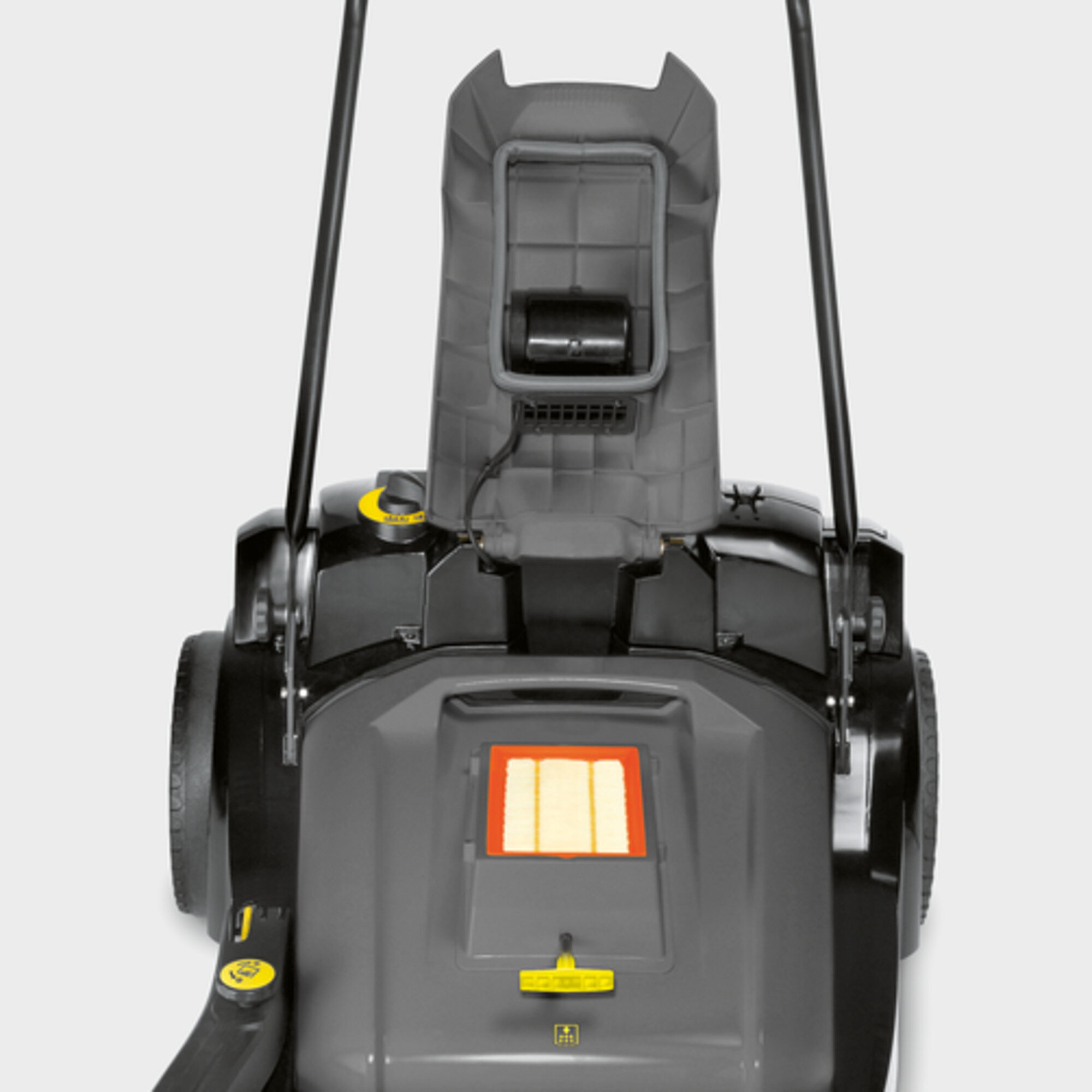

Fine dust suction (Adv version only)

Electric suction fan for the suction of fine dust from the waste container. Can be switched off for sweeping wet floors.
