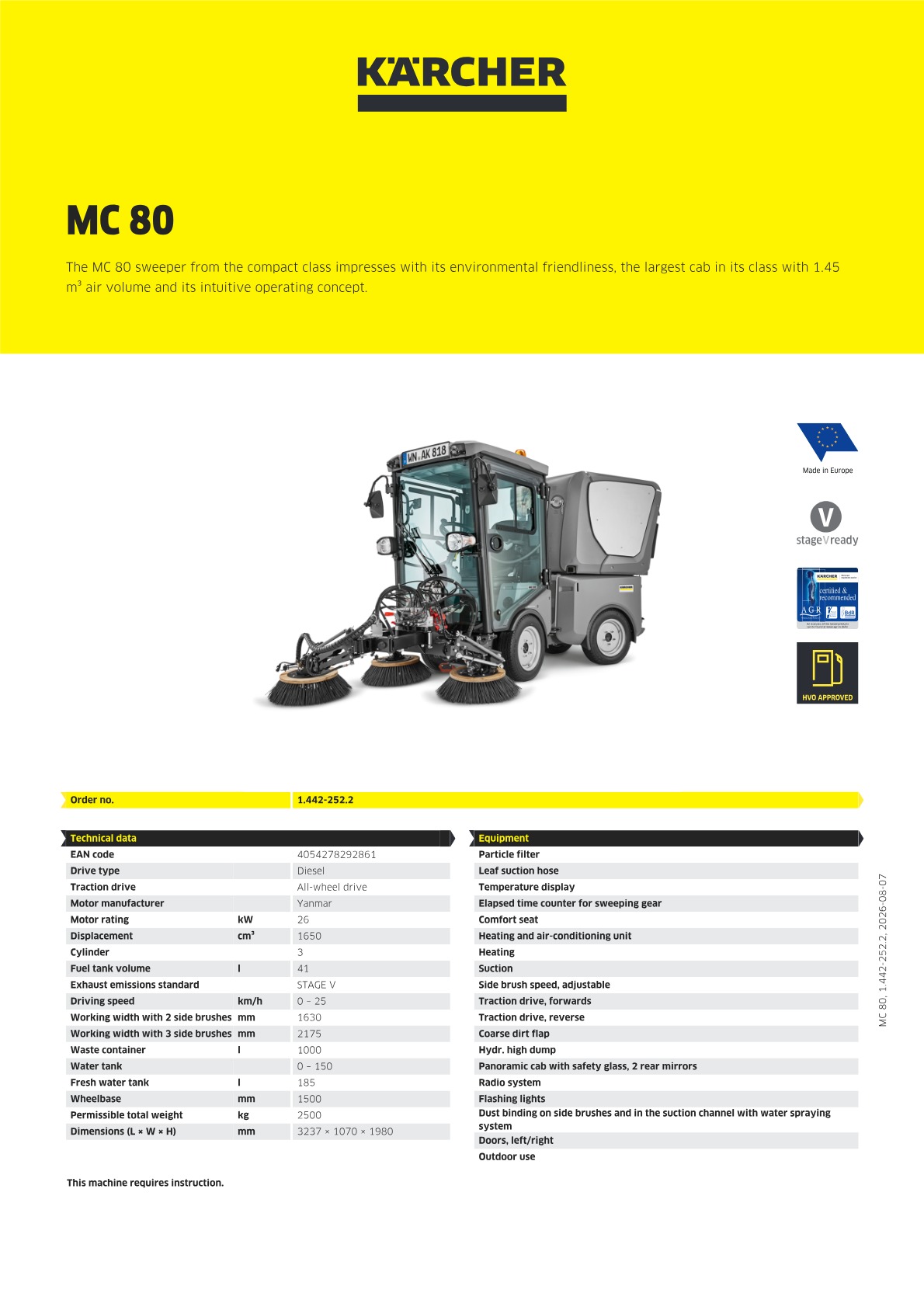

Kärcher street sweeper with three rotating brushes, enclosed cab, and grey body, designed for outdoor cleaning tasks.

Vacuum sweeper

MC 80

This device requires instruction

Order number: 1.442-252.2

Large spacious cab with volume of 1.45 m³
Environmentally friendly diesel engine with optional particulate filter
Individual brush control and lifting

Technical data

Drive type	Diesel
Traction drive	All-wheel drive
Motor manufacturer	Yanmar
Motor rating (kW)	26
Displacement (cm³)	1650
Cylinder	3
Fuel tank volume (l)	41
Exhaust emissions standard	STAGE V
Driving speed (km/h)	- 25
Working width with 2 side brushes (mm)	1630
Working width with 3 side brushes (mm)	2175
Waste container (l)	1000
Water tank ( / l)	/ 150
Fresh water tank (l)	185
Wheelbase (mm)	1500
Permissible total weight (kg)	2500
Dimensions (L × W × H) (mm)	3237 x 1070 x 1980

Equipment

Particle filter
Leaf suction hose
Temperature display
Elapsed time counter for sweeping gear
Comfort seat
Heating and air-conditioning unit
Heating
Suction
Side brush speed, adjustable
Traction drive, forwards
Traction drive, reverse
Coarse dirt flap
Hydr. high dump
Panoramic cab with safety glass, 2 rear mirrors
Radio system
Flashing lights
Dust binding on side brushes and in the suction channel with water spraying system
Doors, left/right
Outdoor use

AGR certificate municipal implement carrier CMYK oth 01 EN CI20

Product information and benefits

With the MC 80 the technology of the very large machines is now used in the compact class of the sweepers. For example, the 800 litre container for swept material with water circulation system is based on computer-aided CFD simulations, the two-brush system has individual brush control with individual lifting, the straight suction channel effectively prevents blockages and the suction mouth is located in the wheel contour where it is protected from impacts. The excellent standard equipment can be complemented with various attachment kits, such as a 3rd side brush, a weed brush, a wander hose or a high-pressure cleaner. In terms of working comfort, the MC 80 scores well with the largest cab in its class, a perfect all-round view and a transparent and ergonomic layout of the operating elements. Practical details such as a lockable storage compartment, bottle holder and USB charging port are also included.

Intuitive operating concept from the 3.5 tonne class

Armrest with ergonomically integrated operating panel for intuitive operation. Quick start at the touch of a button. Individual control of all functions possible. Individual brush control and lifting increase precision.

Maximum operating comfort

Largest cab in its class with 360° panoramic view, ergonomic and transparent. Windows on both sides, lockable storage compartment, USB charging port, bottle holder. Entry and exit on both sides for maximum flexibility when working.

The highest standard of sweeping

Easy-to-assemble two brush system with individual control and lifting. 800 litre container for swept material with water circulation system and 185 litre fresh water tank. Optional attachment kits available such as 3rd side brush or weed brush.

Economical and environmentally friendly drive

Emission values below EU STAGE V thanks to Common Rail system and diesel particulate filter. For applications in urban green zones. Lower fuel consumption protects the environment and lowers the operating costs.
