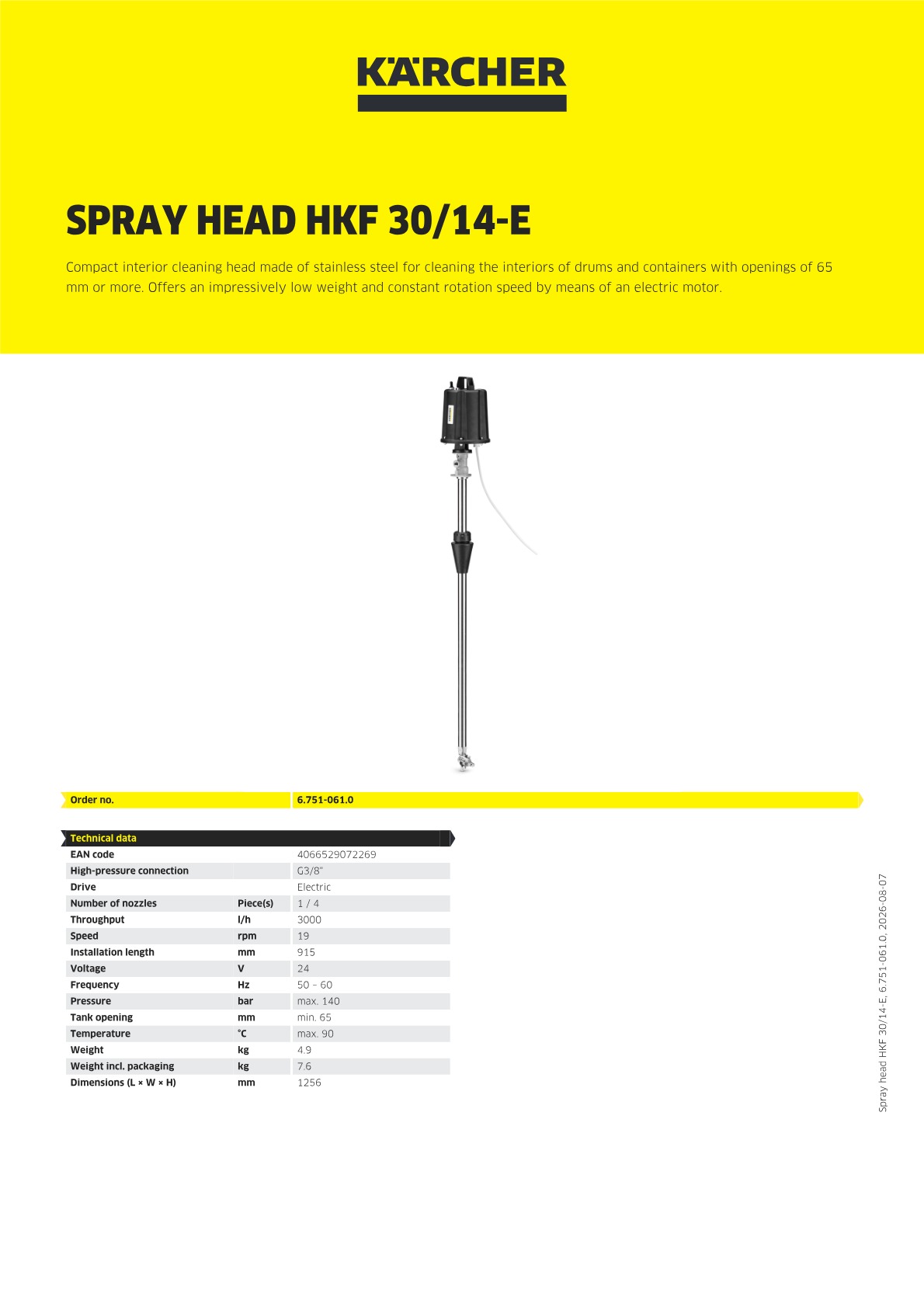

Kärcher telescopic lance with black handle and silver shaft, featuring a white cable attached.

Spray head HKF 30/14-E

Name: Spray head HKF 30/14-E
Brand: Kärcher
SKU: 6.751-061.0

Order number: 6.751-061.0

Compact interior cleaning head made of stainless steel for cleaning the interiors of drums and containers with openings of 65 mm or more. Offers an impressively low weight and constant rotation speed by means of an electric motor.

Request a offer

Technical data

Product information and benefits

The compact interior cleaning head is ideally suited for cleaning inside vats and containers with an opening of 65 millimetres or more. The cleaning head is driven by a 24-volt AC 50/60 hertz electric motor. The low voltage of 24 volts ensures maximum safety when the cleaning head is used in wet application areas. The nozzles rotate around two axes at a constant speed, reaching every inch of the container. Weighing just 4.9 kilograms, there is no need for extra suspension devices. Operational up to 140 bar, 3000 l/h and a maximum water temperature of 90 °C. The head length measures 1256 millimetres in total and the immersion depth is 915 millimetres. The interior cleaning head can be connected quickly and easily to a cold-water or hot-water high-pressure cleaner via a high-pressure hose.

Driven by a 24 V 50/60 Hz electric motor.

Constant rotational speed irrespective of the water flow rate or water pressure. 24 V safety voltage Increased work safety.

High flexibility

Slow rotation and high working pressure for an optimal cleaning result. Suitable for water volumes up to 3000 l/h and high pressure up to 140 bar. Suitable for cleaning interiors of barrels, as well as medium-sized tanks and larger tanks too.

Intelligent design

Easily accessible components simplify maintenance and servicing. Easy handling – One-handed operation of the head in the container. Regular rotation speed for consistent cleaning results.

Stainless steel structure (1.4301)

High-quality material for a long lifetime. Suitable for water that contains Kärcher cleaning agent. Suitable for water temperatures up to 90 °C.

Low weight and compact dimensions

Versatile and flexible uses. Suitable for cleaning interiors of containers with openings from 65 mm. Weighing just 4.9 kg, there is no need for extra suspension devices.

Product safety and documents

Applications and videos

Application areas

Also suitable for cleaning inside IBC containers (tanks)
For cleaning inside tanks (industry, logistics, public services)
For container/deposit cleaning in the food, cosmetics and chemicals industries
For cleaning containers used for transporting chemical products
For cleaning containers used for transporting food
For cleaning stationary containers in the food and chemicals industries

High-pressure connection	G3/8″
Drive	Electric
Number of nozzles (Piece(s))	1 / 4
Throughput (l/h)	3000
Speed (rpm)	19
Installation length (mm)	915
Voltage (V)	24
Frequency (Hz)	50 - 60
Pressure (bar)	max. 140
Tank opening (mm)	65
Temperature (°C)	max. 90
Weight (kg)	4.9
Weight incl. packaging (kg)	7.6
Dimensions (L × W × H) (mm)	1256
