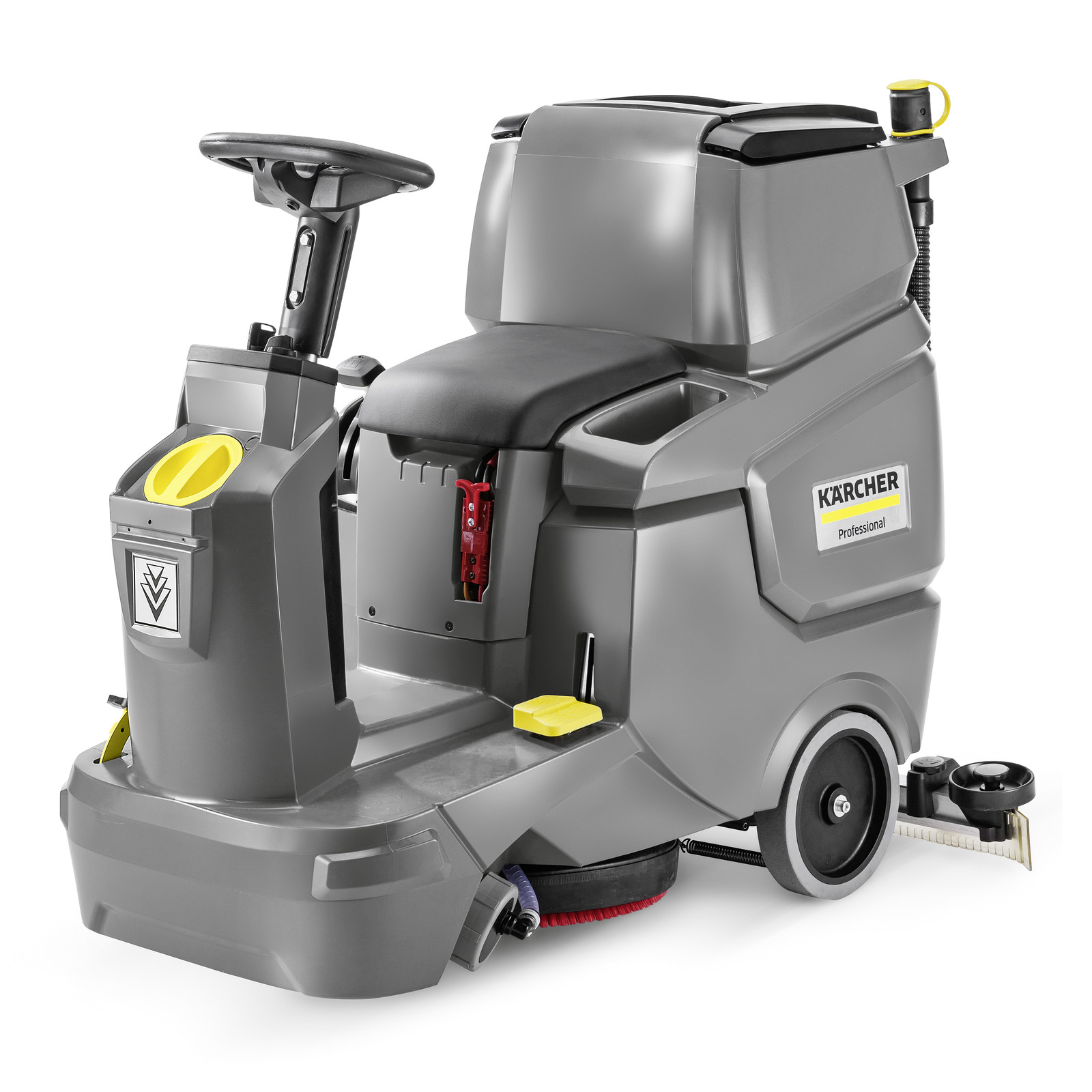

Kärcher ride-on floor scrubber with grey body, black seat, steering wheel, and visible brush underneath.

Scrubber drier

BD 50/70 R Classic Bp Pack 115Ah AGM

This device requires instruction

Part number: 1.161-071.0

70 l tanks for fresh/dirty water, 51 cm disc brush head, 6 km/h speed
Maintenance-free 105 Ah gel battery, run time of up to 2 h, max. 2800 m²/h
Highly compact and manoeuvrable, very easy to operate, off-board charger

Technical data

Drive type	Battery
Traction drive	traction motor
Working width, brushes (mm)	510
Working width, vacuuming (mm)	900
Fresh/dirty water tank (l)	70 / 75
Theoretical area performance (m²/h)	2805
Practical area performance (m²/h)	2000
Battery (V / Ah)	24 / 105
Battery run time (h)	2.5
Voltage (power supply for battery charger) (V)	95 - 253
Frequency (power supply for battery charger) (Hz)	50 - 60
Brush speed (rpm)	180
Brush contact pressure (g/cm² / kg)	13 / 20
aisle turning width (mm)	1650
Water consumption (l/min)	2.3
Sound pressure level (dB(A))	66
Rated input power (W)	1400
Permissible total weight (kg)	345
Weight without accessories (kg)	100
Dimensions (L × W × H) (mm)	1310 x 590 x 1060

Scope of supply

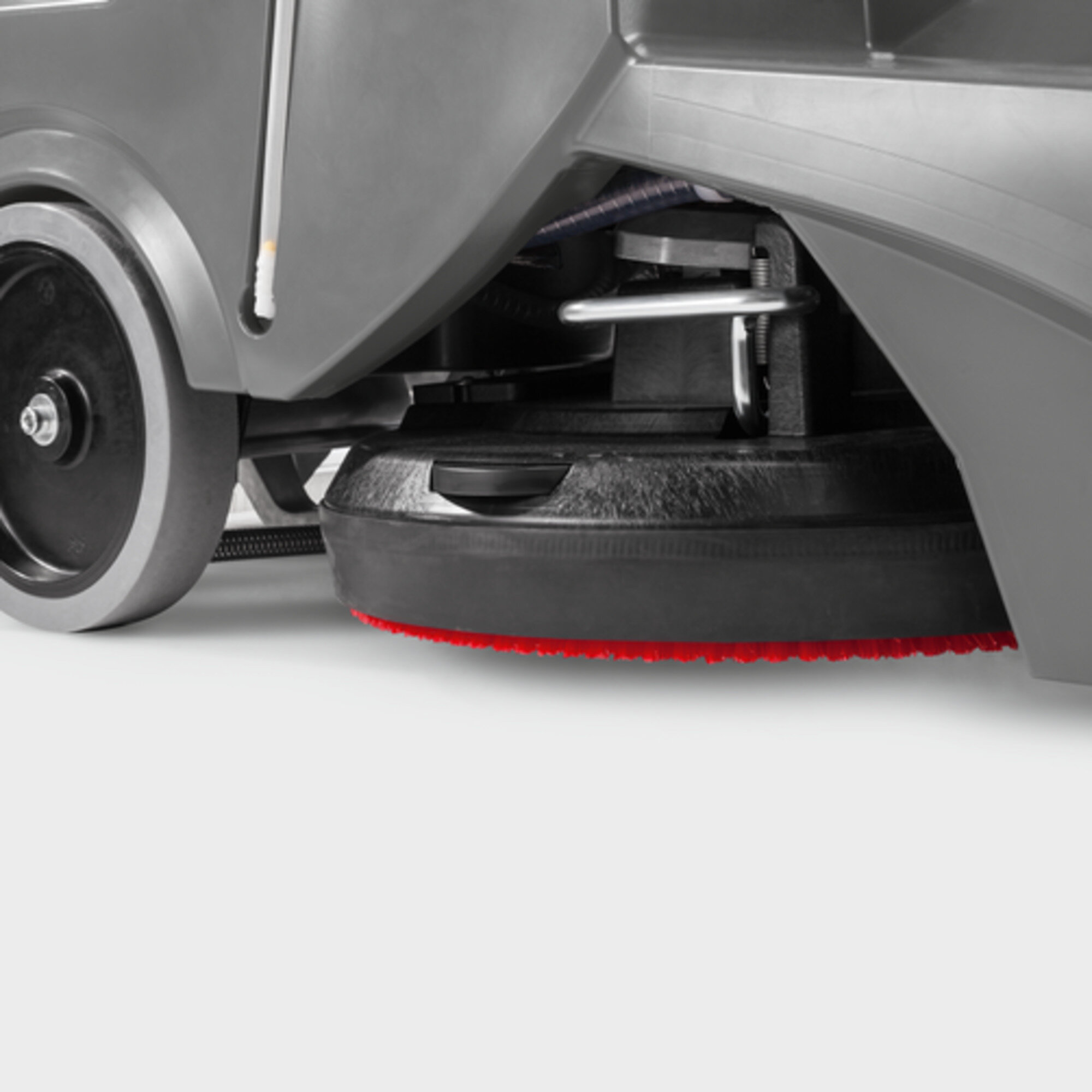

Disc brushPiece(s)

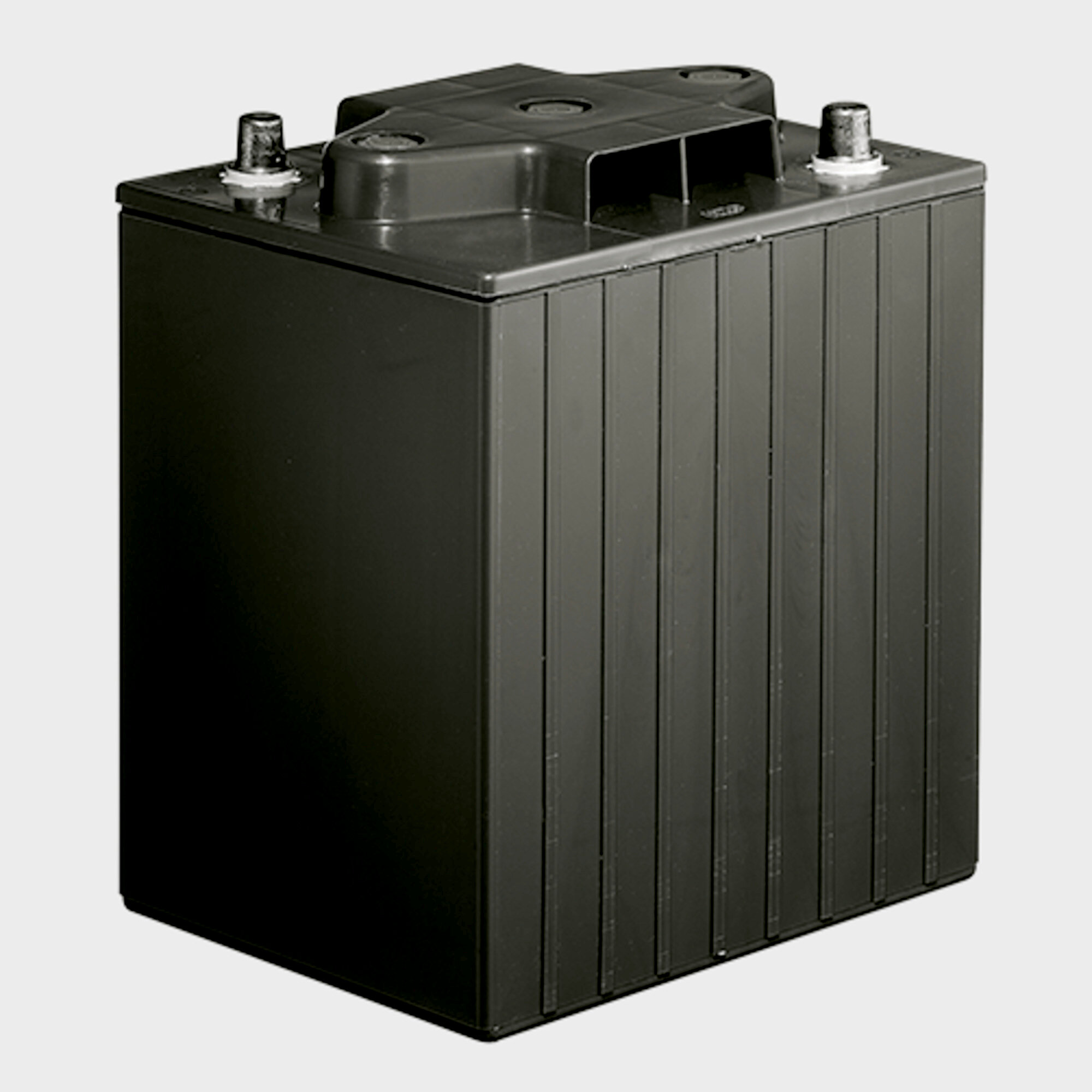

Battery
Battery and charger included
Squeegee, v-shape

Equipment

Powerful traction drive
Automatic water stop
Solenoid valve
Two-tank system

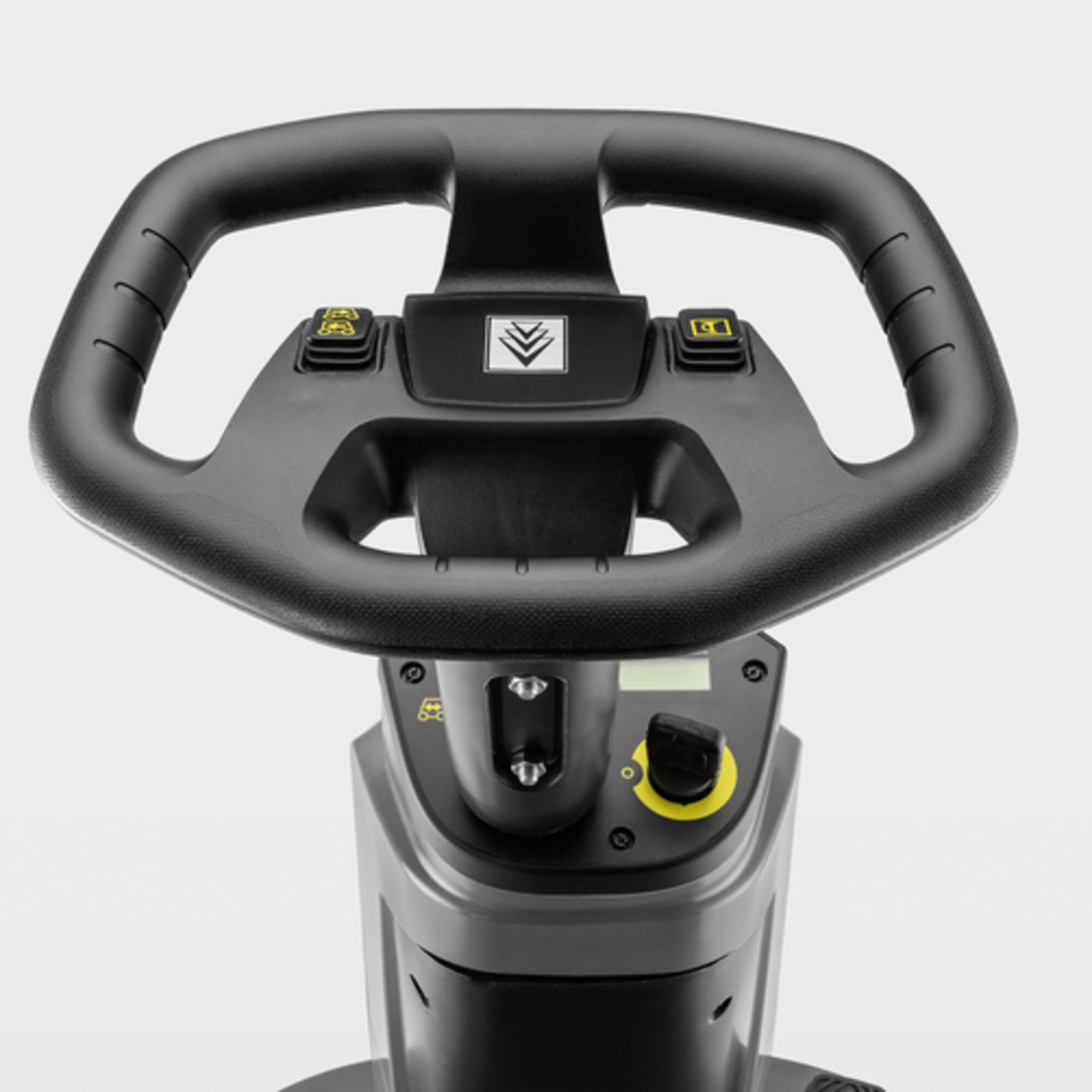

Kärcher colour and operating concept

picto easy operation oth 1 EN CI15 110454 CMYK

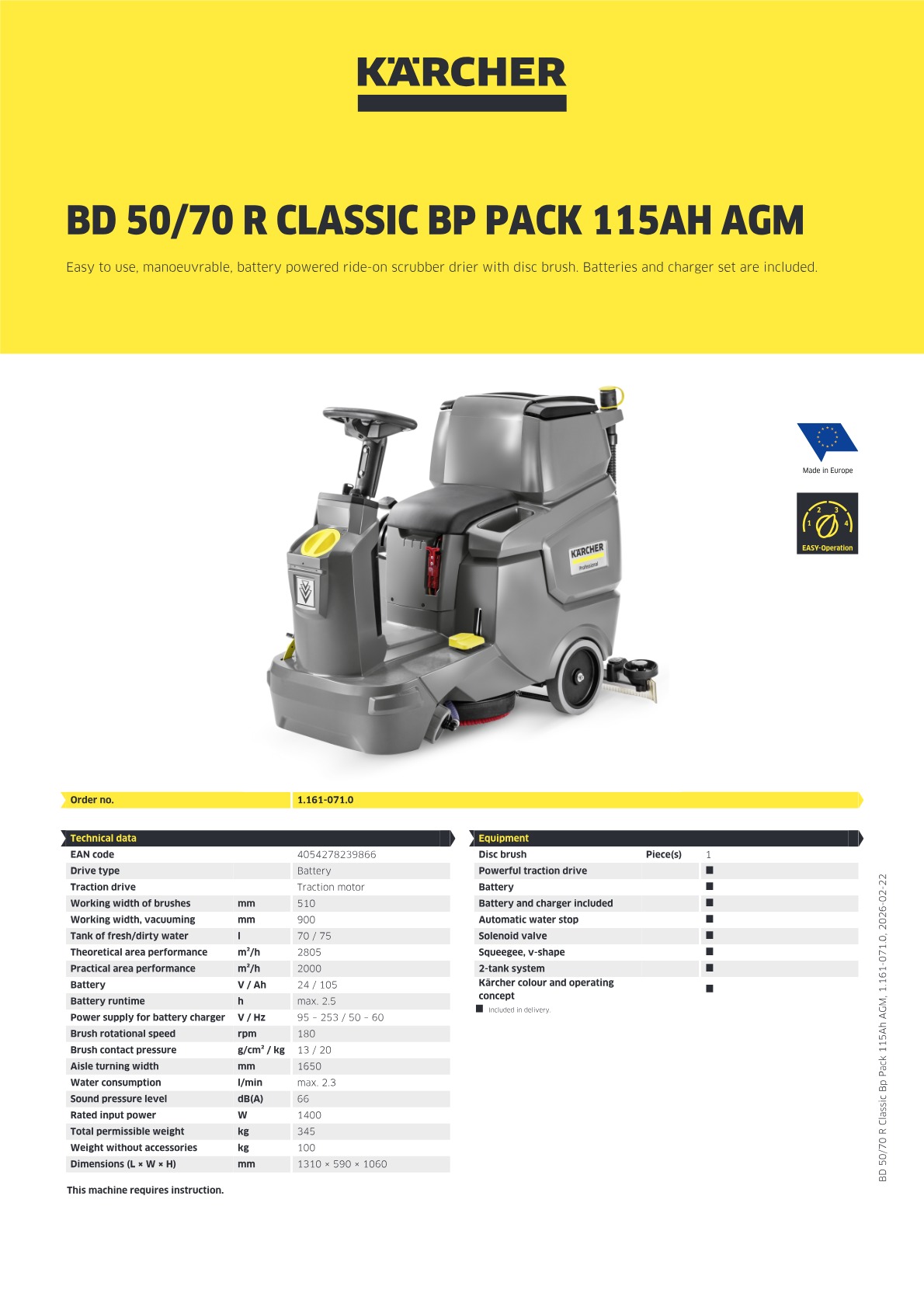

Product information and benefits

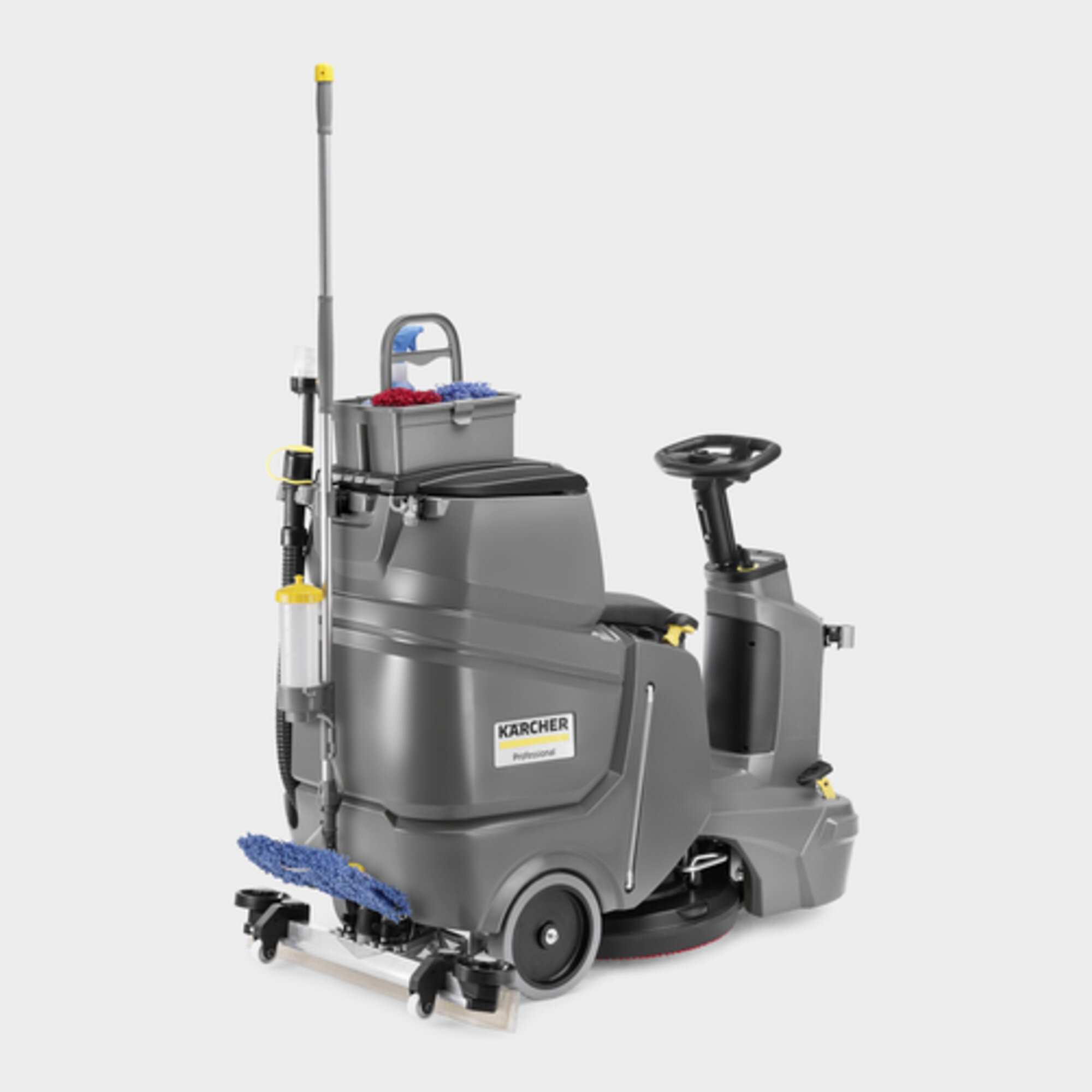

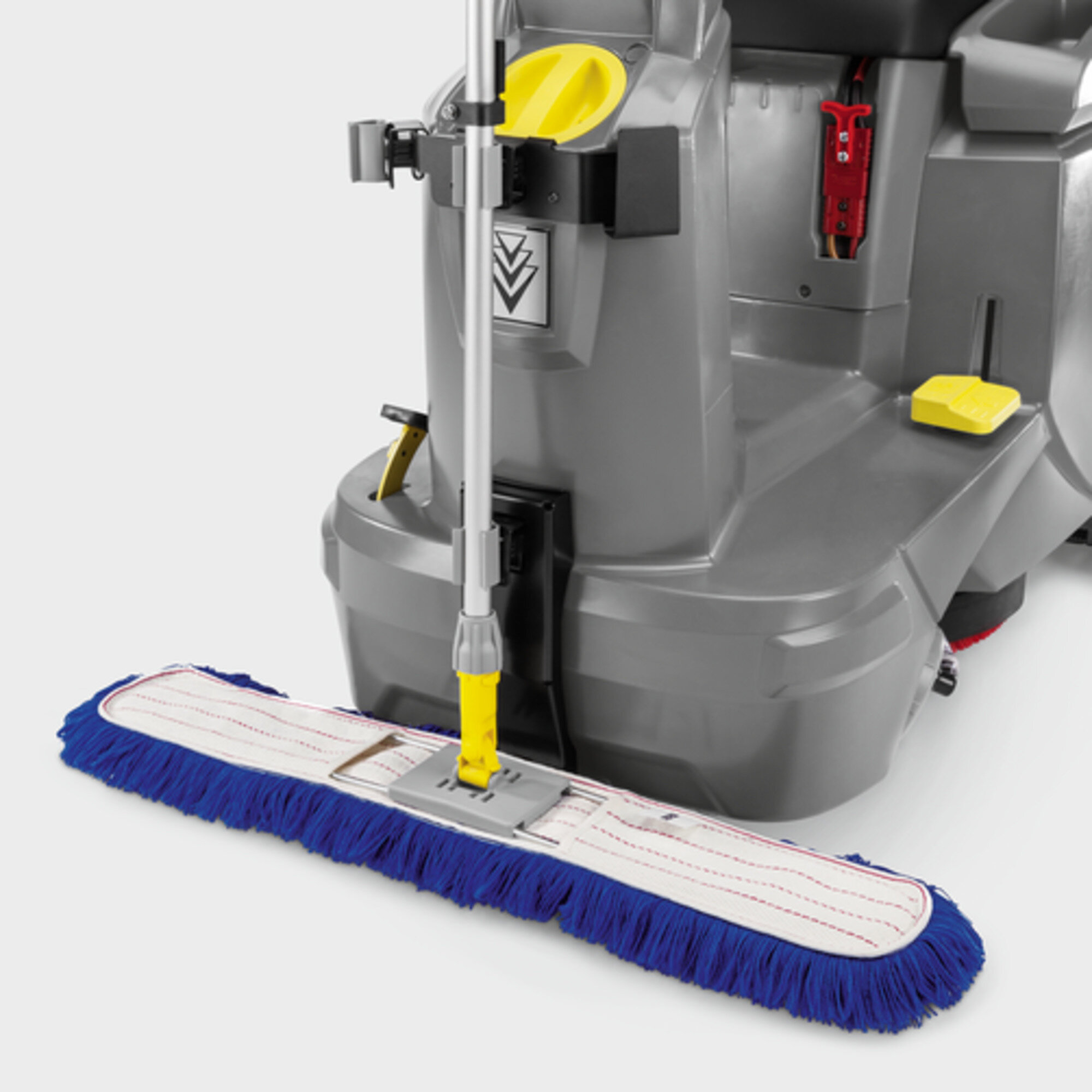

Thanks to its narrow, compact design, our battery powered BD 50/70 R Bp Pack Classic ride-on scrubber drier with disc brush engineering is extremely easy to manoeuvre and transport, even in lifts. As a result, this affordable basic model, operated using powerful 105 Ah batteries, is a real alternative to Walk-behind models. Batteries and a suitable battery charger are included. It is easy to operate thanks to colour-coded controls: this, along with many other clever, useful details, make it a winning product. The standard Home Base for transporting manual cleaning tools can be equipped with hooks in this way. Additionally, a rubbish bag holder and a pre-sweeping mop are available as optional accessories.
