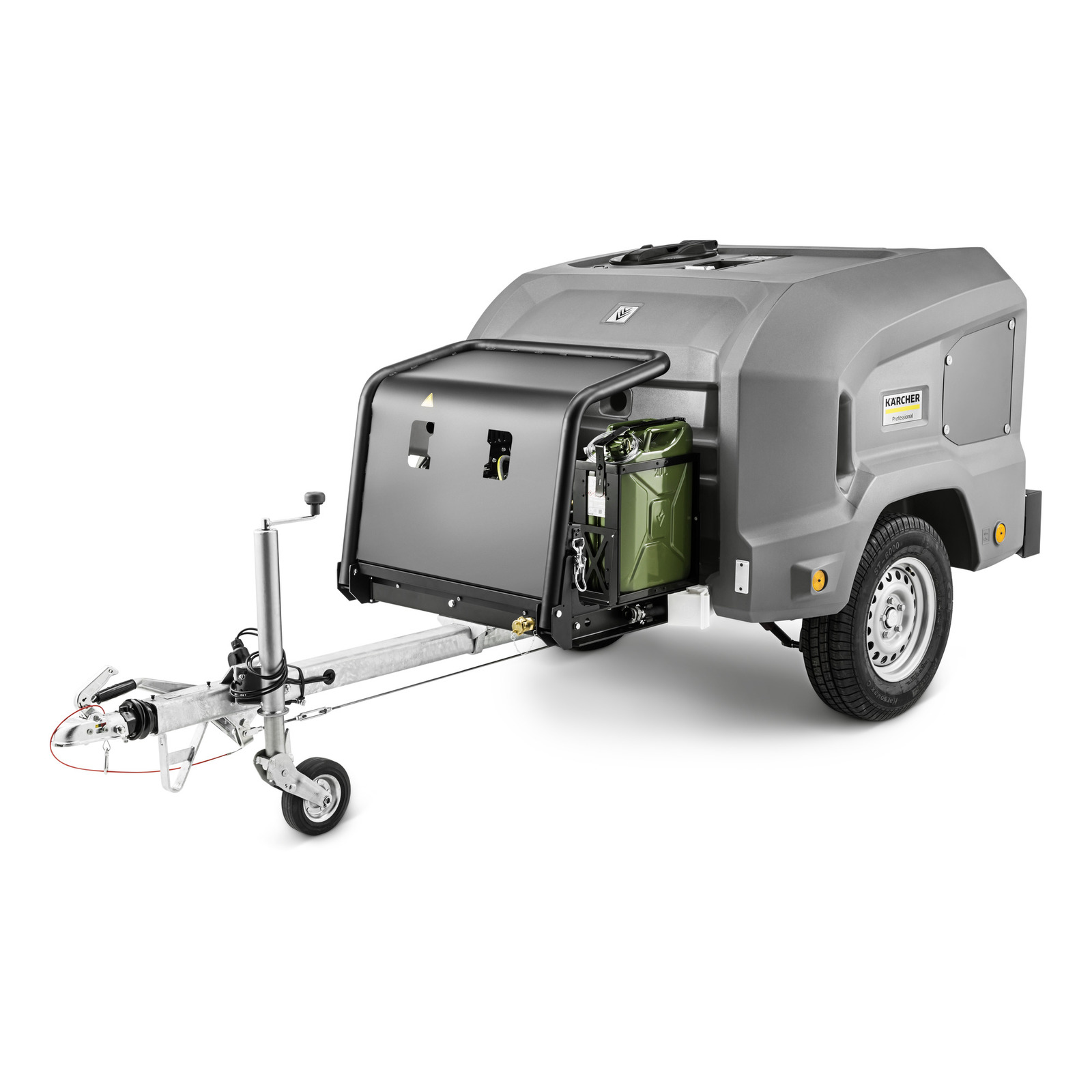

Kärcher trailer-mounted high-pressure cleaner with grey casing and visible green fuel tank.

Awards and exclusive range

HD Trailer

HD 9/23 De Tr1

This device requires instruction

Part number: 1.524-954.202

Application-based configuration
Servo Control: variable water and pressure volume regulation direct from the trigger gun.
Independent high-pressure cleaning irrespective of external power sources

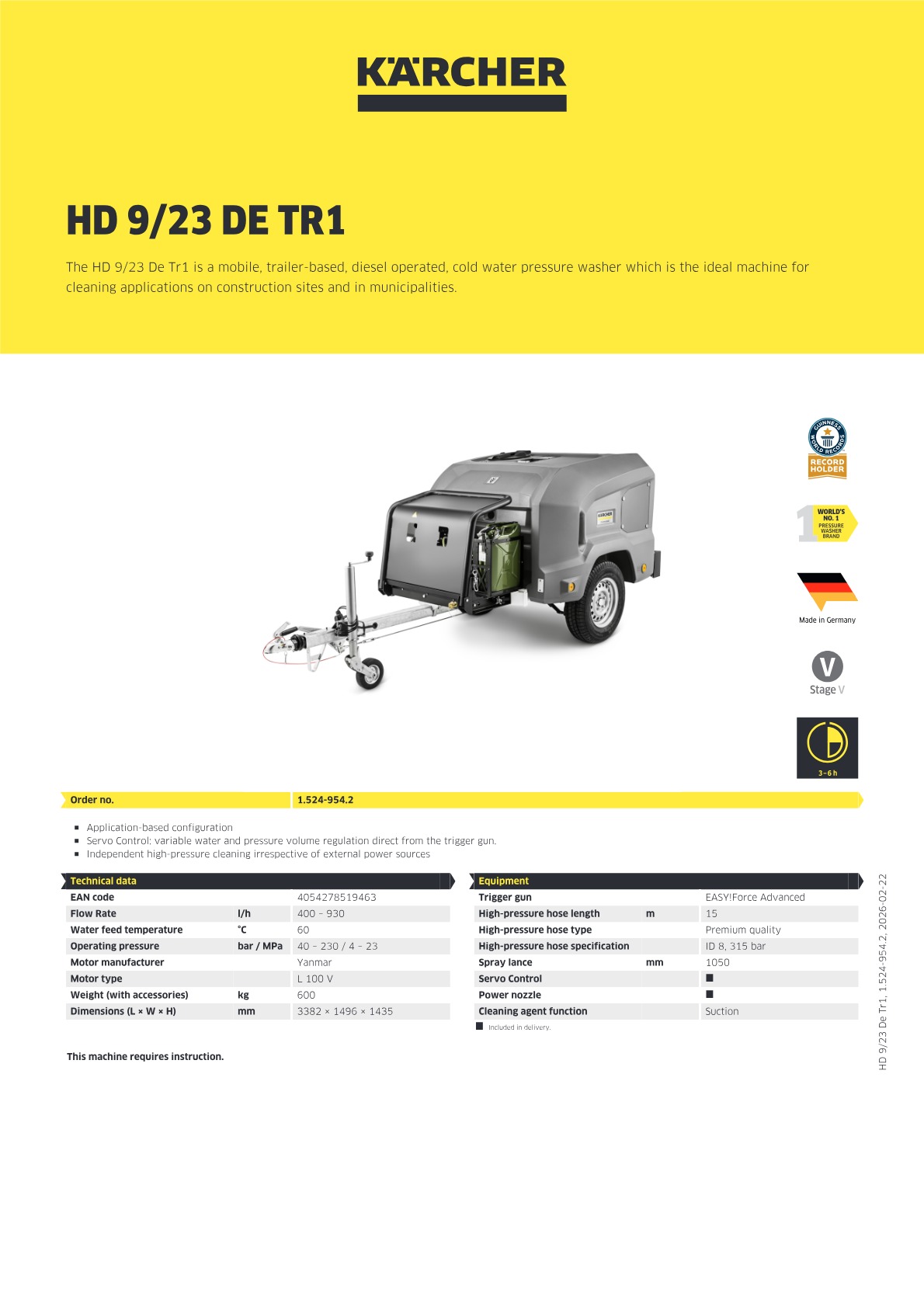

Technical data

Flow Rate (l/h)	400 - 930
Water feed temperature (°C)	60
Operating pressure (bar / MPa)	40 - 230 / 4 - 23
	Diesel
Motor manufacturer	Yanmar
Motor type	L 100 V
Weight (with accessories) (kg)	600
Dimensions (L × W × H) (mm)	3382 x 1496 x 1435

Scope of supply

Spray gun: EASY!Force Advanced
High-pressure hose length: 15m
High-pressure hose type: Premium quality
High-pressure hose specification: DN 8, 315 bar
Spray lance: 1050mm
Servo Control
Power nozzle

Equipment

Detergent function: Suction

picto application frequency HD HDS 3 6h oth 01 CI15

Machine features are individually configurable.

Trigger gun regulation of pressure and water flow.

Product information and benefits

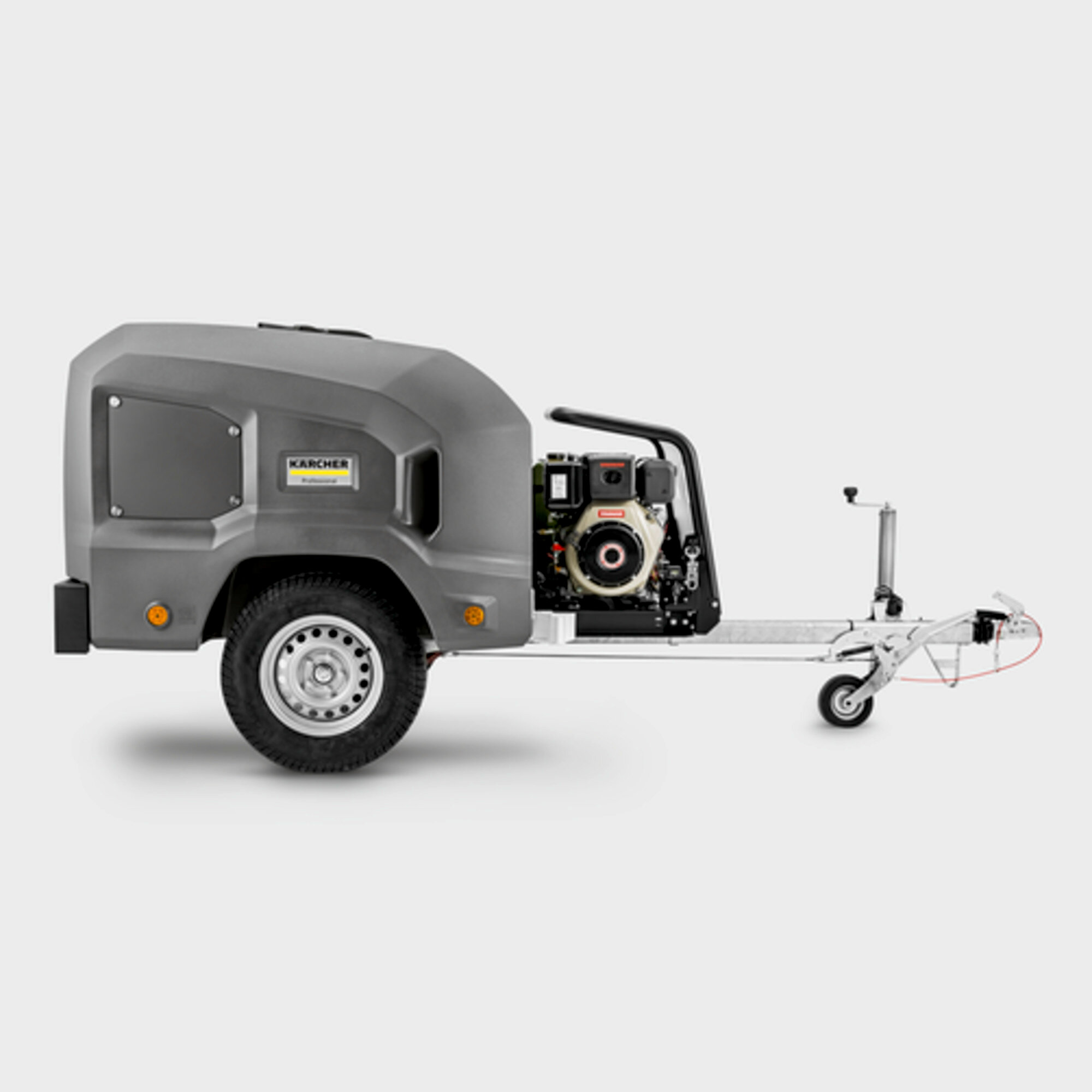

With water and power all on board, the reliable and robust cold water trailer meets the tough demands of high pressure cleaning in industries such as construction or day to day work in municipalities. The HD 9/23 De Tr1 features a large 1000 litre water tank and a powerful Yanmar diesel engine which allows for long intervals of independent operation, up to one hour of continuous use. The machine provides a water flow of up to 930 l/h and a working pressure of 230 bar providing a cleaning solution for even the toughest of cleaning tasks. Equipped with the Easy!Force trigger gun, as standard, a new dimension of ergonomics towards high pressure cleaning, eliminating user fatigue and preventing stop start cleaning. The cold water trailer provides maximum user flexibility thanks to its configurable options, allowing for tailor-made cleaning solutions for specific requirements.

Independent of an external power or water supply

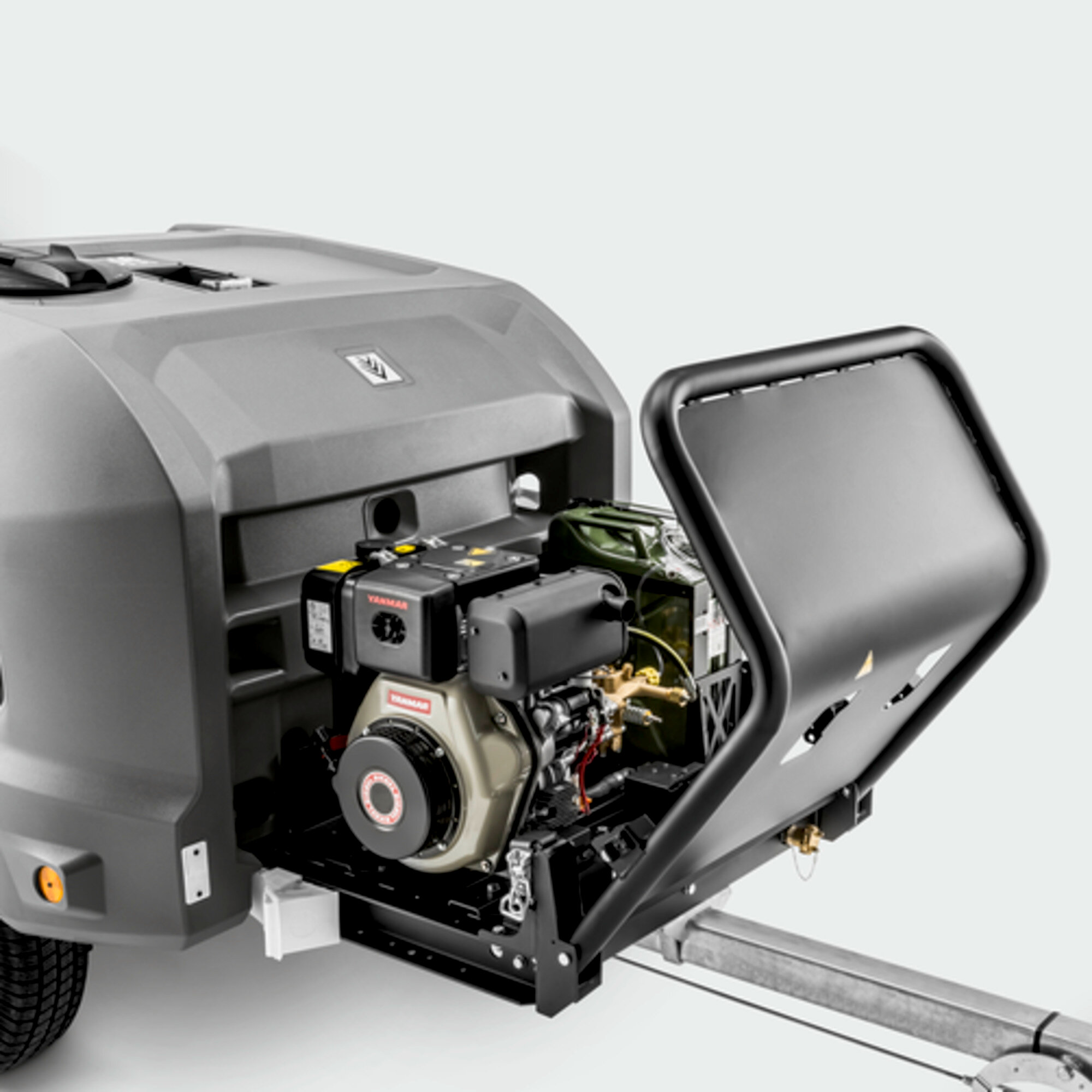

Yanmar diesel or Honda petrol engines (both EU STAGE V) for independent work. 1000 litre water tank for at least one hour of work at full power. Integrated trailer concept for high mobility and maximum independence.

Easy and convenient operation

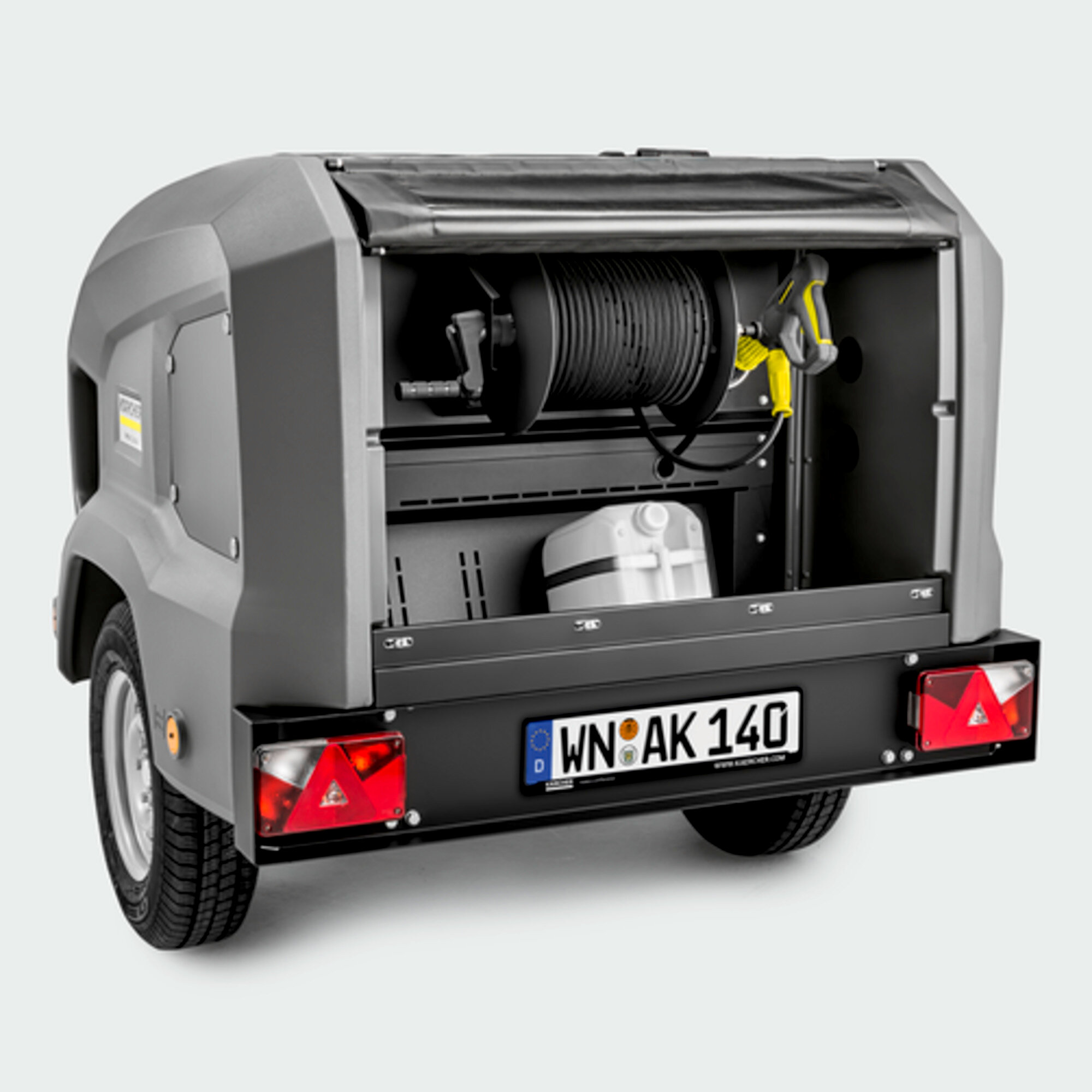

Very simple operation, thus designed for use in rental parks. Convenient equipment with motor electro start and optional hose reel. Storage compartment in the rear section for storing fuel canister and accessories.

Robust design for harsh working conditions

Reliable, tried-and-tested Kärcher high-pressure technology with long service life. Bullbar and rear tarpaulin for protecting the machine available as optional equipment. The integrated antifreeze system permits work activities all year round.

Multiple configurations possible

Flexible, customised configurations for individual customer requirements. Optional cab variant for use on platforms or installation in vehicles. On request the tanks can also be designed in custom colours.
