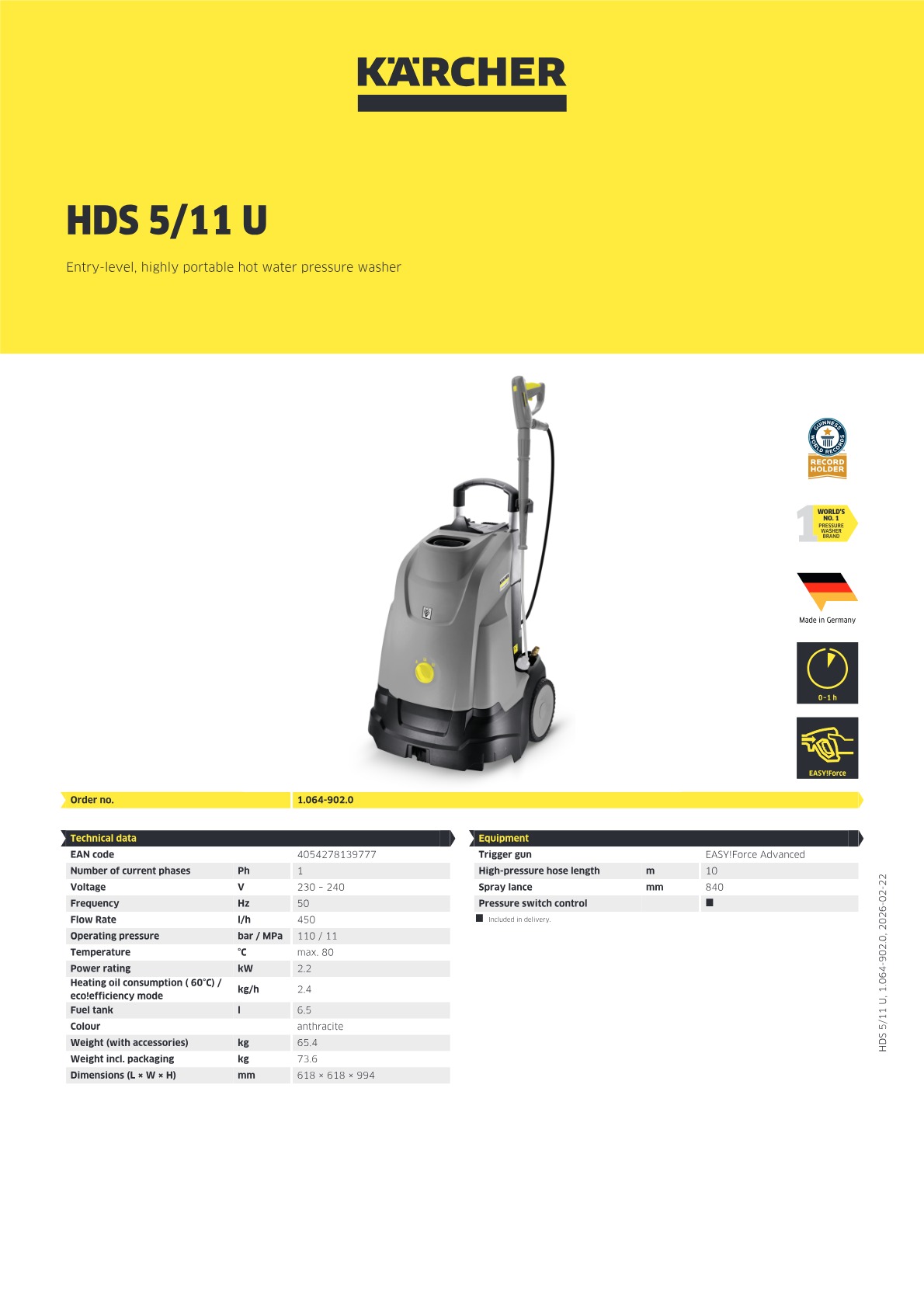

Kärcher high-pressure cleaner with grey body, yellow dial, and handle, standing on wheels.

Awards and exclusive range

High pressure cleaner

HDS 5/11 U

Part number: 1.064-902.0

Compact, ergonomic upright design, air-cooled motor with axial pump
10-metre-long high-pressure hose, detergent inlet
EASY!Force Advanced, triple nozzle

Technical data

Number of current phases (Ph)	1
Voltage (V)	230 - 240
Frequency (Hz)	50
Flow Rate (l/h)	450
Operating pressure (bar / MPa)	110 / 11
Temperature (°C)	max. 80
Power rating (kW)	2.2
Consumption of fuel oil at full load (kg/h)	2.4
Water inlet	3/4″
Fuel tank (l)	6.5
Colour	anthracite
Weight (with accessories) (kg)	65.4
Weight incl. packaging (kg)	73.6
Dimensions (L × W × H) (mm)	618 x 618 x 994

Scope of supply

Spray gun: EASY!Force Advanced
High-pressure hose length: 10m
Spray lance: 840mm

Equipment

Pressure cut-off

Recommended maximum duration of use in hours/day.

High-pressure trigger gun with zero holding force for fatigue-free operation.

Robust, long-lasting quick-release lock: five times faster than screwing.

Product information and benefits

The HDS 5/11 U is a compact hot water pressure washer which features a 3-piston axial pump and air-cooled 2-pole electric motor. The machine allows for easy transportation and storage thanks to its low weight, compact upright design and large diameter wheels, and is small enough to be transported in a typical estate car. With simple OFF-COLD-HOT operation, the 5/11 U is the perfect machine for light-medium duty cleaning tasks where time is of the essence.

Innovative upright design

Effortless transport over steps or stairs. Large wheels for unpaved surfaces.

Fine-mesh water filter

Efficiently protects high-pressure pump against contamination. Easy to remove from outside.

Compact design

Space-saving storage and transport. Spill-proof pump and fuel tank for horizontal transportation. Also ideal for smaller service vehicles.

Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release fasteners

Fatigue-free work at last: the EASY!Force high pressure gun. EASY!Lock quick-release locks: durable and robust. And five times faster than a standard screw connection.
