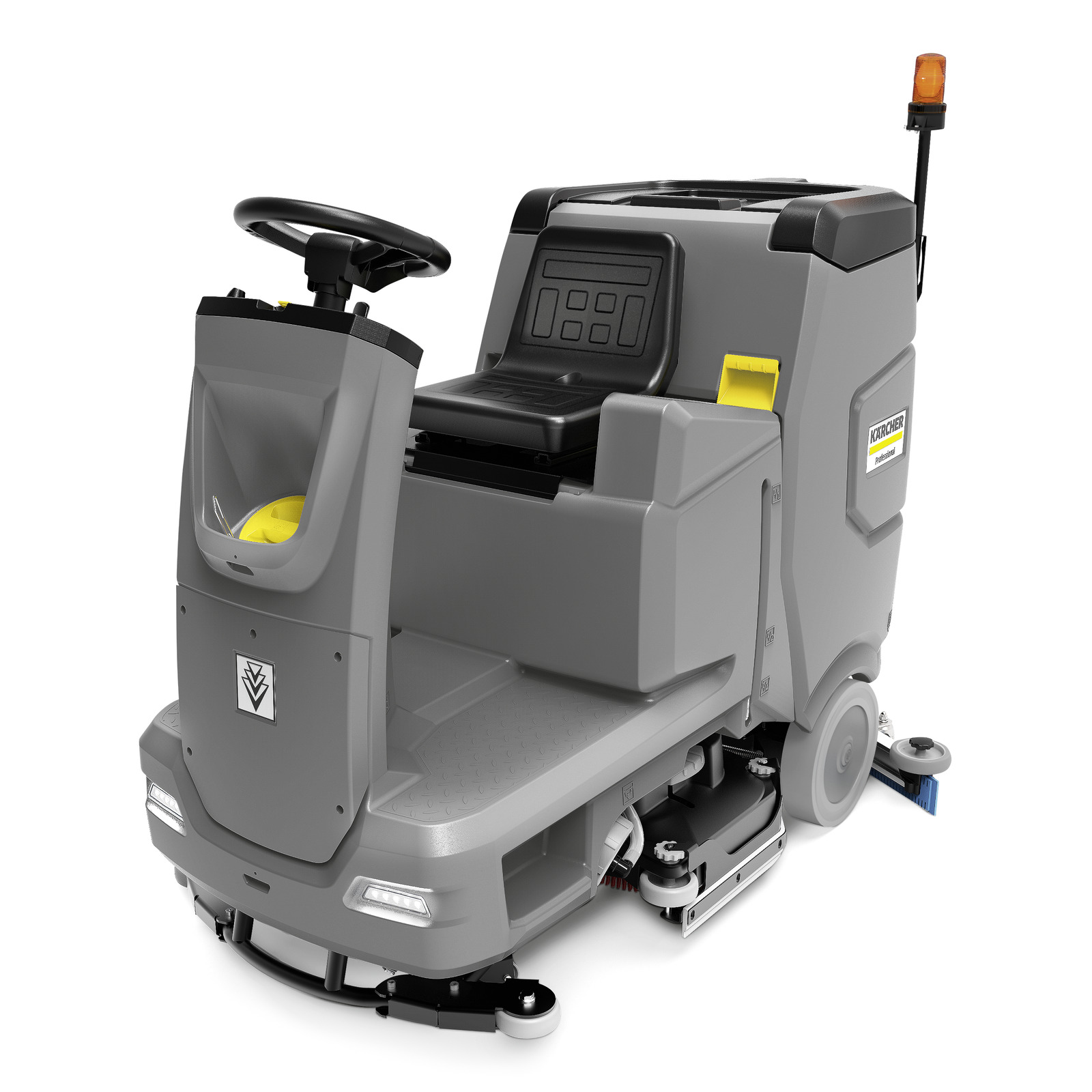

Kärcher ride-on floor scrubber with steering wheel, control panel, and orange safety light on top.

Scrubber dryers

BD 75/120 R Classic Bp

Name: BD 75/120 R Classic Bp
Brand: Kärcher
SKU: 1.161-431.0

This device requires instruction

Order number: 1.161-431.0

Easy-to-manoeuvre, flexible ride-on scrubber dryer BD 75/120 R Classic Bp. With 75 centimetre working width, 2 disc brushes and 120 litre tank capacity. Also included: The innovative KIK key system.

Request a offer

Technical data

Drive type	Battery
Traction drive	Brush motor
Working width, brushes (mm)	750
Working width, vacuuming (mm)	950
Fresh/dirty water tank ( )	120 120
Theoretical area performance (m²/h)	4500
Practical area performance (m²/h)	3150
Driving speed (km/h)	max. 6
Climbing ability (%)	10
Brush speed (rpm)	180
Brush contact pressure (kg)	75
aisle turning width (cm)	175
Water consumption (l/min)	5
Sound pressure level (dB(A))	min. 59 - max. 63
Weight without accessories (kg)	236
Dimensions (L × W × H) (mm)	1660 x 1035 x 1480

Scope of supply

Disc brush: 2 Piece(s)
Squeegee, curved

Equipment

Tank-in-tank design
Powerful traction drive
Automatic water stop
Solenoid valve
standard daytime driving light
Type of suction lips: Natural rubber
Kärcher colour and operating concept
Kärcher Intelligent Key System (KIK) with over 30 user languages and individual user rights
Home Base fastening possibilities for mop or similar
Easy Operation selector switch

picto easy operation oth 1 EN CI15 110454 CMYK

Product information and benefits

Powerful and very user-friendly: Our battery powered ride-on scrubber dryer BD 75/120 R Classic Bp with disc brush engineering and 75 centimetre working width for cleaning tasks in, e.g., supermarkets, shopping centres, hospitals or also production areas and warehouses. Colour-coded operating elements make possible extremely simple handling. This is supported by the innovative KIK key system, which essentially rules out any operating errors. And the speed-dependent water dosing ensures low consumption which can be adapted at any time. The user also benefits from the daytime driving lights for increasing passive safety.

Large battery compartment for 300 Ah battery

Enables uninterrupted work for longer time. High cleaning performance per battery charge. Maximum productivity.

Speed-responsive water dosing

Reduces the water supply in bends or during slow journeys. The water-saving function increases the area performance. Faster drying of the ground and lower risk of residual water in bends.

Ergonomic design, designed for the Asian market

Seat can be adapted to the user. Maximum flexibility. High working comfort.

Anti-skid wheels

Prevents slipping on wet floors. Increases safety for the user. High reliability.

1030 mm curve squeegee as standard

Excellent vacuuming result. Quick drying on different floor types. Swerves upon wall contact, thus avoiding damage.

Innovative KIK system

Colour-coded keys for different access rights to protect against operating errors. Cleaning modes and other functions can be preset for each user. Optimal adjustment to the individual tasks of the respective user.

With LED daytime running light

Increases visibility during the day. Also improve vision in the dark. Maximum safety for user and in surrounding area.

Stable anti-collision beam

Increases safety during turning manoeuvres. Effectively prevents damage to the tank. Effectively prevents damage to the traction motor.

Economical and efficient eco!efficiency mode

Lowers water requirement during cleaning. Lowers battery consumption and increases the runtime. Reduces the operating noise for applications in noise-sensitive areas.
