Kärcher professional high-pressure cleaner with grey frame, wheels, and attached spray gun.

Awards and exclusive range

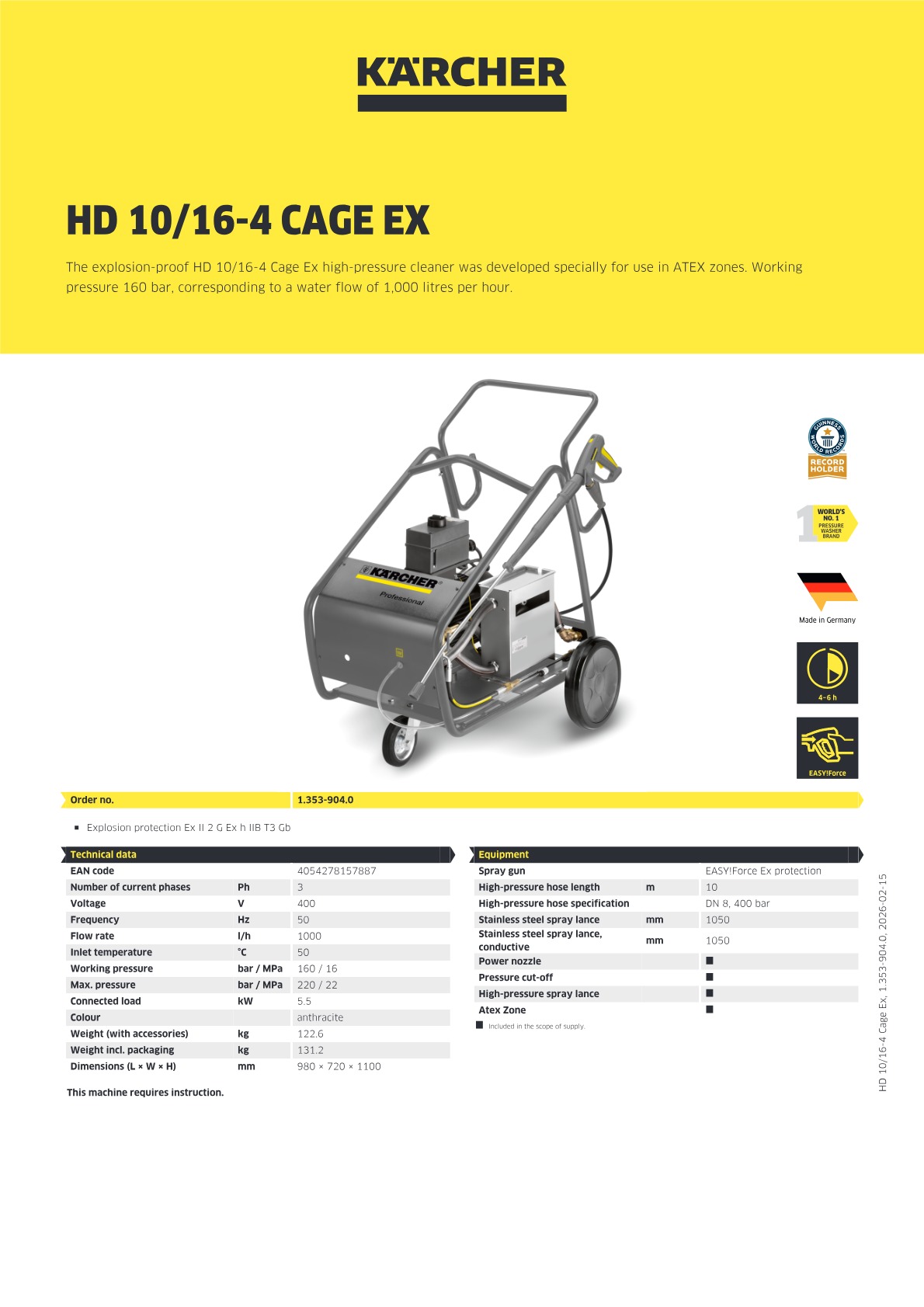

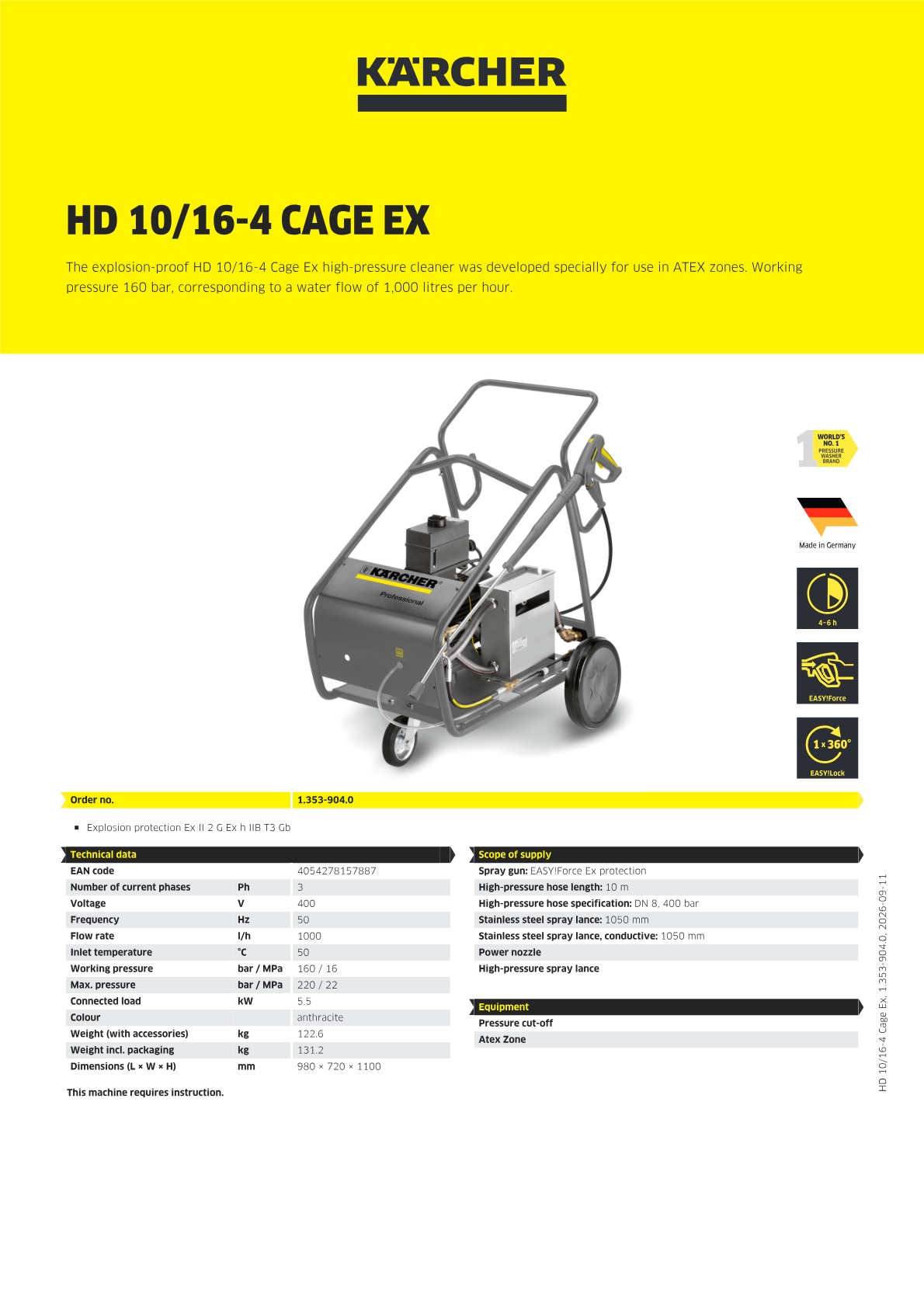

High-pressure cleaner

HD 10/16-4 Cage Ex

This device requires instruction

Order number: 1.353-904.0

Explosion protection Ex II 2 G Ex h IIB T3 Gb

Technical data

Number of current phases (Ph)	3
Voltage (V)	400
Frequency (Hz)	50
Flow rate (l/h)	1000
Inlet temperature (°C)	50
Working pressure (bar / MPa)	160 / 16
Max. pressure (bar / MPa)	220 / 22
Connected load (kW)	5.5
Colour	anthracite
Weight (with accessories) (kg)	122.6
Weight incl. packaging (kg)	131.2
Dimensions (L × W × H) (mm)	980 x 720 x 1100

Scope of supply

Spray gun
High-pressure hose length: 10 m
High-pressure hose specification
Stainless steel spray lance: 1050 mm
Stainless steel spray lance, conductive: 1050 mm
Power nozzle
High-pressure spray lance

Equipment

Pressure cut-off
Atex Zone

Recommended maximum duration of use in hours/day.

High-pressure trigger gun with zero holding force for fatigue-free operation.

Robust, long-lasting quick-release lock: five times faster than screwing.

Machine with certified explosion protection.

Product information and benefits

Potentially explosive areas, "ATEX zones", place particular demands on components and materials. Our HD 10/16-4 Cage Ex high-pressure cleaner meets these requirements and complies with all of the stringent safety regulations in its explosion-proof design. With a working pressure of 160 bar and water flow rate of around 1,000 litres per hour, the machine is designed for a variety of cleaning tasks. Moreover, it incorporates outstanding technical innovations that make cleaning effortless and take handling to a new level: the EASY!Force high-pressure gun and EASY!Lock quick-release fasteners. While the EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, the EASY!Lock quick-release fasteners enable handling that is five times faster than with conventional screw connections, without losing any robustness or longevity. The HD 10/16-4 Cage Ex combines maximum safety with outstanding cleaning performance and durable technology.

Powder-coated cage frame, electrically conductive

Robust tubular steel frame. With integrated crane hook. Protection against damage to the machine.

Explosion-proof equipment

Conductive rubber tyres. Surface temperature always under 200°C.

Powerful and durable

Four-pole, low-speed air-cooled electric motor. Robust brass cylinder head and ceramic piston. Reliable and durable Kärcher high-performance crankshaft pump ensures optimal pressure.

Operational safety

The fresh water filter protects the components and can be removed and cleaned with no tools required. Protects the pump against dry running. Cleaning agent suction system for stubborn dirt.
