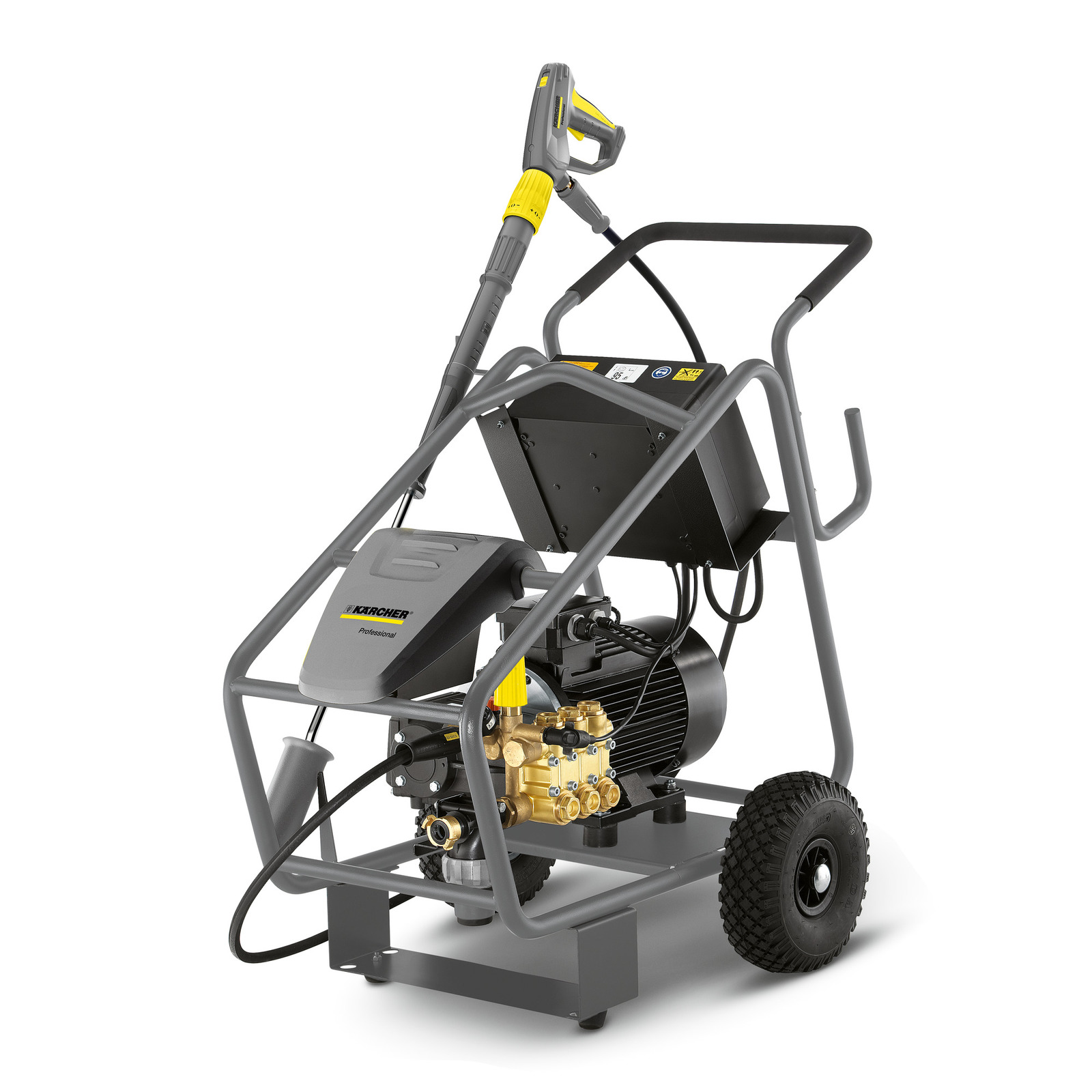

Kärcher high-pressure cleaner with a grey frame, black wheels, and a yellow handle, featuring a visible pump and motor.

Awards and exclusive range

High-pressure cleaner

HD 20/15-4 Cage Plus

Order number: 1.353-906.0

Automatic soft start
Puncture-proof wheels for maximum mobility

Technical data

Number of current phases (Ph)	3
Voltage (V)	400
Frequency (Hz)	50
Flow rate (l/h)	500 - 2000
Inlet temperature (°C)	60
Working pressure (bar / MPa)	30 - 150 / 3 - 15
Max. pressure (bar / MPa)	190 / 19
Connected load (kW)	11.5
Power cable (m)	5
Colour	anthracite
Weight (with accessories) (kg)	118
Weight incl. packaging (kg)	127.2
Dimensions (L × W × H) (mm)	957 x 686 x 1080

Scope of supply

Spray gun: EASY!Force Advanced
High-pressure hose length: 15m
High-pressure hose type: Premium quality
Stainless steel spray lance: 1050mm
Power nozzle
Dirt blaster
High-pressure spray lance
Servo Control

Equipment

Detergent function: Suction
Pressure cut-off
Infinitely variable pressure and water flow regulation

Recommended maximum duration of use in hours/day.

Regulierung von Druck und Wassermenge an der Pistole.

Permanently ensures high mobility also on uneven surfaces.

High-pressure trigger gun with zero holding force for fatigue-free operation.

Robust, long-lasting quick-release lock: five times faster than screwing.

Product information and benefits

Designed for effective removal of the toughest dirt in agriculture or the construction sector, which is often only possible with large quantities of water: our three-phase current HD 20/15-4 Cage Plus cold water high-pressure cleaner with innovative crankshaft pump technology. This enables an immense flushing action of up to 2,000 litres per hour at a working pressure of 150 bar. This very robust machine, which is also extremely mobile thanks to the puncture-resistant wheels, is particularly impressive when it comes to tough jobs on difficult terrain. With our patented EASY!Lock quick-release fasteners, set-up and dismantling can also be done in no time – five times faster in comparison to conventional screw connections – though they are just as durable and robust. The HD 20/15-4 Cage Plus: a special machine for special demands.

Cage frame

Robust outer pipe frame. With integrated crane hook and accessory compartment. Protection against damage to the machine.

Electronic monitoring for greater operational safety.

Leakage protection and soft start. Overvoltage and undervoltage protection. Protection against two-phase short circuit.

For the toughest jobs

High mobility thanks to the foldable push handle and puncture-proof wheels. Large water filter protects pump against damage.

Durable and robust

Extra large crankshafts and connecting rods with robust ball bearings. Robust brass cylinder head and ceramic piston.
