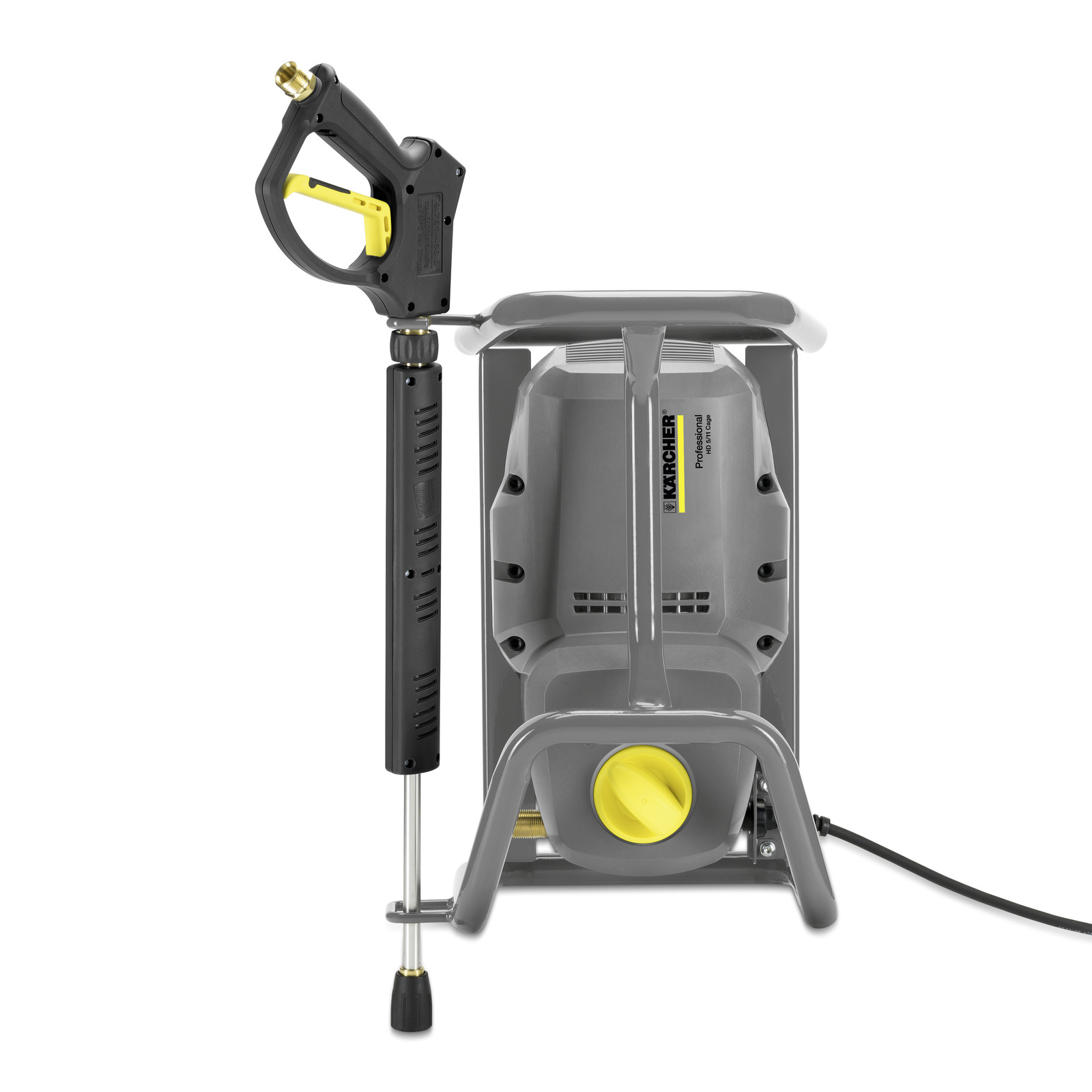

Kärcher high-pressure cleaner with grey body, yellow dial, and black spray gun attached.

Awards and exclusive range

High-pressure cleaner

HD 5/11 Cage Classic

Order number: 1.520-204.0

Low weight, high degree of mobility for tough applications
Brass cylinder head, tubular steel frame, ergonomic design
10-metre-long high-pressure hose, EASY!Force Advanced, 600 mm spray lance, Power nozzle

Technical data

Number of current phases (Ph)	1
Voltage (V)	230
Frequency (Hz)	50
Flow rate (l/h)	500
Inlet temperature (°C)	60
Working pressure (bar / MPa)	up to 110 / up to 11
Max. pressure (bar / MPa)	160 / 16
Connected load (kW)	2.2
Colour	anthracite
Weight (with accessories) (kg)	21.3
Weight incl. packaging (kg)	23.2
Dimensions (L × W × H) (mm)	475 x 335 x 340

Scope of supply

Spray gun: Standard
High-pressure hose length: 10m
High-pressure hose specification: DN 6, 250 bar
Stainless steel spray lance: 600mm
Power nozzle
High-pressure spray lance

Equipment

Pressure cut-off

Recommended maximum duration of use in hours/day.

Product information and benefits

A lot of power for less money: thanks to its robust steel frame, the HD 5/11 Cage Classic high-pressure cleaner has been designed for even the harshest conditions. Easy to transport thanks to the ergonomic handle, the long-lasting machine is suitable for stationary and, in particular, mobile applications. It can be mounted on the floor or on the wall. And finally, the HD 5/11 Cage Classic naturally also impresses with its cleaning power (110 bar pressure).

Durable and robust

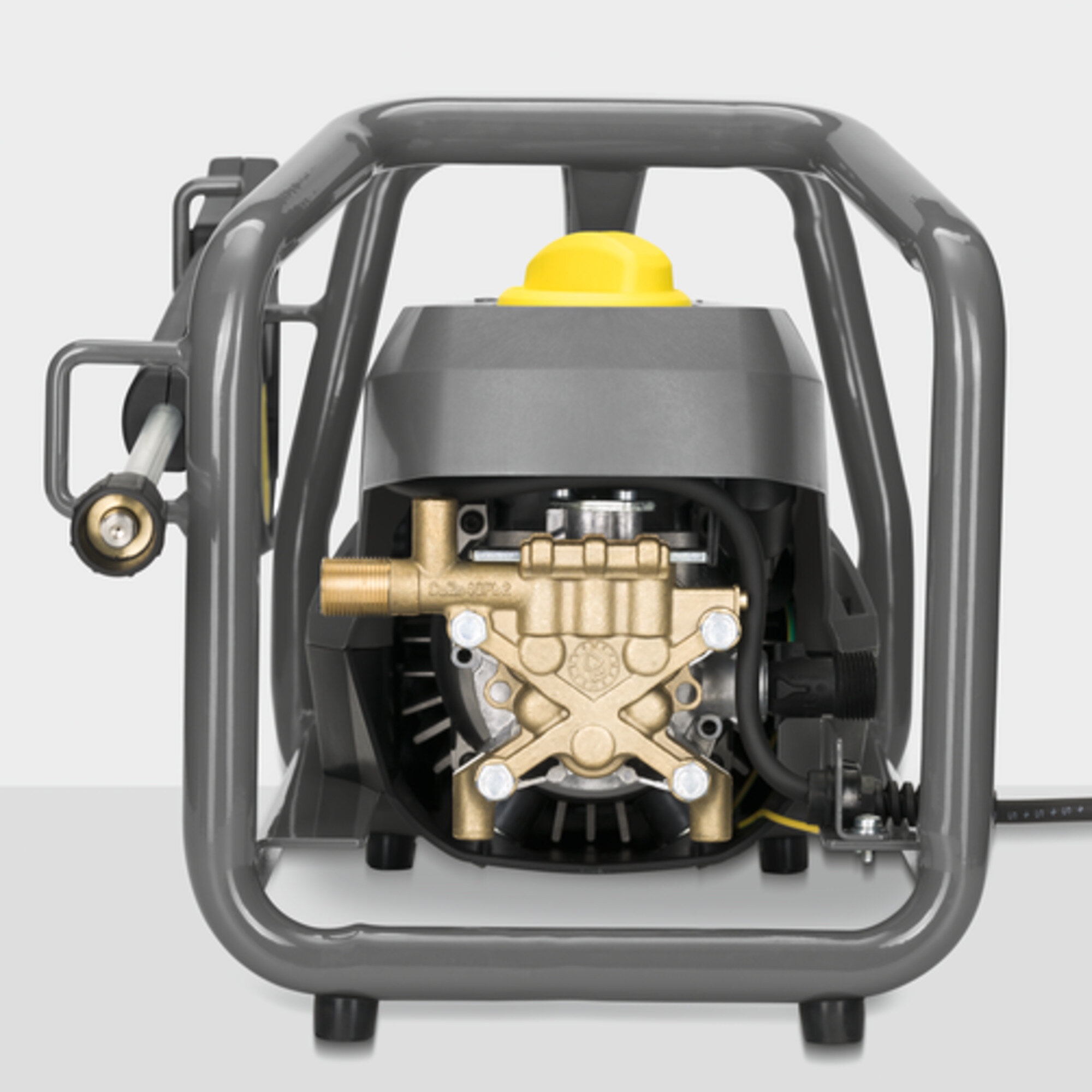

With its brass cylinder heads, the 3-piston axial-piston motor unit ensures an exceptionally long service life. The sturdy pipe frame provides protection in continuous heavy-duty use. Automatic pressure relief for protecting the components extends their life.

HD 5 11 Cage Automotive app 1 CI15502x502

Versatile

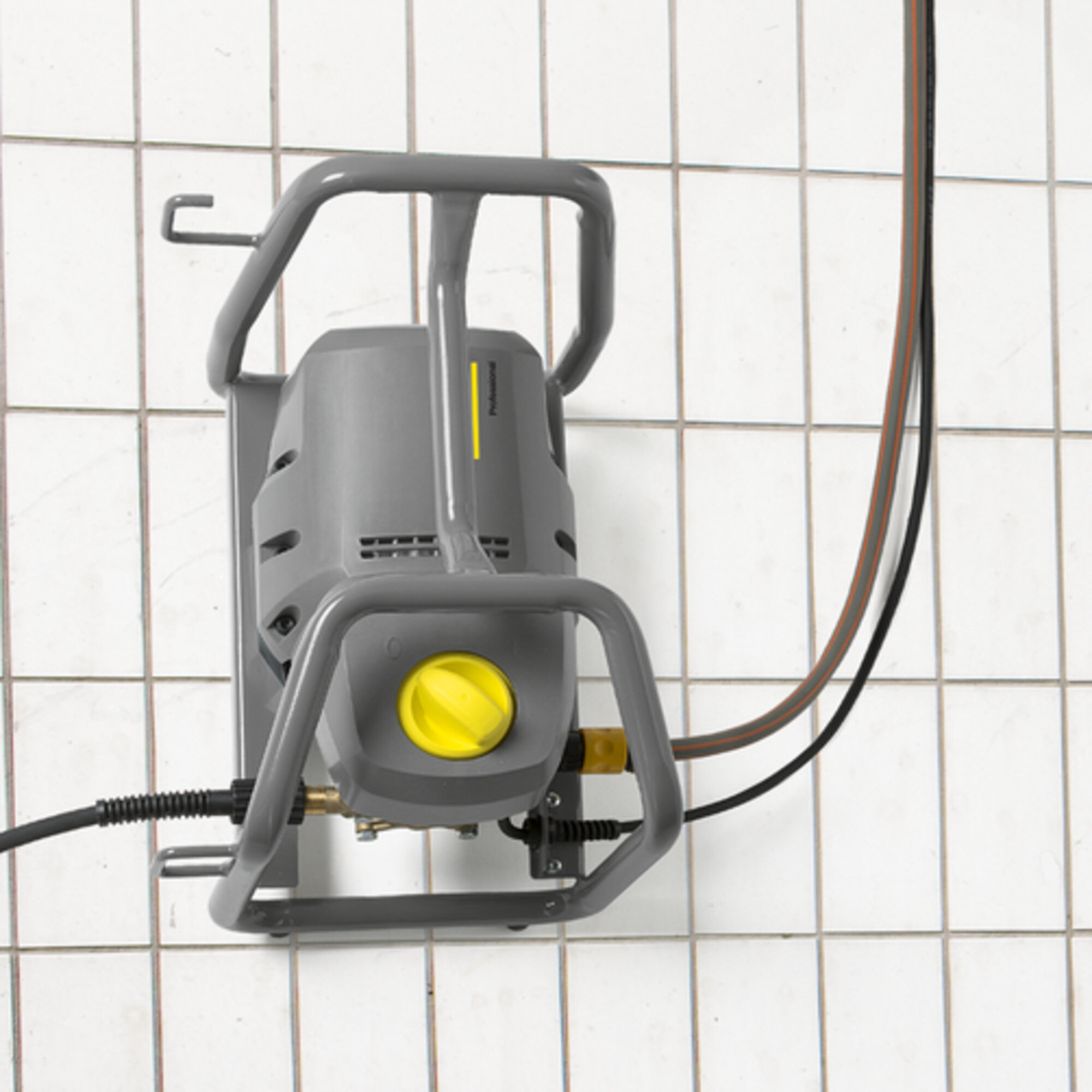

The machine can be attached to the floor or the wall. Can be used vertically or horizontally.

Maintenance-friendly

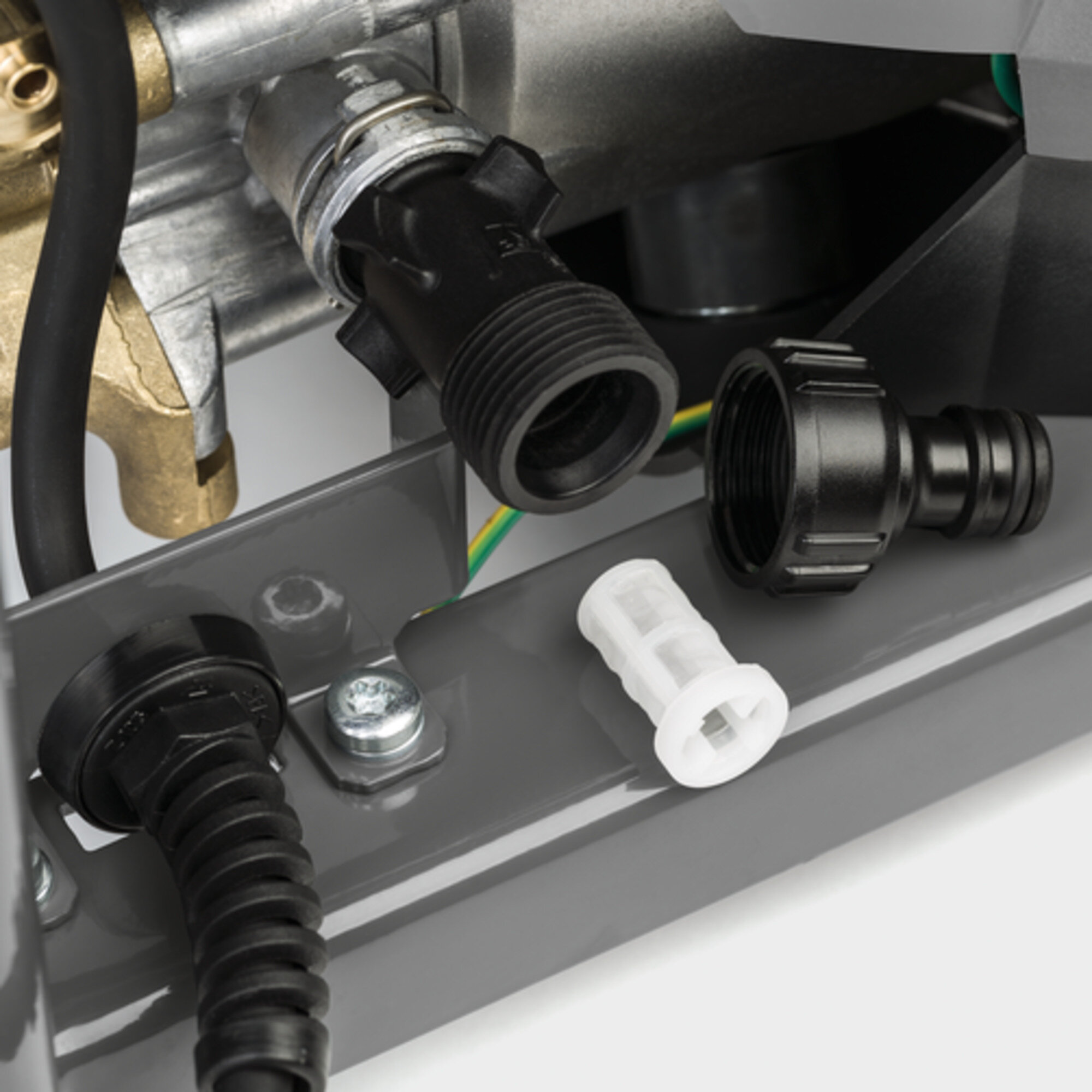

Excellent access to all relevant components. The fresh water filter protects the components and can be removed and cleaned with no tools required.

Compact design with high mobility

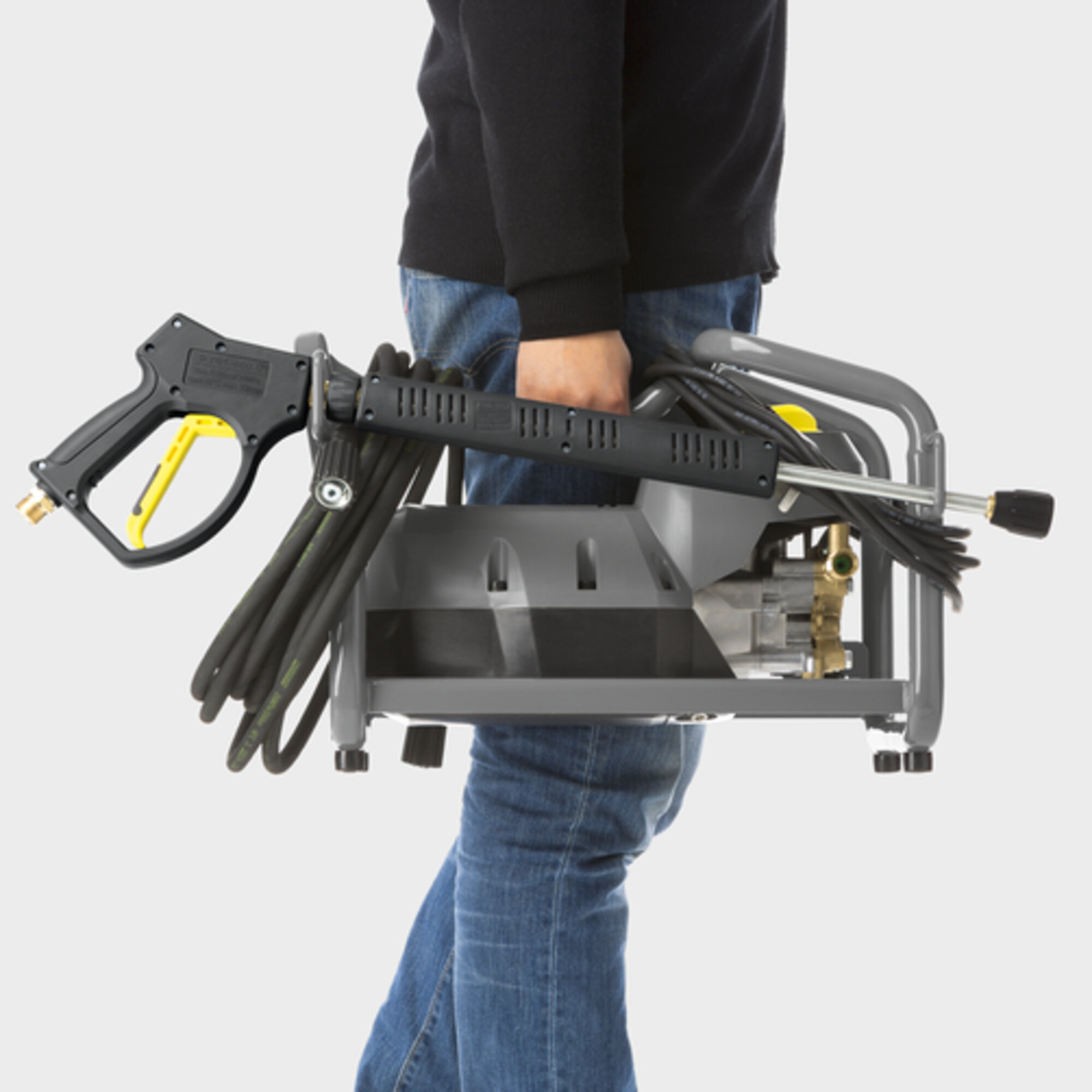

Very compact construction style and minimal weight. Comfortable handle for simple carrying. Space-saving storage and transport.
