Sale

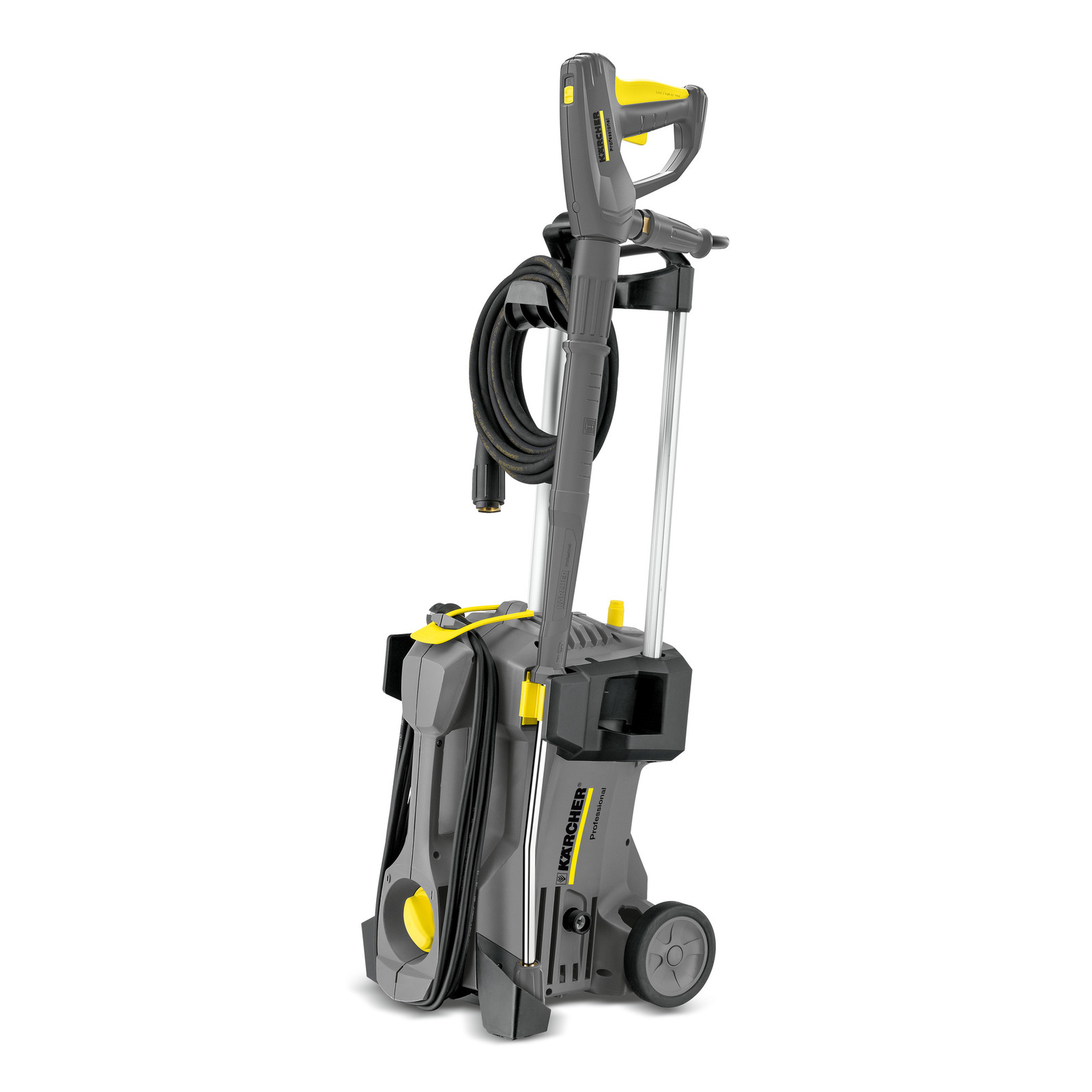

Kärcher high-pressure cleaner with hose and trigger gun, grey and yellow design, mounted on wheels.

Awards and exclusive range

High-pressure cleaner

HD 5/11 P

Order number: 1.520-960.0

Automatic pressure relief
For vertical and horizontal operation
Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release fasteners

Technical data

Number of current phases (Ph)	1
Voltage (V)	230
Frequency (Hz)	50
Flow rate (l/h)	490
Inlet temperature (°C)	60
Working pressure (bar / MPa)	110 / 11
Max. pressure (bar / MPa)	160 / 16
Connected load (kW)	2.2
Power cable (m)	5
Water inlet	3/4″
Colour	anthracite
Weight (with accessories) (kg)	20.6
Weight incl. packaging (kg)	22.8
Dimensions (L × W × H) (mm)	351 x 312 x 904

Scope of supply

Spray gun
High-pressure hose length: 10 m
High-pressure hose specification
Spray lance: 840 mm

Equipment

Pressure cut-off

Recommended maximum duration of use in hours/day.

High-pressure trigger gun with zero holding force for fatigue-free operation.

Robust, long-lasting quick-release lock: five times faster than screwing.

Product information and benefits

The HD 5/11 P portable high-pressure cleaner impresses with its compact construction style, low weight and outstanding mobility. The machine features a reliable three-piston axial pump with brass cylinder head. An additional carrying handle and the extendable push handle make it easier to transport the machine and store it in small spaces. Suitable for vertical and horizontal operation. The practical accessory storage features include a nozzle compartment, screw connection for Surface Cleaner, and a practical rubber band for securing the pressure hose. The automatic pressure relief system impresses by offering clear advantages: it protects the components, extends the service life, reduces repair and maintenance costs and lowers the pulling force on the new EASY!Force high-pressure gun. This also makes use of the recoil force of the high-pressure jet to reduce the holding force to zero. The EASY!Lock quick-release fasteners, which are also new, make handling five times faster than with conventional screw connections, without compromising when it comes to robustness and longevity.

Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release fasteners

Fatigue-free work at last: the EASY!Force high pressure gun. EASY!Lock quick-release couplings: durable and robust. And five times faster than screws.

Excellent mobility

The integrated carrying handle on the front of the machine enables easy loading and convenient transport. Compact construction style and low weight.

Flexibility

Vertical and horizontal operation possible. Separate park and transport position for the spray unit. The machine offers maximum stability in horizontal operation.

Quality

The automatic pressure relief protects the components and extends the service life of the machine. High-quality brass cylinder head.

Accessory storage

Screw connection (M 18 × 1.5) for storing a Surface Cleaner directly on the machine. Practical nozzle compartments for triple nozzle and rotary nozzle. Rubber strap for fixing the pressure hose.
