Sale

Kärcher high-pressure cleaner with wheels, hose, and handle, standing upright on a white background.

Awards and exclusive range

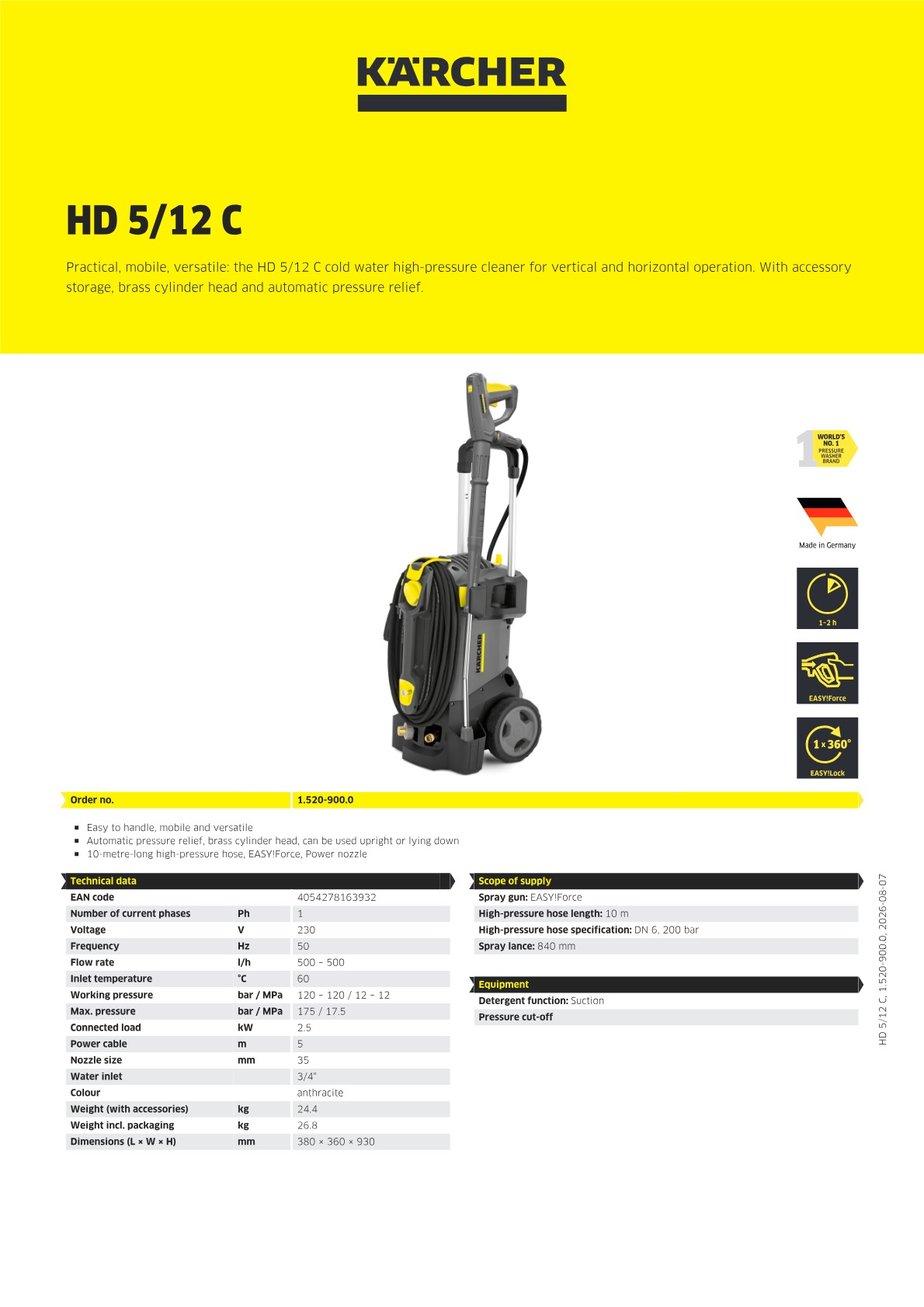

High-pressure cleaner

HD 5/12 C

Order number: 1.520-900.0

Easy to handle, mobile and versatile
Automatic pressure relief, brass cylinder head, can be used upright or lying down
10-metre-long high-pressure hose, EASY!Force, Power nozzle

Technical data

Number of current phases (Ph)	1
Voltage (V)	230
Frequency (Hz)	50
Flow rate (l/h)	500 - 500
Inlet temperature (°C)	60
Working pressure (bar / MPa)	120 - 120 / 12 - 12
Max. pressure (bar / MPa)	175 / 17.5
Connected load (kW)	2.5
Power cable (m)	5
Nozzle size (mm)	35
Water inlet	3/4″
Colour	Anthracite
Weight (with accessories) (kg)	24.4
Weight incl. packaging (kg)	26.8
Dimensions (L × W × H) (mm)	380 x 360 x 930

Scope of supply

Spray gun, EASY!Force
High-pressure hose length, 10 m
High-pressure hose specification, DN 6, 200 bar
Spray lance, 840 mm

Equipment

Detergent function: Suction
Pressure cut-off

Recommended maximum duration of use in hours/day.

High-pressure trigger gun with zero holding force for fatigue-free operation.

Robust, long-lasting quick-release lock: five times faster than screwing.

Product information and benefits

The compact, lightweight and versatile HD 5/12 C cold water high-pressure cleaner offers outstanding mobility and is suitable for both vertical and horizontal operation. The machine is fitted with sophisticated accessory storage, and the brass cylinder head and automatic pressure relief ensure a long service life. Also included in the equipment package are the newly developed EASY!Force high-pressure gun and the EASY!Lock quick-release fasteners. While the EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, the EASY!Lock quick-release fasteners make handling five times faster than with conventional screw connections, without losing any robustness or longevity. Effortless operation and time-saving set-up and dismantling therefore feature as standard and are representative of the successful overall concept of the machine.

Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release fasteners

Fatigue-free work at last: the EASY!Force high pressure gun. Robust EASY!Lock quick-release couplings: five times faster than screws.

Portability

The integrated carrying handle on the front of the machine enables easy loading and convenient transport. Push handle can be retracted at the push of a button. Compact construction style.

Flexibility

Vertical and horizontal operation possible. The wheels are not on during horizontal operation. As such, the machine offers maximum stability. Separate park and transport position for the spray unit.

Quality

The automatic pressure relief protects the components and extends the service life of the machine. High-quality brass cylinder head. Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.

Accessory storage

Screw connection (M 18 × 1.5) for storing a Surface Cleaner directly on the machine. Practical nozzle compartments for triple nozzle and rotary nozzle. Rubber strap for fixing the pressure hose.
