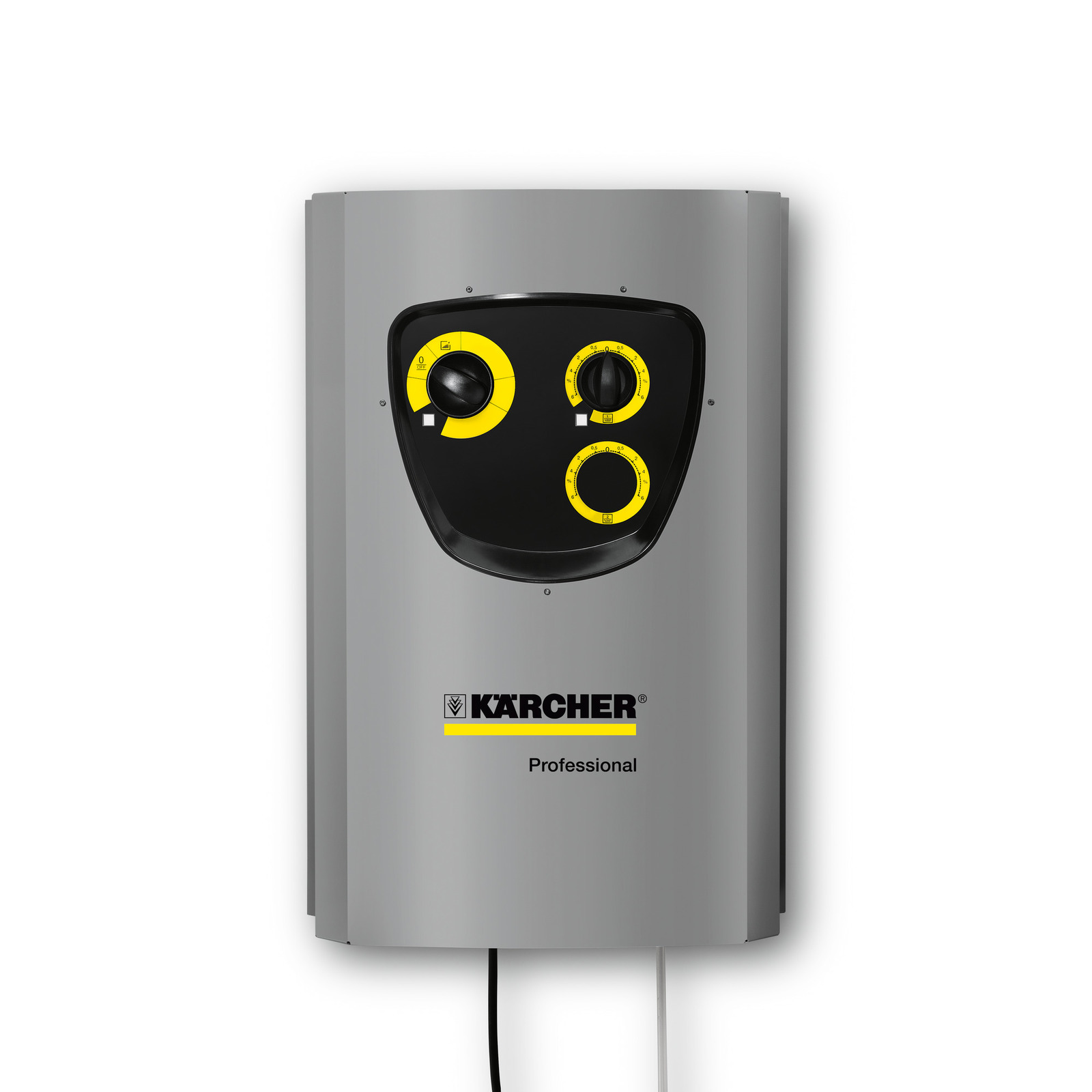

Kärcher Professional control panel with three yellow dials on a grey unit.

Awards and exclusive range

High-pressure cleaner

HD 7/16-4 ST

Name: HD 7/16-4 ST
Brand: Kärcher
SKU: 1.524-500.202

This device requires instruction

Order number: 1.524-500.202

With a working pressure of 160 bar, the HD 7/16-4 ST is an entry-level machine in the area of stationary high-pressure cleaners with single-lance operation. Many features are freely configurable.

Request a offer

Technical data

Number of current phases (Ph)	3
Voltage (V)	400
Frequency (Hz)	50
Flow rate (l/h)	300 - 700
Working pressure (bar / MPa)	30 - 160 / 3 - 16
Max. pressure (bar / MPa)	190 / 19
Inlet temperature (°C)	70
Connected load (kW)	4.4
Protection (A)	16
Portability	stationary
Weight (with accessories) (kg)	53
Dimensions (L × W × H) (mm)	900 x 780 x 705

Scope of supply

High-pressure hose length: 10 m
High-pressure hose specification
Anti-twist system (AVS)
Stainless steel spray lance: 1050 mm
Prepared for Servo Control

Equipment

Spray gun: Easy Press trigger gun
Spray gun with soft grip padding

Recommended maximum duration of use in hours/day.

High-pressure gun with patented holding force reduction.

Product information and benefits

The HD 7/16-4 ST is an entry-level model in the range of stationary cold water high-pressure cleaners from Kärcher. With a working pressure of 160 bar, it also impresses in difficult cleaning tasks. It particularly impresses with its broad range of configurable equipment details (which can also be retrofitted in some cases). For example, the machine is also available as a hot water version. Options such as pressure relief, dry-running protection, stainless steel casing, water softening or elapsed time counter are also available. There is also the option of suctioning one or two cleaning agents in high or low pressure, and, thanks to the extensive accessory line, the machine can be optimally adapted to its location of use. New developments which increase working convenience feature as standard, such as the EASY!Force high-pressure gun, which makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, and the EASY!Lock quick-release fasteners, which make handling five times faster than with conventional screw connections, without compromising when it comes to robustness and longevity.

Always flexible thanks to fast retrofitting capability

Most functions and accessory parts can be retrofitted at any time. Simple Plug ’n’ Play saves assembly costs. Adjustment to changed requirements instead of a new purchase.

Very hot and effective cleaning thanks to a high inlet temperature

Up to 70°C water supply temperature even in the basic model. With an advance pressure pump and heat-resistant seals, temperatures of up to 85°C can be achieved. Simple pre-connection of a HWE 860 hot water generator possible.

Individual configurability saves investment costs

You don't pay for anything that isn't really needed. Simply choose a basic unit and add only the required functions. Over 50 accessories for ease of use.

Long lifetime guarantees high value retention

Slow-running 4-pole electric motor. Hard-wearing ceramic pistons. Individually adjustable switch-off times reduce the operating time.
