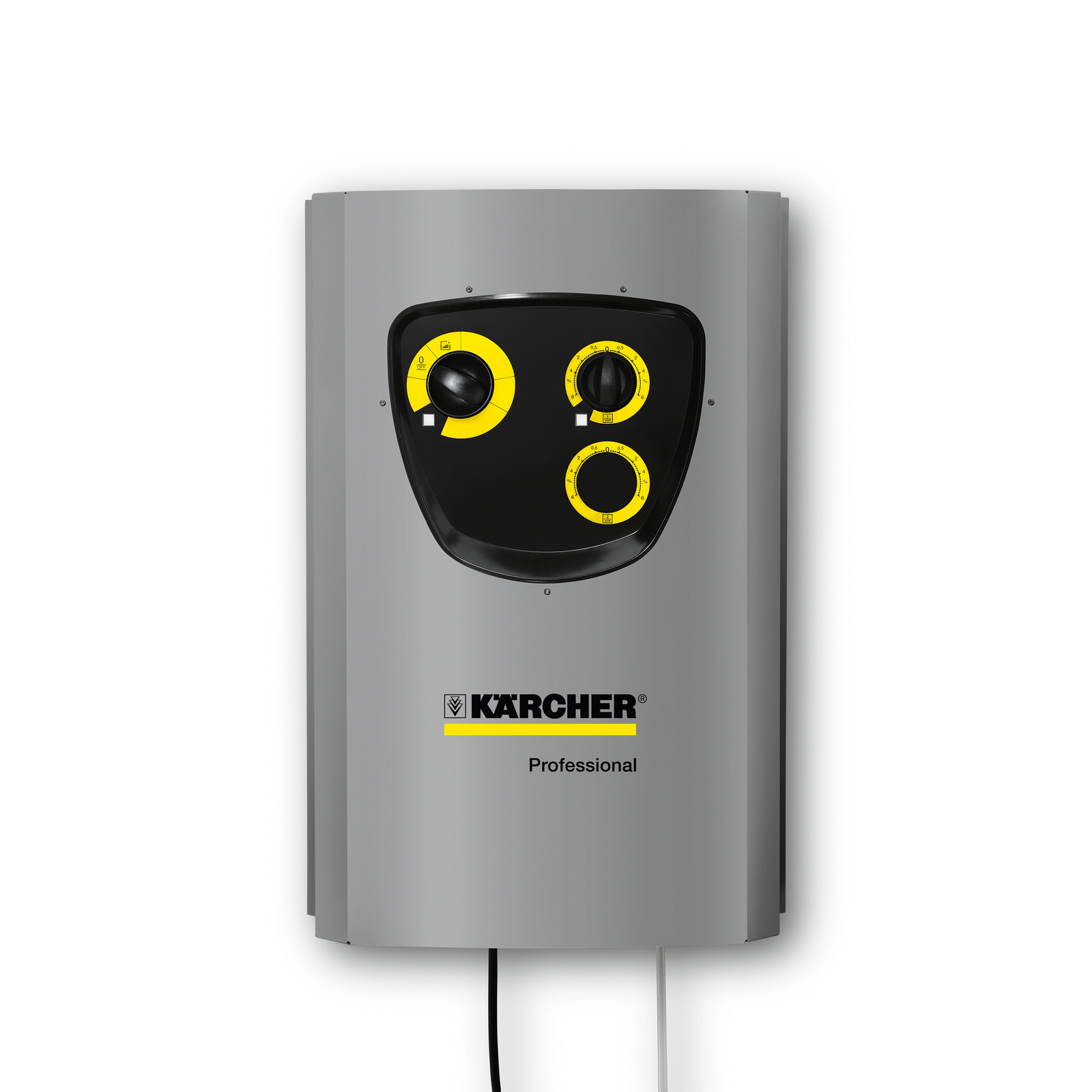

Kärcher Professional control panel with three yellow dials on a grey unit.

Awards and exclusive range

High-pressure cleaner

HD 9/18-4 ST

Name: HD 9/18-4 ST
Brand: Kärcher
SKU: 1.524-500.203

This device requires instruction

Order number: 1.524-500.203

With a working pressure of 180 bar and a water flow of 900 l/h, the configurable HD 9/18-4 ST is the all-round solution in the area of stationary cold water high-pressure cleaners.

Request a offer

Technical data

Number of current phases (Ph)	3
Voltage (V)	400
Frequency (Hz)	50
Flow rate (l/h)	460 - 900
Working pressure (bar / MPa)	40 - 180 / 4 - 18
Max. pressure (bar / MPa)	210 / 21
Inlet temperature (°C)	70
Connected load (kW)	6.4
Protection (A)	16
Portability	stationary
Weight (with accessories) (kg)	62.5
Dimensions (L × W × H) (mm)	900 x 780 x 705

Scope of supply

High-pressure hose length: 10 m
High-pressure hose specification
Anti-twist system (AVS)
Stainless steel spray lance: 1050 mm
Prepared for Servo Control

Equipment

Spray gun: Easy Press trigger gun
Spray gun with soft grip padding

Recommended maximum duration of use in hours/day.

High-pressure gun with patented holding force reduction.

Product information and benefits

While many equipment features of our HD 9/18-4 ST cold water high-pressure cleaner are freely configurable, a working pressure of 180 bar and a flow rate of at least 900 l/h also mean that it earns the title "all-rounder" for a variety of fields of application from industry to agriculture. Optional functions such as pressure relief, dry-running protection and water softening can also be integrated to protect the machine. For hygiene-sensitive areas, there is a variant with stainless steel casing, while very demanding cleaning tasks are best tackled with the hot water version and the option to suction cleaning agents. The recently developed innovations EASY!Force and EASY!Lock are always on board: While the EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, the EASY!Lock quick-release fasteners enable handlingthat is five times faster than with conventional screw connections, without losing any robustness or longevity. An extensive range of accessories and added details complete the sophisticated concept of the HD 9/18-4 ST.

Always flexible thanks to fast retrofitting capability

Most functions and accessory parts can be retrofitted at any time. Simple Plug ’n’ Play saves assembly costs. Adjustment to changed requirements instead of a new purchase.

Very hot and effective cleaning thanks to a high inlet temperature

Up to 70°C water supply temperature even in the basic model. With an advance pressure pump and heat-resistant seals, temperatures of up to 85°C can be achieved. Simple pre-connection of a HWE 860 hot water generator possible.

Individual configurability saves investment costs

You don't pay for anything that isn't really needed. Simply choose a basic unit and add only the required functions. Over 50 accessories for ease of use.

Long lifetime guarantees high value retention

Slow-running 4-pole electric motor. Hard-wearing ceramic pistons. Individually adjustable switch-off times reduce the operating time.
