Kärcher high-pressure cleaner with Yanmar engine, mounted on a wheeled frame, featuring a handle and various components.

Awards and exclusive range

High-pressure cleaner

HD 9/23 De

Order number: 1.187-907.0

Economical diesel engine with convenient electro start
Infinitely variable water pressure and water flow regulation with Servo Control on the high-pressure lance
Automatic speed reduction

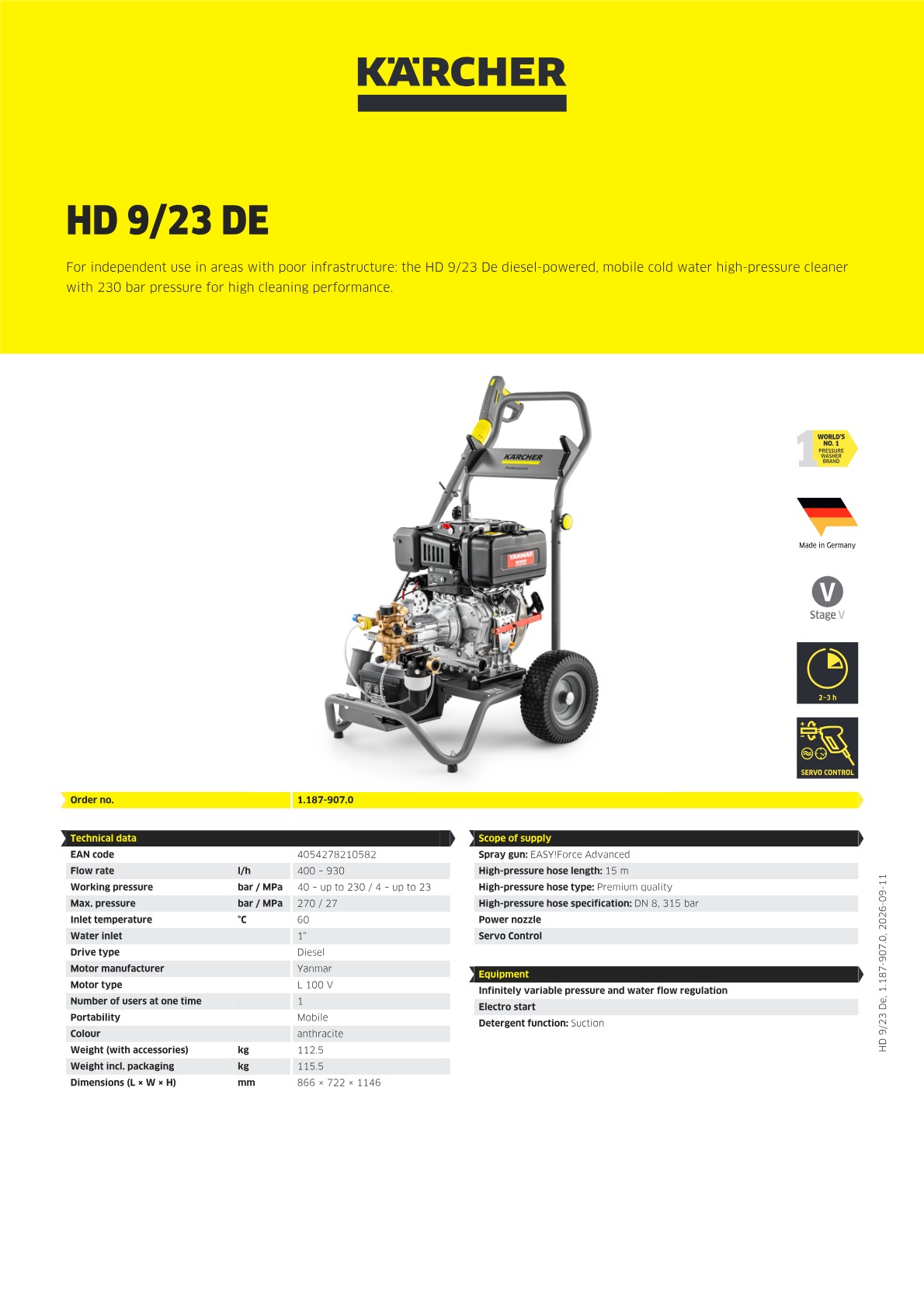

Technical data

Flow rate (l/h)	400 - 930
Working pressure (bar / MPa)	40 - up to 230 / 4 - up to 23
Max. pressure (bar / MPa)	270 / 27
Inlet temperature (°C)	60
Water inlet	1″
Drive type	Diesel
Motor manufacturer	Yanmar
Motor type	L 100 V
Portability	Mobile
Colour	anthracite
Weight (with accessories) (kg)	112.5
Weight incl. packaging (kg)	115.5
Dimensions (L × W × H) (mm)	866 x 722 x 1146

Scope of supply

Spray gun: EASY!Force Advanced
High-pressure hose length: 15m
High-pressure hose type: Premium quality
High-pressure hose specification: DN 8, 315 bar
Power nozzle
Servo Control

Equipment

Infinitely variable pressure and water flow regulation
Electro start
Detergent function: Suction

Recommended maximum duration of use in hours/day.

Regulierung von Druck und Wassermenge an der Pistole.

Permanently ensures high mobility also on uneven surfaces.

High-pressure trigger gun with zero holding force for fatigue-free operation.

Schlauch mit frei drehbar gelagerten Anschlüssen.

Robust, long-lasting quick-release lock: five times faster than screwing.

The machine can also be operated with synthetic diesel fuels, so-called e-fuels.

Product information and benefits

Ideal wherever difficult external conditions and demanding cleaning tasks meet: the HD 9/23 De diesel-powered cold water high-pressure cleaner with Yanmar diesel engine generates the electricity it needs itself. If necessary, the required water can also be suctioned directly from bodies of water, allowing you to work in areas with poor infrastructure. With a water pressure of 230 bar, the machine measures up to almost any task. Its ergonomic frame concept and the puncture-proof wheels guarantee maximum mobility, while the robust basic frame can withstand heavy-duty use. With the EASY!Force high-pressure gun, which makes use of the recoil force of the high-pressure jet to reduce the holding force for the operator to zero, as well as the EASY!Lock quick-release fasteners, which make set-up and dismantling five times faster than with conventional screw connections, the machine is very convenient to use. A large water filter and a thermostat valve are built in to protect the pump. Useful optional enhancements, like the extra cage frame with eyelets for crane loading, round off the machine.

Maximum independence

Fitted with reliable Honda or Yanmar engines for use without an external power supply. Can suck up water – e.g. from lakes or ponds – and use it for cleaning.

Optimum ease of use

The ergonomic frame concept makes transport on uneven ground easier. Storage possibilities for all accessory parts directly on the machine. Puncture-proof wheels guarantee permanently high mobility.

Highly versatile

Optional cage frame with eyelets for crane loading reliably protects the machine. Hose reel attachment kit for shorter set-up & finishing-off times available as an optional extra. Portable version with robust tubular frame specially designed for painters and plasterers (HD 728 B).

For the toughest jobs

Robust basic frame for daily use in tough conditions. Large water filter to protect the pump. Thermostat valve to protect the pump from overheating in recirculation mode.
