    Kärcher professional trailer-mounted cleaning unit with grey casing and tow bar, featuring wheels and hitch.

    Awards and exclusive range

    World's No. 1 Pressure Washer Brand
    IF Design Award 2017

    HDS Trailer

    HDS 13/20 De Tr1

    This device requires instruction

    Order number: 1.524-952.203

    • Automatic speed reduction
    • With cleaning agent dosing
    • Servo Control: infinitely variable water and pressure volume regulation direct from the trigger gun

    Request a offer
    Drive type
    Diesel
    Motor manufacturer
    Yanmar
    Motor rating (kW / hp)
    19 / 26
    Flow rate (l/h)
    900 - 1300
    Pressure (bar / MPa)
    60 - 200 / 6 - 20
    Consumption of heating oil in eco!efficiency mode (kg/h)
    8.2
    Weight (with accessories) (kg)
    945
    Dimensions (L × W × H) (mm)
    3646 x 1747 x 1735

    Scope of supply

    • Spray gun: EASY!Force Advanced
    • High-pressure hose: 30m
    • Spray lance: 1050mm
    • Power nozzle
    • Servo Control
    Made in Germany
    logo MC250 Stage V CMYK oth 01 CI15 284x284
    Recommended maximum duration of use in hours/day.
    Regulierung von Druck und Wassermenge an der Pistole.
    High-pressure trigger gun with zero holding force for fatigue-free operation.
    Schlauch mit frei drehbar gelagerten Anschlüssen.
    picto full ceramic valve oth 01 EN CI15
    Robust, long-lasting quick-release lock: five times faster than screwing.
    The machine can also be operated with synthetic diesel fuels, so-called e-fuels.
    Weeding with our weed remover and hot water high-pressure cleaners without chemicals.
    The HDS 13/20 hot water high-pressure cleaner with trailer base offers pressures of 200 bar and features extraordinary mobility and an independent operational capability. The machine is characterised by its high efficiency, reliability and ease of servicing, and on top of this is simple and convenient to operate. The HDS 13/20 can be configured according to requirements and is therefore extremely flexible. The machine is ideal for the most varied applications, for example in construction, industry or in the municipal sector.
    1524520 det 11502x502
    Maximum performance
    Proven and highly efficient burner technology. Heat recovery through use of waste heat from the engine. Environmentally-friendly operation and low operating costs thanks to Kärcher's eco!efficiency mode.
    1524520 det 1502x502
    Easy operation
    The machine is easy to operate using a central selector switch. Easy to set up and dismantle thanks to two optional hose reels in the control area. Safe and ample storage options for protective equipment, accessories and detergents.
    1524520 det 12502x502
    Self-sufficient application
    Large 500 l water tank for up to 30-minute cleaning applications with full water performance. With 100 l diesel tank – ideal for long work assignments. Powerful Yanmar diesel engines allow the machine to be used independently of any power source.
    1524520 det 13502x502
    High flexibility
    Thanks to its configurability, each trailer can be custom-made according to customer requests. Available as Skid or Cab variant for mobile application as a trailer or as a stationary solution. A large hood enables service staff to access the internal components more easily.
    Easy servicing
    Sophisticated service software for rapid fault diagnosis during servicing. Tried-and-tested high-quality Kärcher components guarantee a long lifetime. Includes: Water softening system to protect the heating coil against calcification.
    Reliability
    Numerous safety functions protect the HDS trailer against damage in the case of an error. Integrated frost protection mode to protect all components in cold exterior temperatures. Proven and highly efficient burner technology.

    Manufacturer: Alfred Kärcher SE & Co. KG

    Alfred-Kärcher-Strasse 28-40, 71364 Winnenden, Germany

    Tel. +49 7195 / 14-0 I Fax +49 7195 / 14-2212

    E-mail: info@karcher.com

    Manual

    Read the manual online

    Read online

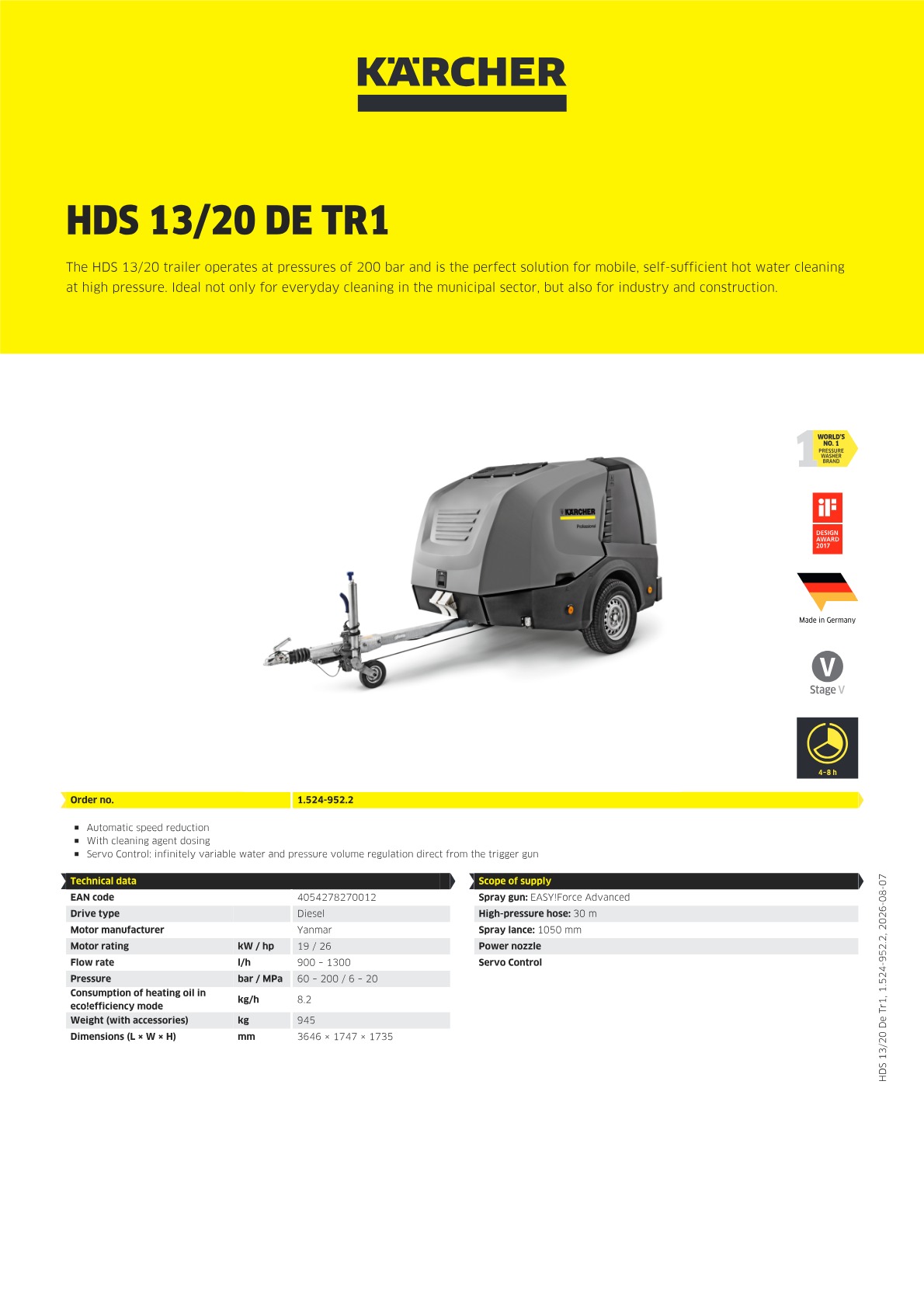

    • Product information

      Product information

      Download PDF
    • Manual

      Manual

      Download PDF
    • Manual

      Manual

      Download PDF
    • Manual

      Manual

      Download PDF
    • Manual

      Manual

      Download PDF

    Application areas

    • Municipal (cleaning public open spaces, traffic routes, removing graffiti and chewing gum)
    • Construction (cleaning construction machines, scaffolding, casing, equipment)
    • Industrial cleaning (removing paint and coatings, cleaning machines, parts and equipment)
